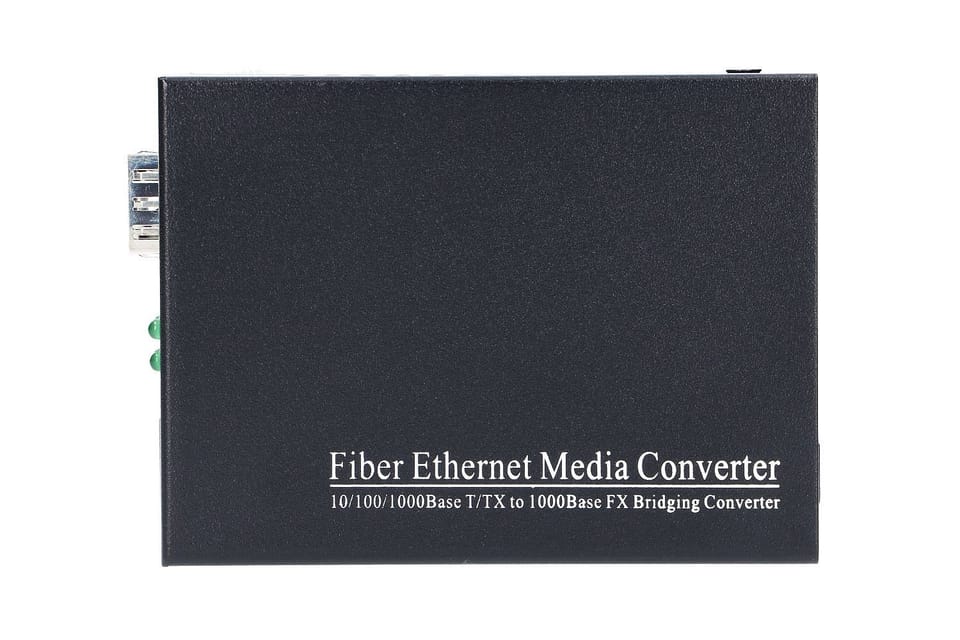

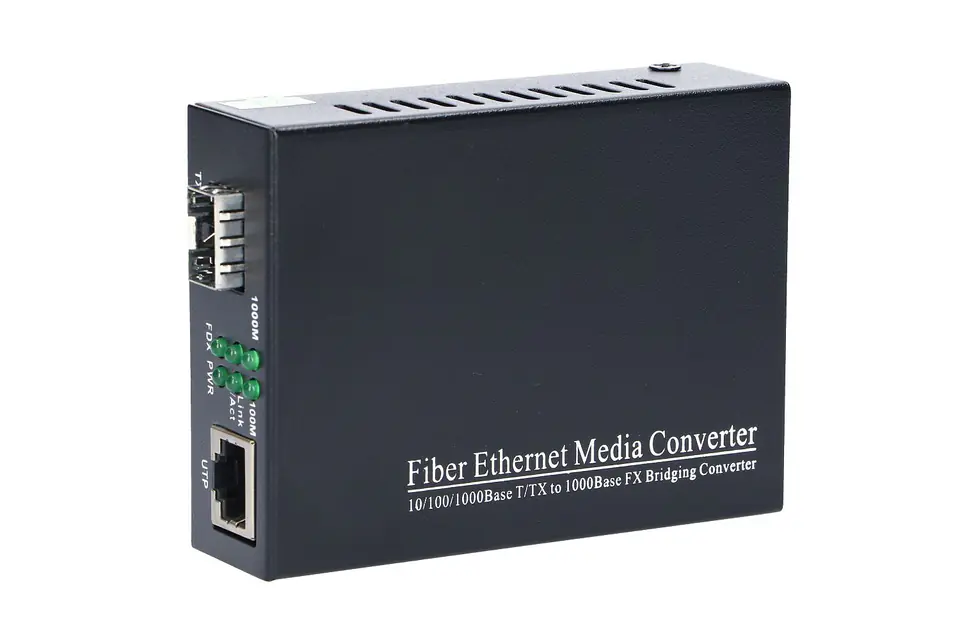

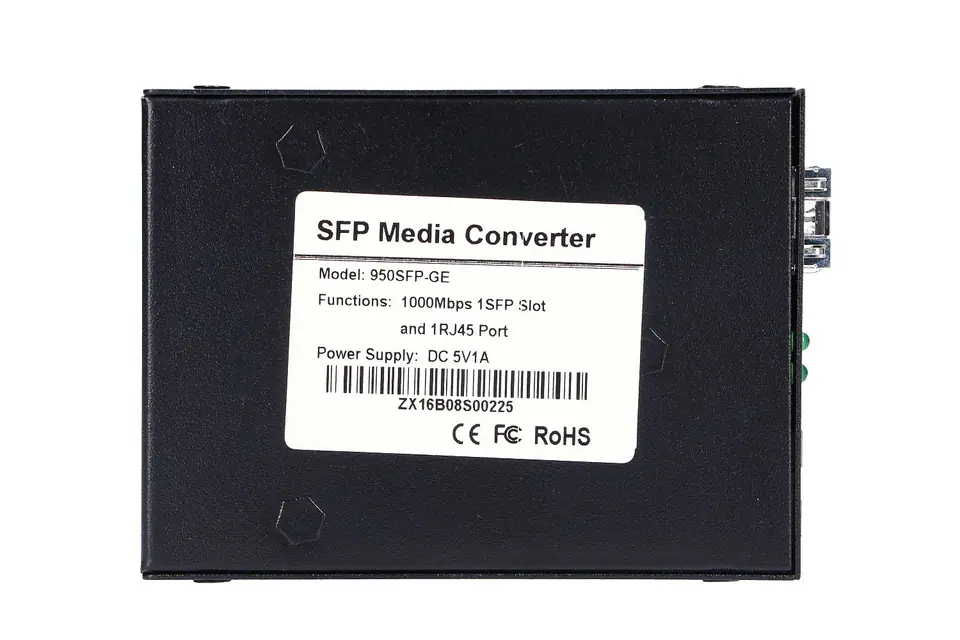

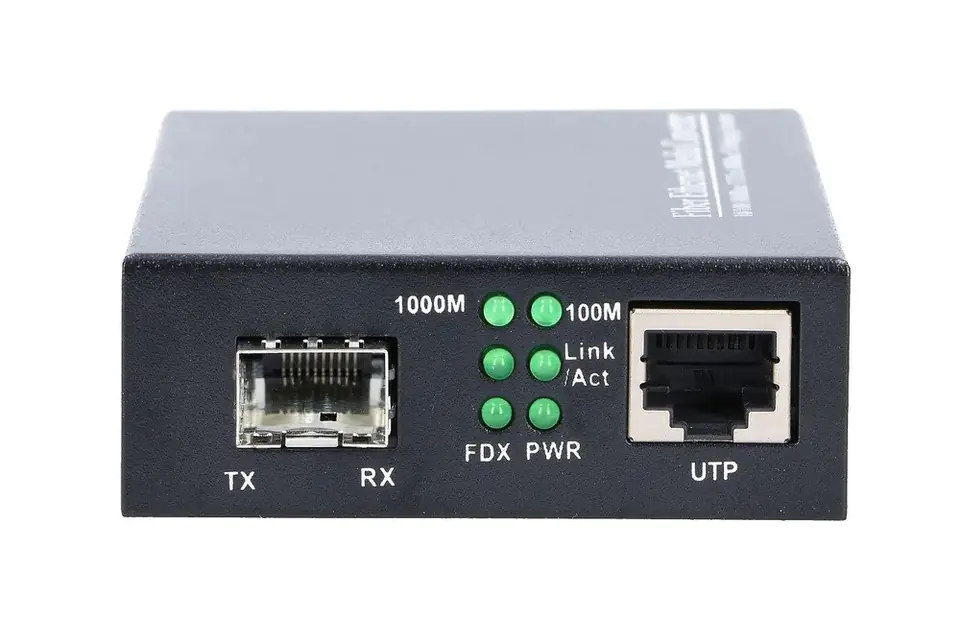

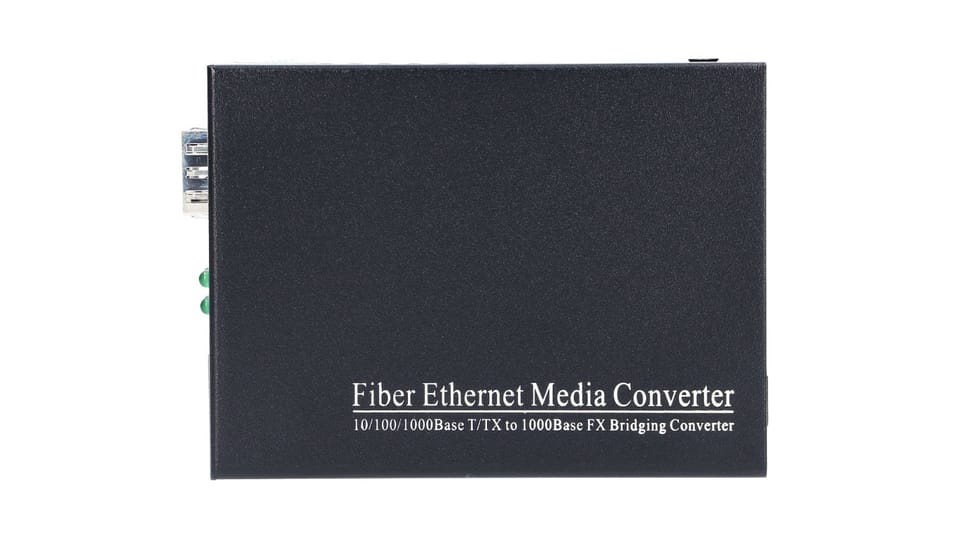

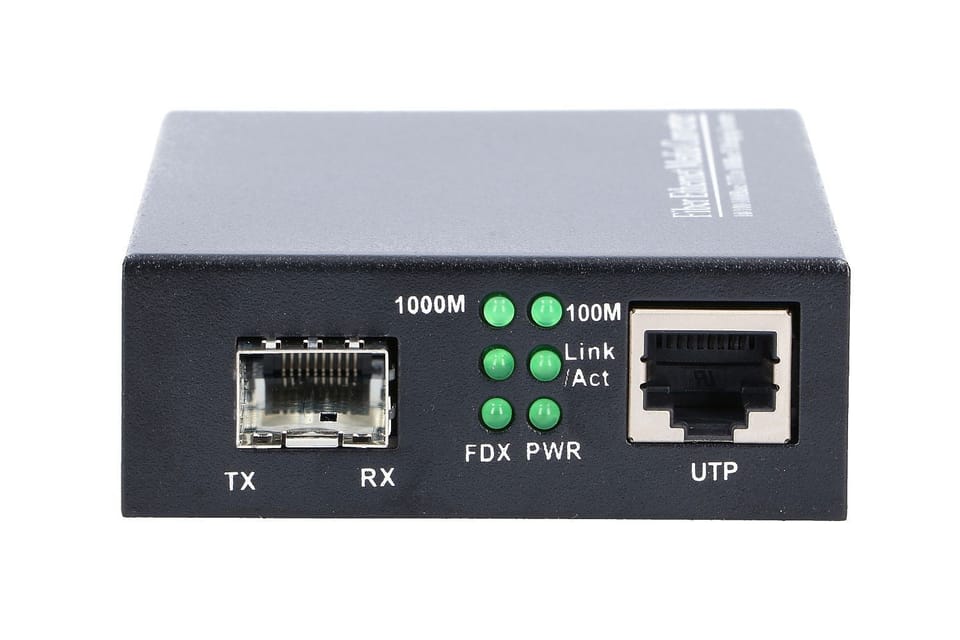

Media converter Sedir 1x SFP, 1x RJ45, 1000Mb/s
Media converter Sedir 1xSFP 1xRJ45
€20.85
Shipping from warehouse: M7
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Extralink
- Product code:
- EX.3296 / 5902560363296
Share this product:
Specification
| Ac input frequency: | 50 - 60 Hz |
|---|---|
| Auto mdi/mdi-x: | Yes |
| Connectivity technology: | Wired |
| Converter input interface: | 100Base-T, 1000Base-T, 1000Base-TX, 10Base-T, 100Base-TX |
| Converter output interface: | 1000Base-FX |
| Copper ethernet cabling technology: | 1000BASE-TX, 10BASE-T, 100BASE-T, 100BASE-TX, 10BASE-TX, 1000BASE-T |
| Data transfer rate: | 1000 Mbit/s |
| Depth: | 94 mm |
| Din rail mounting: | No |
| Duplex system: | Full |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan data rates: | 100, 1000 Mbit/s, 10 |
| Fiber ethernet cabling technology: | 1000BASE-FX |
| Fiber optic connector: | SFP |
| Height: | 26.5 mm |
| Hot-swap: | Yes |
| Housing material: | Metal |
| Input current: | 0.3 A |
| Input voltage: | 100 - 240 V |
| Internal: | Yes |
| Jumbo frames: | 9216 |
| Jumbo frames support: | Yes |

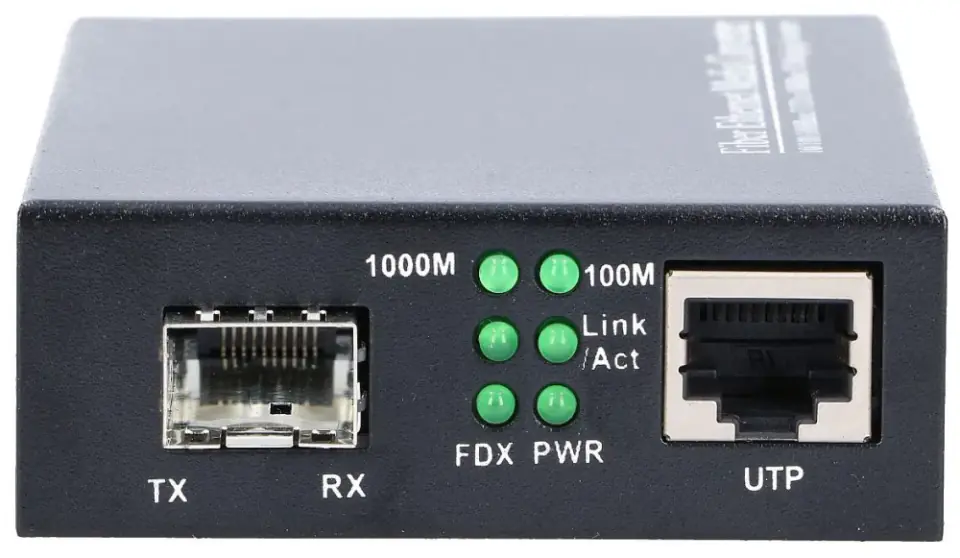

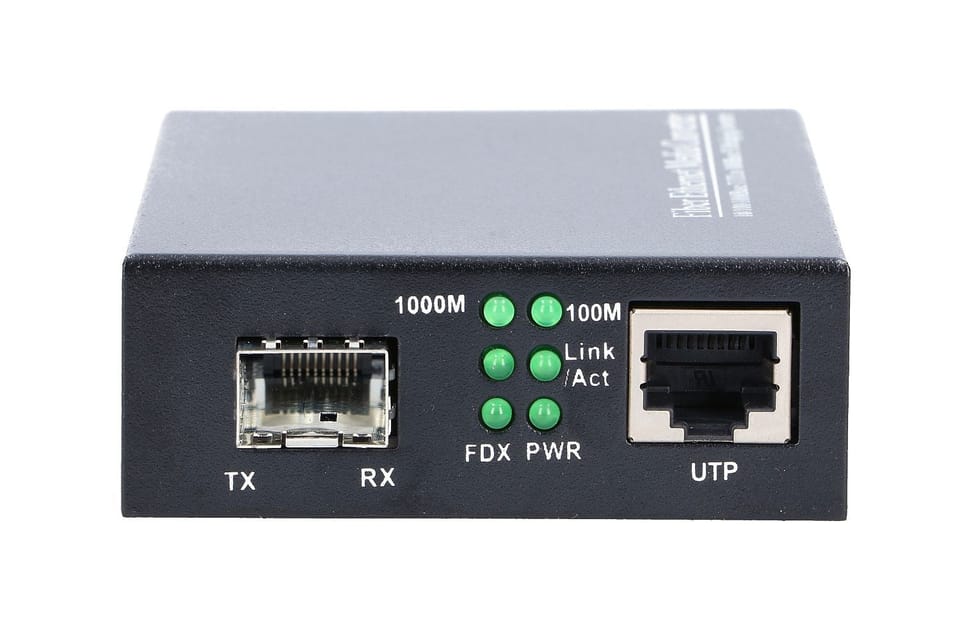

| Led indicators: | Activity, Link, Power |
| Maximum data transfer rate: | 1000 Mbit/s |
| Maximum transfer distance: | 10000 m |
| Networking standards: | IEEE 802.3u, IEEE 802.3z, IEEE 802.3, IEEE 802.3ab |

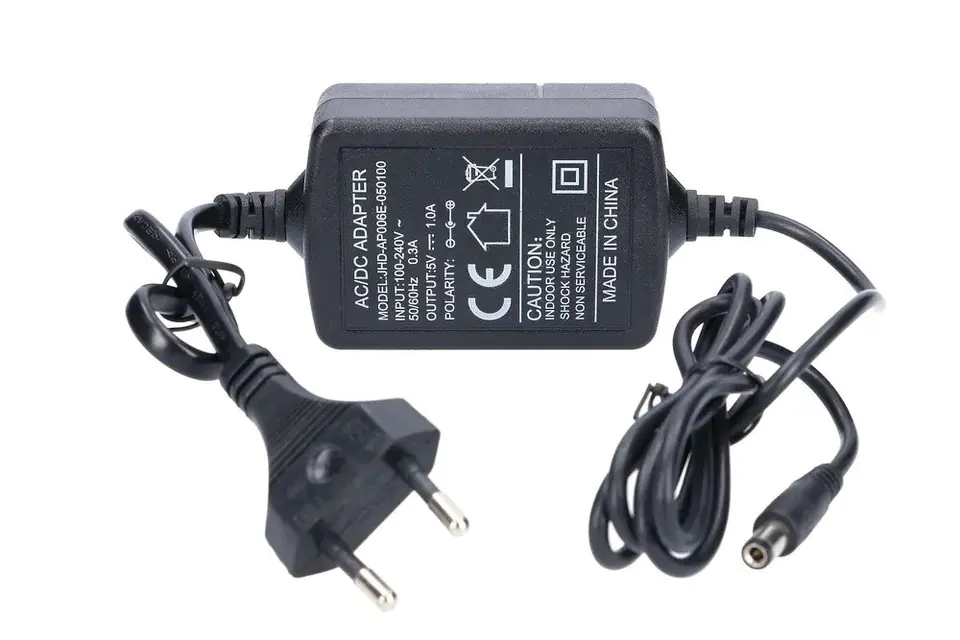

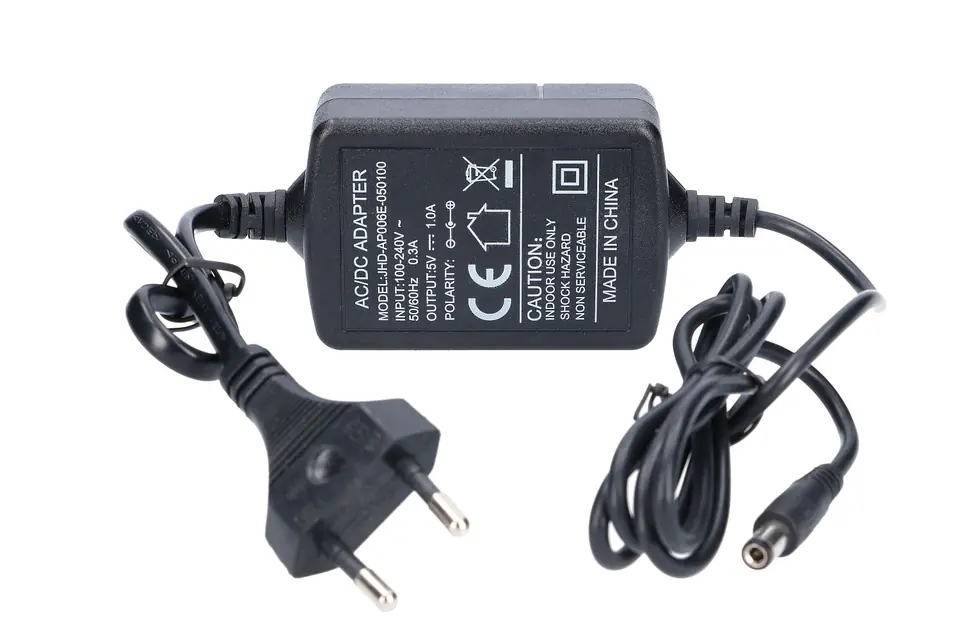

| Output current: | 1 A |

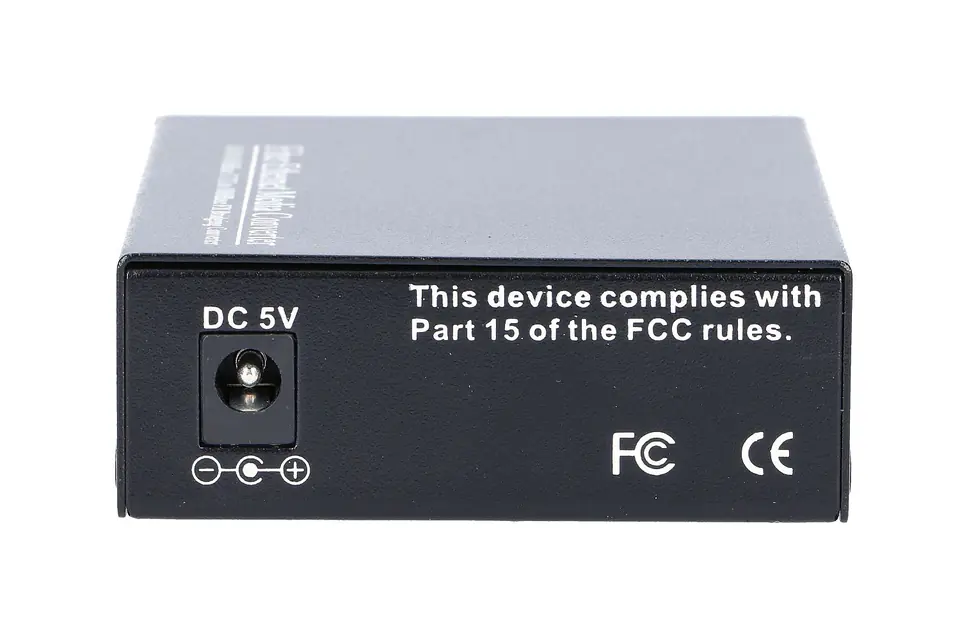

| Output voltage: | 5 V |
| Plug and play: | Yes |
| Power over ethernet (poe): | No |
| Product colour: | Black |
| Reset button: | No |
| Wavelength: | 1 nm |
| Web-based management: | No |
| Width: | 70.6 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
