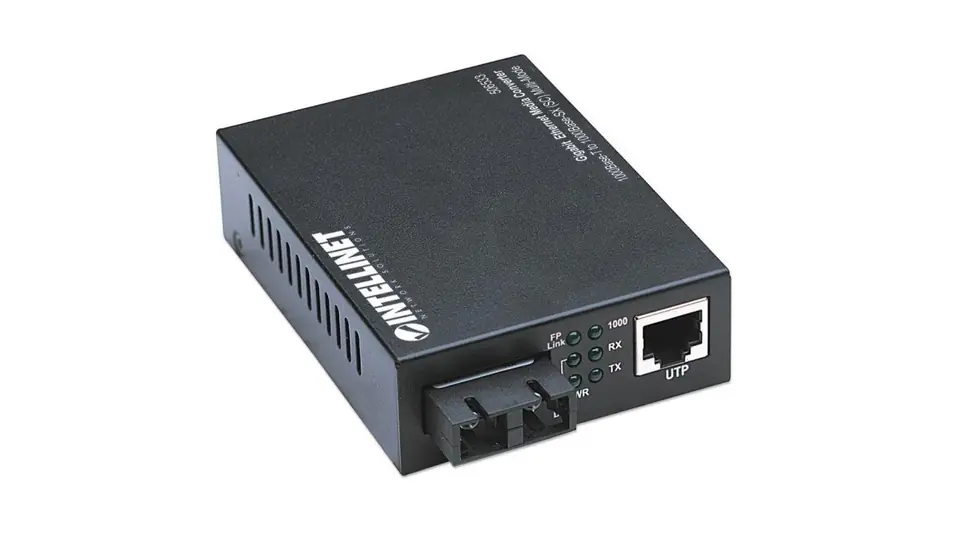

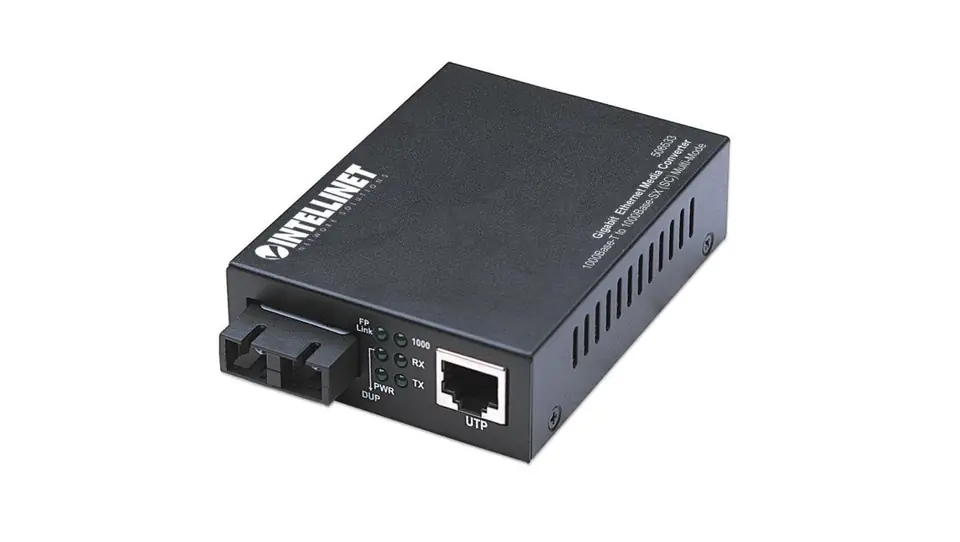

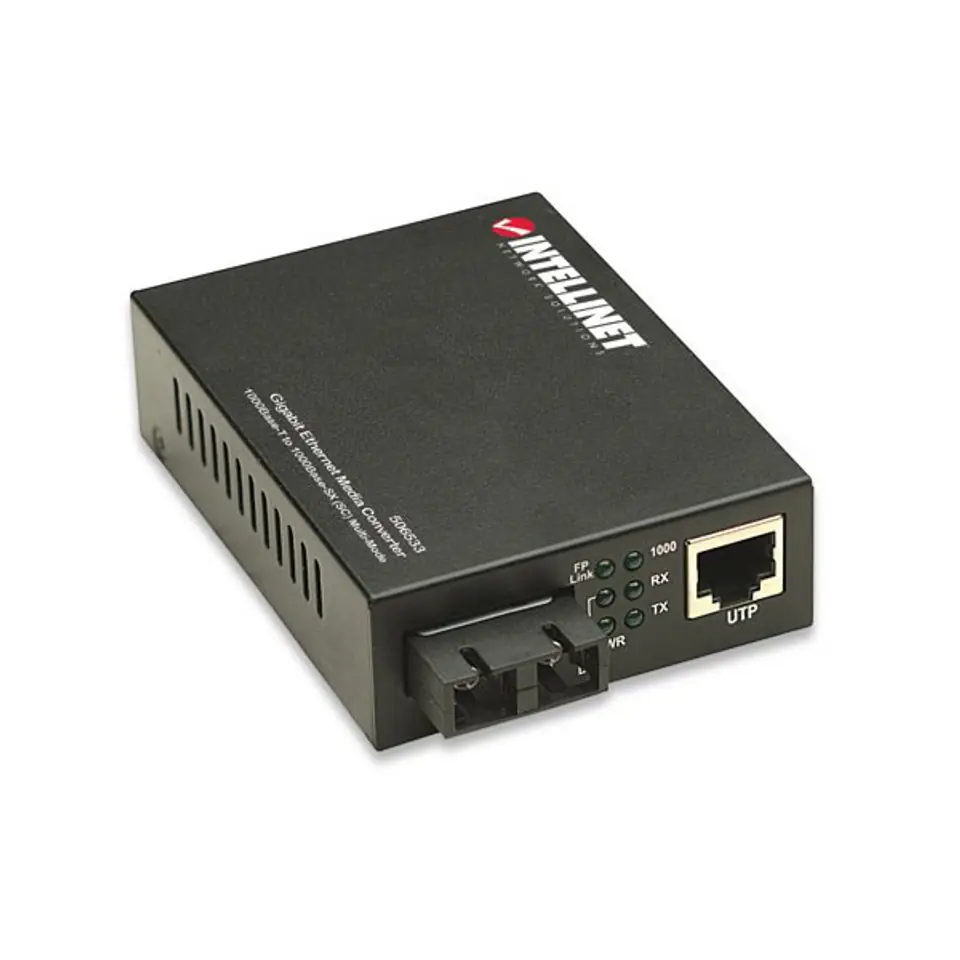

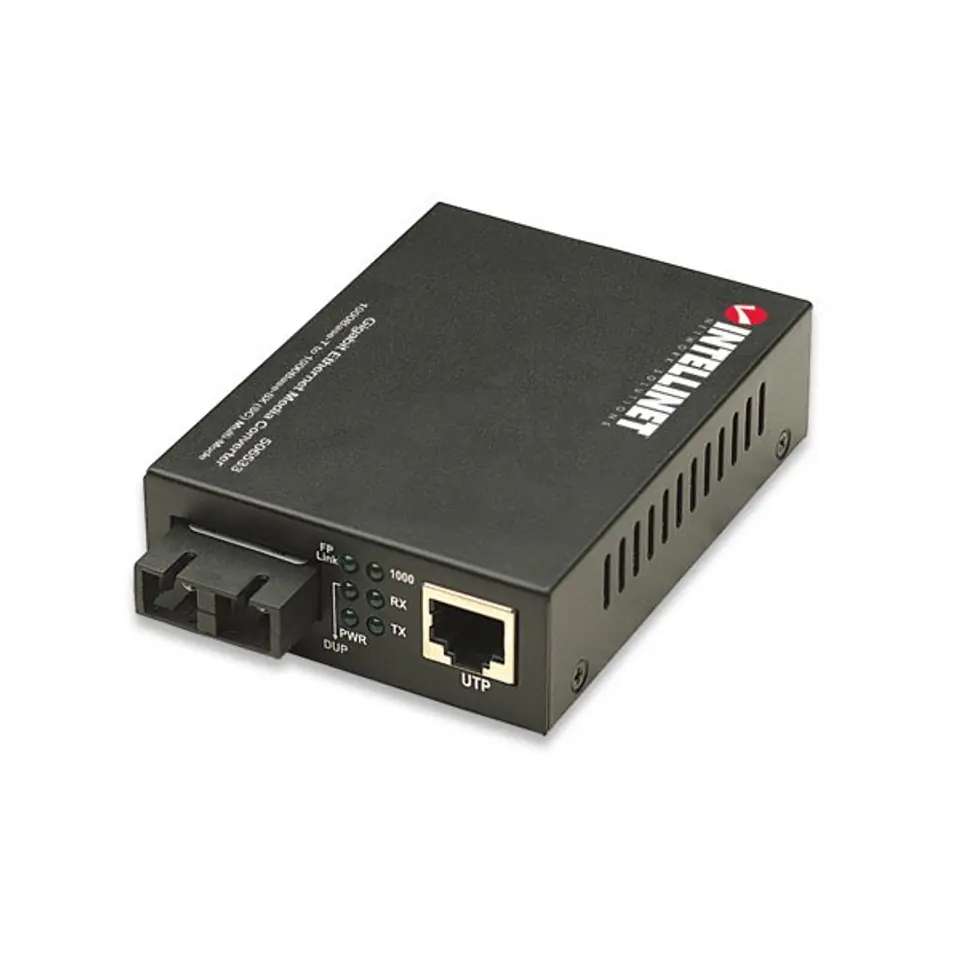

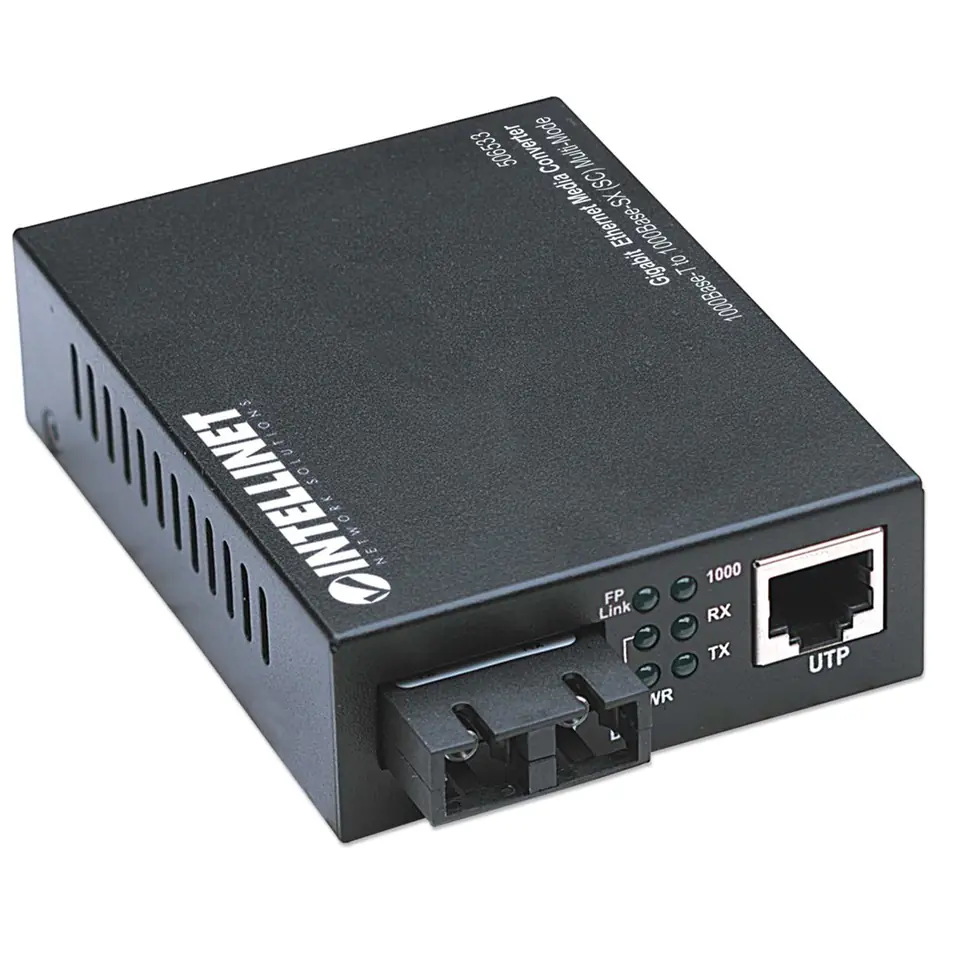

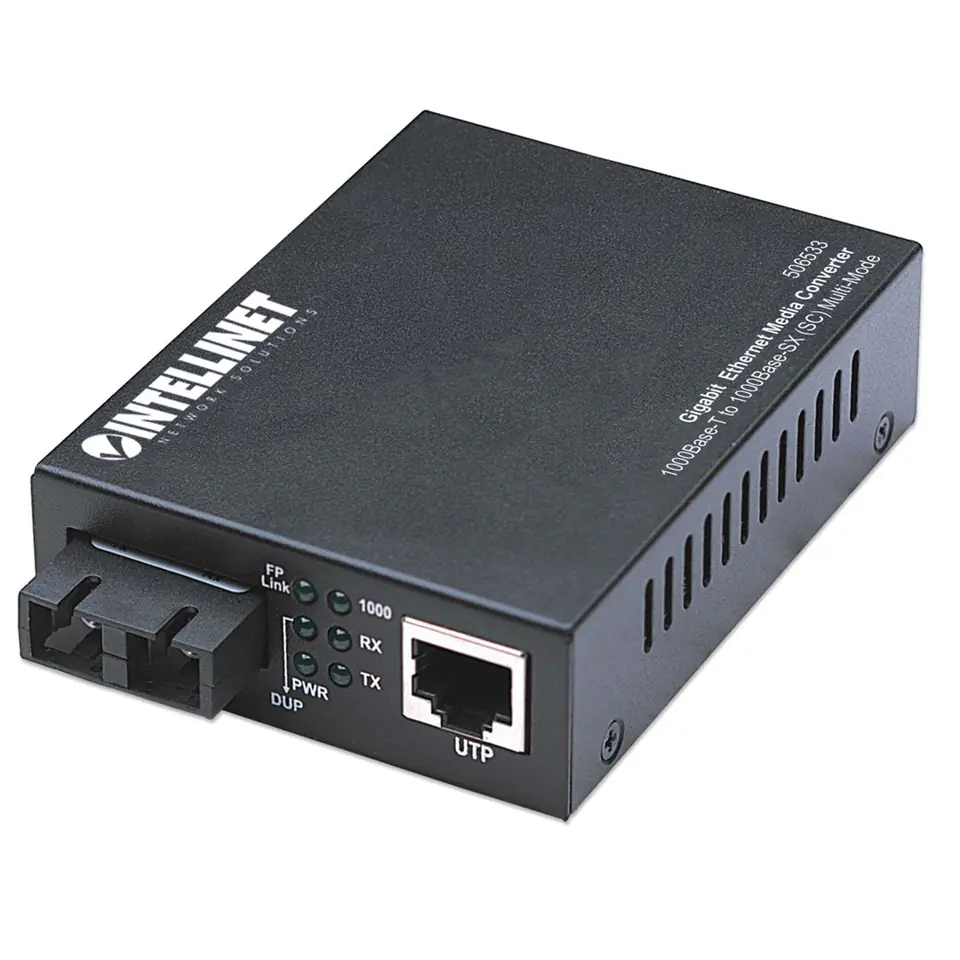

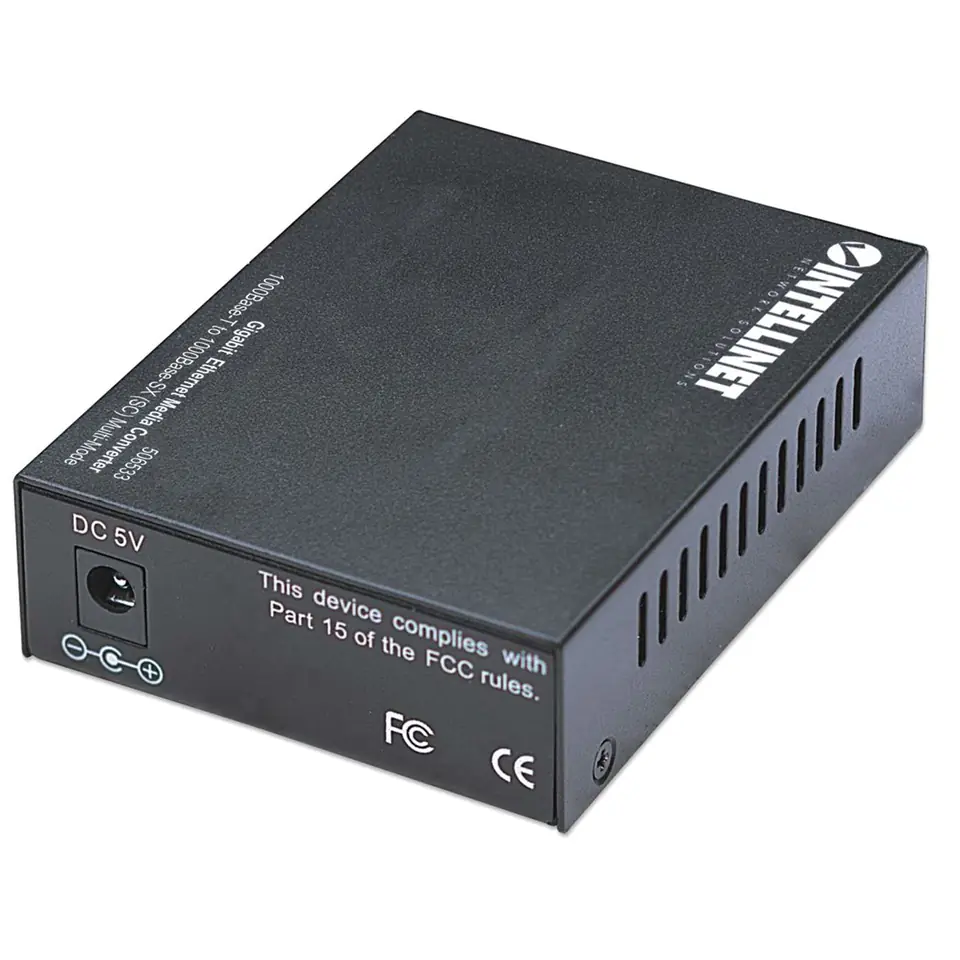

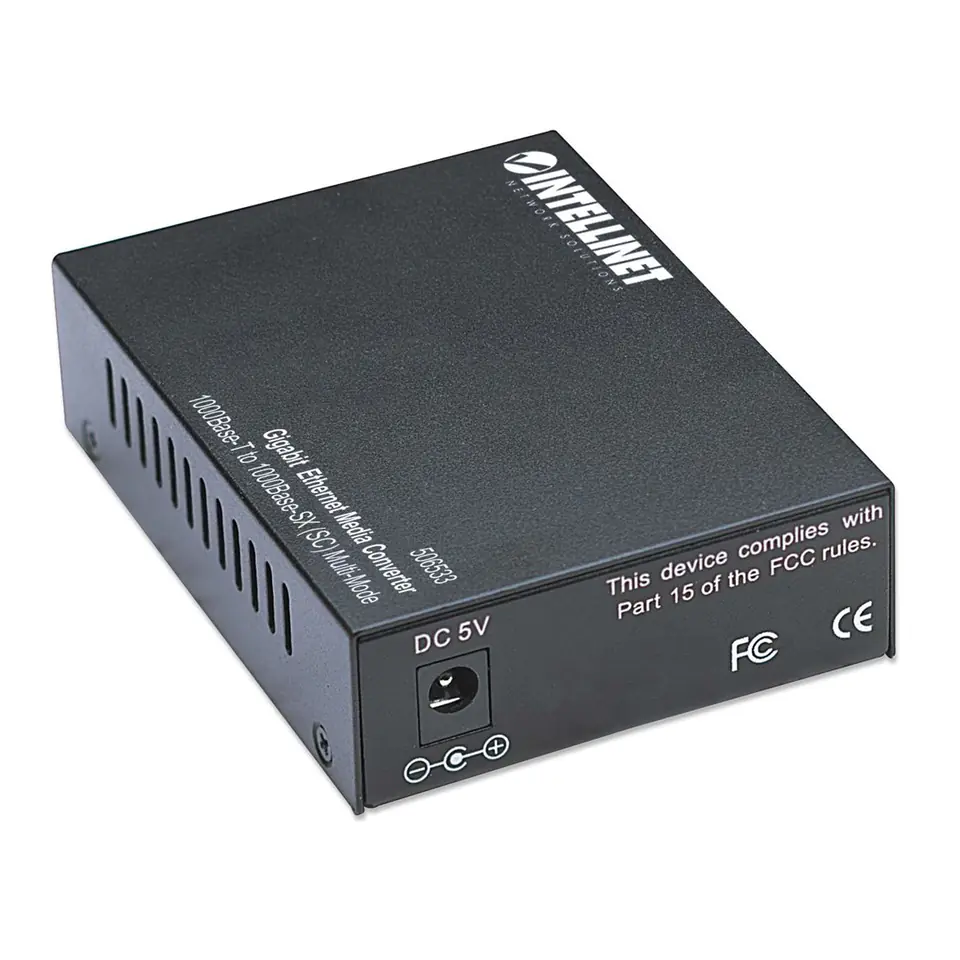

Media Converter 1000BAS E-T RJ45/1000BASE-SX MM SC
€69.67
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Intellinet
- Product code:
- 506533 / 0766623506533
Share this product:
Specification
| Colour: | Black |
|---|---|
| Connectivity technology: | Wired |
| Converter input interface: | 1000Base-T, 1000Base-SX |

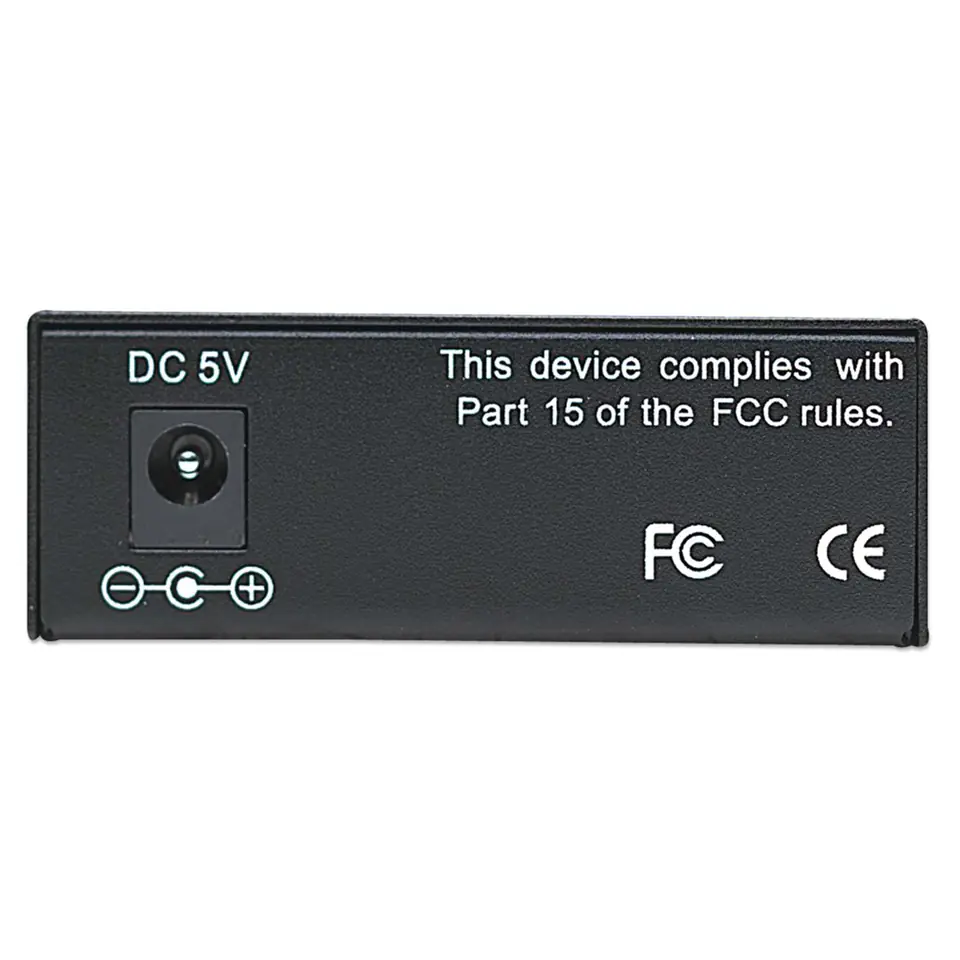

| Dc-in jack: | Yes |
| Dedicated model: | Universal |
| Depth: | 107 mm |
| Description: | Wavelength: 850 nm, One 10/100Base-TX RJ45 port, maximum distance 100 m, RJ45 port with MDI/MDI-X auto-negotiation and auto-negotiation speed, Data transfer: 1000 Mbps, One 1000Base-SX SC multimode duplex fiber port, One 1000Base-T RJ45 port, maximum distance 100 m (Cat5e cabling or better, Maximum distance on optical fiber: up to 220 m, Flow control support, Status LEDs for power supply and Link/TX function for both ports, Supported standards: IEEE 802.3ab/z, Minimum transmitting force: -17 dBm, Maximum transmitting power: -12 dBm, Receiver sensitivity: -20 dBm, Certifications: FCC Class B, CE Mark, Distance: 220 m (for 62.5/125 micron fiber), Distance: 550 m (for 50/125 micron fiber), Distance: 100 m (for RJ45 Ethernet cable) |
| Dimensions (cm): | 10.7 x 7 x 2.6 |
| Duplex system: | Full, Half |
| Equipment: | Power adapter |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 10, 100, 1000 Mbit/s |
| External power adapter: | Yes |
| Fiber cable diameters supported (core/cladding): | 50/125 µm, 100/140 µm, 62.5/125 µm |
| Fiber mode structure: | Multi-mode |
| Fiber optic connector: | SC |
| Fiber ports quantity: | 1 |
| Harmonized system (hs) code: | 85176990 |
| Height: | 26 mm |
| Housing material: | Metal |
| Input current: | 1 A |
| Input voltage: | 5 V |
| Internal: | No |
| Kind: | Module |

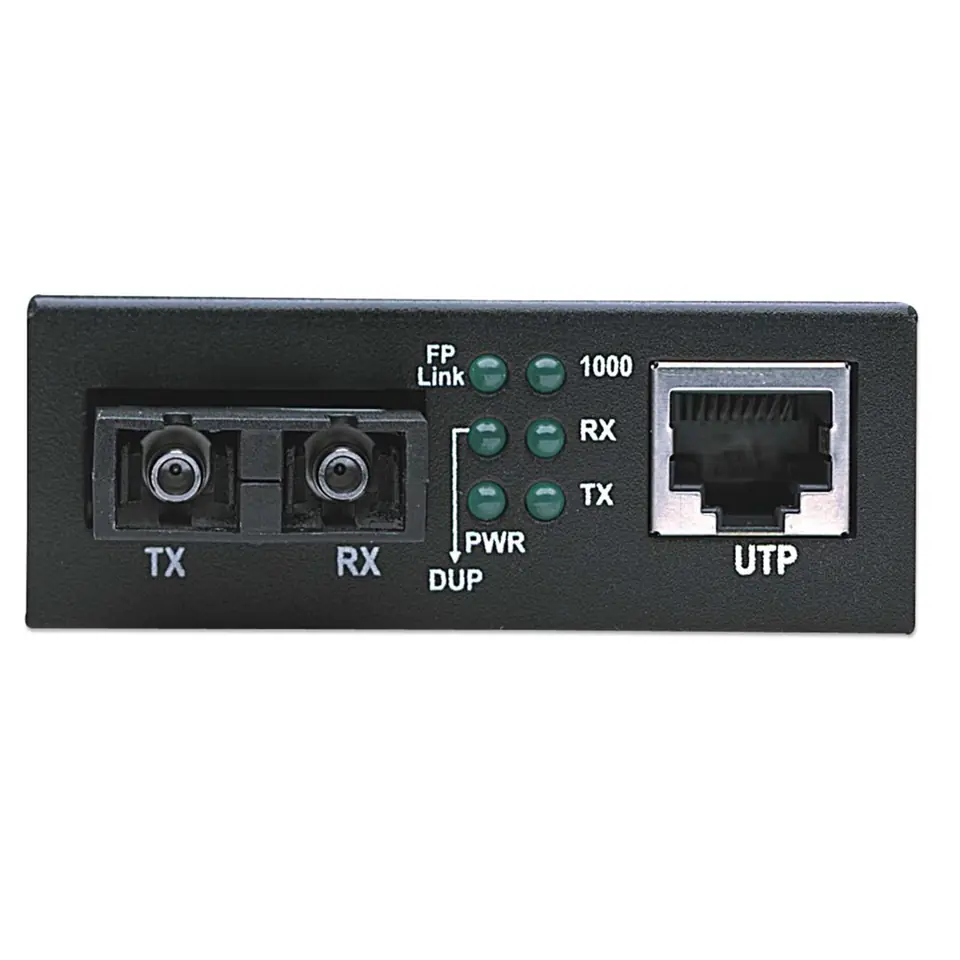

| Led indicators: | LAN, Link, Power |
| Manual: | Yes |
| Material of manufacture: | Metal |
| Maximum data transfer rate: | 1000 Mbit/s |
| Maximum transfer distance: | 550 m |
| Networking standards: | IEEE 802.3z, IEEE 802.3ab |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 60 °C |
| Power consumption (max): | 2.5 W |
| Product colour: | Black |
| Sensitivity: | -20 dBmW |
| Storage temperature (t-t): | -45 - 80 °C |
| Tx power (max): | -3 dBmW |
| Tx power (min): | -9 dBmW |
| Warranty: | 3 years |
| Wavelength: | 850 nm |
| Weight: | 180 g |
| Width: | 70 mm |
