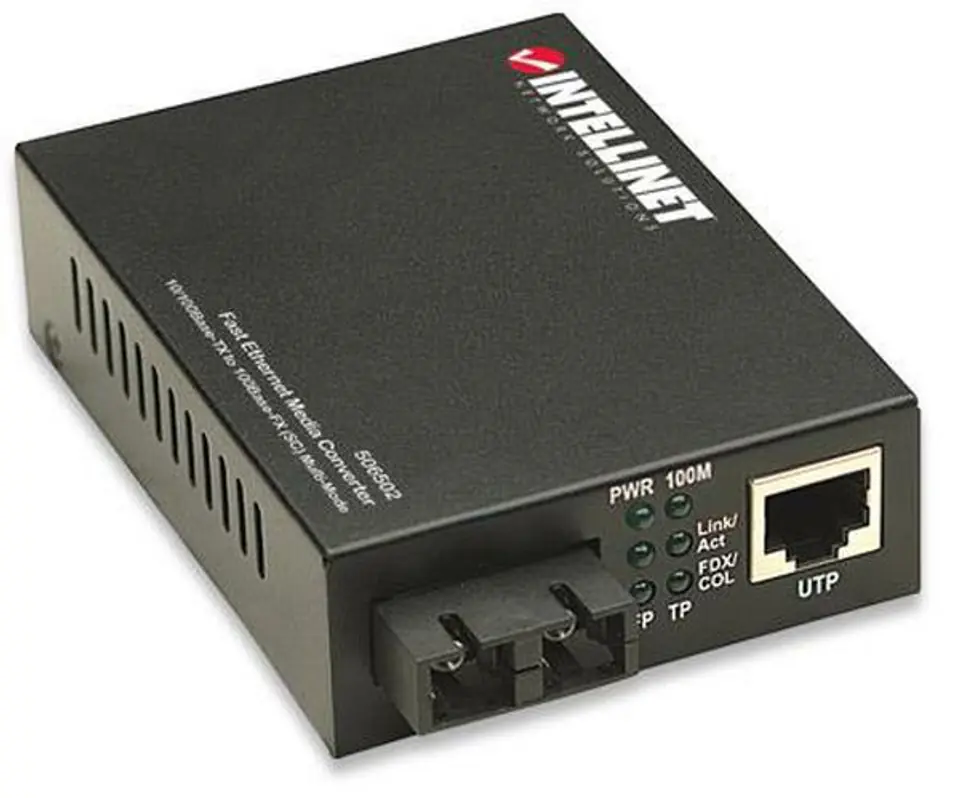

Media converter 10/100Base-TX RJ45 / 100Base-FX MM SC) 2km 1310n
This product is not available
- Availability:
- expected delivery
- Brand:
- INTELLINET NETWORK SOLUTIONS
- Product code:
- 506502 / 0766623506502
Share this product:
Specification
| Ac adapter included: | Yes |
|---|---|
| Auto mdi/mdi-x: | Yes |
| Colour: | Black |
| Connectivity technology: | Wired |
| Dc-in jack: | Yes |
| Dedicated model: | Universal |
| Depth: | 107 mm |
| Description: | Data transfer: 100 Mbps, One 10/100Base-TX RJ45 port, maximum distance 100 m, RJ45 port with MDI/MDI-X auto-negotiation and auto-negotiation, For use with fiber optics up to 2 km (62.5/125 or 50/125 μm) |
| Dimensions (cm): | 10.7 x 7 x 2.6 |
| Duplex system: | Full, Half |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 100, 10 |
| External power adapter: | Yes |
| Fiber cable diameters supported (core/cladding): | 50/125, 62.5/125 µm |
| Fiber mode structure: | Multi-mode |
| Fiber optic connector: | SC |
| Fiber ports quantity: | 1 |
| Harmonized system (hs) code: | 85176990 |
| Height: | 26 mm |
| Housing material: | Metal |
| Input current: | 1 A |
| Input voltage: | 5 V |
| Internal: | No |
| Kind: | Converter |
| Led indicators: | Link, LAN, Power, Status |
| Manual: | Yes |
| Material of manufacture: | Plastic |
| Maximum data transfer rate: | 100 Mbit/s |
| Maximum transfer distance: | 2000 m |
| Networking standards: | IEEE 802.3, IEEE 802.3u |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 70 °C |
| Package type: | Box |
| Power consumption (max): | 2.5 W |
| Product colour: | Black |
| Sensitivity: | -30 dBmW |
| Storage temperature (t-t): | -45 - 80 °C |
| Tx power (max): | -12 dBmW |
| Tx power (min): | -22 dBmW |
| Warranty: | Lifetime |
| Wavelength: | 1310 nm |
| Weight: | 500 g |
| Width: | 70 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
