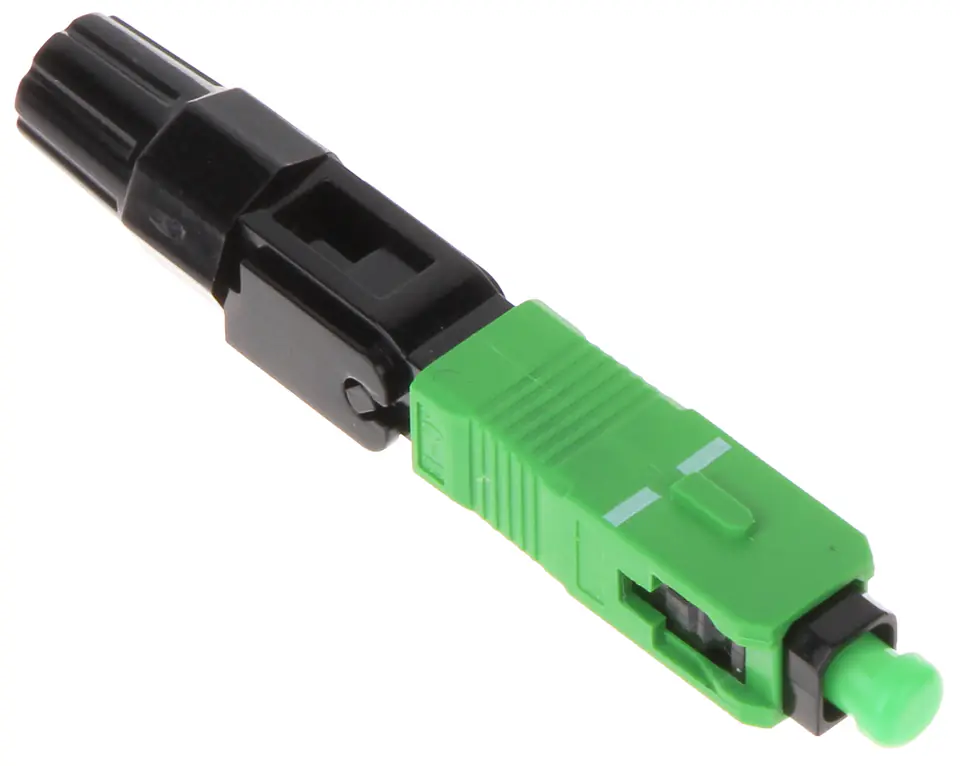

MECHANICAL SPLICE WITH SC/APC FAST-SC-APC CONNECTOR

€1.04
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
FAST-SC-APC / 5902887032325

Specification

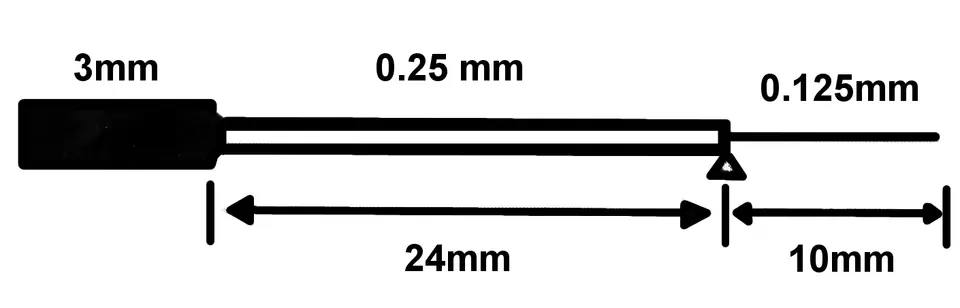

Cable diameter:3 mm / 2 mm / 900 μm / 250 μm
Connector type:SC-APC
Fiber diameter:125 μm
Re-earning the weld:.max. 5 times
Type of optical fiber:Single-mode
Warranty:2 years

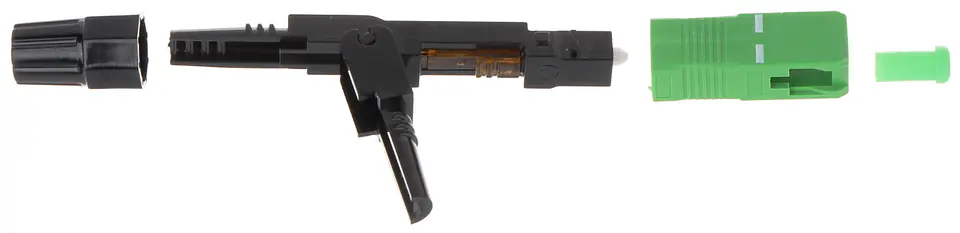

Universal mechanical connector allows to terminate single-mode fiber optic cable with SC/APC connector without time-consuming gluing and polishing of connectorsNo sterile conditions are required to make quick connectors, because the front of the fiber has been polished and glued in laboratory conditions (glued fiber in G.657A standard)

The optical gel in the connector eliminates the effects of imprecise cutting or a small gap between the inserted end of the optical fiber and the mounted fiber inside the connector

The most important and unique solution is the use of a transparent body in the connectorWhen installing the connector, a visual fault locator should be connected, thanks to which the installer can control the quality of the connection on an ongoing basisNo red light in the connector means a perfect connection

Quick connectors are suitable for terminating optical lines wherever traditional, glued optical connectors are used, e.g. for terminating optical fibers in building distribution framesDue to high transmission parameters, they are especially recommended in telecommunications, FTTH, television, surveillance systems as well as in backbone networks as well as MAN and WAN

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
