MECHANICAL SPLICE FAST-MS1*P5

€9.82
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
FAST-MS1*P5 / 5907634558745

Specification

Cable diameter::250 μm / 900 μm
Connector attenuation::0.1 dB
Fiber diameter::125 μm
Fiber optic type::Multimode and single-mode
Il::0.1 dB/km (for 1310 and 1550 nm)
In the package::5 pcs. Price per pack
Operating temperature::-40 °C ... 75 °C
Re-earning the weld::Max. 5 times
Rl::< -40 dB
Warranty::2 years

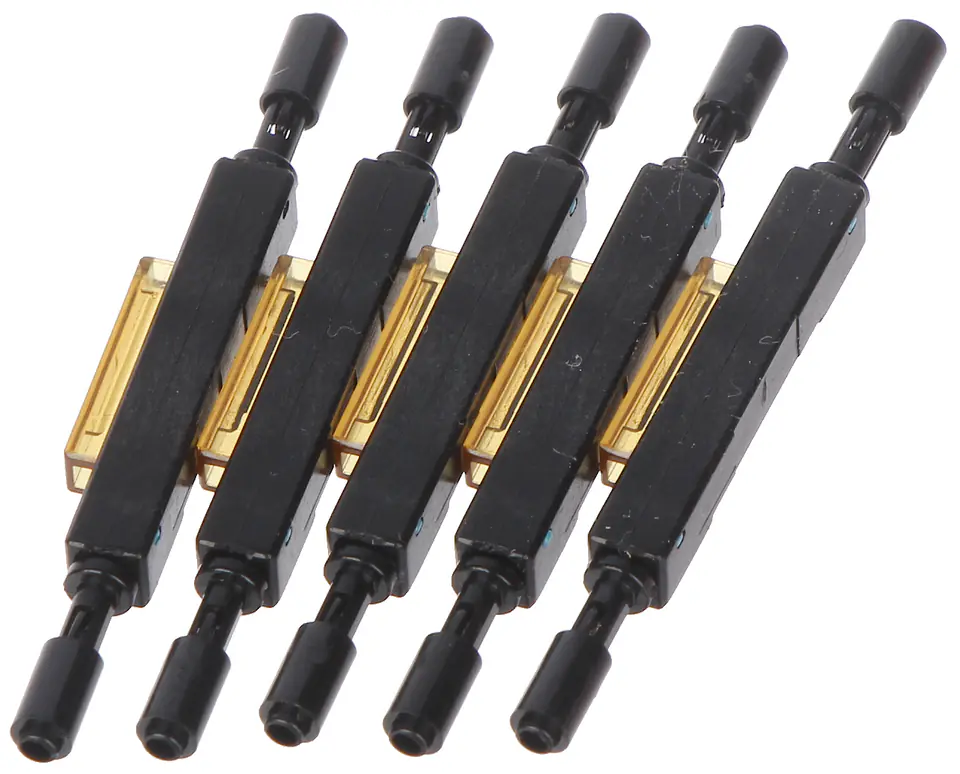

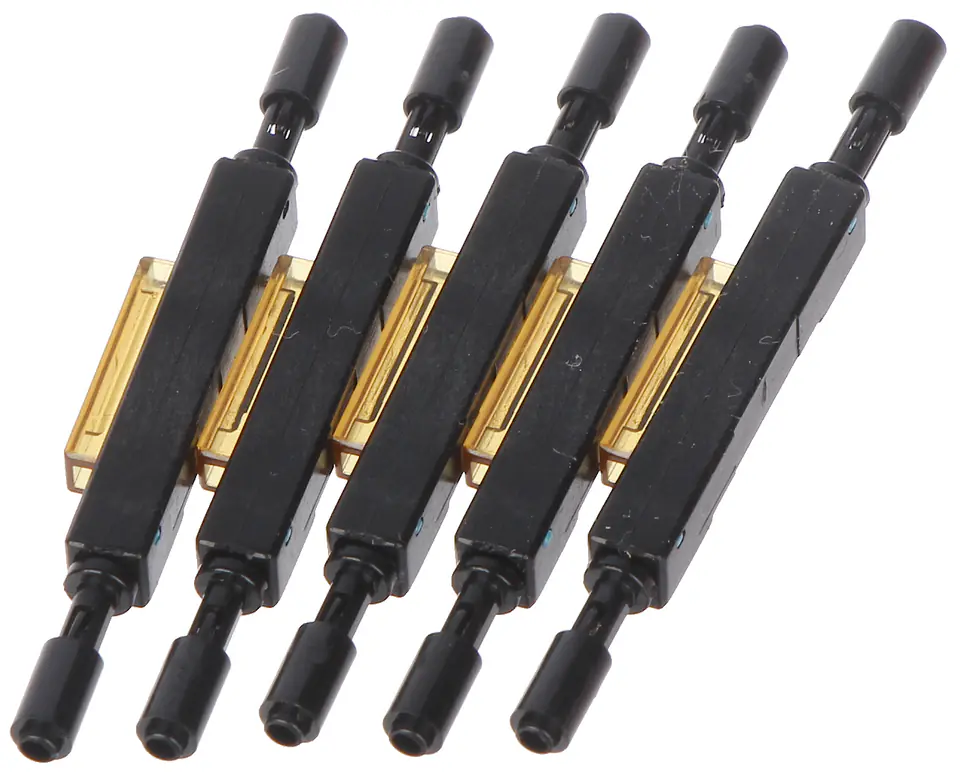

FAST-MS1 mechanical splices enable durable fiber connections without the use of traditional optical welding machinesThe low attenuation of 0.1 dB is ensured by advanced technology for positioning fiber faces with V-shaped grooves

Optical gel occurring in the mechanical weld eliminates the effects of imprecise cutting or possible gap between the introduced fiber opticsUniversal design of mechanical welds allows combining fiber optics with a diameter of 250 μm and 900 μm and allows for high-quality connections for multimode and single-mode fibers

Mechanical welds are suitable for connecting optical lines wherever welded connections, e.g. for connecting a distribution cable with pigtails in building distribution frames or for repairing damaged optical lines

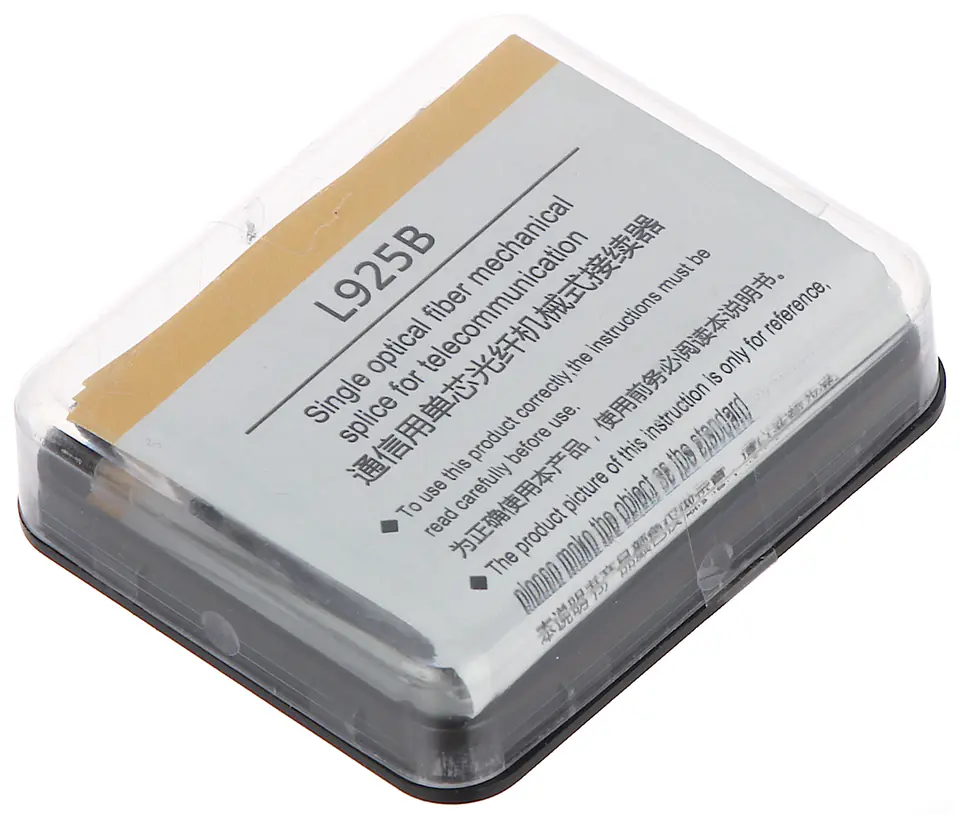

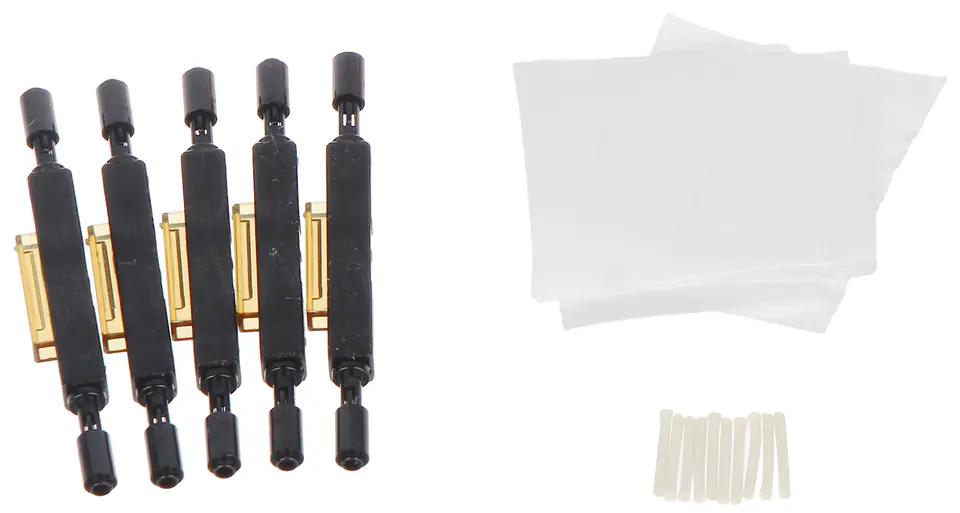

Sale in a package of 5 pcs

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
