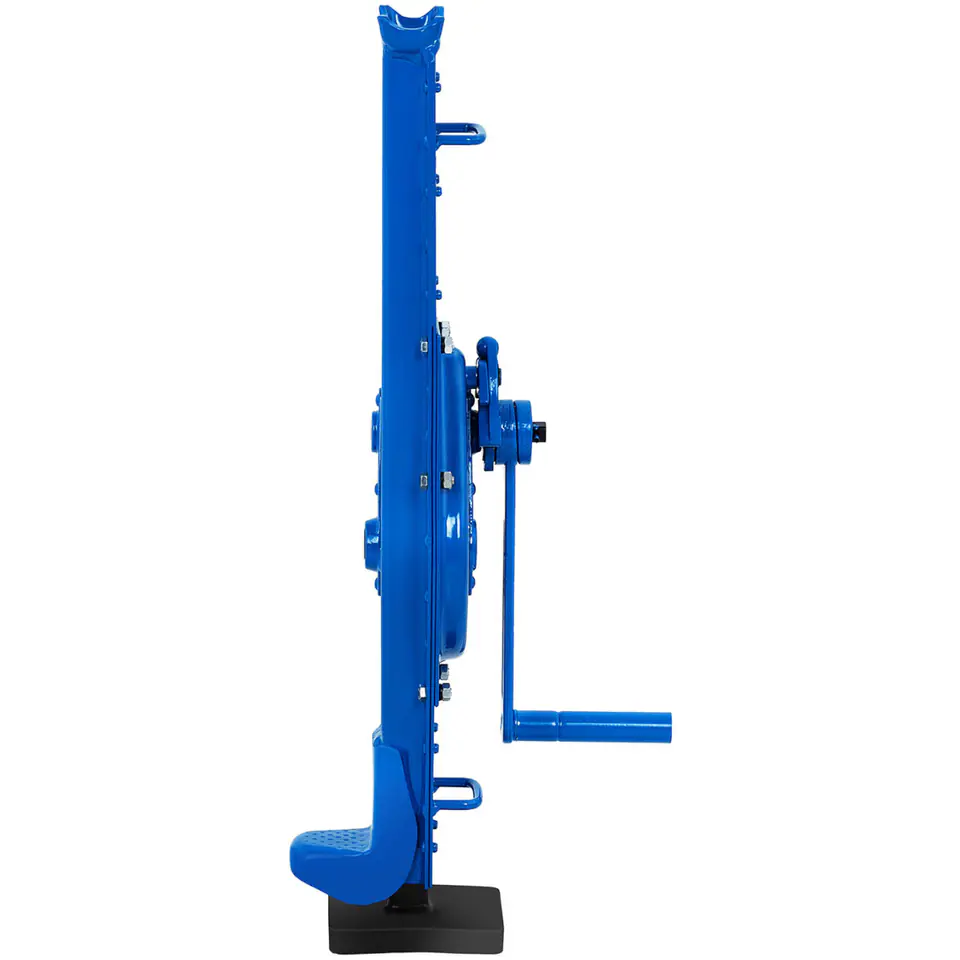

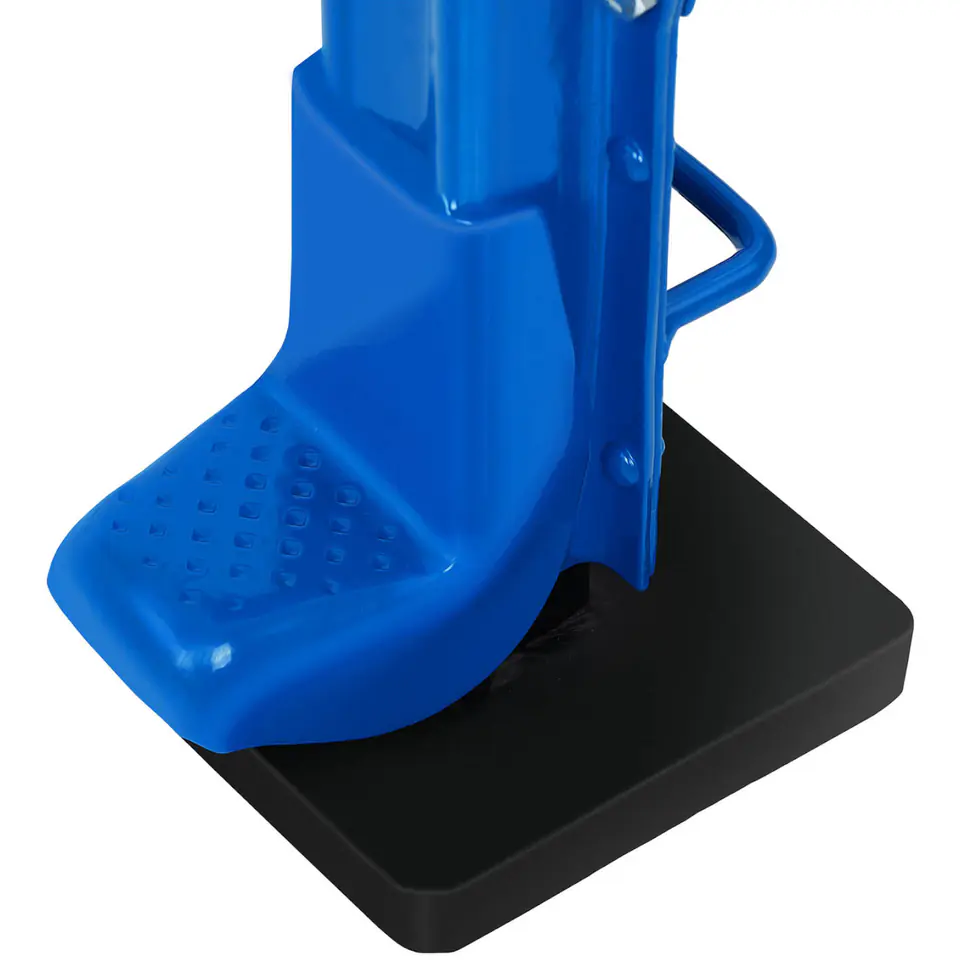

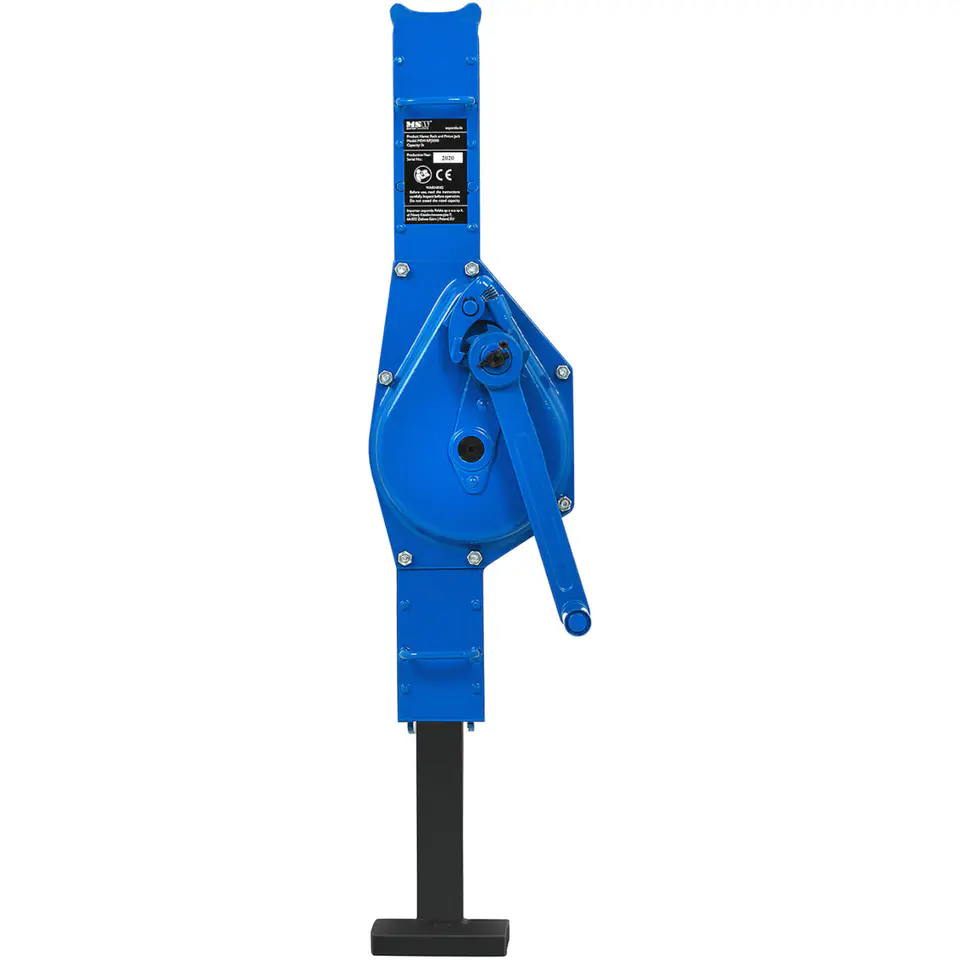

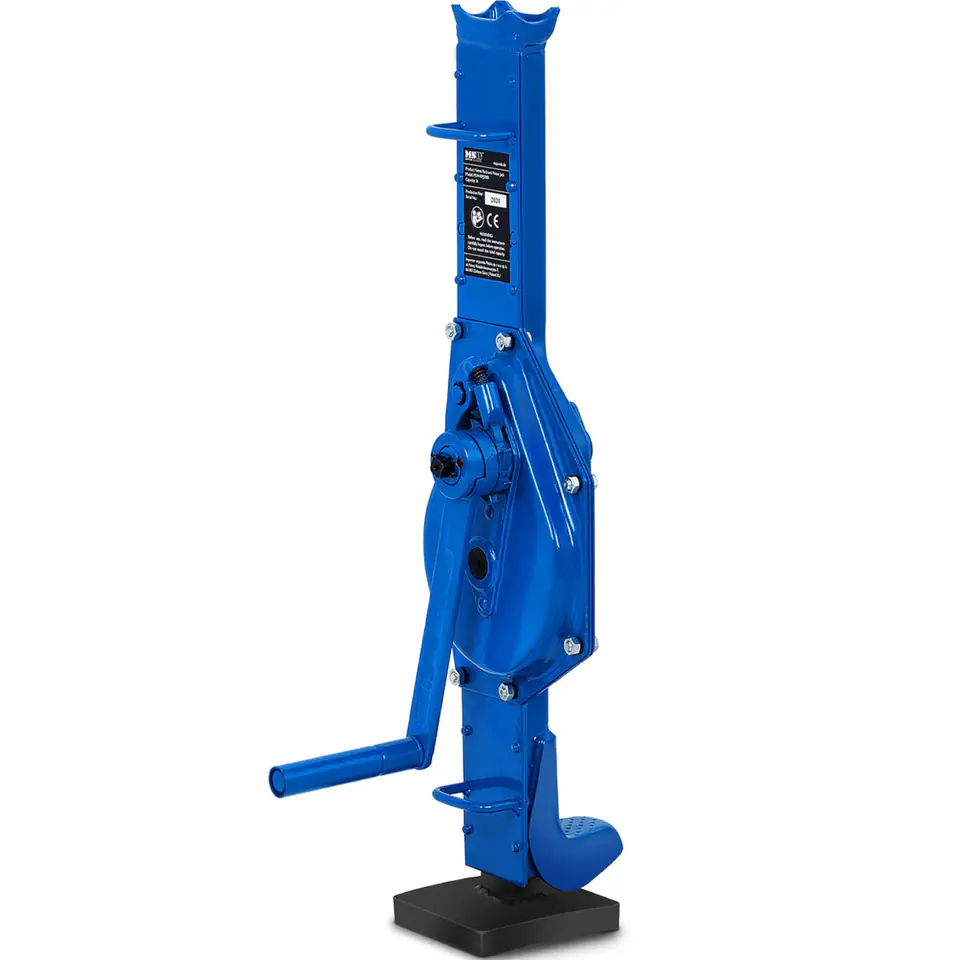

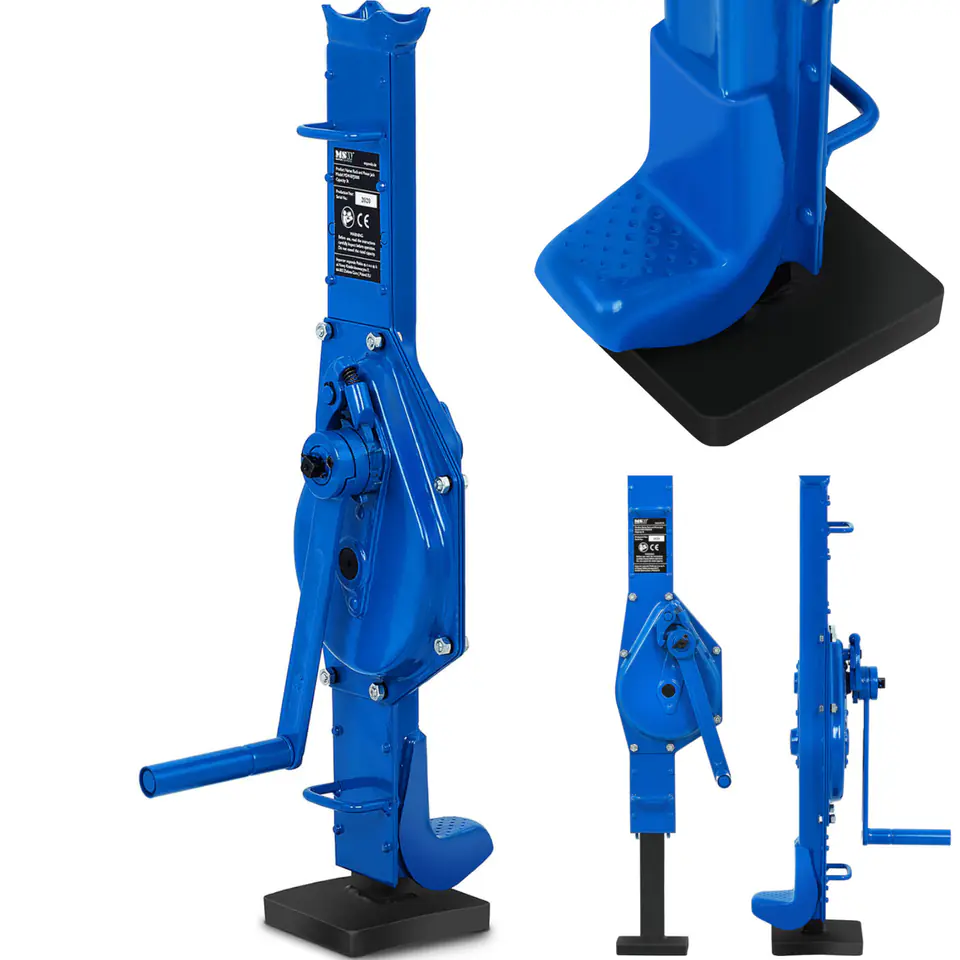

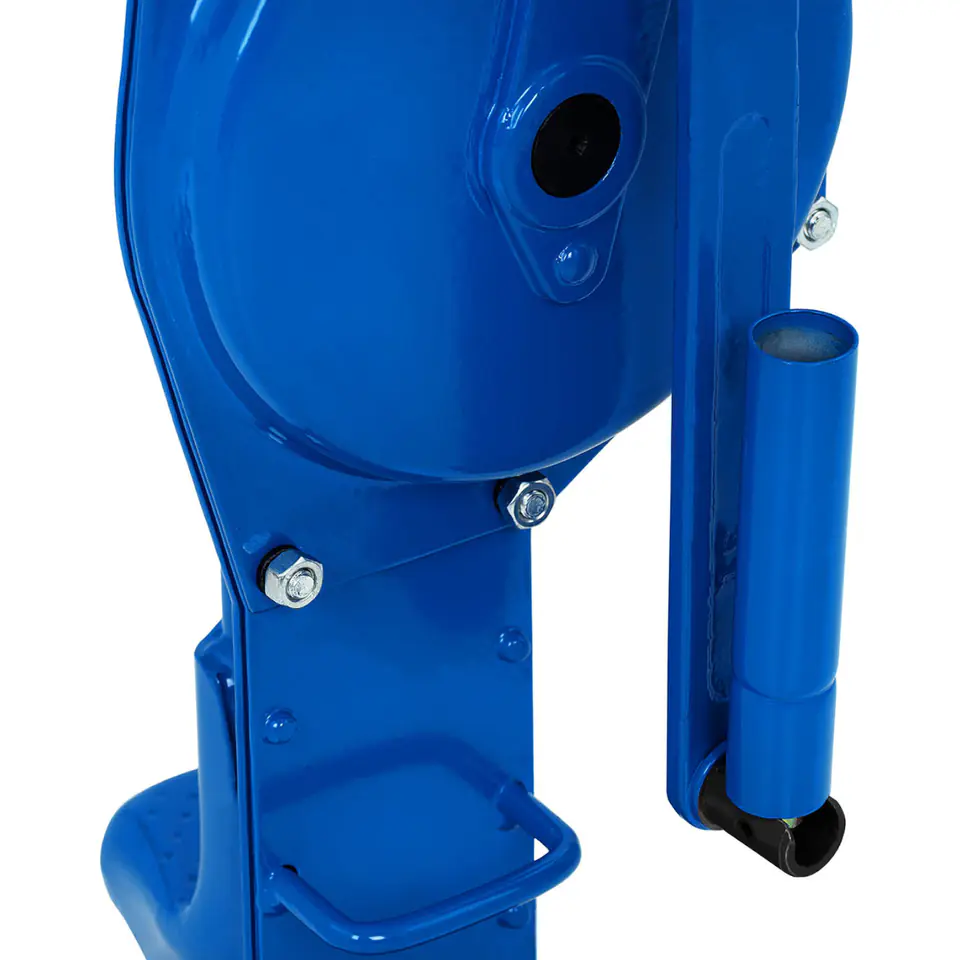

Mechanical railway crank lift up to 1080 mm 3 t

€193.04
Shipping from warehouse: ⁨H1⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
MSW
Product code:
10061291 / 4062859943996

Specification

Sku:1014625

Manufacturer no: 10061291
A professional crank lift from MSW is designed for various repairs of vehicles requiring access to suspension and more. Lifting vehicles up to 3 tons is the main task of the lift. You will handle it with a crank. Its rotation lifts the object by 350 mm. The maximum lifting range is 1080 mm. Both raising and lowering are relatively slow, which allows you to precisely set the desired height. The durable construction is made of very strong steel. This guarantees the long-term usability of the crank lift. At the same time, the lever is distinguished by its compact size, which makes it easy to store the whole.
Product features:

  • - strong steel structure
  • - lifting stroke at the level of 350 mm
  • - maximum load up to 3000 kg
  • - compact size
  • - lifting to a height of 1080 mm
Technical data:
  • - Model: MSW-RPJ3000
  • - Cat no.: 10061291
  • - Article status: new
  • - Overall height: 730 mm
  • - Height at the lowest position: 70 mm
  • - Adjustment range: 350 mm
  • - Maximum load: 3000 kg
  • - Width: 296 mm
  • - Lifting height: 1080 mm
  • - Dimensions (LxWxH): 15 cm x 20 cm x 74 cm
  • - Weight: 21.70 kg
  • - Shipping dimensions (LxWxH): 76 cm x 20 cm x 25 cm
  • - Shipping weight: 22.30 kg
Included:
  • - Crank lift
  • - User Manual

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
