Internal card and key ring reader designed to work in the access control and building automation system RACS 5Standard MIFARE 13.56 MHz
MCT88M-IO ROGER PROXIMITY READER
€333.98
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ROGER
- Product code:
- MCT88M-IO / 5907608961472
Share this product:
Specification
| Average current consumption: | ~ 110 mA |
|---|---|
| Card read range: | .max. 7 cm |
| Card support: | MIFARE 13.56 MHz, MIFARE Ultralight, MIFARE Classic, MIFARE DESFire, MIFARE Plus, NFC |
| Communication: | RS-485 |
| Cooperation: | RACS 5 (Roger) |

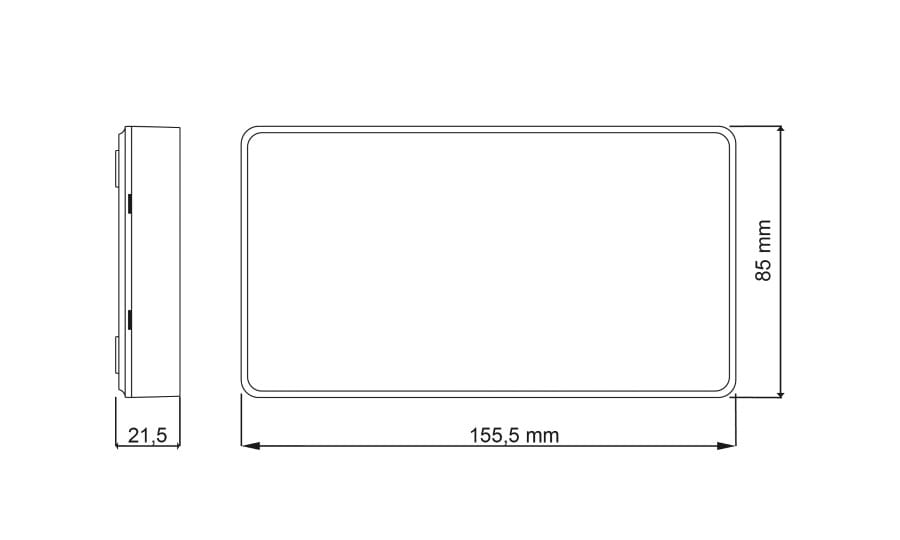

| Dimensions: | 156 x 85 x 22 mm |
| Operating temperature: | 5 °C ... 40 °C |
| Permissible relative ambient humidity: | 10 ... 95 % (non-condensing) |
| Power: | 10 ... 15 volts DC |
| Producer / brand: | ROGER |
| Scales: | 0.23 kg |
| Sealing: | IP41 |
| Selected features: | Tamper protection (detection of detachment from the mount and opening of the enclosure) Built-in Bluetooth module that allows user identification using a mobile application Support for normal and long card touchdown Alarm inputs: 3 pcs. - NO, NC, EOL, 2EOL, 3EOL Alarm outputs: 1 pc NO/NC relay output 30 V DC / 1.5 A + 2 pcs OC Backlit keyboard buttons LED Indication Beep Card number reading: CSN, SSN, MSN Configuration via RS-485 (RogerVDM) Software update via RS-485 port (Roger VDM) |
| Warranty: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
