| Average current consumption: | 60 mA |
|---|---|
| Card read range: | .max. 7 cm |
| Card support: | MIFARE 13.56 MHz |
| Communication: | RS-485 |
| Cooperation: | RACS 5 (Roger) |
| Dimensions: | 85 x 85 x 22 mm |
| Operating temperature: | -10 °C ... 50 °C |
| Permissible relative ambient humidity: | 10 ... 95 % (non-condensing) |
| Power: | 10 ... 15 volts DC |
| Producer / brand: | ROGER |
| Scales: | 0.12 kg |
| Sealing: | IP41 |
| Selected features: | Tamper protection (detection of detachment from the mount and opening of the enclosure) LED signaling Beep Touch and backlit keyboard buttons 3 inputs, Multifunctional parametric inputs including Double Wiring 2 Transistor outputs, 1 Relay output |
| Warranty: | 3 years |

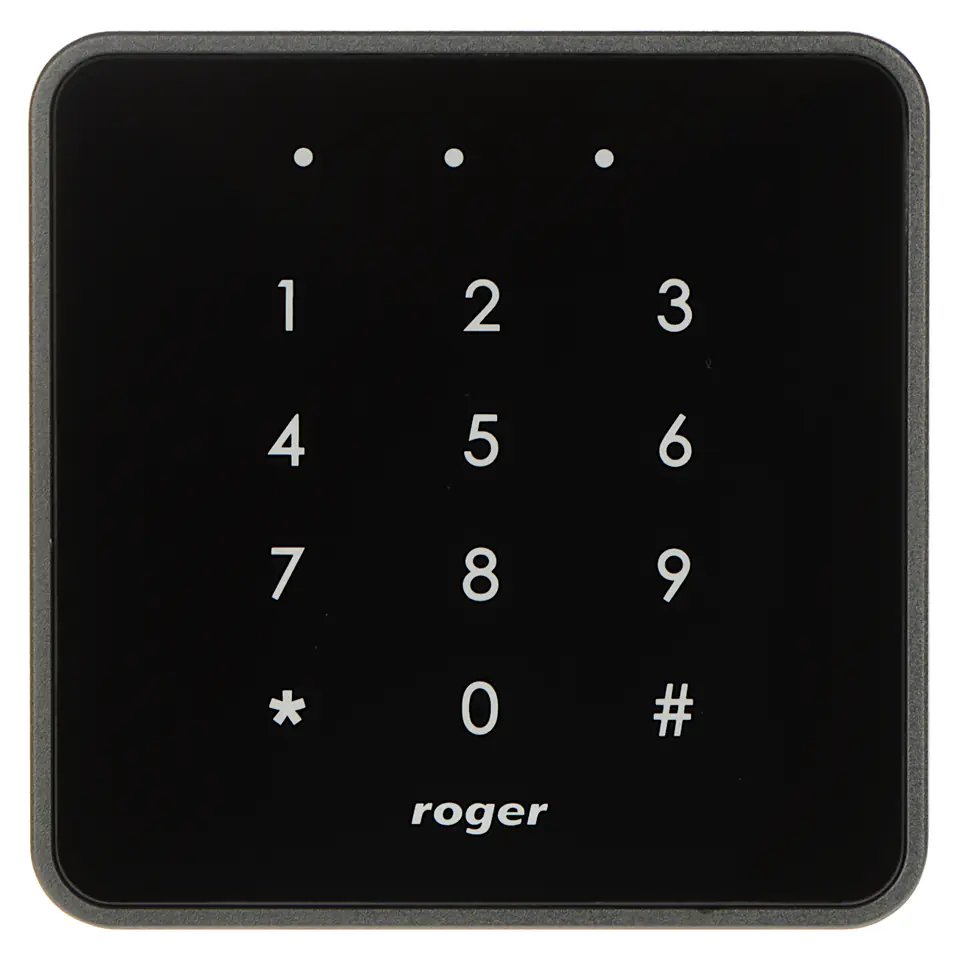

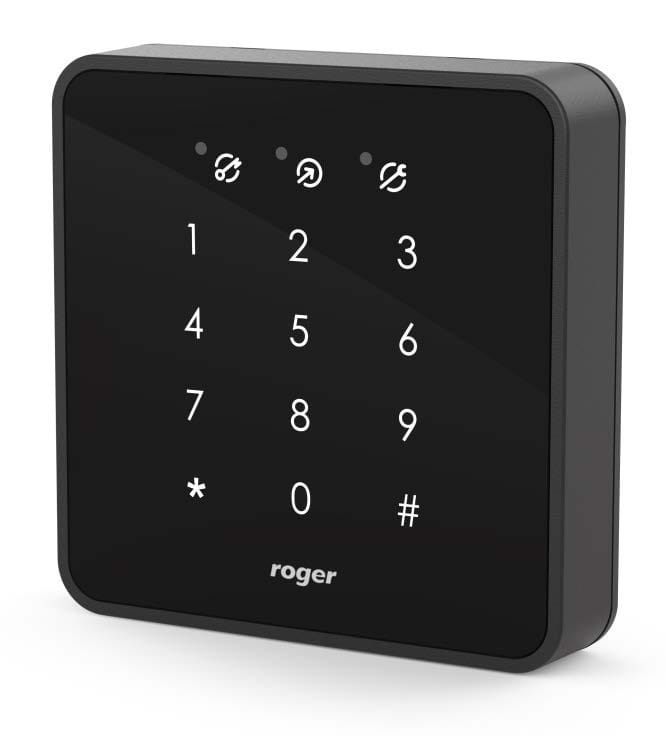

Internal card and key ring readerMIFARE standard 13.56 MHz
Readers with the IO option are equipped with a set of input and output lines, which in most cases allows complete operation of the passage without the need to use inputs and outputs located on the access controller or expansion module
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
