The MCI-7 interface is a separation-matching system and is used in case of incompatibility of Wiegand electrical interfaces between ROGER devices and devices from other manufacturersThe interface strengthens and improves the stability of data transmission in the Wiegand standard

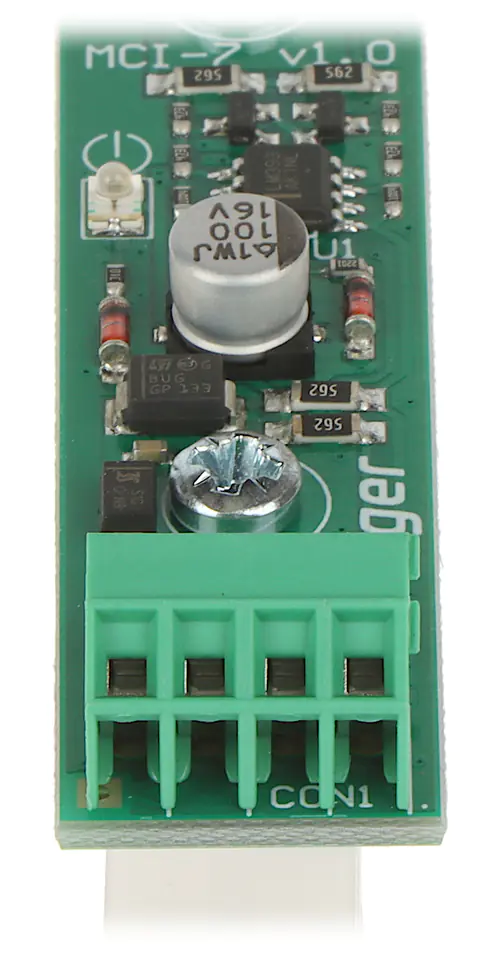

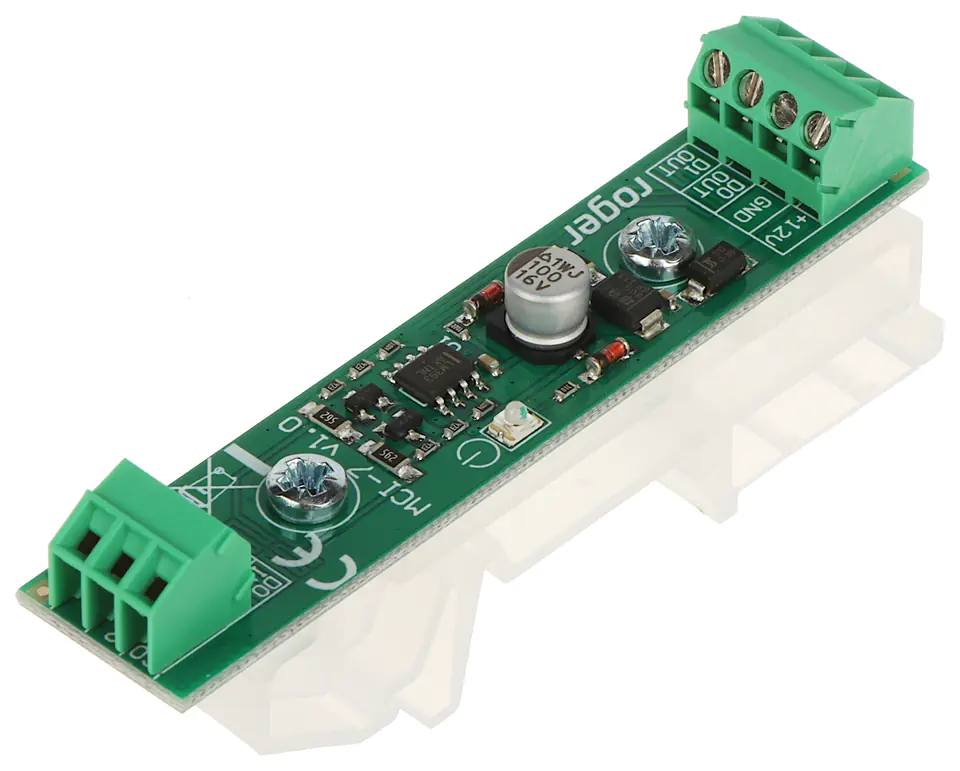

MCI-7 ROGER FIT/ISOLATE MODULE
€20.99
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ROGER
- Product code:
- MCI-7 / 5907608964763
Share this product:
Specification
| Assembly: | DIN Rail TS-35 |
|---|---|
| Current consumption: | 10 mA |
| Dimensions: | 85 x 17 x 34 mm |
| Operating temperature: | 5 °C ... 40 °C |
| Permissible relative ambient humidity: | 10 % ... 95 % (non-condensing) |
| Power: | 10 volts ... 15 volts DC |
| Producer / brand: | ROGER |
| Scales: | 0.016 kg |
| Selected features: | Inputs D0 IN, D1 IN with trigger threshold approx. 3.3V Outputs D0 OUT, D1 OUT type open collector with a load capacity of 5mA in low state LED indication Distance between module and reader : 150 m Distance between module and controller : as short as possible, recommended installation in the controller housing Class I internal |
| Warranty: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
