Specifications:
Article: P042032
Max. cross-section of connected wires, mm2: 1...25
Mounting: On standard 35 mm DIN rail
Ambient temperature, °?: -25...+60
Rated operating voltage EU, V: ?? 230/400
Rated frequency, Hz: 50
Number of poles: 3
Contact terminal tightening torque, Nm: 3
Time-current characteristics: C
Rail connection method: Upper and lower
Nominal breaking capacity Inc, kA: 6
Nominal current In, ?: 20
Designed to protect low-voltage networks from overload and short circuit as well as rare switching operations of electrical networks.
**

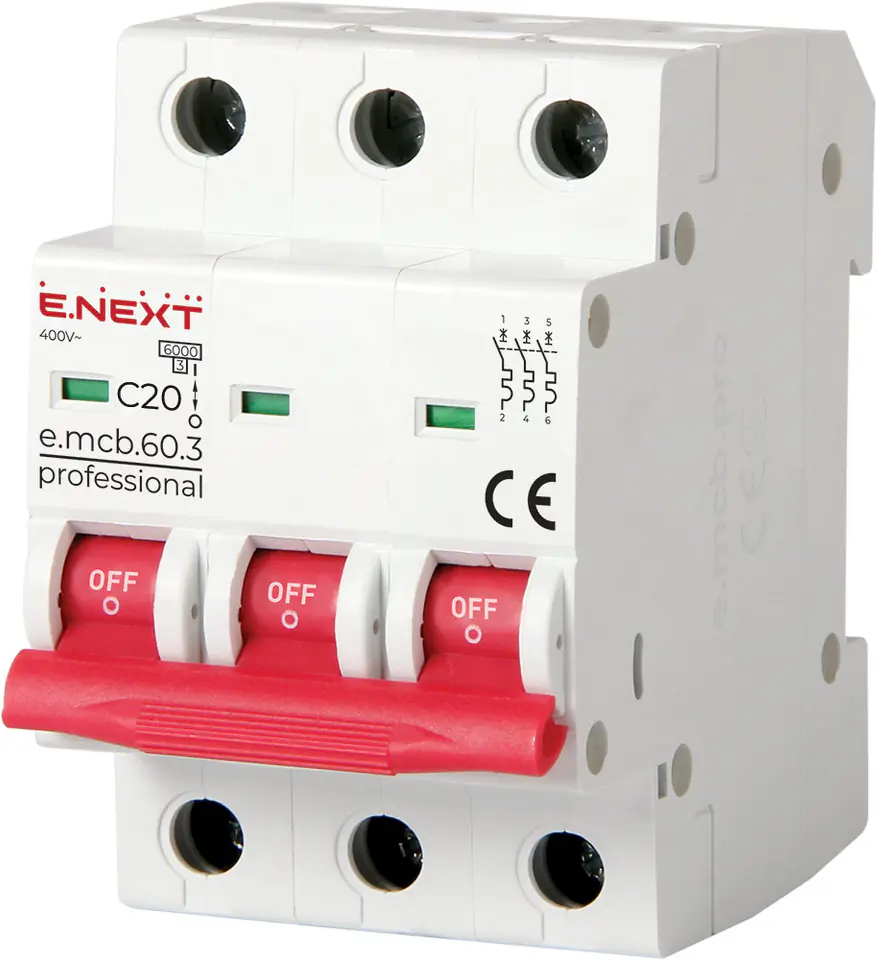

Illustrative photo
MCB CIRCUIT BREAKER. PRO60 3P C20A 6KA
€9.20
Shipping from warehouse: U1
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ENEXT
- Product code:
- 3800158200270
Share this product:
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
