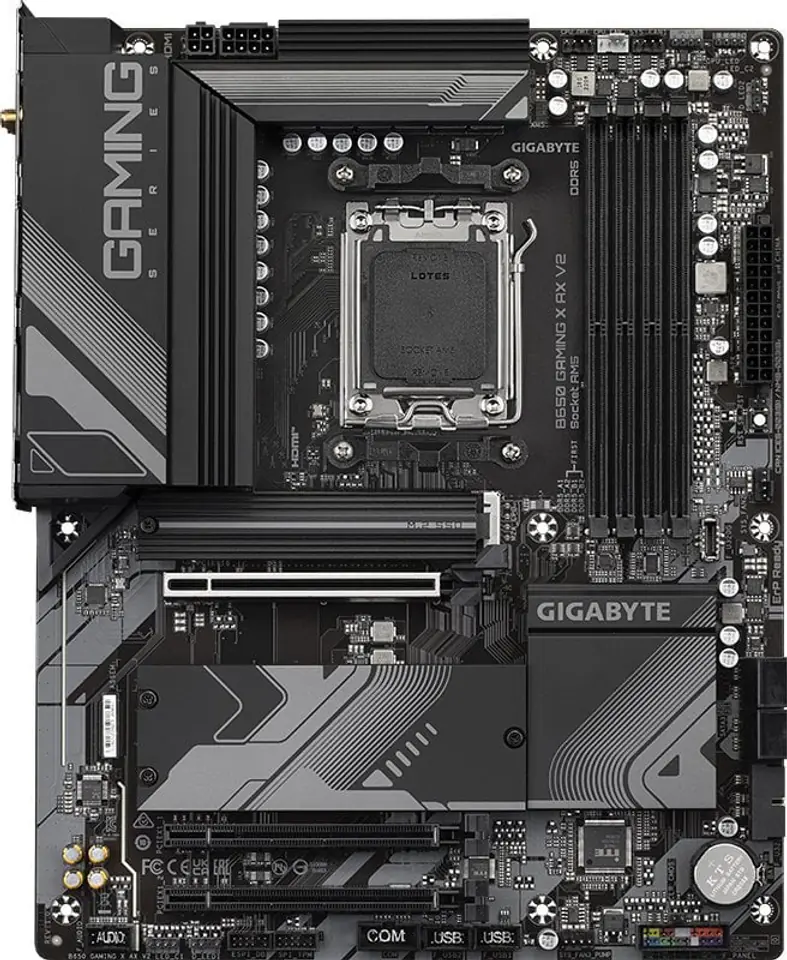

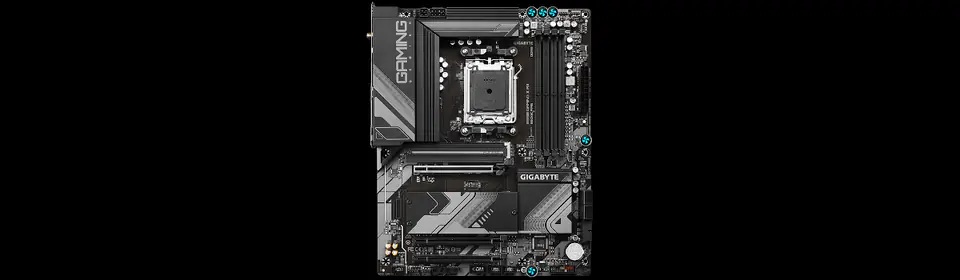

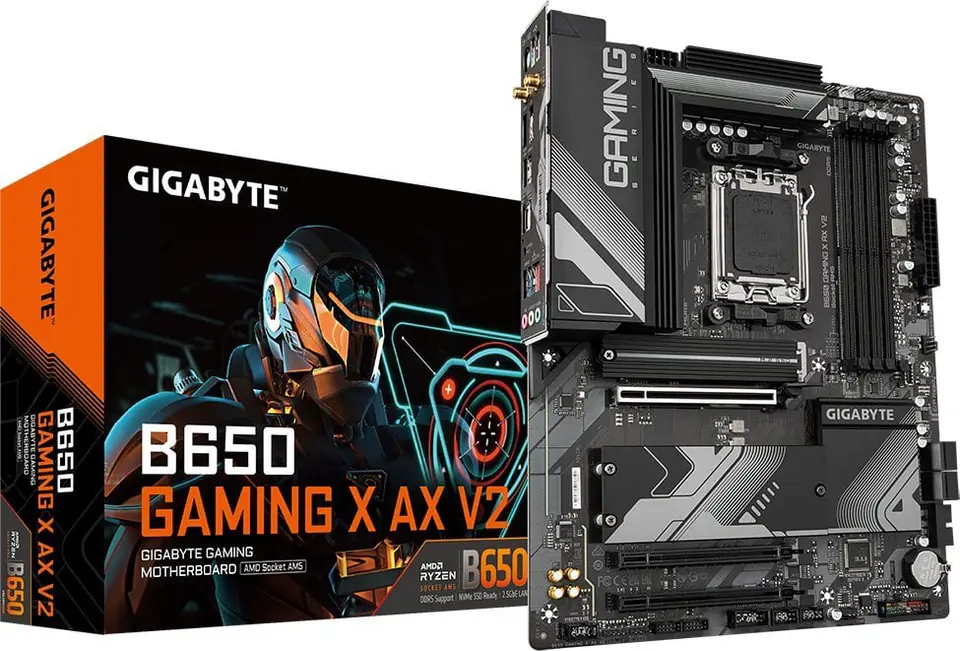

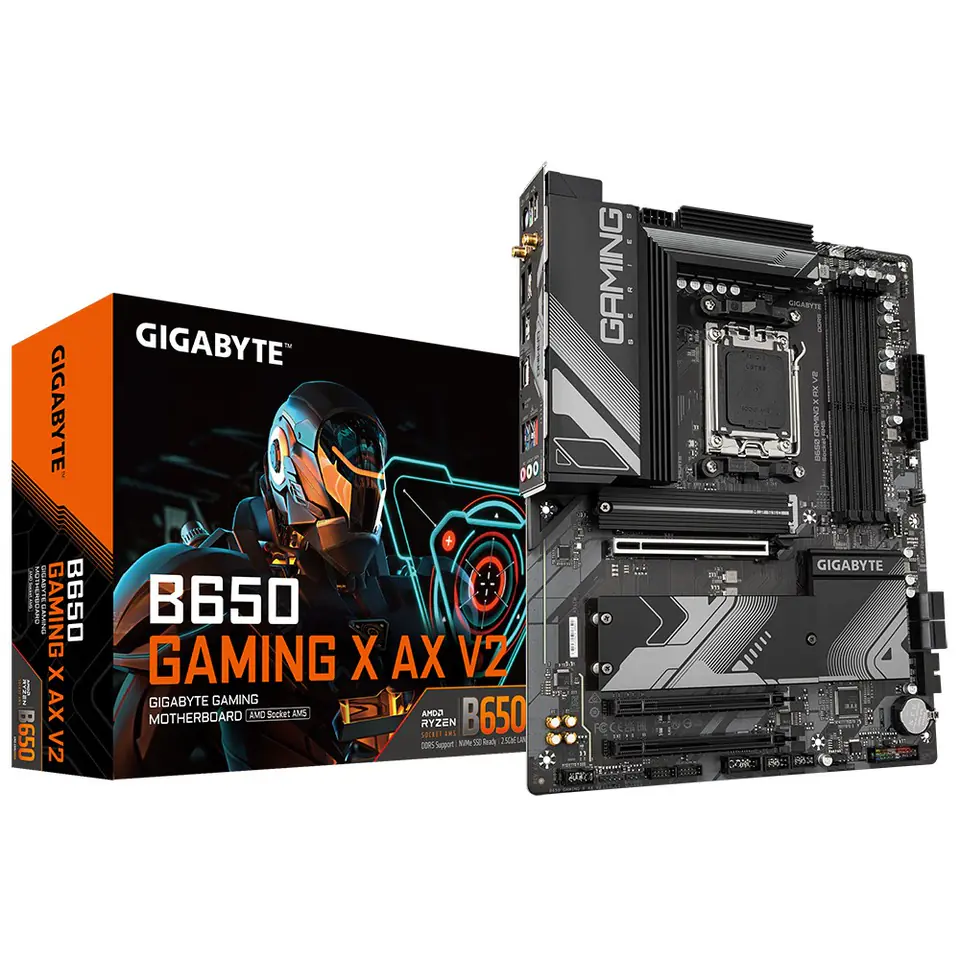

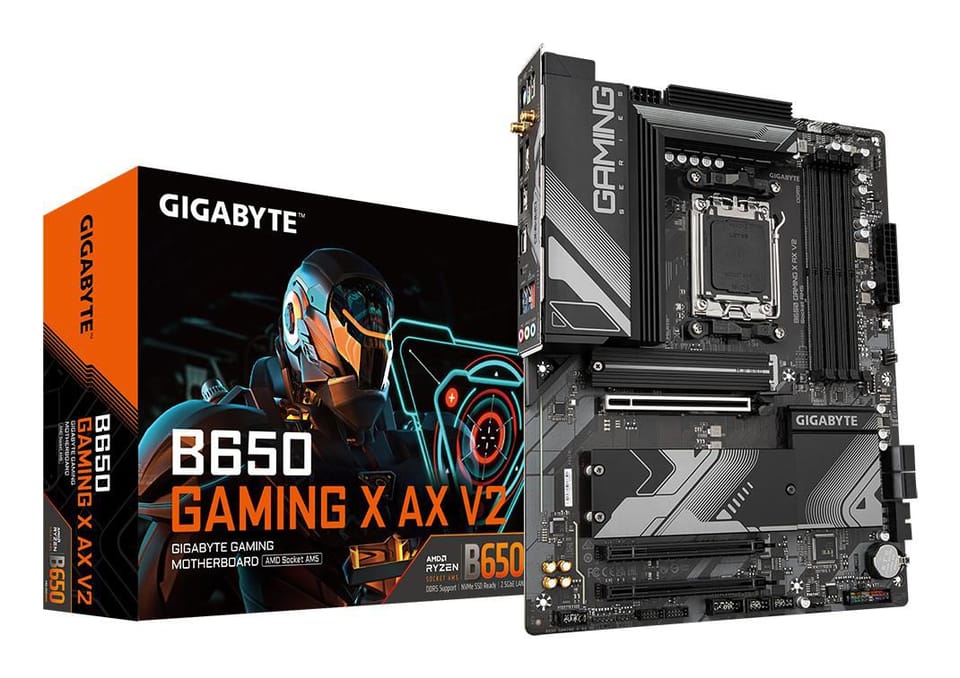

MB GBT AMD AM5 B650 GAMING X AX V2

€201.04
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Mon, Apr 7 - Thu, Apr 10
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Gigabyte
Product code:
B650 GAMING X AX V2 / 4719331860073

Specification

12v power connector:Yes
Atx power connector (24-pin):Yes
Audio chip:Realtek ALC897
Audio output channels:7.1 channels
Batteries included:Yes
Battery technology:Lithium-Manganese Dioxide (LiMnO2)
Battery type:CR2032
Battery weight:3 g
Bios type:UEFI AMI
Bluetooth:Yes
Bluetooth version:5.2
Cables included:SATA
Clear cmos button:Yes
Clear cmos jumper:Yes
Compatible processor series:AMD Ryzen 7000 Series
Cooling type:Active
Country of origin:China
Cpu fan connector:Yes
Depth:244 mm
Desktop management interface (dmi) version:2.7
Displayport version:1.4
Displayports quantity:1
Ecc сompatibility:Non-ECC
Eps power connector (8-pin):Yes
Ethernet interface type:2.5 Gigabit Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:1
Front panel audio connector:Yes
Front panel connector:Yes
Hdcp:Yes
Hdmi ports quantity:1
Hdmi version:2.1
Headphone outputs:3
Height:35 mm
Lithium weight per battery:0.07 g
Maximum internal memory:192 GB
Maximum internal memory supported by processor:192 GB
Maximum resolution:4096 x 2160 pixels
Memory channels:Dual-channel
Memory slots type:DIMM
Microphone in:Yes
Motherboard chipset:AMD B650
Motherboard chipset family:AMD
Motherboard form factor:ATX
Number of battery cells:1
Number of hdds supported:1
Number of m.2 (m) slots:3
Number of memory slots:4
Number of sata iii connectors:4
Number of storage drives supported:5
Package depth:270 mm
Package height:80 mm
Package weight:1.96 kg
Package width:335 mm
Parallel processing technology support:Not supported
Pc health monitoring:Temperature, Fan, Water cooling, Voltage
Pci express x16 slots:3
Power source type:ATX
Processor manufacturer:AMD
Processor socket:Socket AM5
Product colour:Black
Products per shipping (inner) case:1 pc(s)
Raid levels:10, 0, 1
Raid support:Yes
Rgb led pin header:Yes
Serial port headers:1
Supported memory clock speed (max):8000 MHz
Supported memory clock speeds:6600, 6400, 7000, 5600, 7200, 4800 MHz, 6000 MHz, 5200, 6200, 4400 MHz, 8000, 7600 MHz, 7800, 6800
Supported memory module capacities:48GB, 2GB, 4GB, 8GB, 32GB, 1GB, 16GB, 12GB
Supported memory types:DDR5-SDRAM
Supported processor sockets:Socket AM5
Supported storage drive interfaces:M.2, PCI Express 4.0, SATA III
Supported storage drive types:HDD & SSD
Top wi-fi standard:Wi-Fi 6E (802.11ax)
Tpm connector:Yes
Unbuffered memory:Yes
Usb 2.0 connectors:2
Usb 2.0 ports quantity:3
Usb 3.2 gen 1 (3.1 gen 1) connectors:1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:3
Usb 3.2 gen 2 (3.1 gen 2) connectors:1
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:1
Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity:1
Usb connector type:USB Type-C, USB Type-A
Warranty period:3 year(s)
Wi-fi:Yes
Wi-fi standards:Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11b
Width:305 mm
Wifi-ap antenna jack:2
Windows operating systems supported:Windows 11 x64, Windows 10 x64
Wlan controller model:AMD RZ616

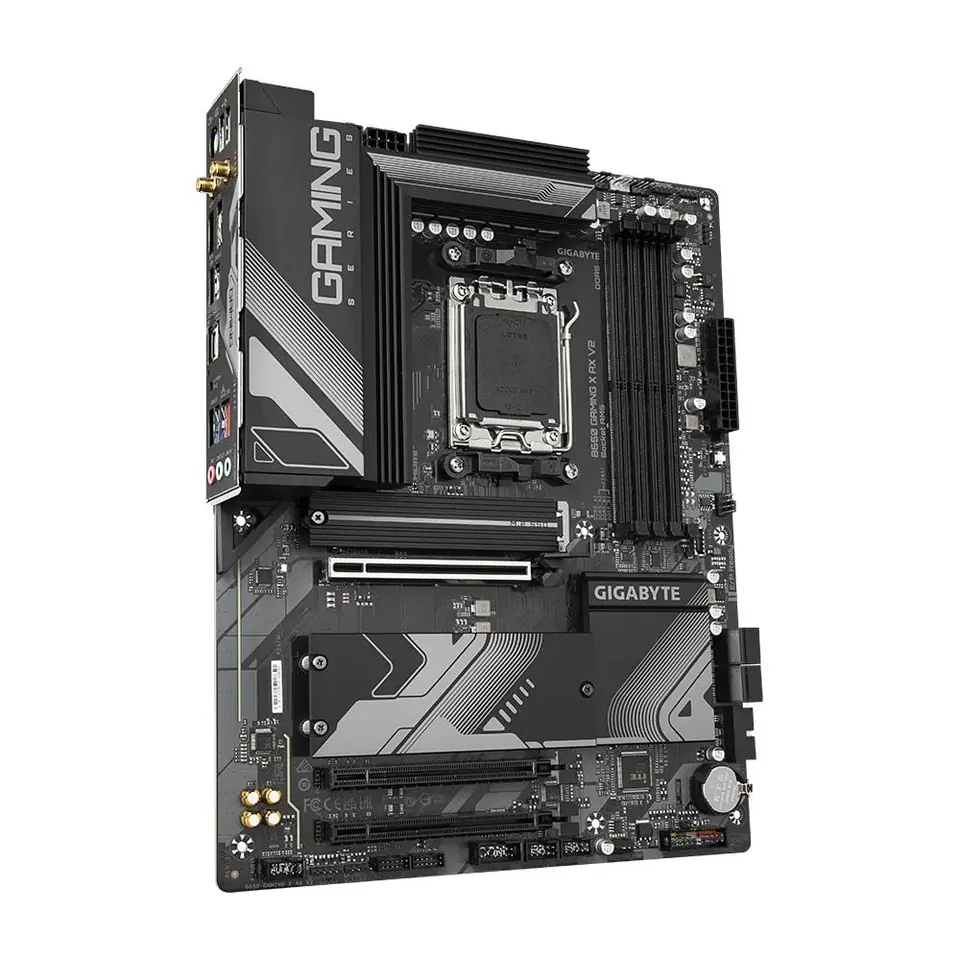

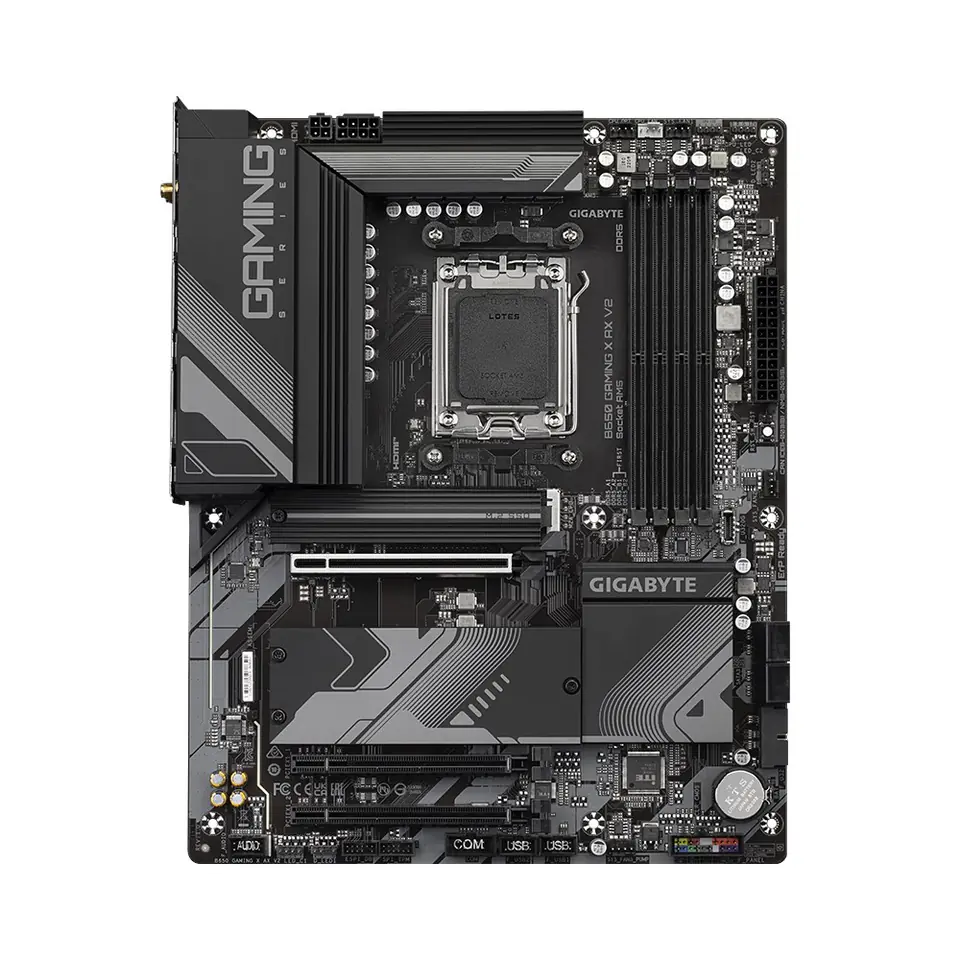

B650 GAMING X AX V2

  • AMD AM5 Socket: Supports AMD Ryzen 7000/Ryzen 8000 Series Processors
  • Unmatched Performance: 8+2+2 Phase Direct Digital VRM

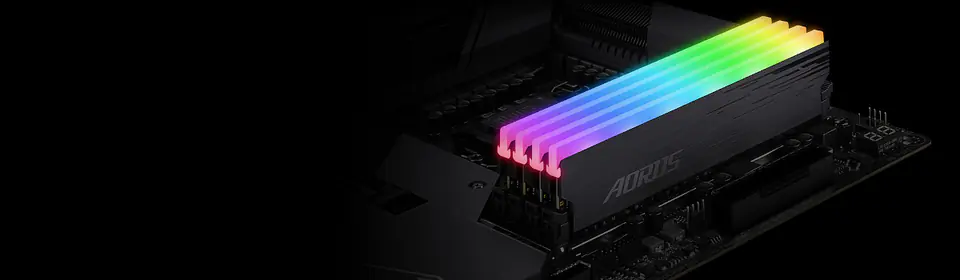

  • Dual-Channel DDR5 Memory: 4*SMD DIMM with AMD EXPO and Intel XMP Memory Module Support
  • SuperSpeed Storage: 1*PCIe 5.0 x4 + 2*PCIe 4.0 x4 M.2 Slots

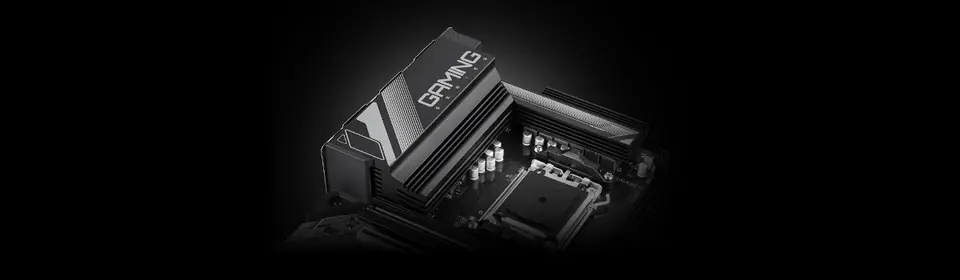

  • Advanced Thermal Design and M.2 Heat Shield: To ensure VRM power stability and 25110 M.2 SSD performance
  • EZ Latch: PCIe x16 slot with quick release design

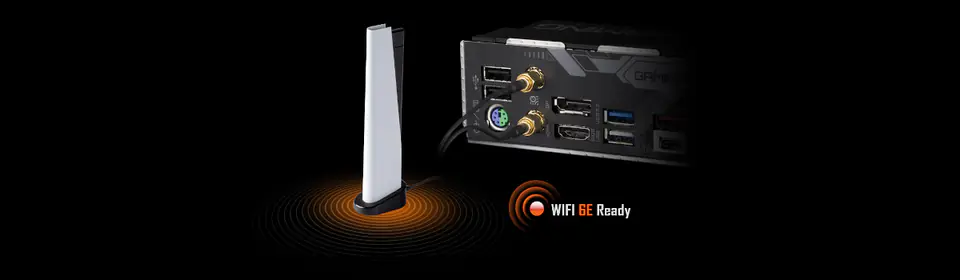

  • High-Speed Networking: 2.5GbE LAN and Wi-Fi 6E 802.11ax

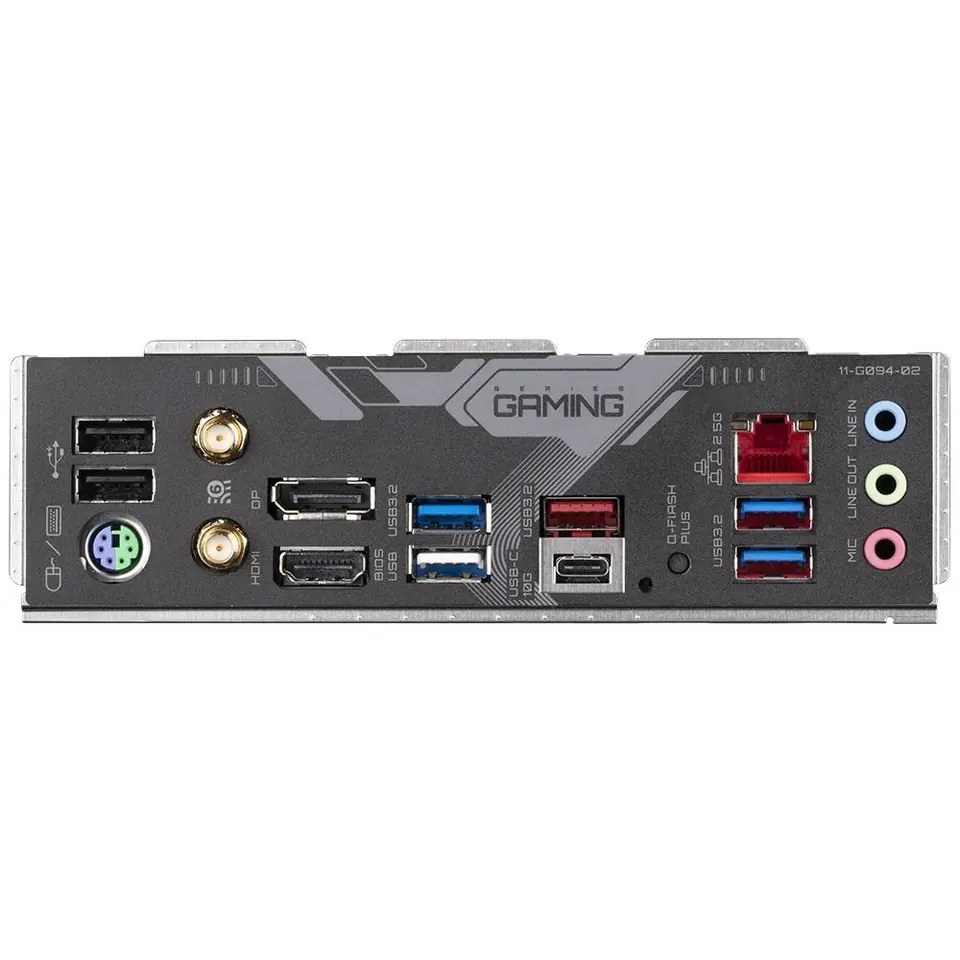

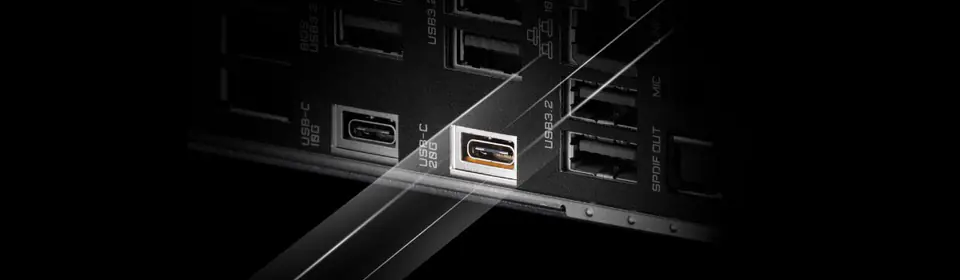

  • Extended Connectivity: DP, HDMI, 10Gbps USB-C on the back, USB-C 20Gbps Front
  • Smart Fan 6: Includes multiple temperature sensors, hybrid fan headers with FAN STOP
  • Q-Flash Plus: Update BIOS without installing CPU, memory and graphics card

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
