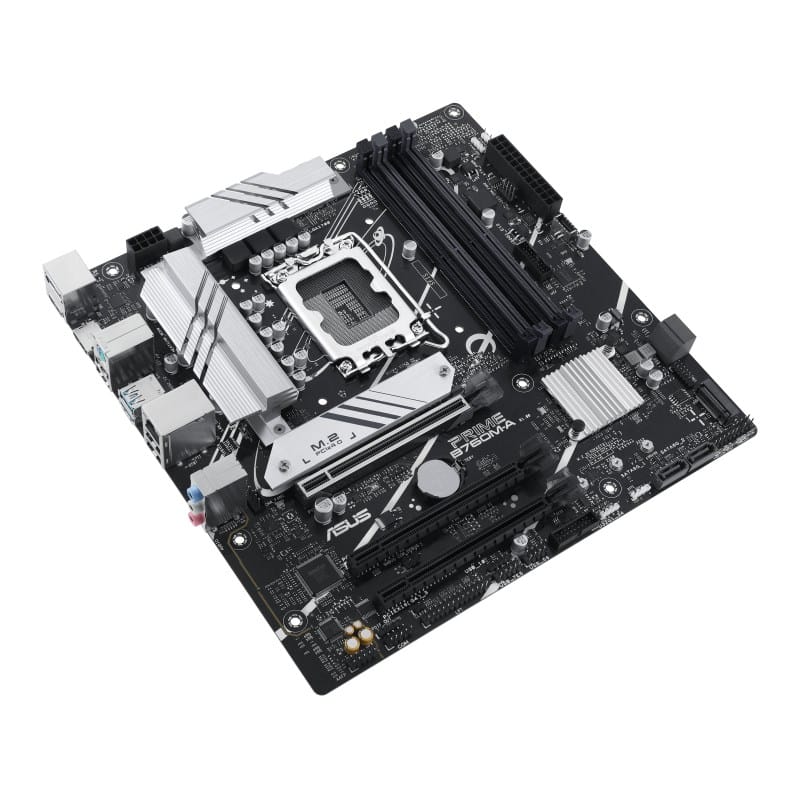

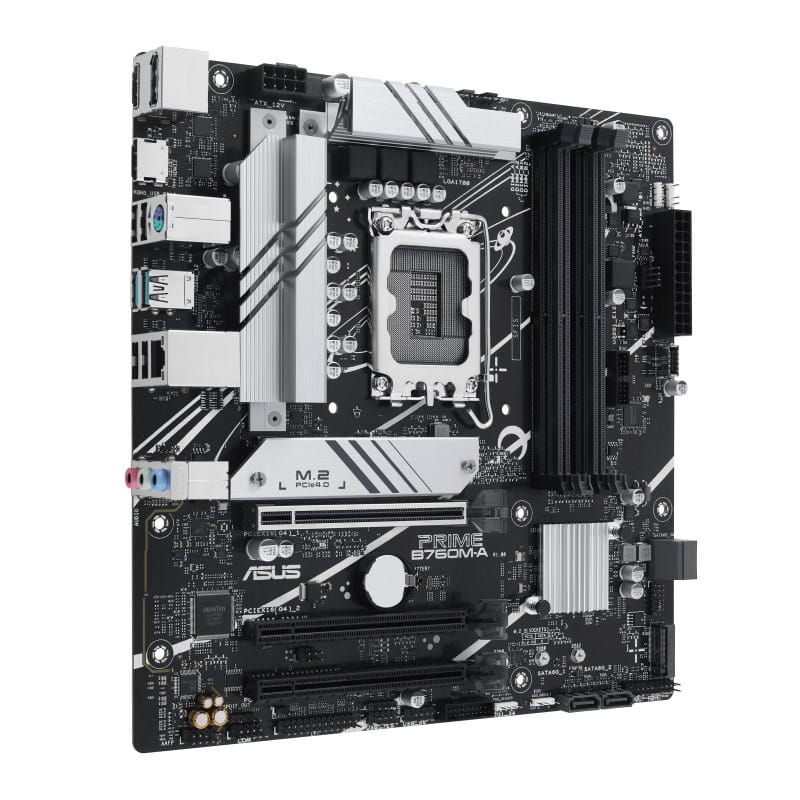

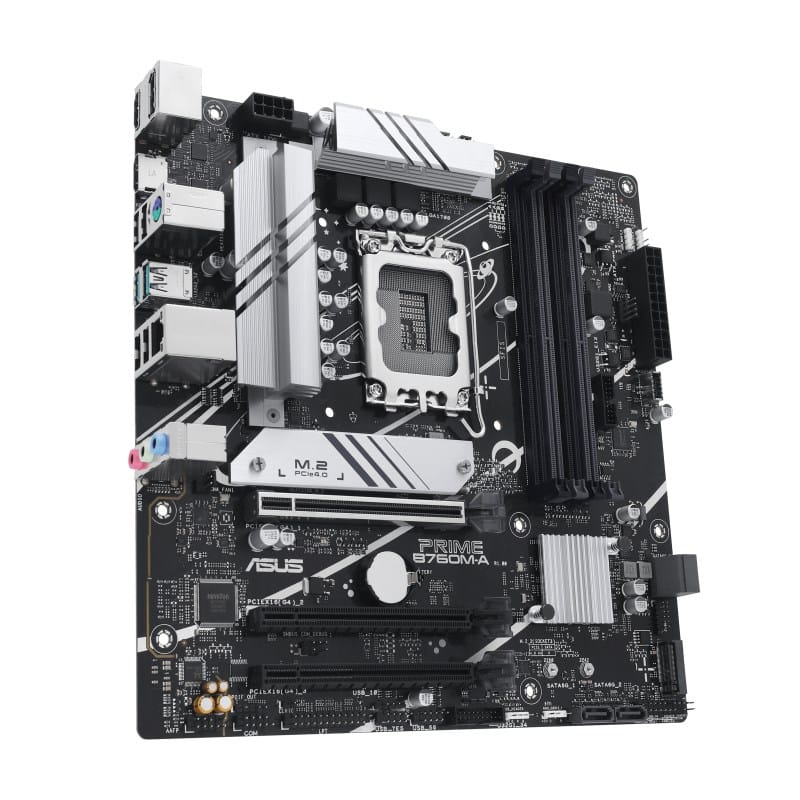

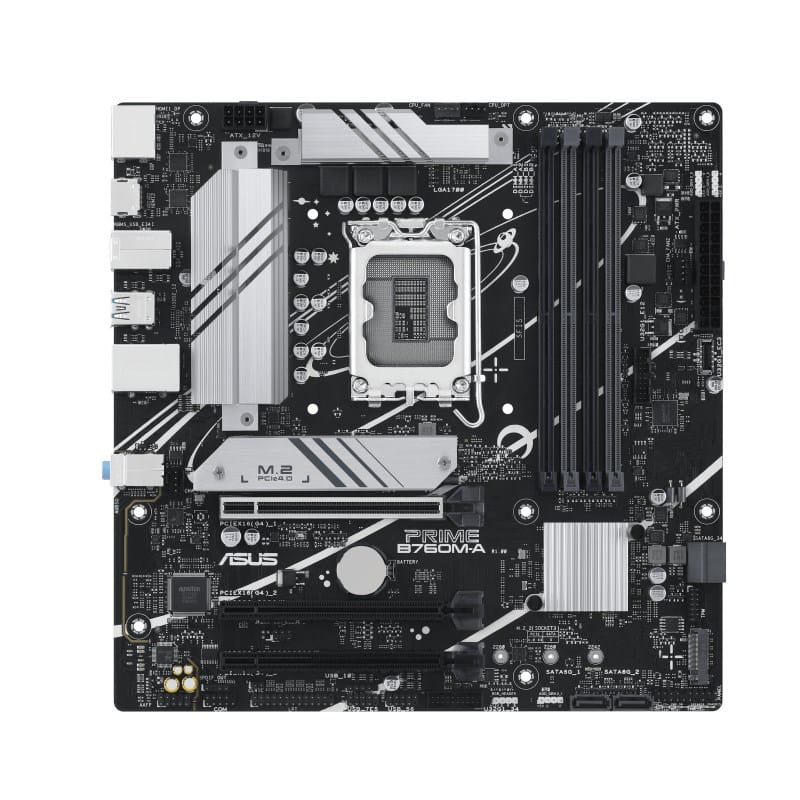

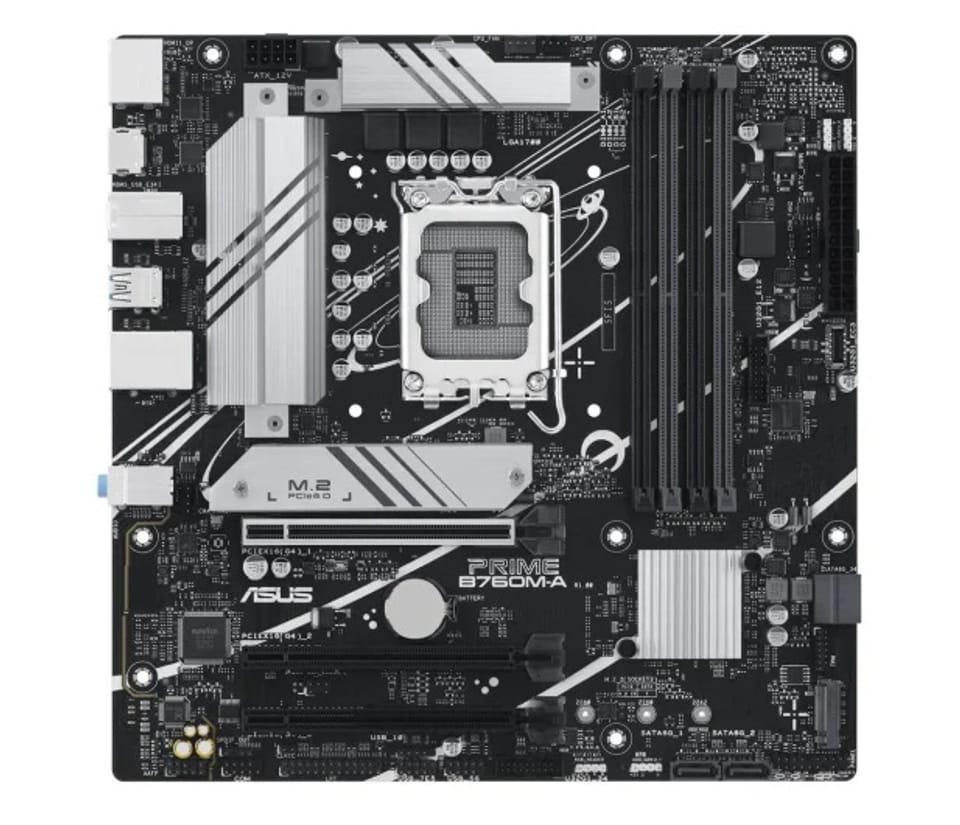

MB ASUS PRIME B760M-A-CSM
Specification
12v power connector: | Yes |
---|---|
Atx power connector (24-pin): | Yes |
Audio output channels: | 7.1 channels |
Bios type: | UEFI AMI |
Cables included: | SATA |
Clear cmos button: | Yes |
Compatible processor series: | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3 |
Cpu fan connector: | Yes |
Depth: | 244 mm |
Displayports quantity: | 1 |
Eps power connector (8-pin): | Yes |
Ethernet interface type: | 2.5 Gigabit Ethernet |
Ethernet lan: | Yes |
Ethernet lan (rj-45) ports: | 1 |
Front panel audio connector: | Yes |
Front panel connector: | Yes |
Hdmi ports quantity: | 2 |
Headphone outputs: | 1 |
Height: | 40 mm |
Line-in: | Yes |
Maximum internal memory: | 128 GB |
Memory channels: | Dual-channel |
Memory slots type: | DIMM |
Microphone in: | Yes |
Motherboard chipset: | Intel B760 |
Motherboard chipset family: | Intel |
Motherboard form factor: | micro ATX |
Number of chassis fan connectors: | 2 |
Number of com connectors: | 1 |
Number of hdds supported: | 4 |
Number of m.2 (m) slots: | 2 |
Number of memory slots: | 4 |
Number of sata iii connectors: | 4 |
Number of storage drives supported: | 6 |
Package depth: | 263 mm |
Package height: | 52 mm |
Package weight: | 1.14 kg |
Package width: | 270 mm |
Parallel processing technology support: | Not supported |
Pci express x16 (gen 4.x) slots: | 3 |
Processor manufacturer: | Intel |
Processor socket: | LGA 1700 |
Ps/2 ports quantity: | 1 |
Rgb led pin header: | Yes |
S/pdif out connector: | Yes |
Supported memory clock speed (max): | 7200 MHz |
Supported memory clock speeds: | 6200, 6800, 5200, 5800, 4800 MHz, 6600, 6000, 5000 MHz, 7000, 6400 MHz, 5600, 7200, 5400 |
Supported memory types: | DDR5-SDRAM |
Supported processor sockets: | LGA 1700 |
Supported storage drive interfaces: | M.2, SATA III |
Supported storage drive types: | HDD & SSD |
Tpm connector: | Yes |
Unbuffered memory: | Yes |
Usb 2.0 connectors: | 3 |
Usb 2.0 ports quantity: | 4 |
Usb 3.2 gen 1 (3.1 gen 1) connectors: | 3 |
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 2 |
Wi-fi: | Yes |
Width: | 244 mm |
Wifi-ap antenna jack: | 1 |
Windows operating systems supported: | Windows 10 x64, Windows 11 |
