Maxkin Conch-D WiFi wireless alarm with magnetic detector DWS-303
The Conch alarm system provides comprehensive protection with wireless sensors around the clock. By working within a Wi-Fi network, you will receive free alarms. You can also control the device remotely. If Maxkin Conch loses power, it is ready for further work for 2 hours and immediately sends a push message about a power outage. If the battery level of the sensor is low, a low battery alarm is triggered. With the Maxkin Conch alarm system, you can protect your entire apartment with up to 40 sensors that can be managed in 40 configurable radio zones. Maxkin's Conch is one level safer than standard security systems. Diffuse spectrum FHSS technology protects the system from advanced burglar alarms that are equipped with electronic devices that interfere with radio equipment.
Just download the Smart Life app from the App Store or Google Play and set up Maxkin Conch with your smartphone. All sensors or accessories are connected wirelessly to the Maxkin Conch WiFi alarm system.

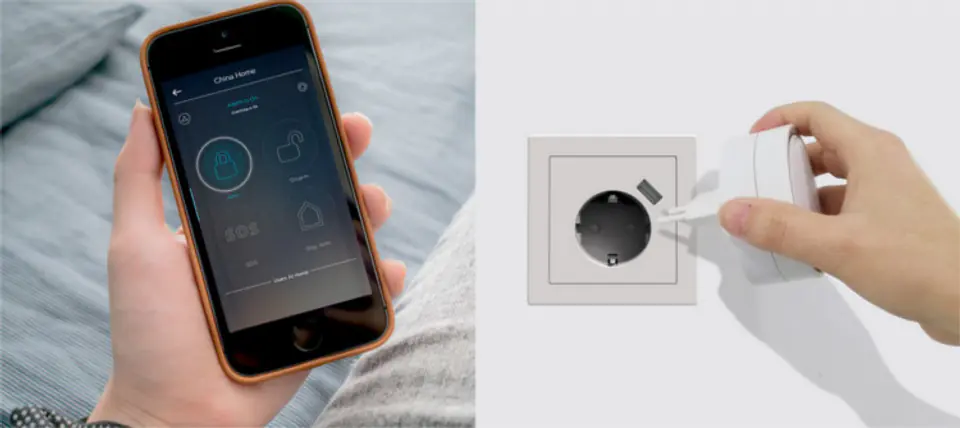

Built-in 3-color status LED informs you at any time about the current status. So it always indicates whether the Maxkin Conch alarm system is armed or not. You can check the current status at any time in the app on your smartphone. Use the Maxch Conch control and adjustment app, e.g. name the sensors. With the remote control, you can also control and control the alarm system.
Individually adjustable input and output latency gives you the ability to adjust the delays according to your personal wishes and needs. Have time to leave the house and take advantage of short delays so as not to give burglars any chance.
Enter the names of each remote control separately, so you will always be informed who and when armed or disarmed your alarm system.
You can individually set the operating time of the built-in siren. The siren volume is about 90dB.
The built-in rechargeable battery can power the system for 2 hours after a power failure. You never have to worry about a power outage again. Maxkin Conch will send you a push notification when there is a power failure or the battery charge status is too low.
Alarm handling is done via the free Smart Life app, which is available for iOS & Android. In a few steps below, you will outline an easy installation process for your device. (the device is also compatible with the Tuya Smart app).

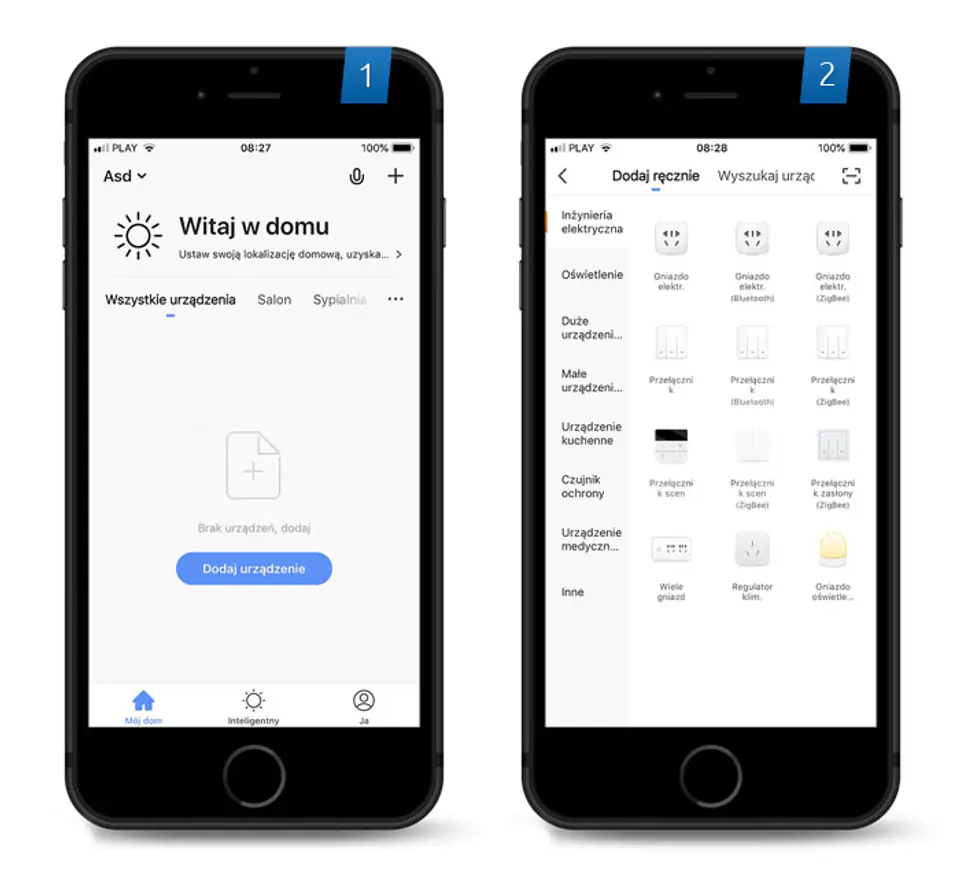

1. Install the Smart Life app on your smartphone and then launch it. Click "Add Device" or "+" in the top right corner.
2. Select the item corresponding to the type of device you are installing - e.g. "Electrical Engineering > Multiple Sockets".

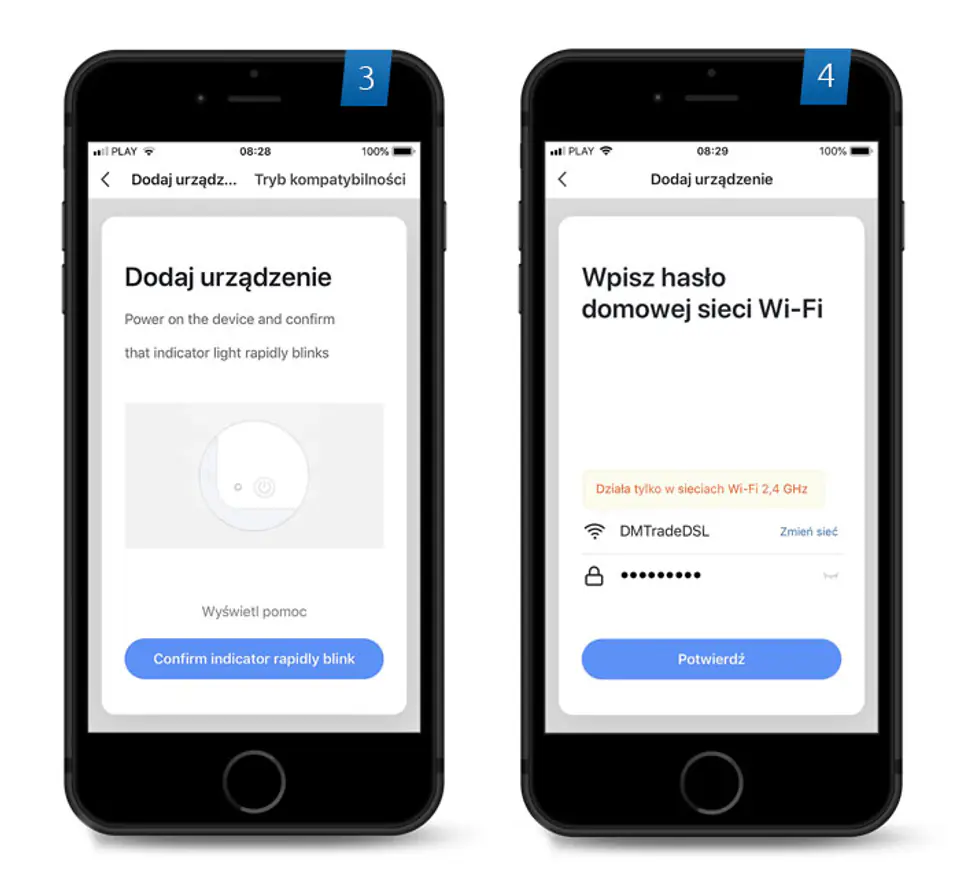

3. Button to turn on the device, turn it off and on again after about 10 seconds. Then hold the button for 5 seconds so that the LED starts blinking quickly, then click "Confirm indicator rapidly blink" in the application .
4. Select your local Wi-Fi network and then type the password. Click "Confirm".

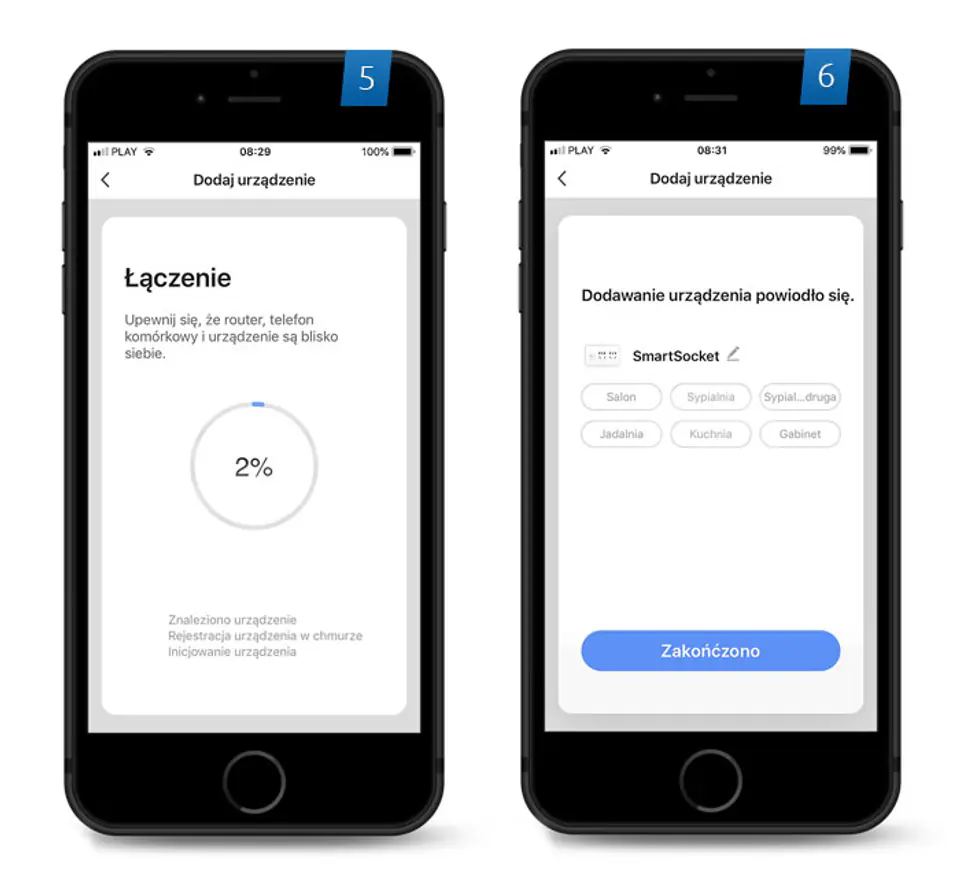

5. Wait for the device to connect to the network.
6. If the connection to the network is successful, the information "Adding the device was successful" will appear on the smartphone screen.
- Model: Conch
- Power consumption: AC 230 V.
- Battery: 600mH 3.7V
- Battery life: up to 2h
- Internal siren volume: 90 dB
- Supported accessories: 10 remote controls, 40 sensors
- Radio frequency: 433 MHz (± 75 kHz)
- Housing material: ABS plastic
- Working status:
- Temperature: 0°C~+55°C
- Relative humidity: 80% (non-condensing)
- Control panel dimensions (L x W x H):? x? x? mm

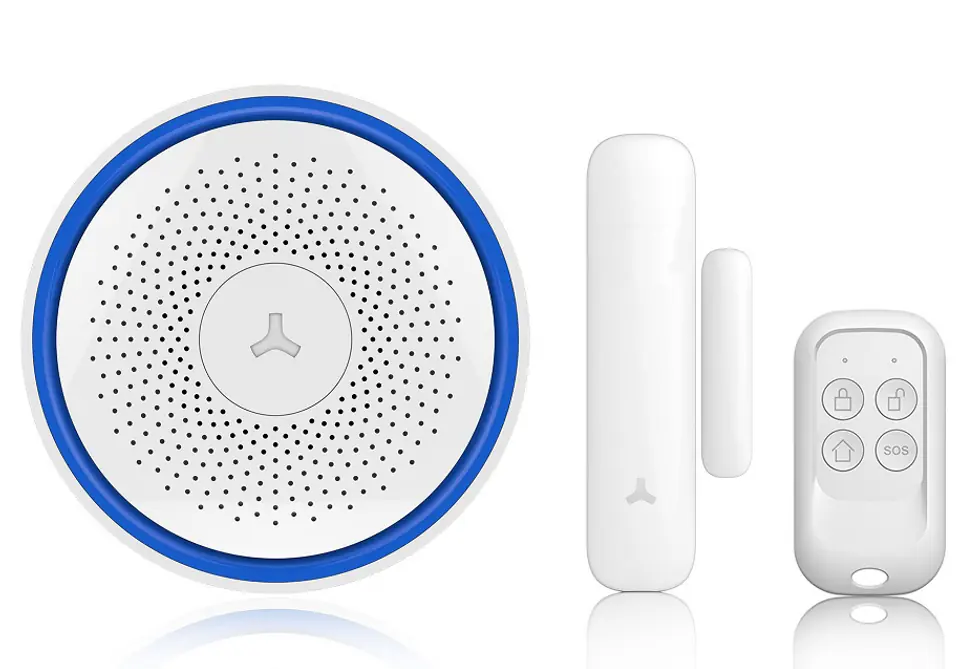

- Conch WiFi Alarm System × 1
- Wireless magnetic detector DWS-303 × 1
- Wireless remote control RC 101 × 1
- Power supply x 1

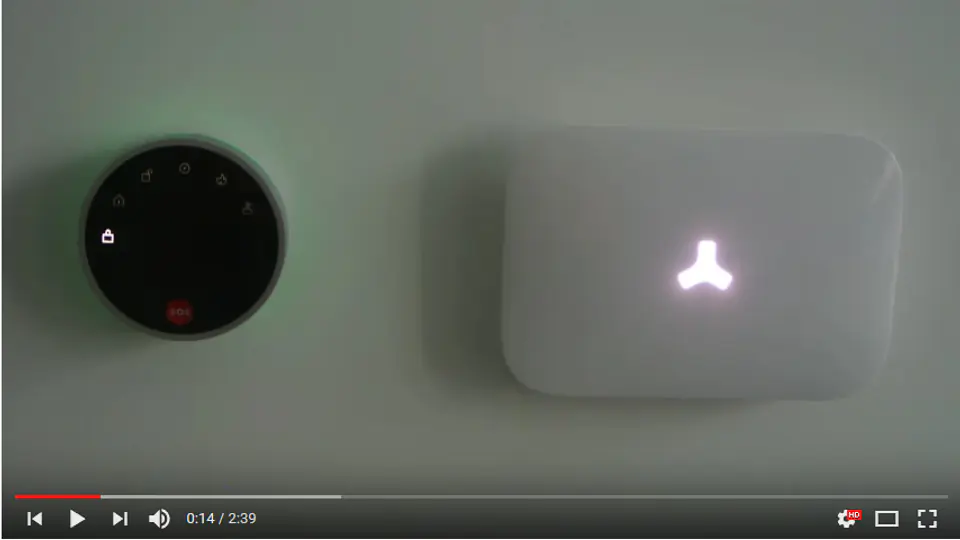

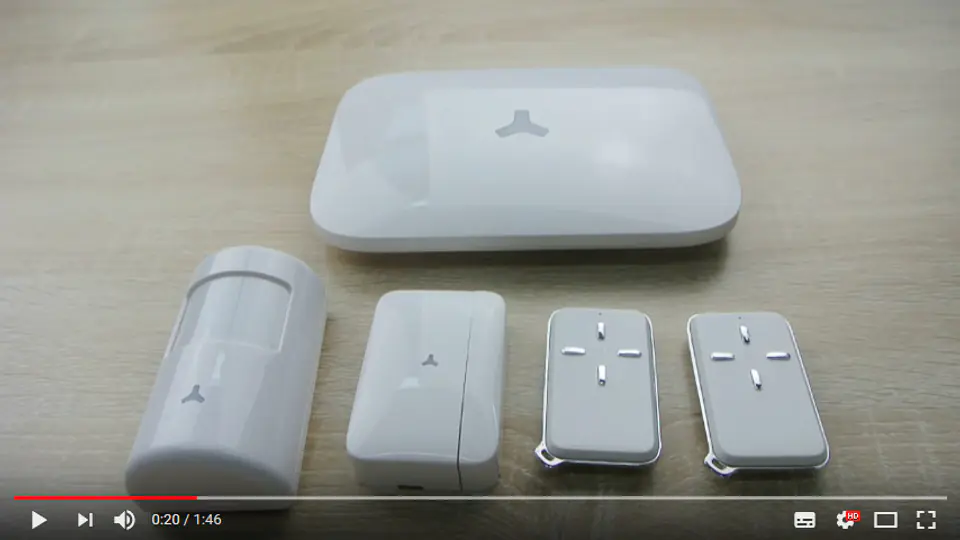

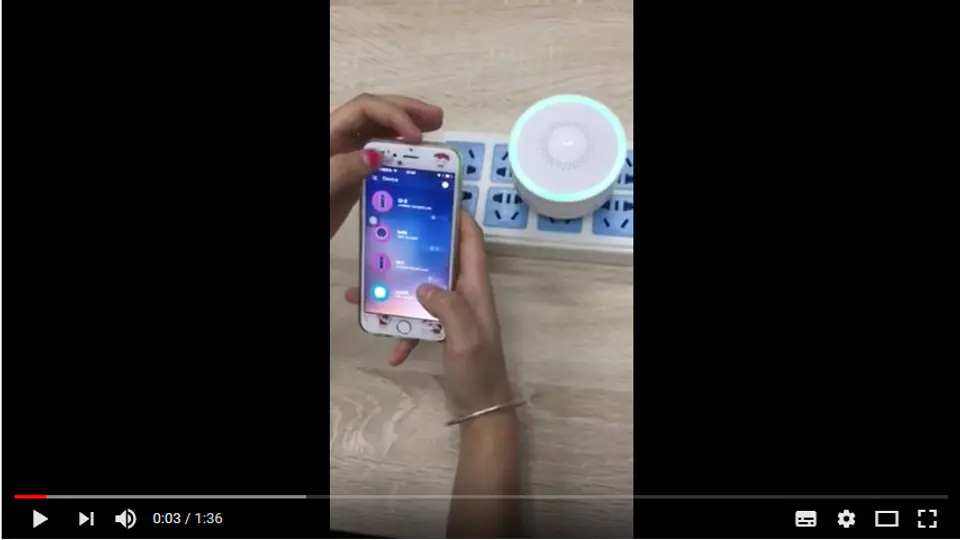

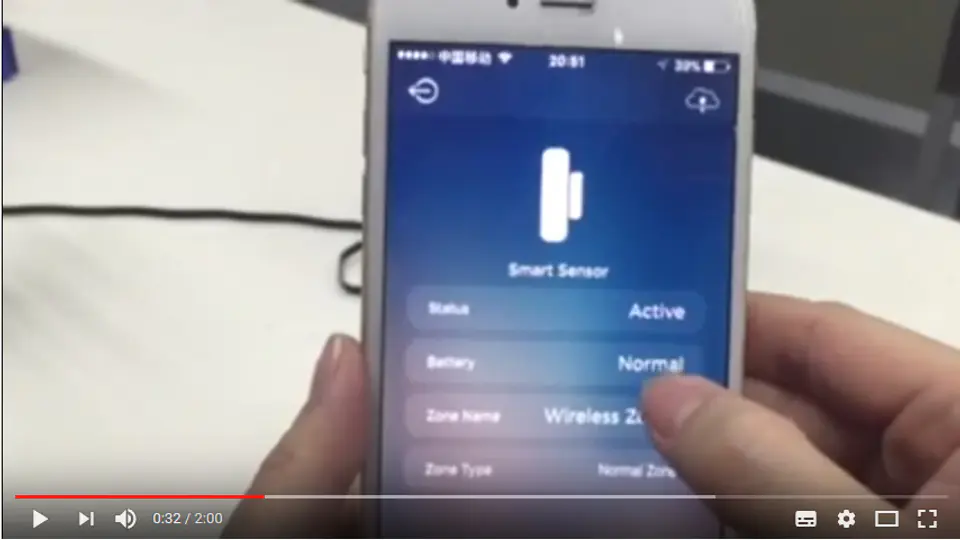

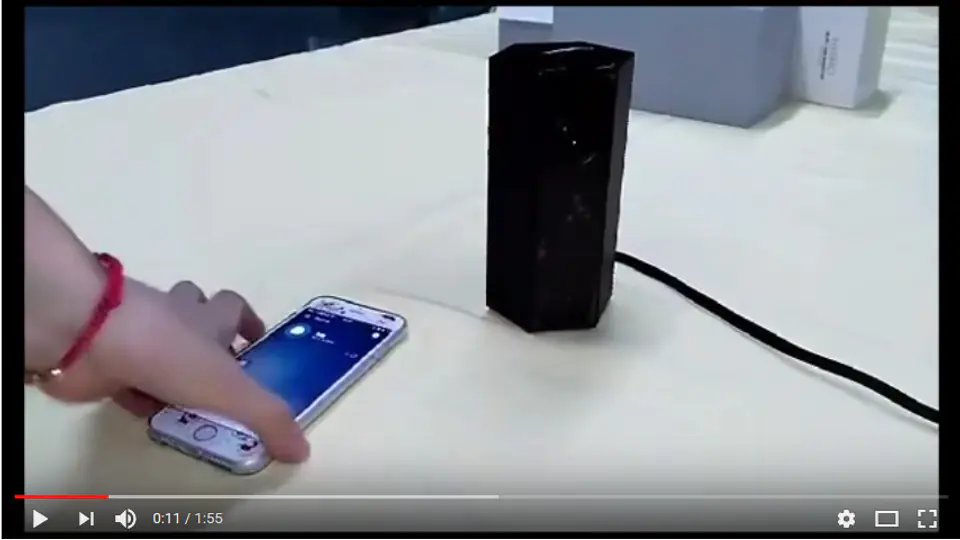

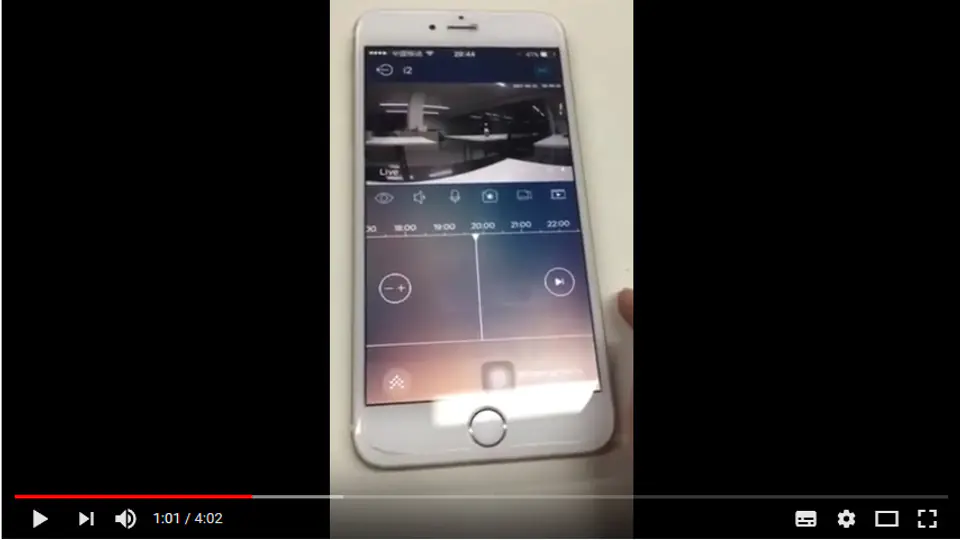

Presentation of Maxkin >>here<<https://dmtrade.pl/katalogi/maxkin/prezentacja.pdfFilmy presenting the brand and installation of the Maxkin wireless alarm system:
