Matrix HDMI 2/2 Spacetronics SPH-M222 4K

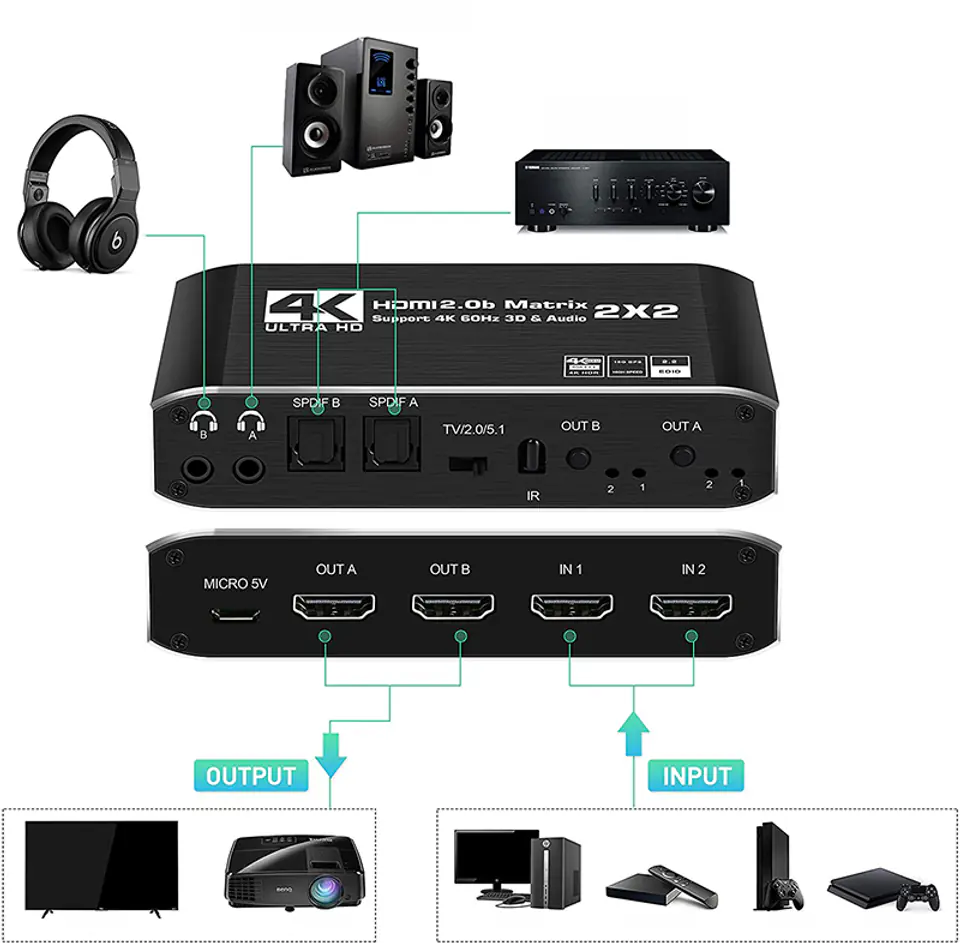

Matrix HDMI 2x2 can combine 2 HD signal sources with 2 HD displays, in addition, the device has a toslink output or stereo headphones. Matrix allows you to easily switch or split two HDMI devices into two HDMI-compatible monitors or projectors. The output ports can realize independent audio output through a stereo headset. The device is ideal for data center control, information distribution, conference room presentations, school and training environments.
- Support 3D video format
- Support 4K (input) 4K (output) resolution - Also capable of upscaling down

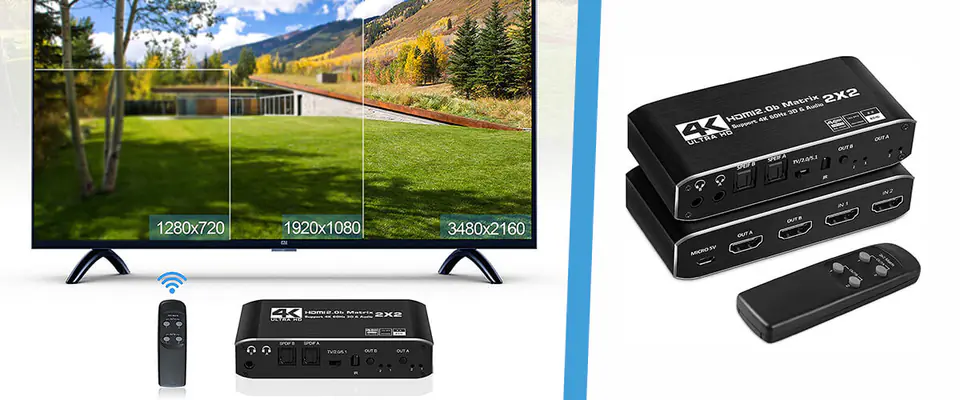

- Automatic resolution scaler
- Support TV(pass)/2.1/5.0
- Supports 2 SPDIF audio outputs and 2 3.5mm headphone jack outputs
- 2 HDMI inputs switch and split into 2 HDMI displays.
- Supports DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD channel
- HDMI version: HDMI 2.0
- HDMI resolution: up to 4K at 60Hz, 3D. RGB 8:8:8
- Support audio format: LPCM/DTS/Dolby-AC3
- Maximum bandwidth: 600MHz
- Maximum bitrate: 3x18.5 Gbps
- Input cable distance: 4K@30Hz ≤10M AWG26 HDMI 4K@60Hz ≤5M HDMI 2.0
- Output cable distance: 4K@30Hz ≤10M AWG26 HDMI 4K@60Hz ≤5M HDMI 2.0
- HDMI input: 2
- HDMI output: 2
- Maximum working current: 600mA
- Power supply format: Input: AC (50 Hz, 60 Hz) 100V-240V; Output: DC5V/1A
- Operating temperature range: (-15 to +45 °C)
- Operating humidity range: 5 to 90% RH (non-condensing)
- Dimensions (L x W x H): 112 x 52 x 25 (mm)
- Weight: 110g
- Matrix 2/2
- Power supply
- Remote control
