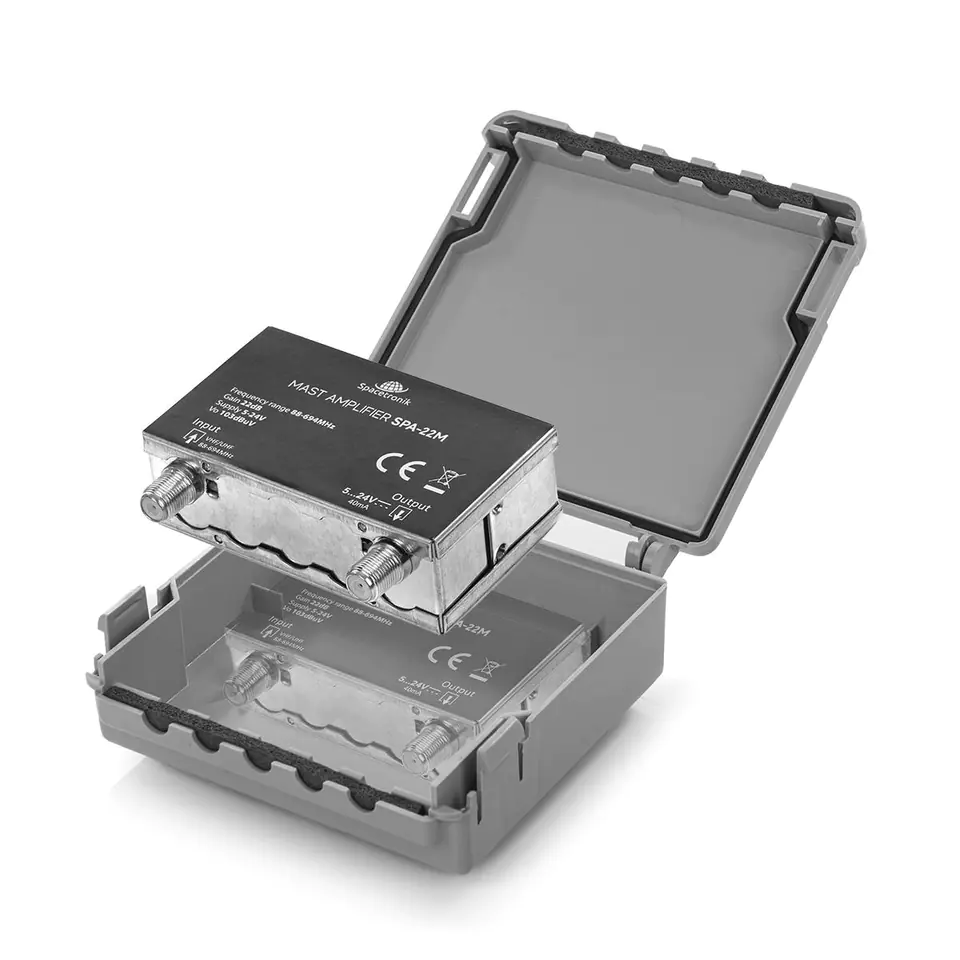

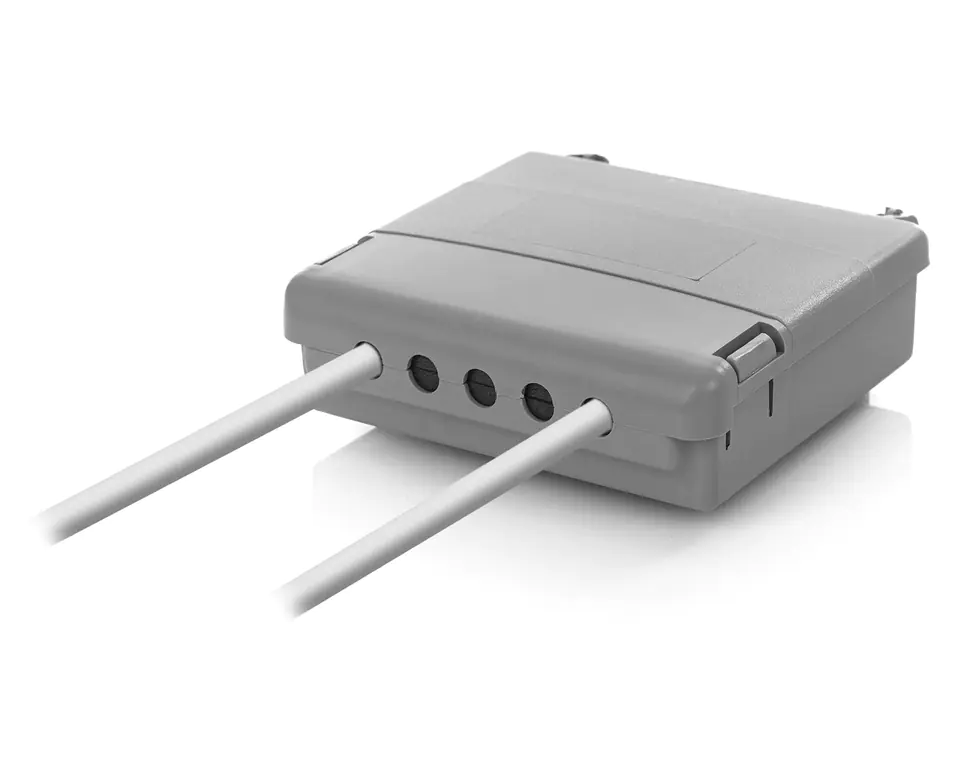

Mast DVB-T/T2 UHF/VHF/BIII/DAB Spacetronik SPA-22M with 5G LTE filter

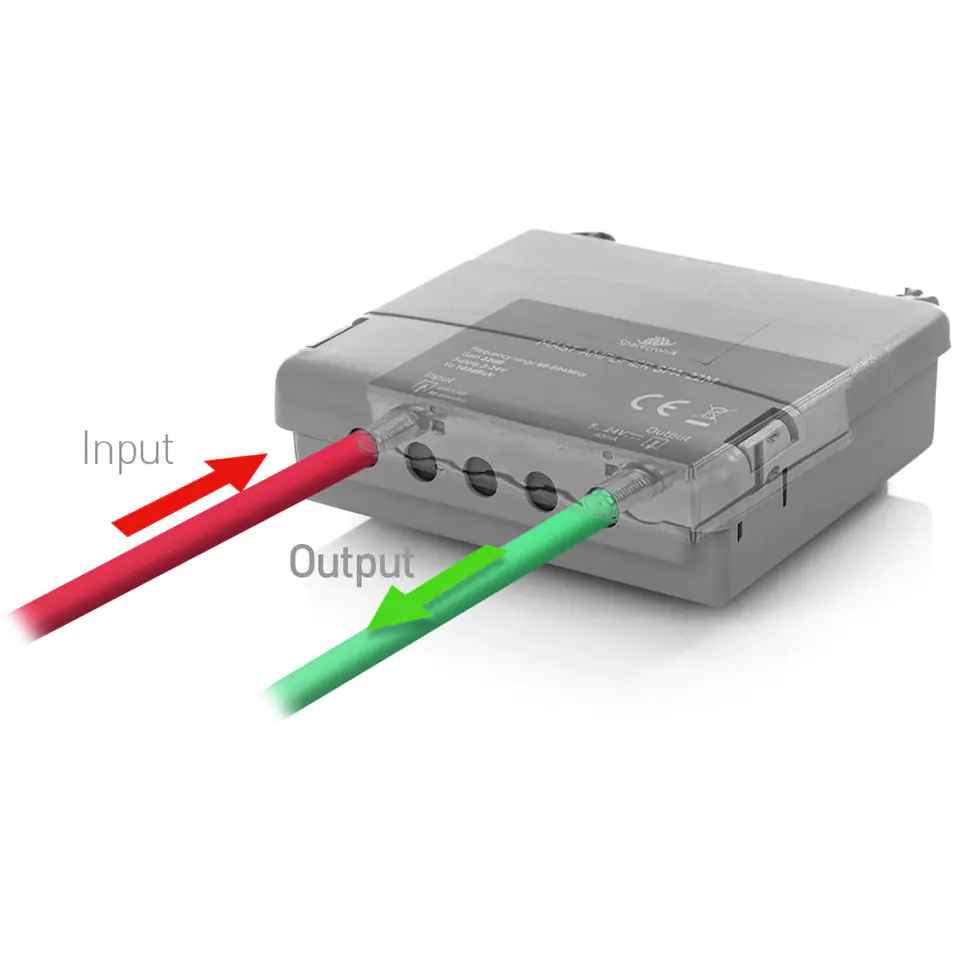

Broadband amplifier for antenna masts, built-in LTE700 filter (gain 22dB). It has an input for signal amplification and one output. Powered by coaxial cable from the power supply installed inside the building 5-24V.

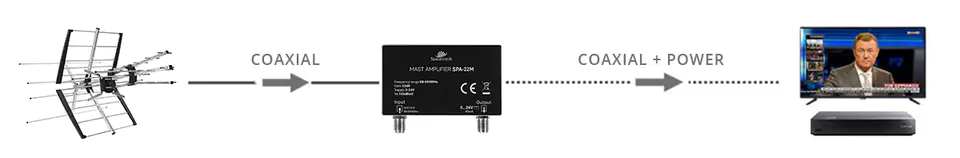

Unlike other models, the SPA-22M can be powered not only directly from the power supply, but also with 5V power supply from a TV, set-top box or other receiver using an antenna cable, exactly as it is shown in the diagram below.

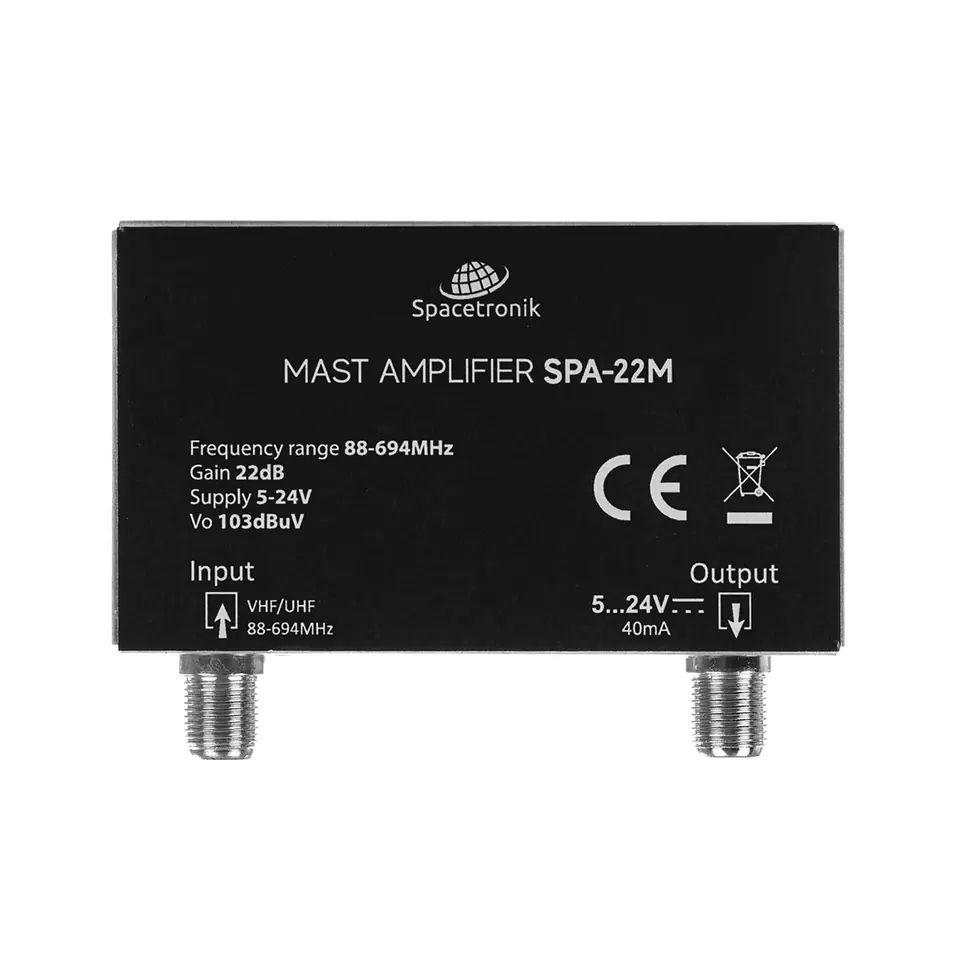

Inputs: 1x UHF/VHF/BIII/DAB
Frequency Range: 88-694MHz
Gain: 22dB
Max output level: 103* / 100** dBuV
Consumption: 40mA
Power supply: 5-24VDC
Plug: F
