Manufacturer no: 10030645

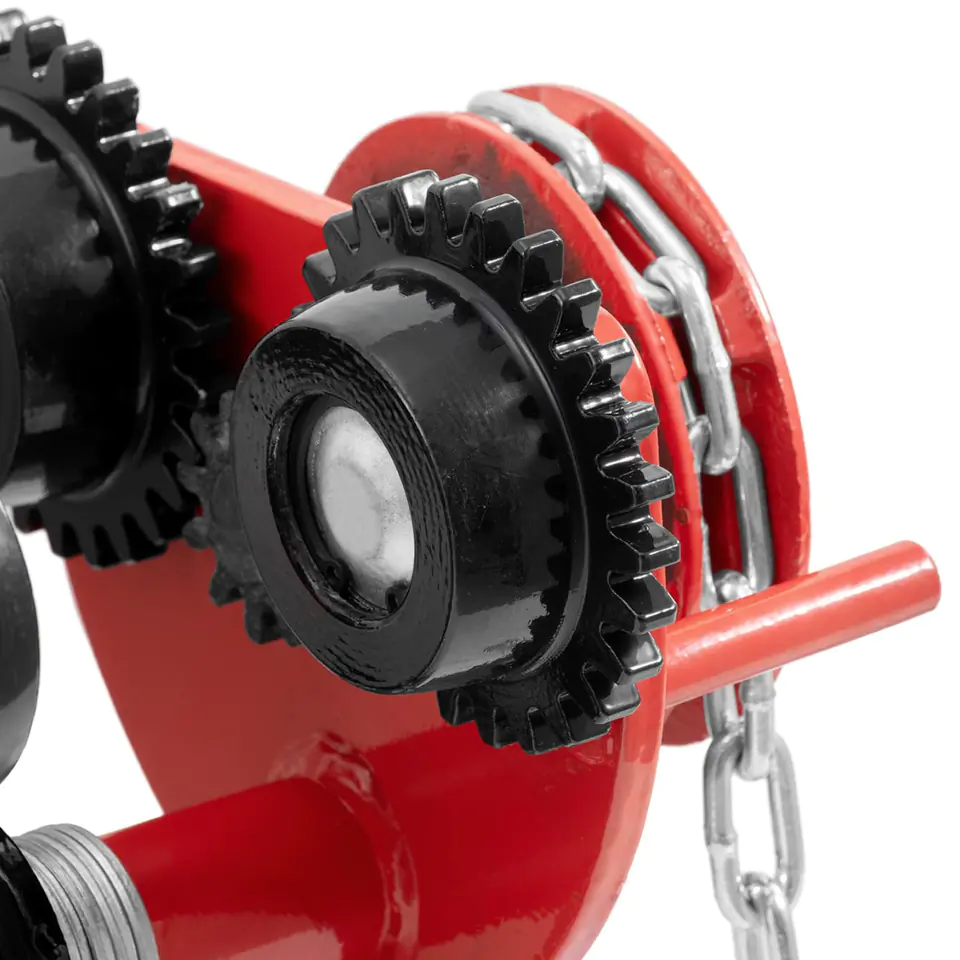

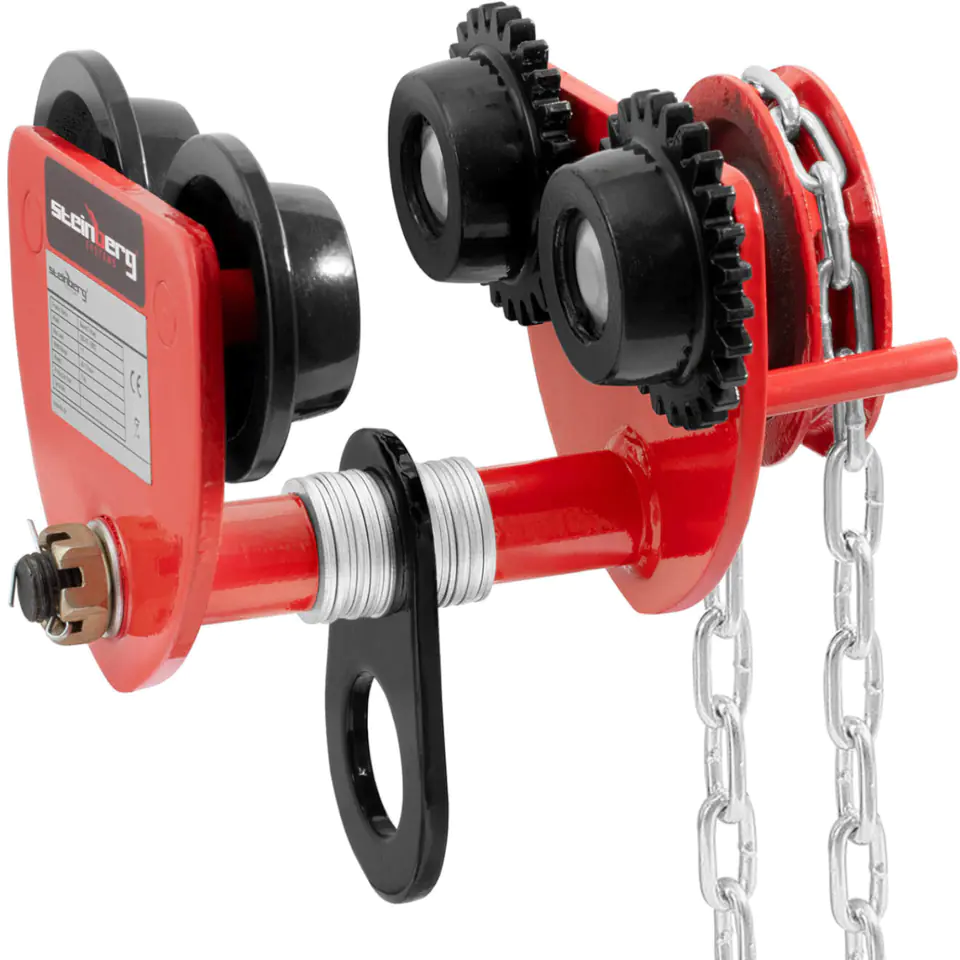

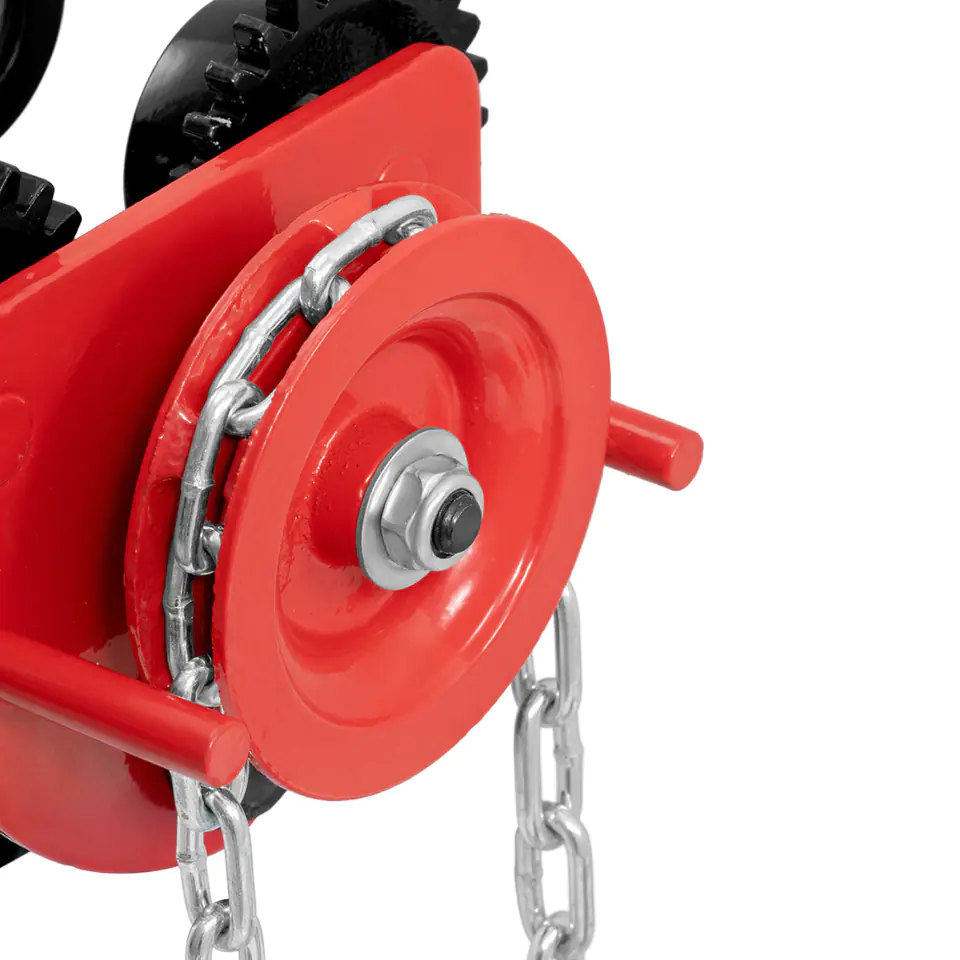

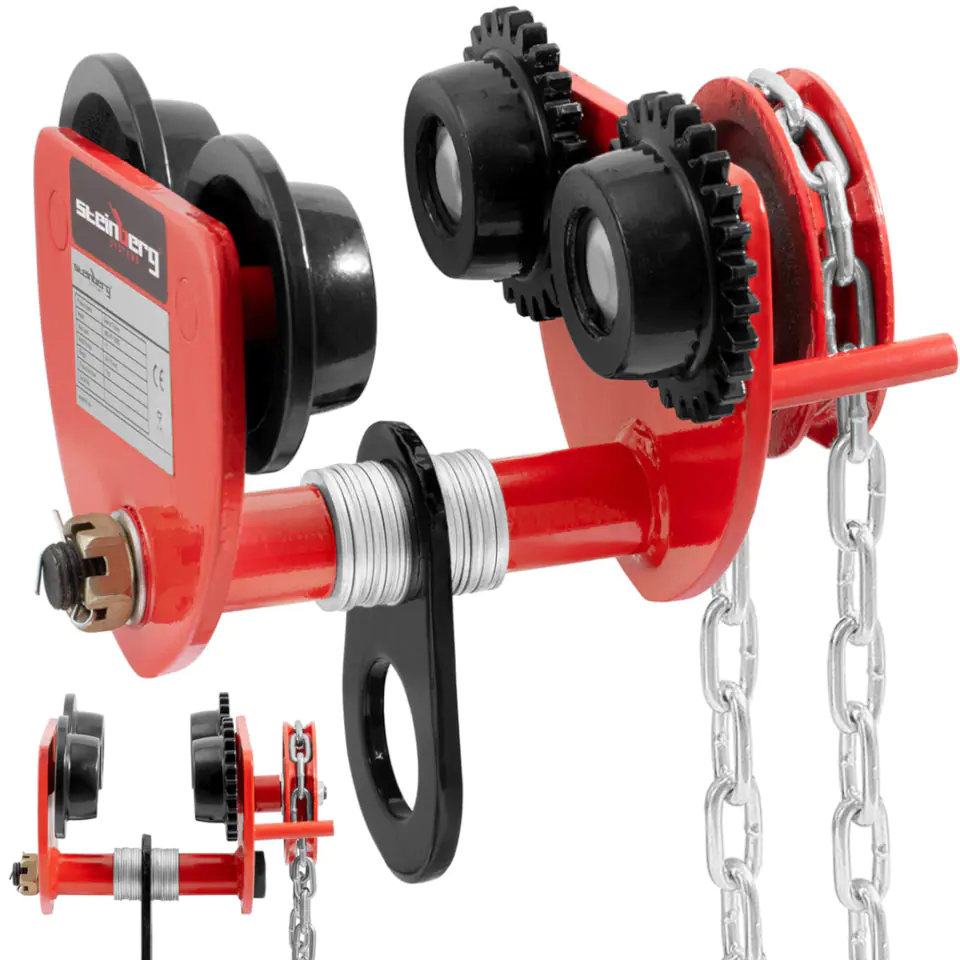

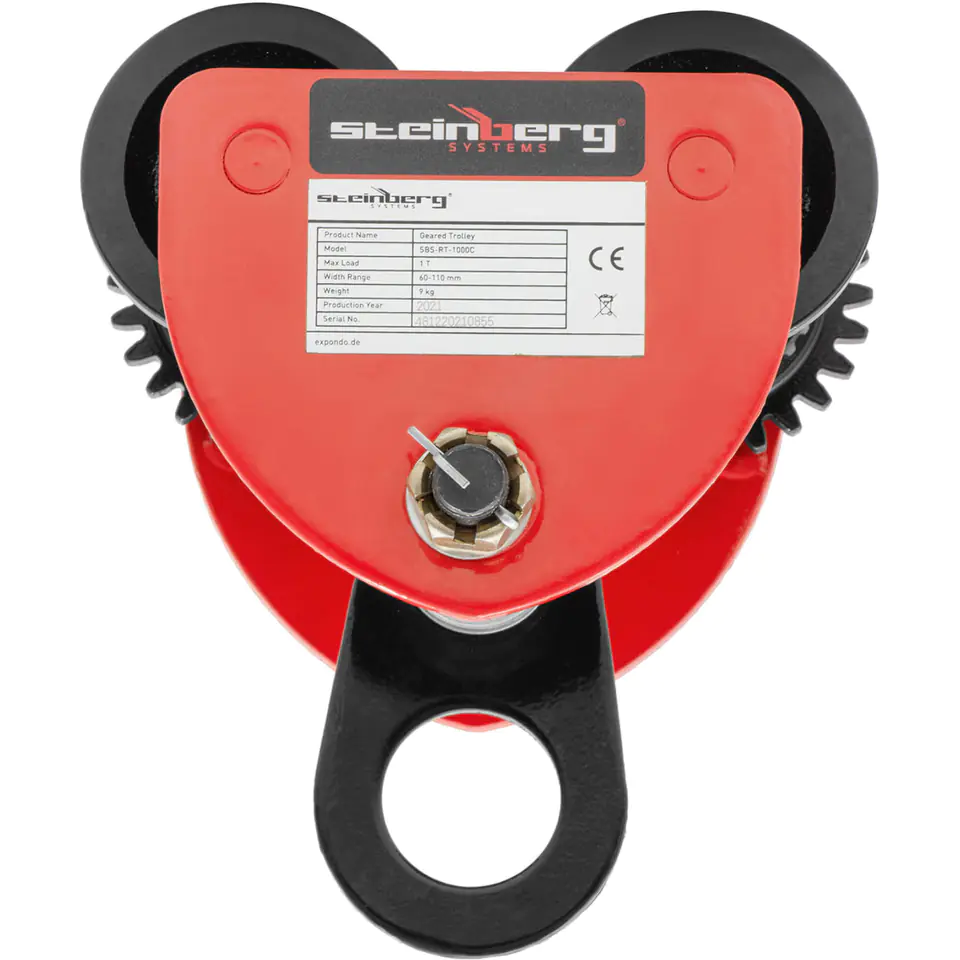

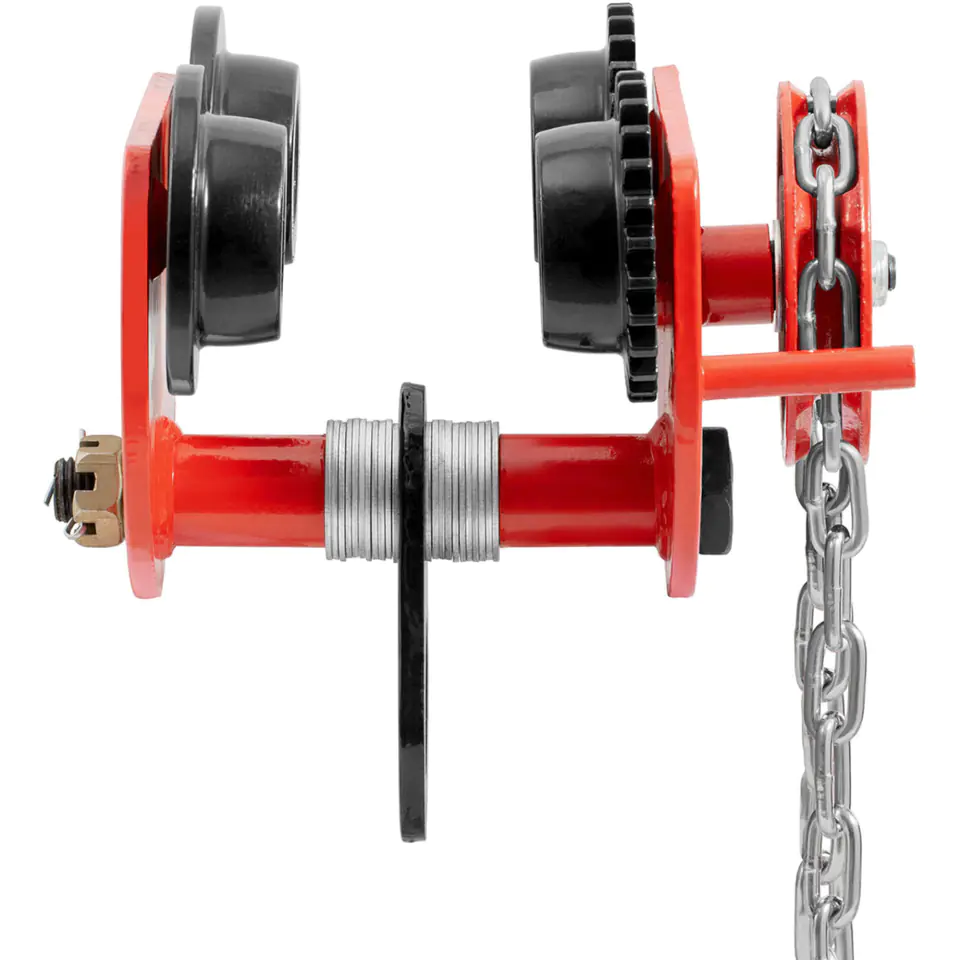

The crane trolley from Steinberg Systems allows you to easily move loads from point A to point B. It will work well for professional use in factories, industry, shipyards and wherever heavy objects need to be moved. The safety factor is 1.25x (based on the maximum payload). Four cast iron wheels ensure smooth and trouble-free operation. The double roller system has been designed in such a way that it works on both straight beams, tapered beams and curved rails. Adjustment in the range of 60-110 mm allows you to mount the trolley on various beams of the appropriate width. The device is easy to install. Moving loads is efficient and convenient.
Product features:
- - Strength up to 1000 kg,
- - Safety factor 1.25x,
- - Made of high quality carbon steel with solid construction,
- - Adjustment in the range of 60-110 mm,
- - Easy to install and operate.
- - Model - SBS-RT-1000C
- - Catalogue number - 10030645
- - Article status - New
- - Wheels - 25 mm
- - Chain length [mm] - 3000
- - Safety factor - 1,25x
- - Mandrel material - Carbon steel #45
- - Adjustment range [mm] - 60-110
- -Max. lifting capacity [kg] - 1000
- - Dimensions (LxWxH) [cm] - 23 x 20 x 17
- - Weight [kg] - 9,3
- - Shipping dimensions (LxWxH) [cm] - 28 x 21 x 21
- - Shipping weight [kg] - 9,7
- - Crane trolley
- -Manual
