Manufacturer no: 10061169

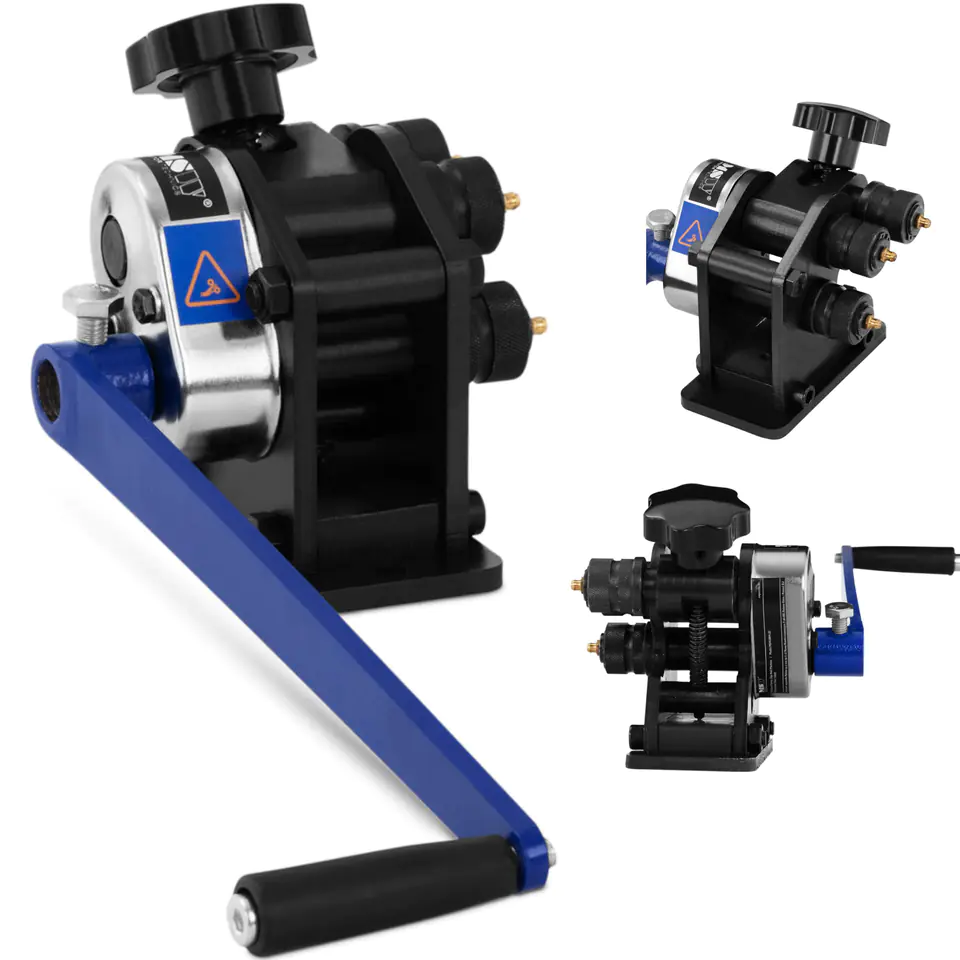

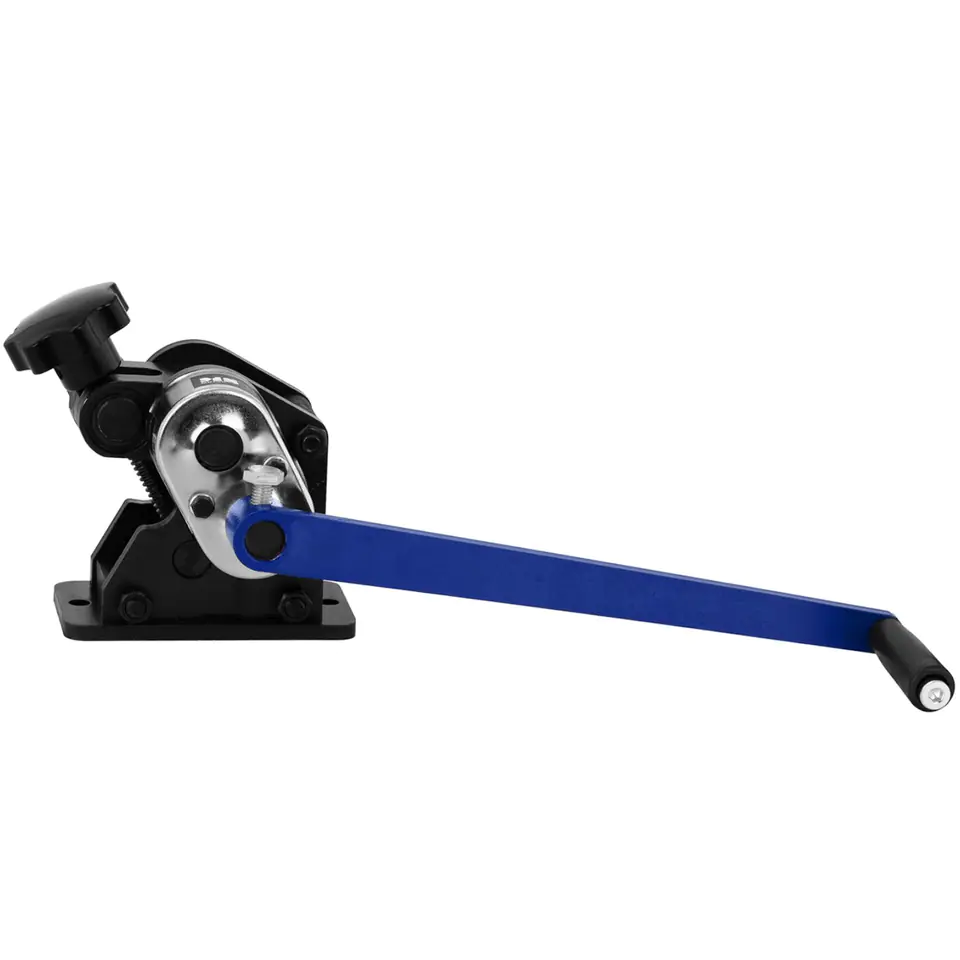

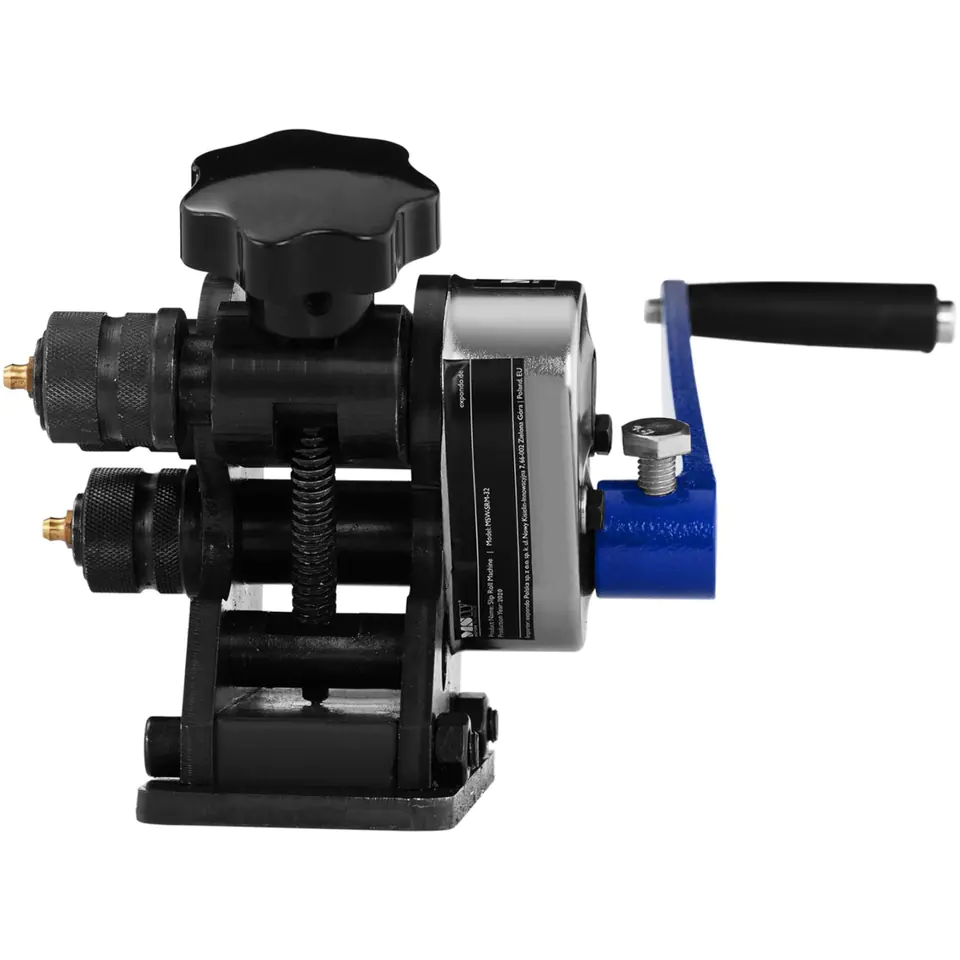

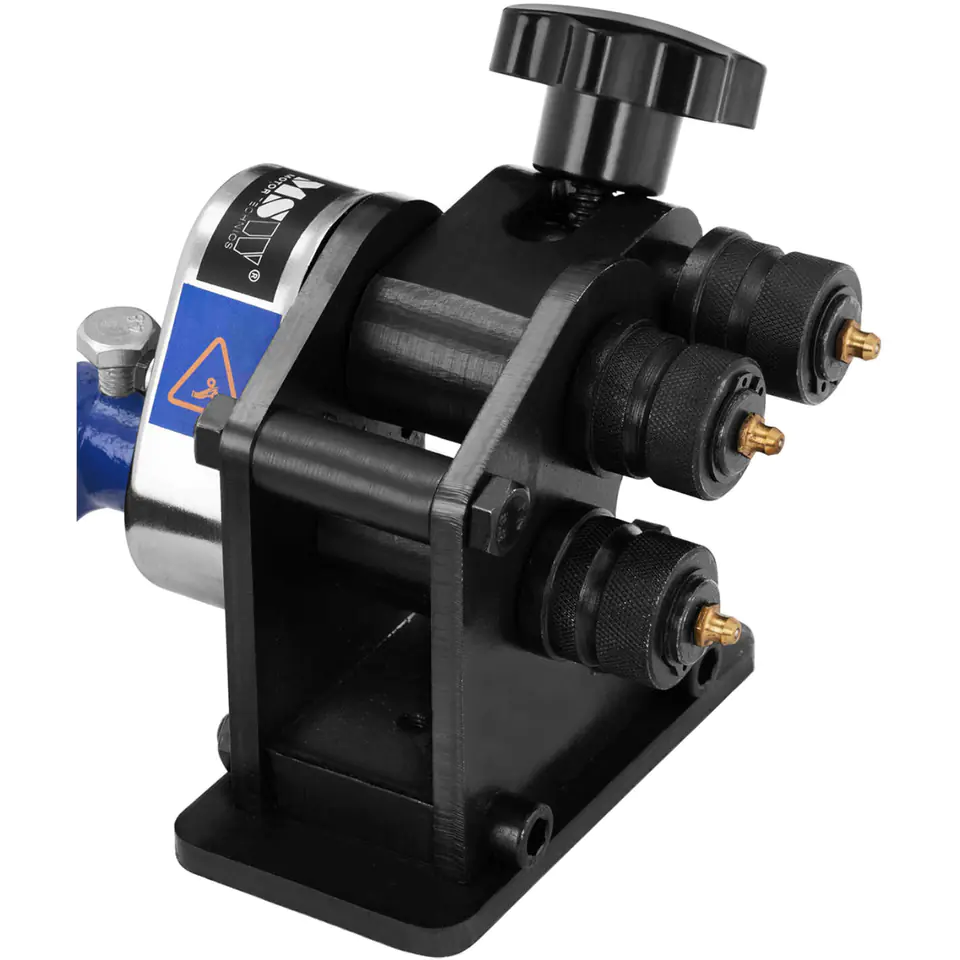

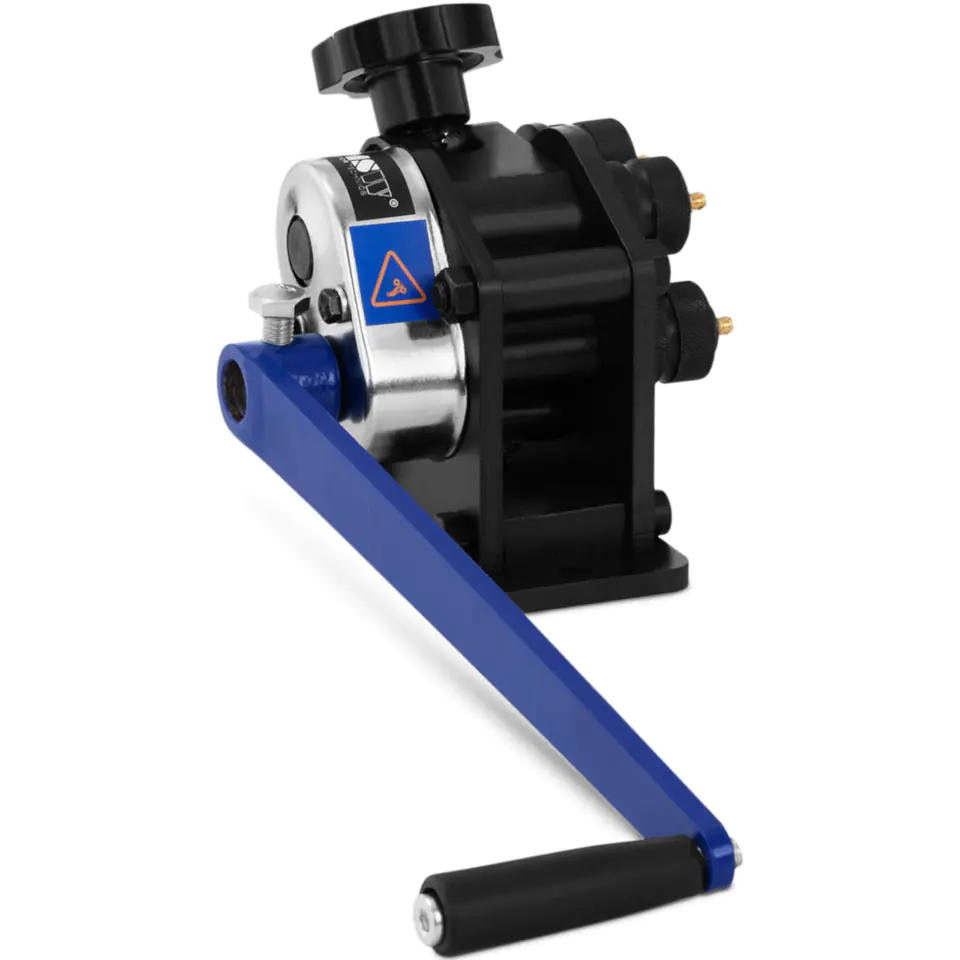

The MSW profile bender allows you to shape sheet metal in workshops, factories, construction companies and in a private garage. 32 mm rollers ensure precise operation. The maximum rolling diameter of the round profile is 6.5 mm and the dimensions of the flat profile are 25 x 5 mm. The machine allows to obtain identical ring-shaped elements with a diameter of min. 770 mm and max. 1400 mm. The bender is made of durable steel. Mounting holes allow you to attach it to the work surface. Manual ergonomic lever with a length of 330 mm with non-slip handle for simple and convenient operation.
Product features:
- - Rolls with a diameter of 32 mm (1-17/64 inches),
- - Rolling of round profiles - max. 6.5 mm (1/4 inch) diameter,
- - Rolling of flat profiles - 25 x 5 mm (63/64 inches),
- - Ergonomic handle with a length of 330 mm,
- - Made of solid steel.
- - Catalogue number - 10061169
- - Article status - New
- - Model - MSW-SRM-32
- - Material - Steel
- - Steel flat bar [mm] - 25 x 5
- - Bending angle [] - 0-360
- - Cable diameter [mm] - 32
- - Material thickness [mm] - 8
- - Minimum rolling diameter [mm] - 770
- - Dimensions (LxWxH) [cm] - 33 x 23 x 50
- - Weight [kg] - 5,5
- - Shipping dimensions (LxWxH) [cm] - 36 x 20 x 21
- - Shipping weight [kg] - 6,3
- - Profile bender
- -Lever
- -Manual
