Manual magnetic gripper lift for sheets and profiles up to 300kg

€133.79
Shipping from warehouse: ⁨H1⁩
Estimated shipping: Mon, Nov 18 - Thu, Nov 21
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Steinberg Systems
Product code:
10030202 / 4250928636287

Specification

Sku:1001830

Manufacturer name SBS-ML 300

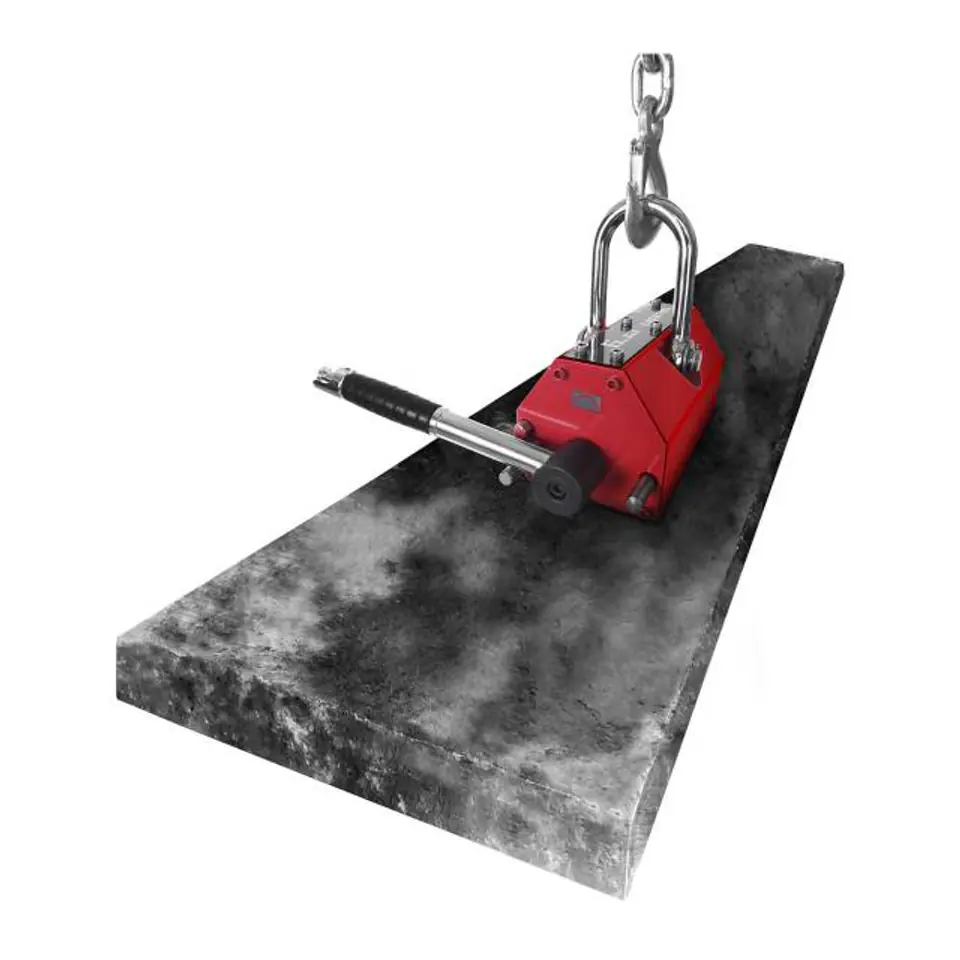

Magnetic lift SBS-ML 300 Steinberg Systems is used to lift iron and steel objects. It is ideal for the engineering, metallurgical, shipbuilding industries, as well as car workshops and construction companies.

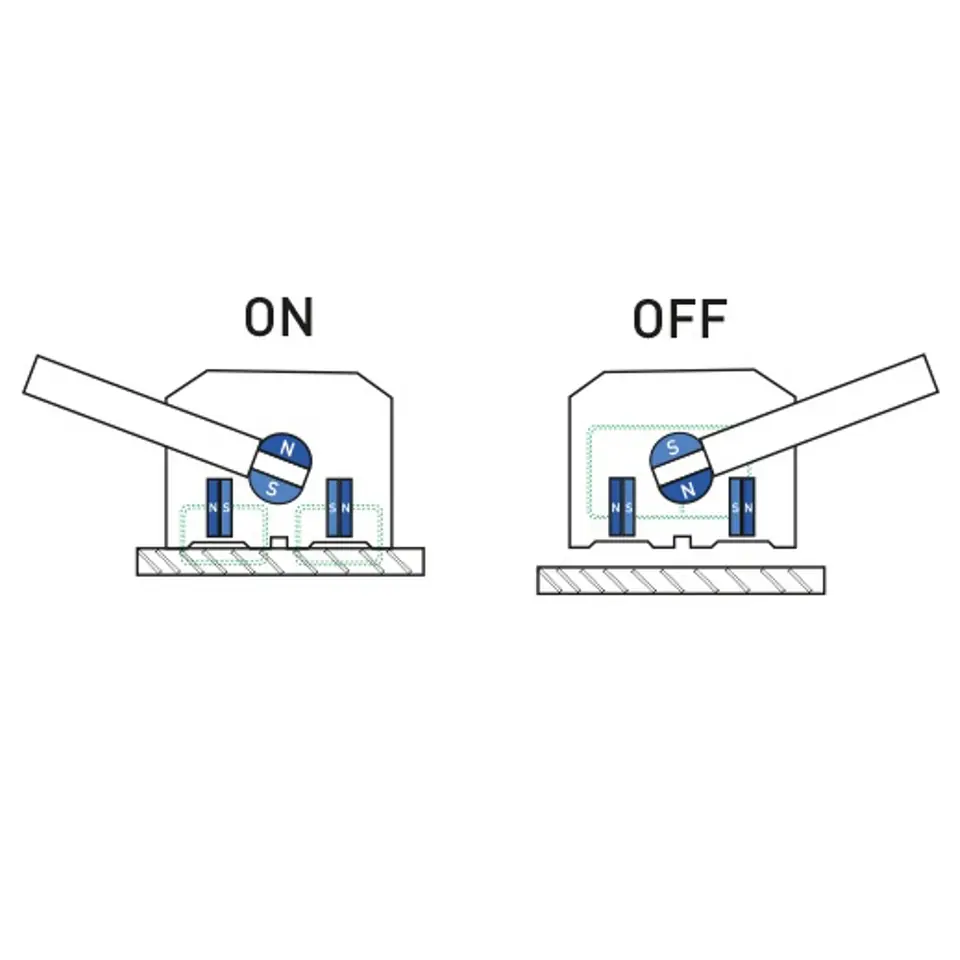

The magnetic gripper allows you to lift sheet metal and profiled elements. The equipment uses neodymium magnets (sintered), making it very easy to use. In the middle of the lift there is a stationary and movable magnet, which, properly positioned, introduce a magnetic field to the lifted structure. The SBS-ML 300 magnetic gripper is characterized by operational safety. It does not need any power sources, so it does not generate costs. It is equipped with a shackle for hanging equipment, e.g. on a crane.
Features and functions:
- neodymium magnets
- permissible load 300kg
- breaking load 900kg
- safe and simple operation
- manual lever
- zero operating costs
Technical parameters:

  • - Model - SBS-ML 300
  • - Catalogue number - 3202
  • - Article status - New
  • - Payload - 300 kg
  • - Breaking load - 900 kg
  • - Max. load for vertical lifting and rounded surfaces - 100 kg
  • - Temperature range operating - from -40 to 80C
  • - Color - Red
  • - Shutdown mechanism - Mechanical lever
  • - Dimensions (LxWxH) - 20.6 x 9.4 x 9.3 cm
  • - Weight - 9 kg
  • - Shipping dimensions (LxWxH) - 25.5 x 18 x 22 cm
  • - Shipping weight - 9.9 kg
In the set: Our devices have a CE declaration of conformity necessary for the Sanitary Inspectorate.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
