Manual magnetic gripper lift for sheets and profiles up to 2000kg 2T

€701.63
Shipping from warehouse: ⁨H1⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Steinberg Systems
Product code:
10030206 / 4250928636324

Specification

Sku:1001834

Manufacturer name SBS-ML 2000

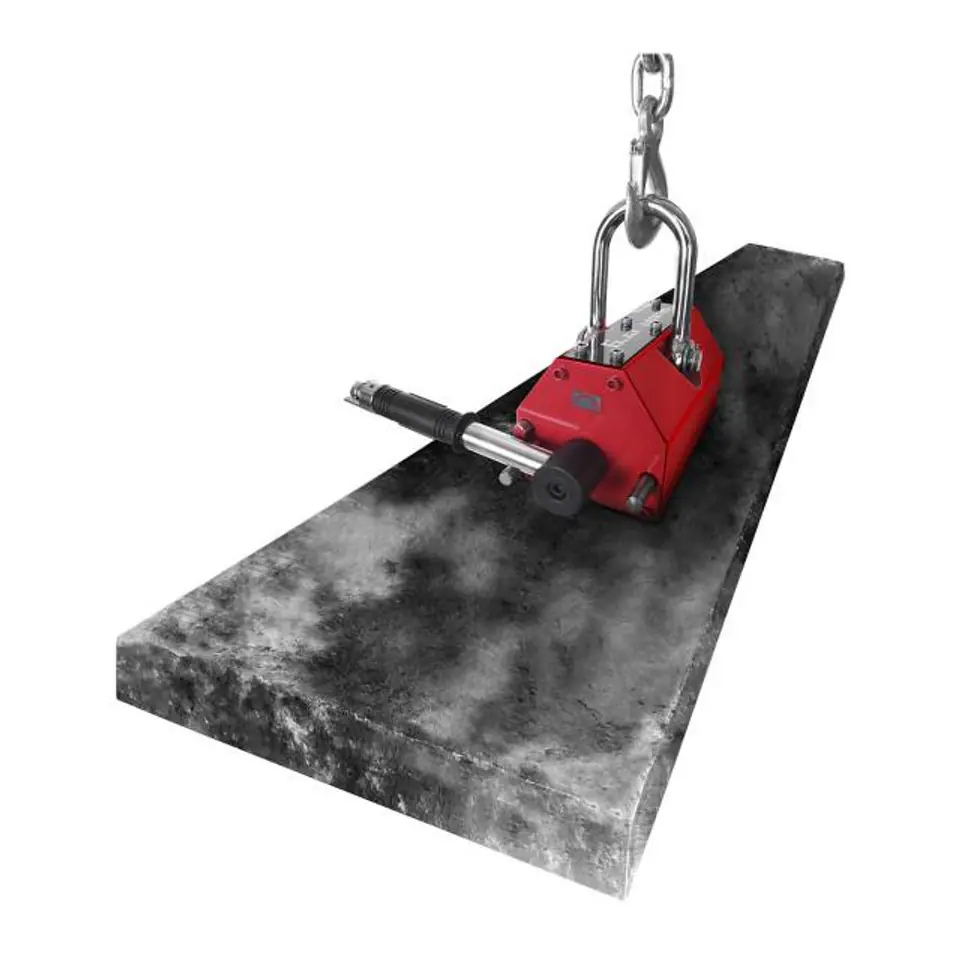

Magnetic lift SBS-ML 2000 Steinberg Systems is used to lift iron and steel objects. It is ideal for the engineering, metallurgical, shipbuilding industries, as well as car workshops and construction companies.

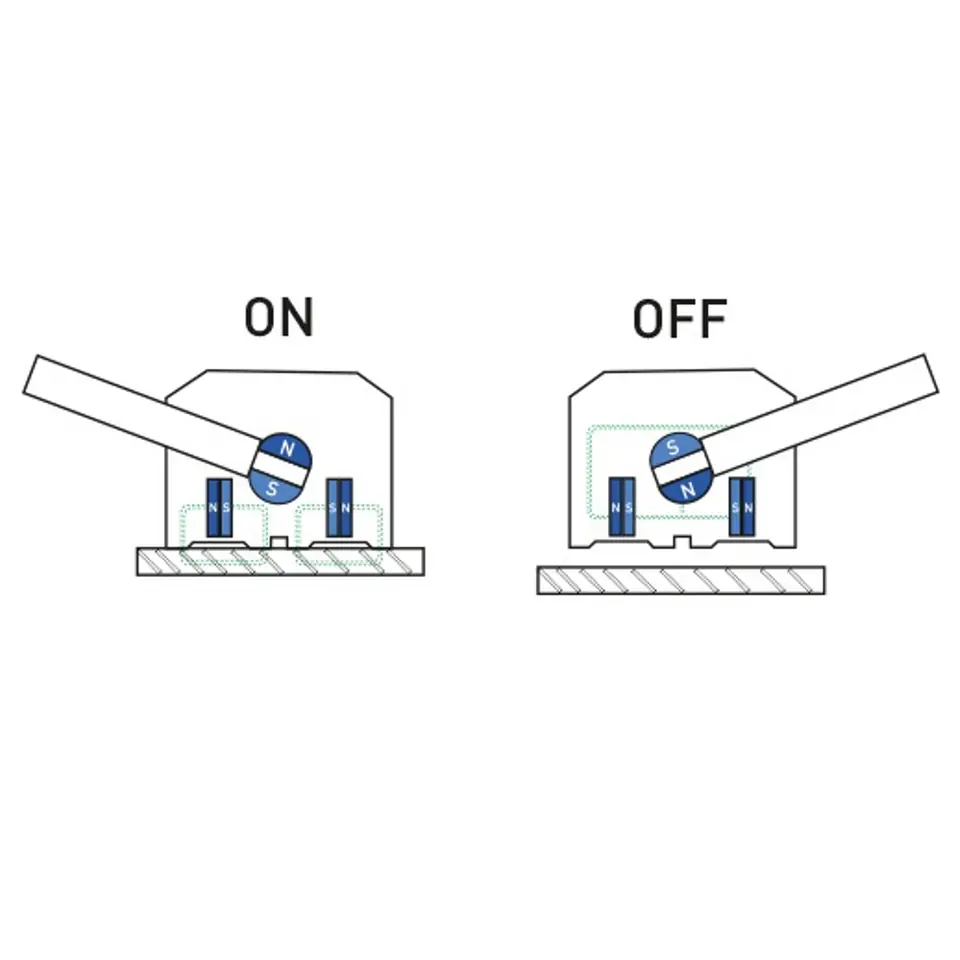

The magnetic gripper allows you to lift sheet metal and profiled elements. The equipment uses neodymium magnets (sintered), making it very easy to use. In the middle of the lift there is a stationary and movable magnet, which, properly positioned, introduce a magnetic field to the lifted structure. The SBS-ML 2000 magnetic gripper is characterized by safety of operation. It does not need any power sources, so it does not generate costs. It is equipped with a shackle for hanging equipment, e.g. on a crane.
Features and functions:
- neodymium magnets
- permissible load 2000kg
- breaking load 6000kg
- safe and simple operation

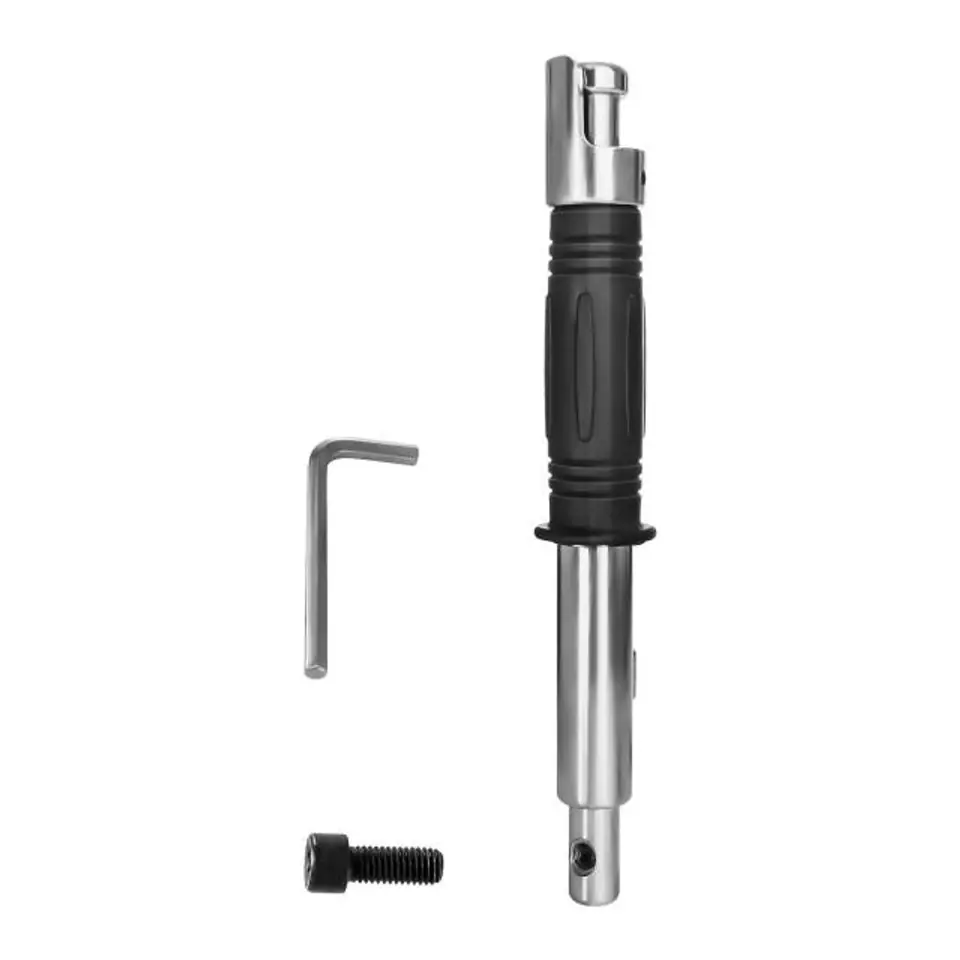

- manual lever
- zero operating costs
Technical parameters:

  • - Model - SBS-ML 2000
  • - Catalogue number - 3206
  • - Article status - New
  • - Payload - 2000 kg
  • - Breaking load - 6000 kg
  • - Max. load for vertical lifting and rounded surfaces - 666 kg
  • - Temperature range operating - from -40 to 80C
  • - Color - Red
  • - Shutdown mechanism - Mechanical lever
  • - Dimensions (LxWxH) - 41 x 16 x 16.7 cm
  • - Weight - 65 kg
  • - Shipping dimensions (LxWxH) - 53.5 x 26 x 30 cm
  • - Shipping weight - 75,5 kg
In the set: Our devices have a CE declaration of conformity necessary for the Sanitary Inspectorate.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
