Manufacturer name SBS-ML 1000

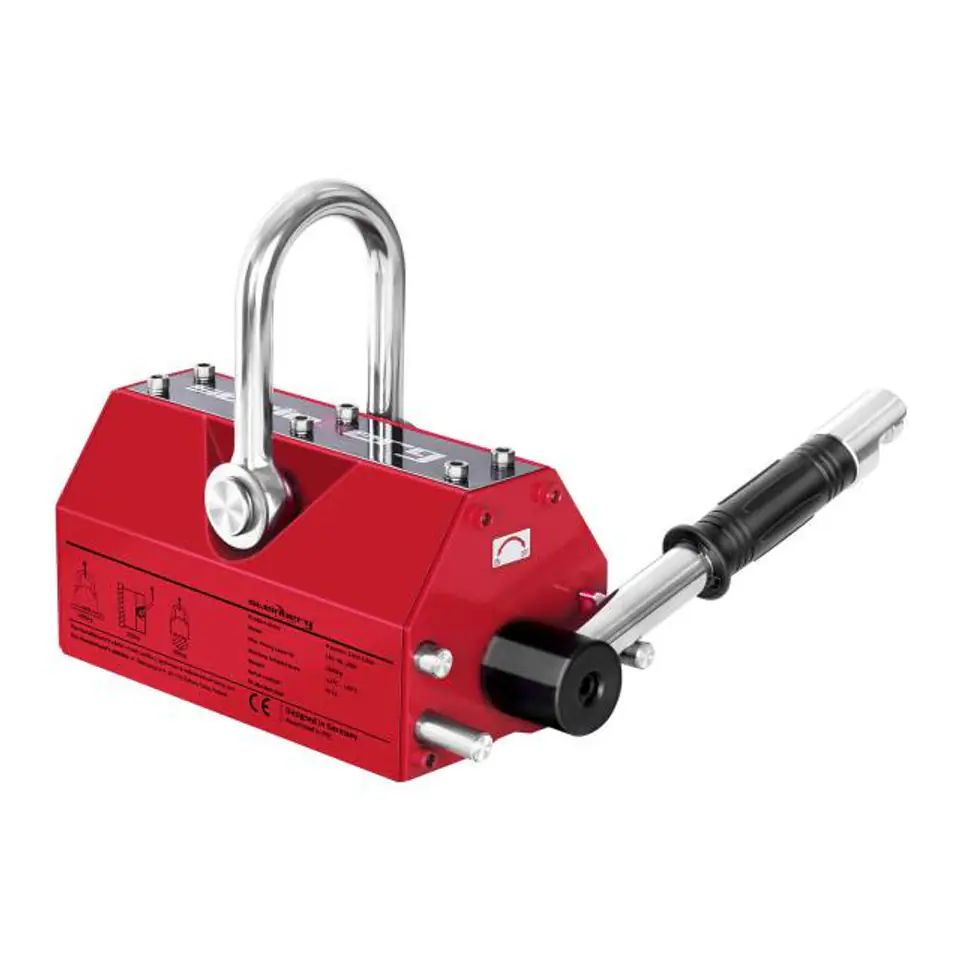

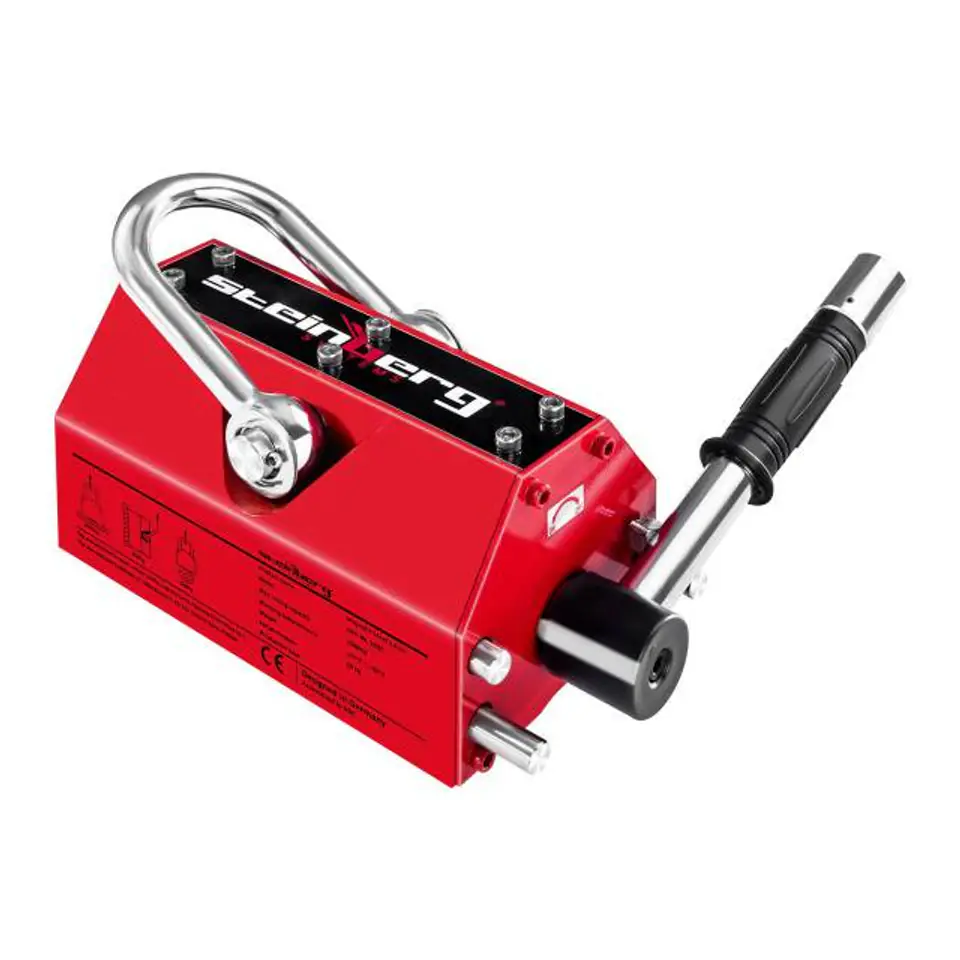

Magnetic lift SBS-ML 1000 Steinberg Systems is used to lift iron and steel objects with a maximum weight of 1000 kg. It is ideal for the engineering, metallurgical, shipbuilding industries, as well as car workshops and construction companies.

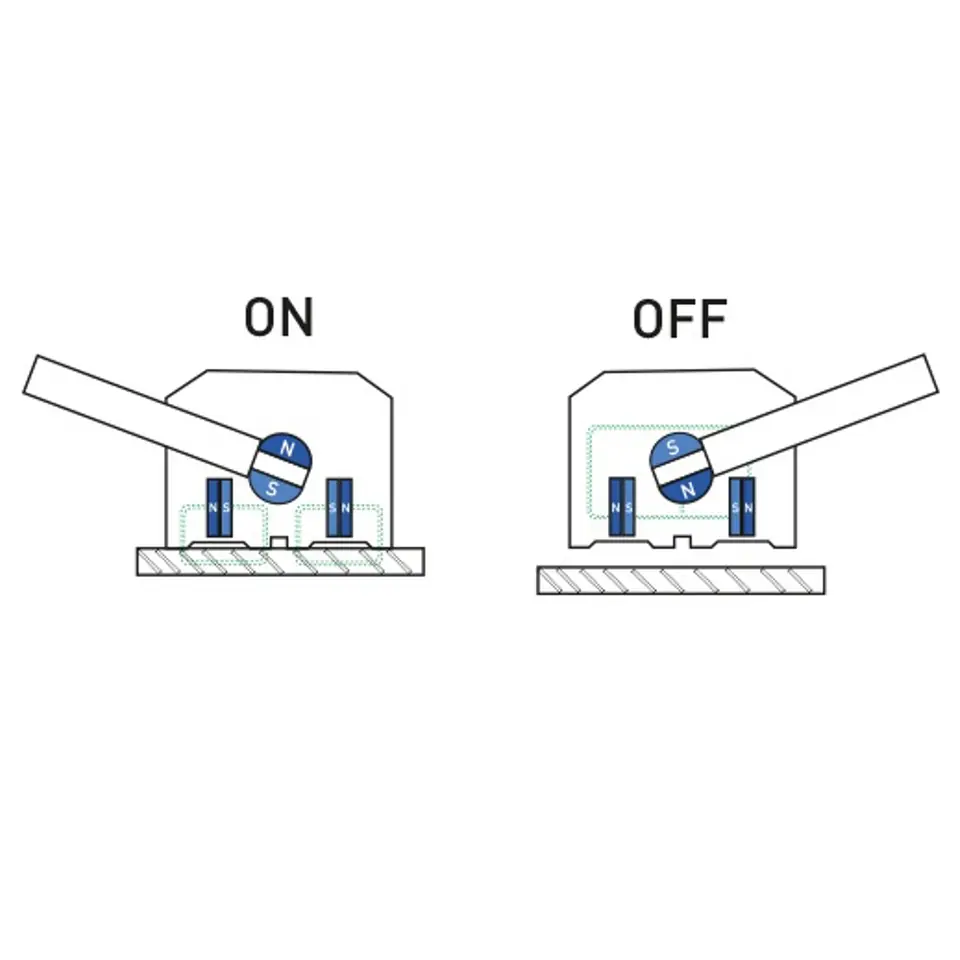

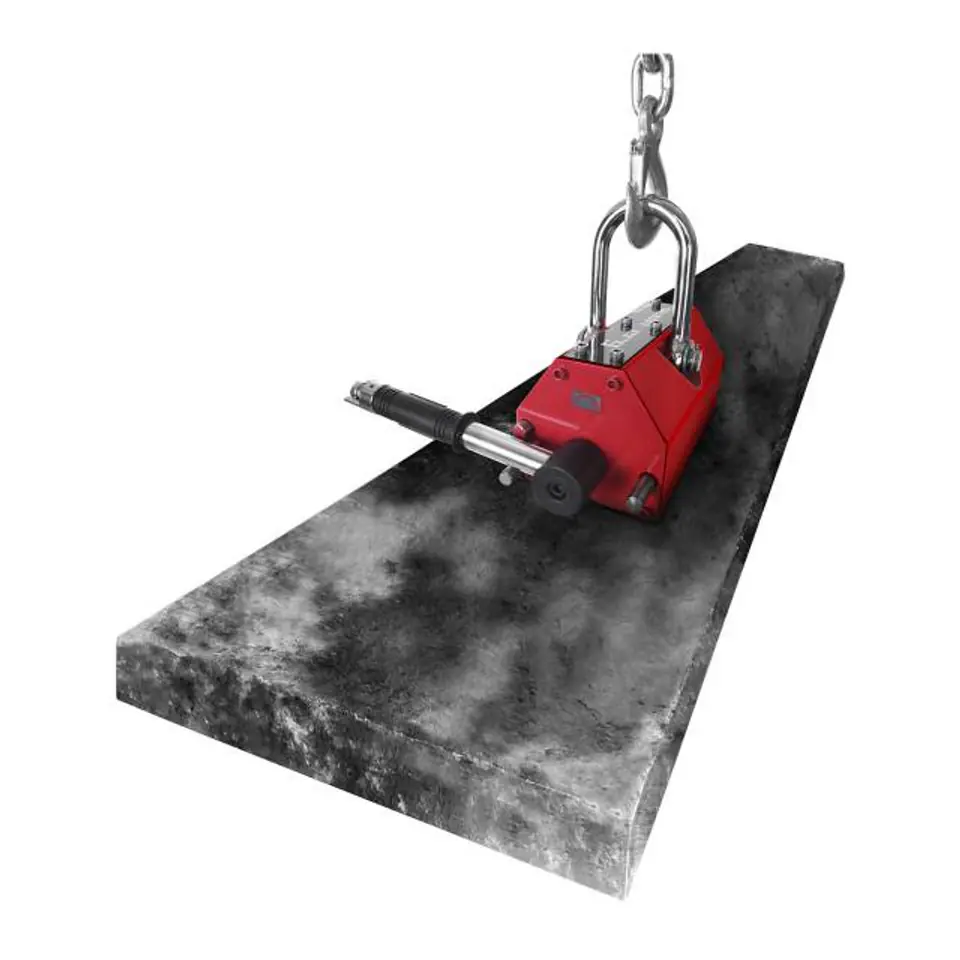

The magnetic gripper allows you to lift sheet metal and profiled elements. The equipment uses neodymium magnets (sintered), making it very easy to use. In the middle of the lift there is a stationary and movable magnet, which, properly positioned, introduce a magnetic field to the lifted structure. The SBS-ML 1000 magnetic gripper is characterized by operational safety. It does not need any power sources, so it does not generate costs. It is equipped with a shackle for hanging equipment, e.g. on a crane.
Features and functions:
- neodymium magnets
- permissible load 1000kg
- breaking load 3000kg
- safe and simple operation

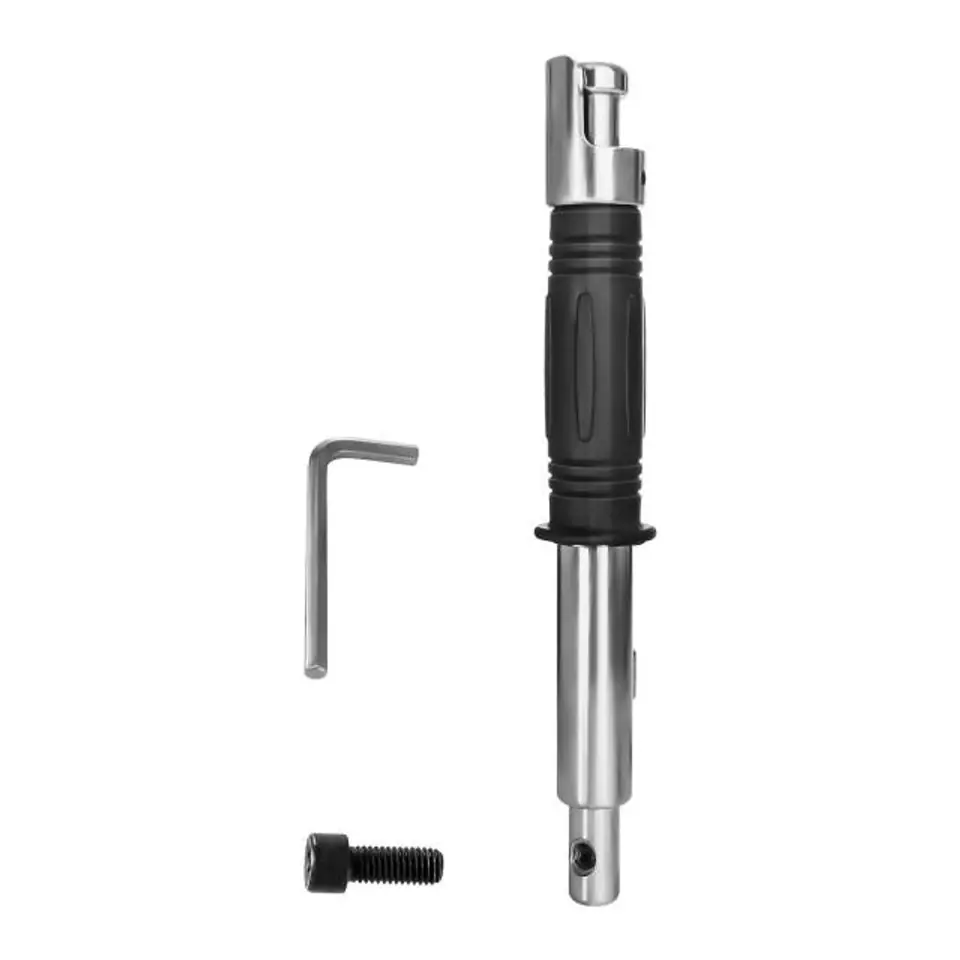

- manual lever
- zero operating costs
Technical parameters:
- - Model - SBS-ML 1000
- - Catalogue number - 3200
- - Article status - New
- - Payload - 1000 kg
- - Breaking load - 3000 kg
- -Max. load for vertical lifting and rounded surfaces - 350 kg
- - Operating temperature range - from -40 to 80C
- - Color - Red
- - Shutdown mechanism - Mechanical lever
- - Dimensions (LxWxH) - 32.2 x 13.8 x 14 cm
- - Weight - 33.5 kg
- - Shipping dimensions (LxWxH) - 37.5 x 26.5 x 27.5 cm
- - Shipping weight - 34,3 kg
