Manufacturer name SBS-ML 800

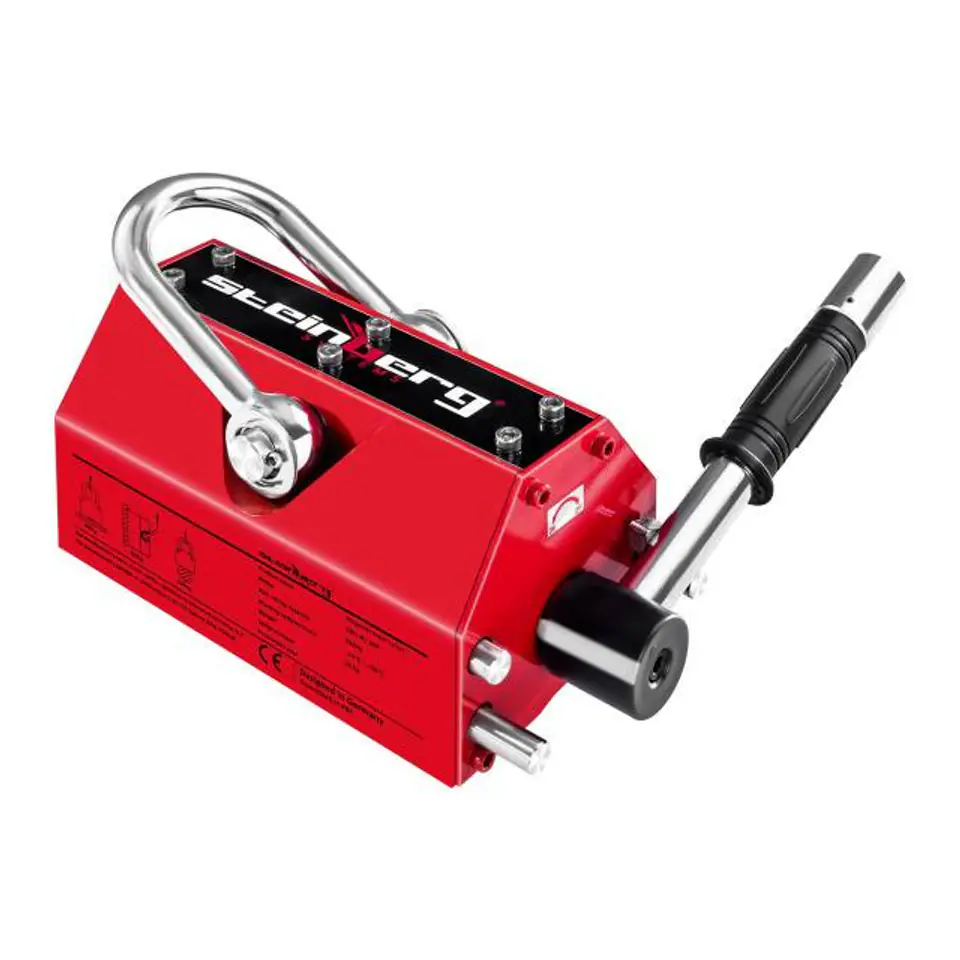

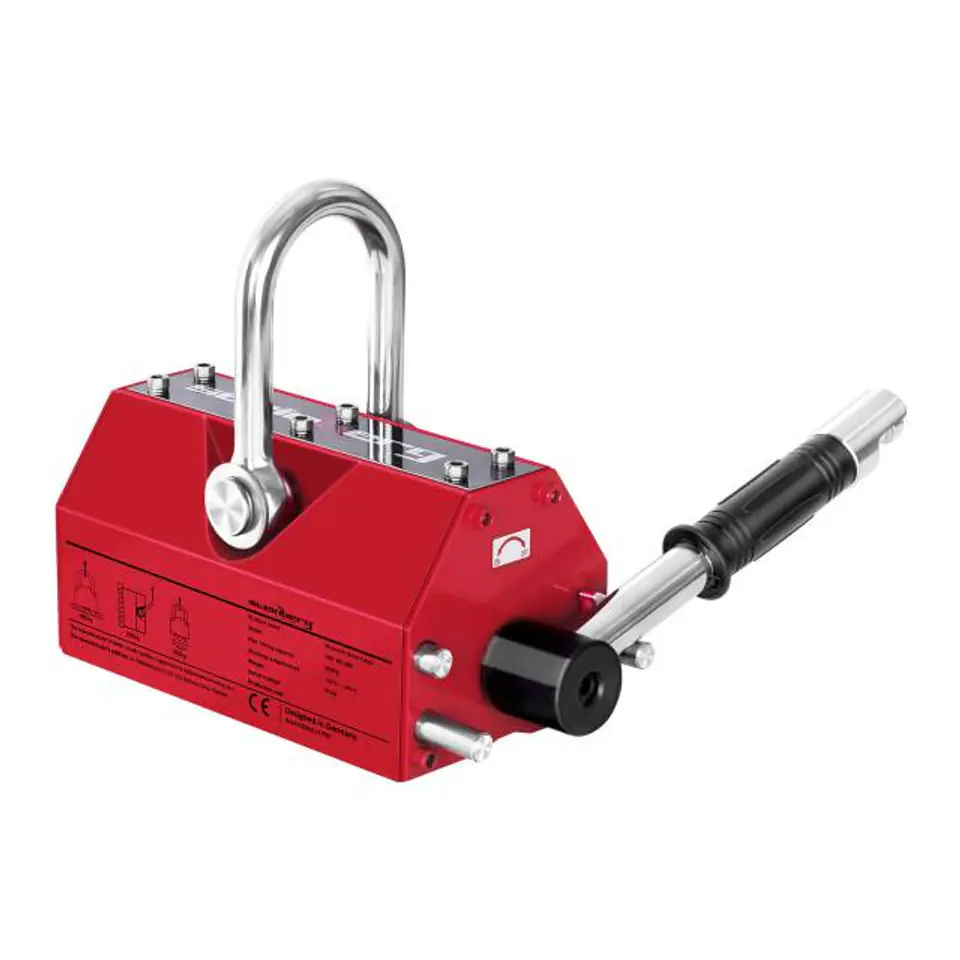

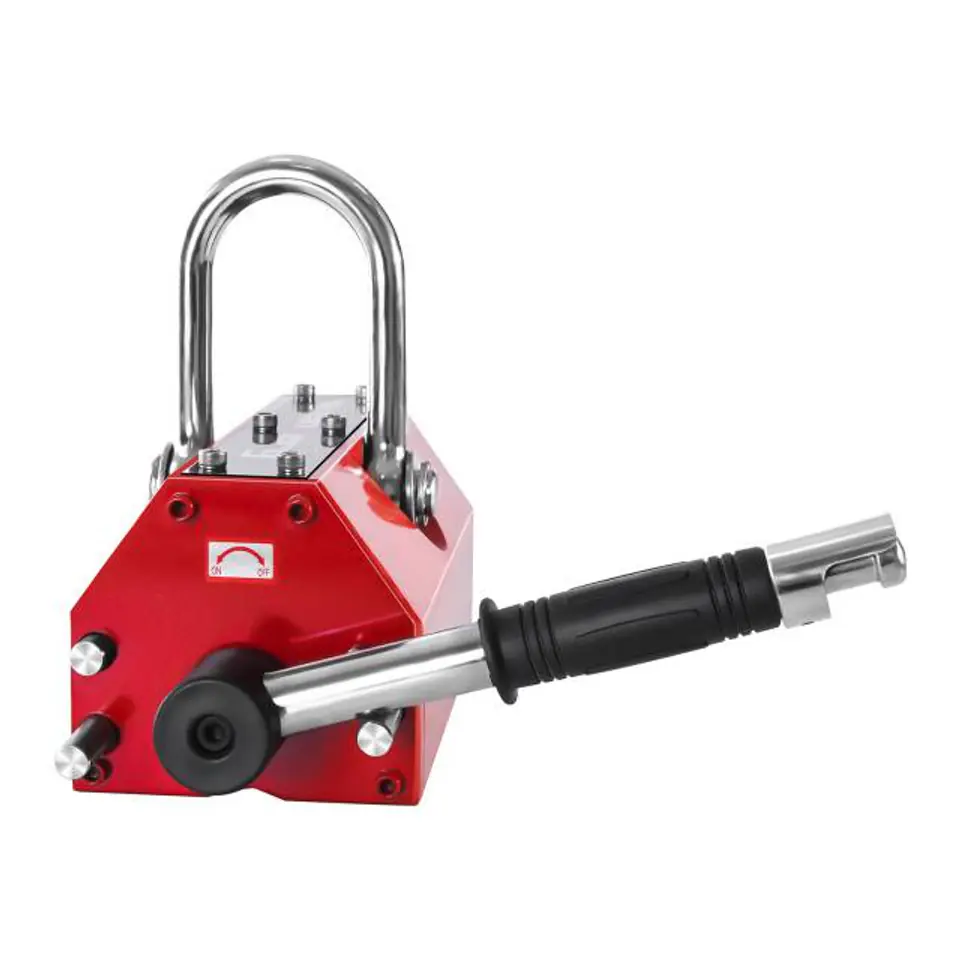

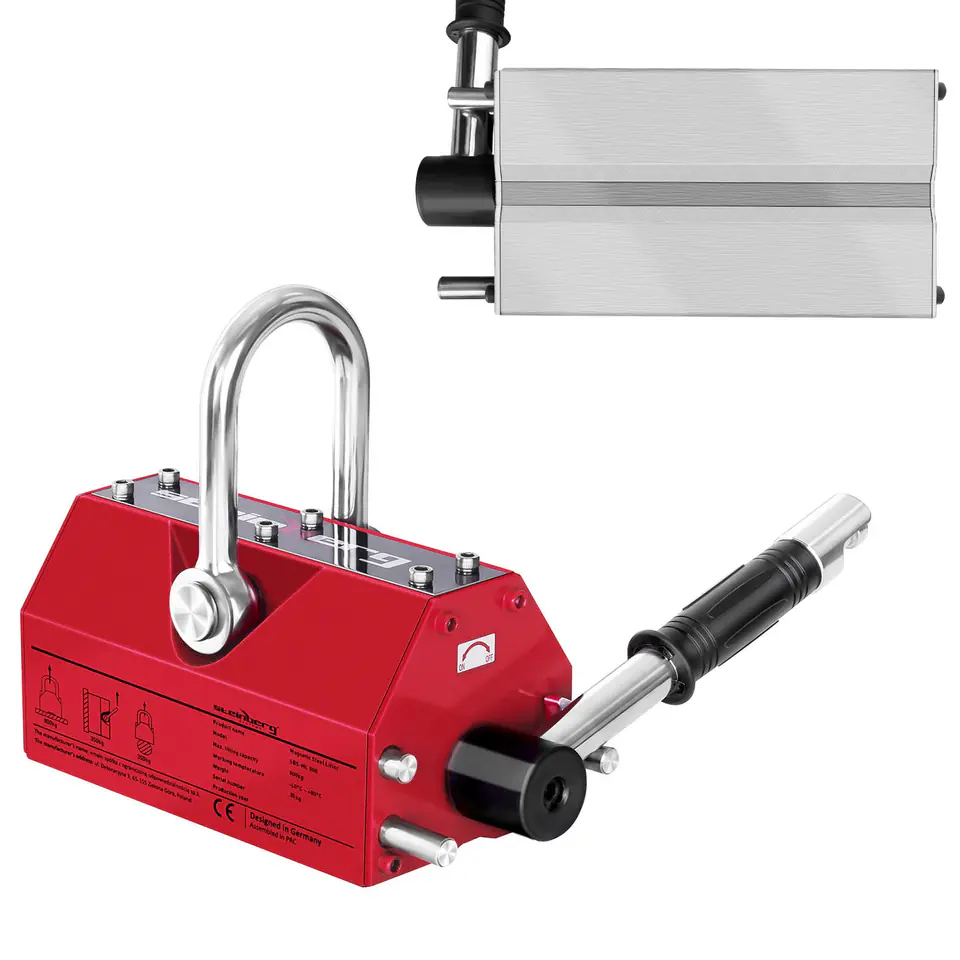

Magnetic lift SBS-ML 800 Steinberg Systems is used to lift iron and steel objects. It is ideal for the engineering, metallurgical, shipbuilding industries, as well as car workshops and construction companies.

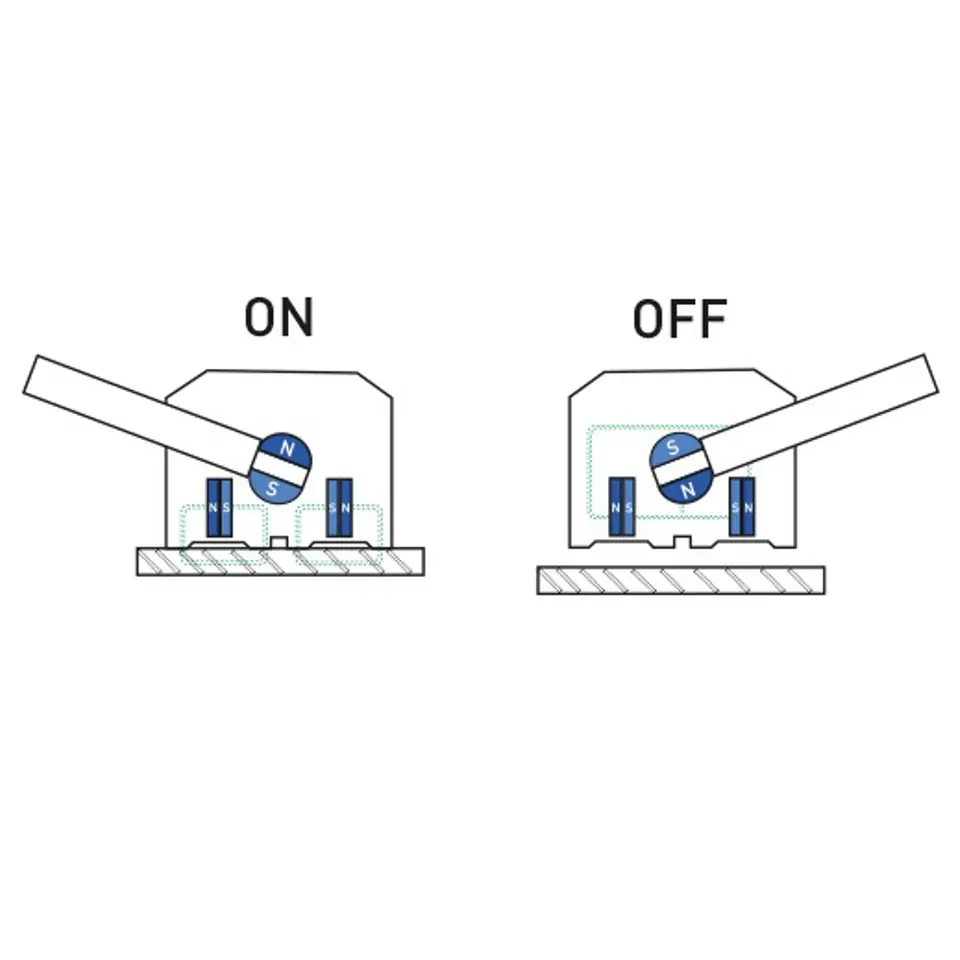

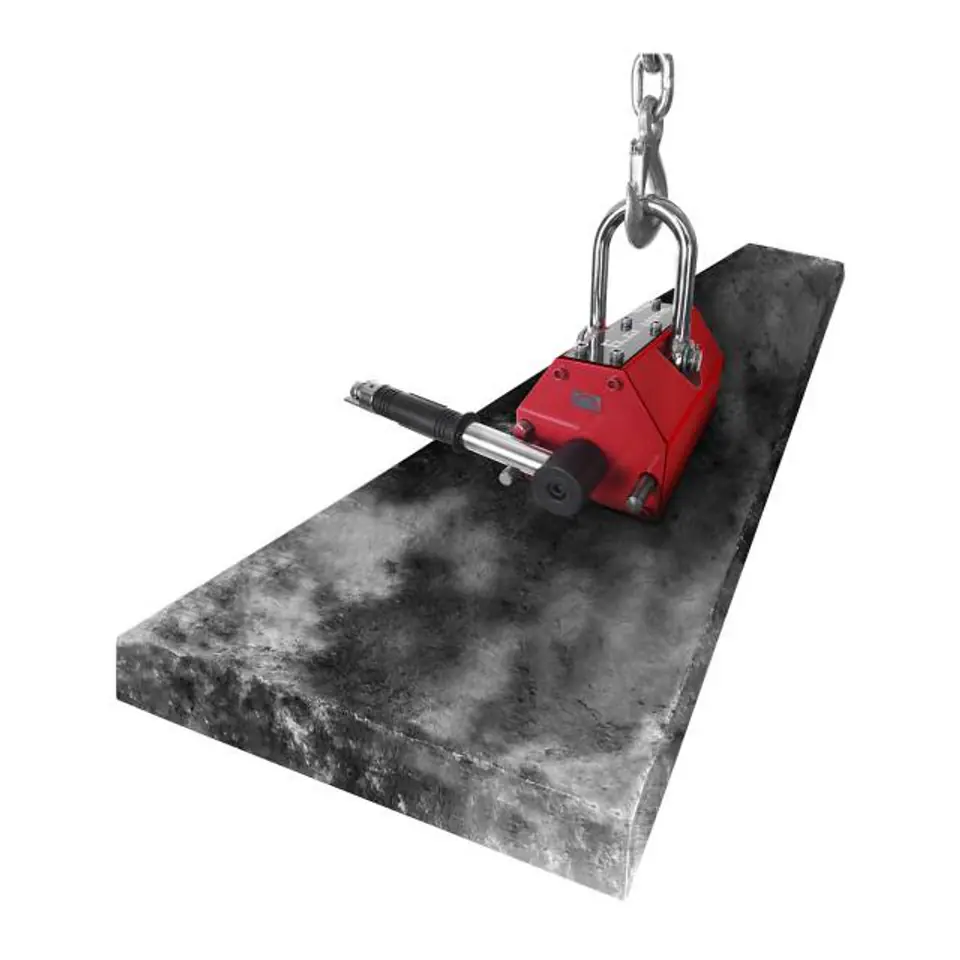

The magnetic gripper allows you to lift sheet metal and profiled elements. The equipment uses neodymium magnets (sintered), making it very easy to use. In the middle of the lift there is a stationary and movable magnet, which, properly set, introduce a magnetic field into the lifted structure. The SBS-ML 800 magnetic gripper is characterized by operational safety. It does not need any power sources, so it does not generate costs. It is equipped with a shekel for hanging equipment, e.g. on a crane.
Features and functions:
- neodymium magnets
- permissible load 800kg
- breaking load 2400kg
- safe and simple operation

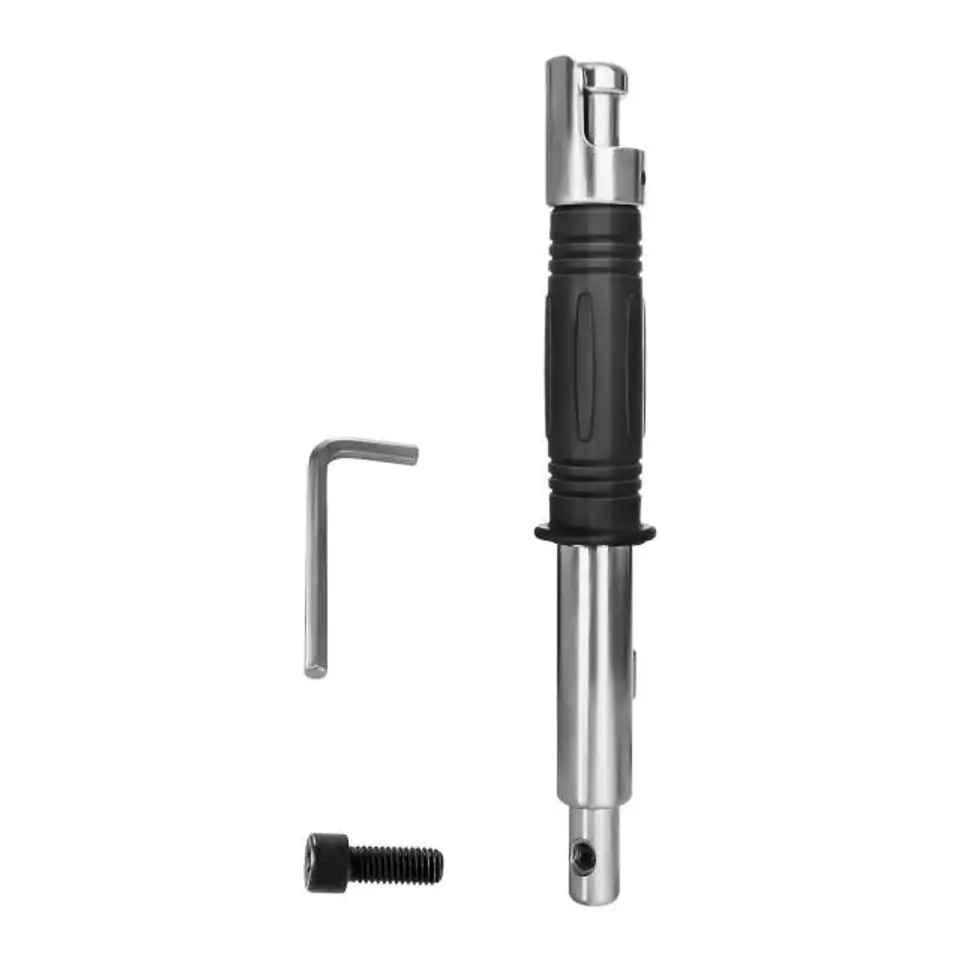

- manual lever
- zero operating costs
Technical parameters:
- - Model - SBS-ML 800
- - Catalogue number - 3205
- - Article status - New
- - Permissible load - 800 kg
- - Breaking load - 2400 kg
- -Max. load for vertical lifting and rounded surfaces - 350 kg
- - Operating temperature range - from -40 to 80C
- - Color - Red
- - Shutdown mechanism - Mechanical lever
- - Dimensions (LxWxH) - 32,2 x 13,8 x 14 cm
- - Weight - 33 kg
- - Shipping dimensions (LxWxH) - 37 x 25.5 x 28 cm
- - Shipping weight - 33,8 kg
