Manufacturer name SBS-ML 100

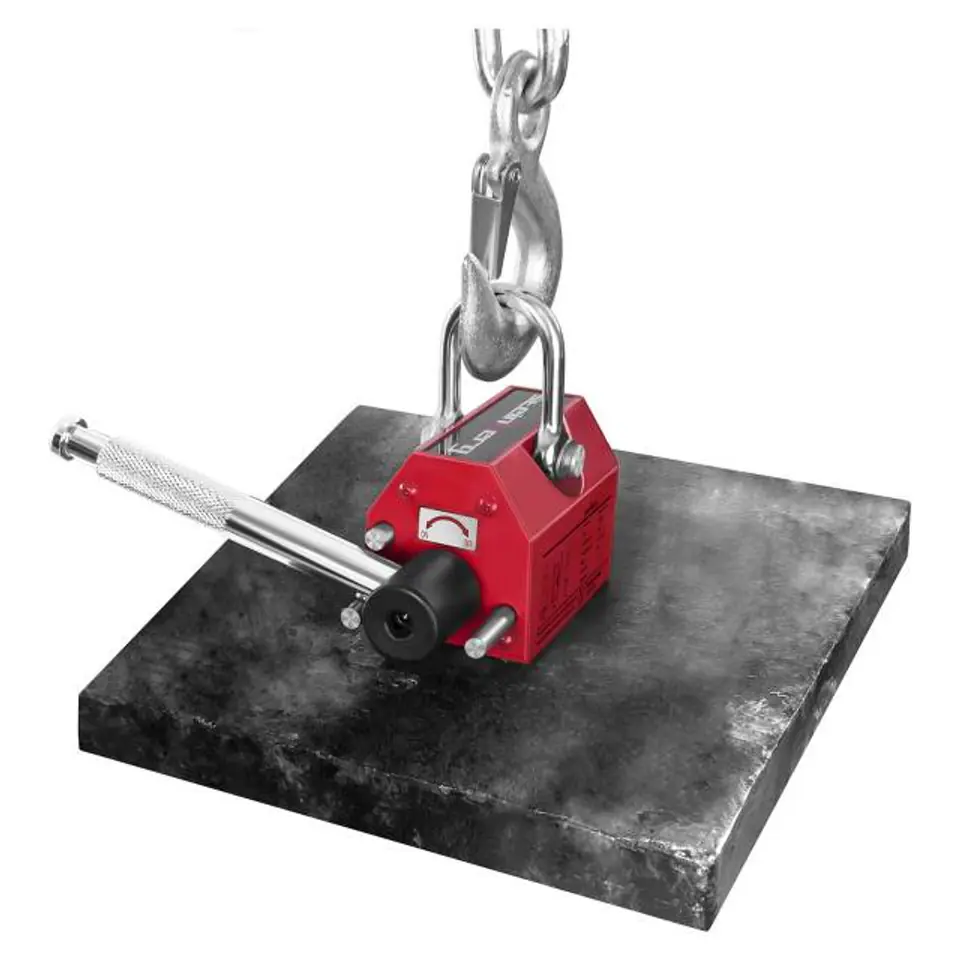

Magnetic lift SBS-ML 100 Steinberg Systems is used to lift iron and steel objects. It is ideal for the engineering, metallurgical, shipbuilding industries, as well as car workshops and construction companies.

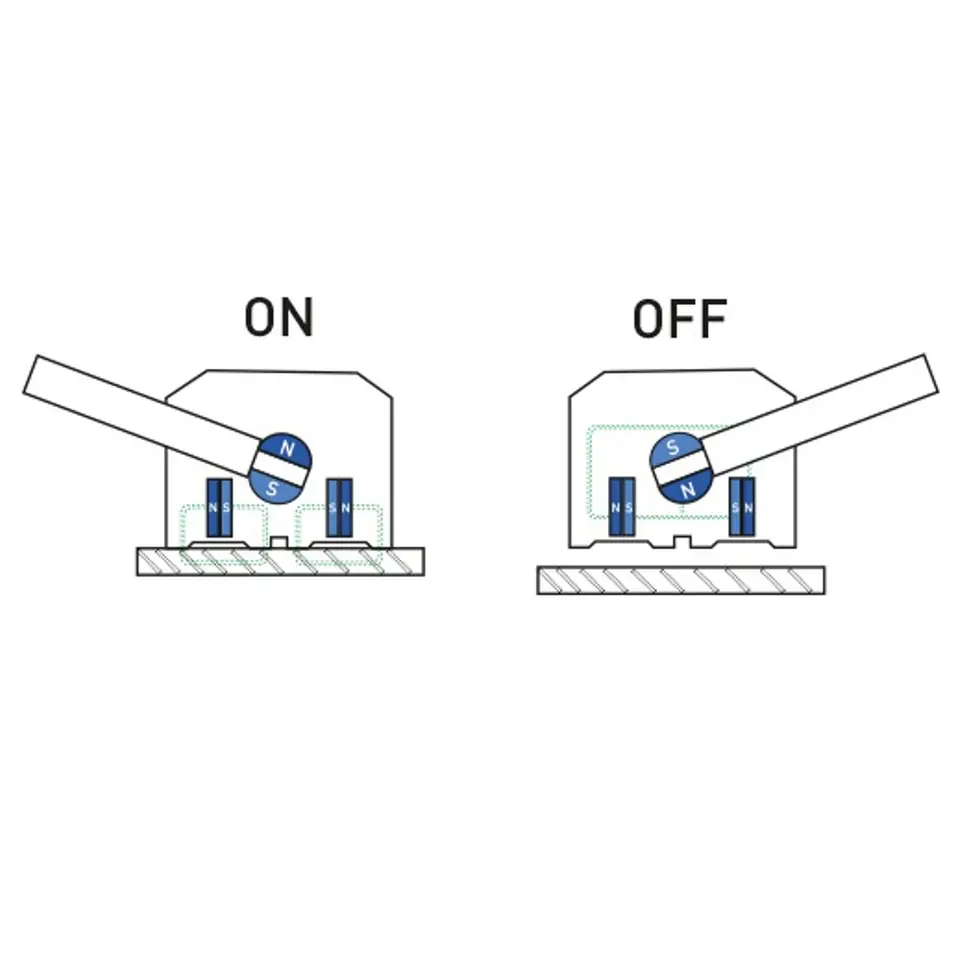

The magnetic gripper allows you to lift sheet metal and profiled elements. The equipment uses neodymium magnets (sintered), making it very easy to use. In the middle of the lift there is a stationary and movable magnet, which, properly positioned, introduce a magnetic field to the lifted structure. The SBS-ML 100 magnetic gripper is characterized by operational safety. It does not need any power sources, so it does not generate costs. It is equipped with a shackle for hanging equipment, e.g. on a crane.
Features and functions:
- neodymium magnets
- permissible load 100kg
- breaking load 300kg
- safe and simple operation
- manual lever
- zero operating costs
Technical parameters:
- - Model - SBS-ML 100
- - Catalogue number - 3201
- - Article status - New
- - Payload - 100 kg
- - Breaking load - 300 kg
- - Max. load for vertical lifting and rounded surfaces - 30 kg
- - Temperature range operating - from -40 to 80C
- - Color - Red
- - Shutdown mechanism - Mechanical lever
- - Dimensions (LxWxH) - 13 x 6 x 7 cm
- - Weight - 2.9 kg
- - Shipping dimensions (LxWxH) - 21 x 16 x 16.5 cm
- - Shipping weight - 3.2 kg
