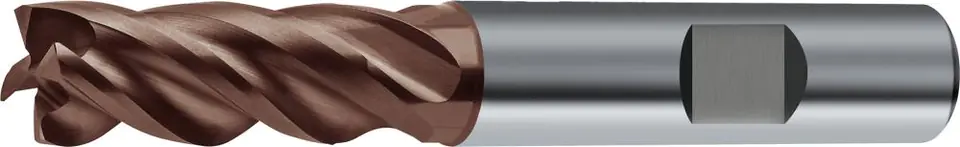

Undersized milling cutter, solid carbide
Material: solid carbide, type N, DIN6527L, 35°/38°, coated Signum, with central blade.
Application: for grooving milling, linear inclined pitting (up to 45°), for roughing and finishing, and for drilling at maximum speed in various materials.
Mandrel milling cutter DIVER, under. Signum, type RF100,grip HB 9,7mm GÜHRING
€110.61
Shipping from warehouse: B6
Estimated shipping: Mon, Dec 2 - Tue, Dec 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- GÜHRING
- Product code:
- 9067360097000 / 4049844139558
Share this product:
Specification
| Aluminium > 8% silicon: | 200 |
|---|---|
| Cast iron gg/gts: | 164 |
| Copper alloys: | 130 |

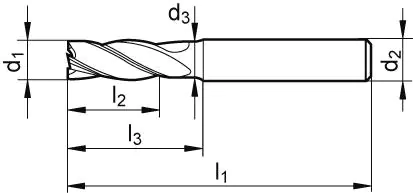

| Cutting part length l2: | 22 mm |
| Diameter d1 = h 10: | 9.7 mm |
| Ggg cast iron: | 128 |
| Inox austenite.: | 80 |
| Inox duplex: | 64 |
| Inox ferrite./martenz.: | 100 |
| Neck diameter d3: | 9.3 mm |
| Neck length l3: | 32 mm |
| Shank diameter d2 = h6: | 10 mm |
| Steel < 1000 n/mm2: | 152 |
| Steel < 1000 n/mm2 fz: | 0.025 mm/rev. |
| Steel < 1400 n/mm2: | 122 |
| Steel < 700 n/mm2: | 190 |
| Total length l1: | 72 mm |
