| Aluminium > 8% silicon: | 120 |
|---|---|
| Cast iron gg/gts: | 120 |
| Copper alloys: | 80 |

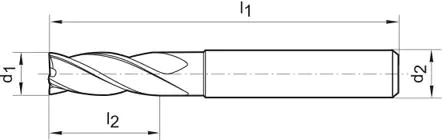

| Cutting part length l2: | 22 mm |
| Diameter d1 = h 10: | 10 mm |
| Ggg cast iron: | 96 |
| Hardened steel < 55 hrc: | 30 |
| Inox austenite.: | 40 |
| Inox duplex: | 32 |
| Inox ferrite./martenz.: | 50 |
| Shank diameter d2 = h6: | 10 mm |
| Steel < 1000 n/mm2: | 92 |
| Steel < 1400 n/mm2: | 74 |
| Steel < 1400 n/mm2 fz: | 0.034 mm/rev |
| Steel < 700 n/mm2: | 115 |
| Titanium > 850 n/mm2: | 40 |
| Total length l1: | 72 mm |
Mandrel cutter, solid carbide
Execution: with center blade, suitable for drilling.
Application: for circumferential milling and universal machining. Also used for edge milling and finishing milling.
Execution: with center blade, suitable for drilling.
Application: for circumferential milling and universal machining. Also used for edge milling and finishing milling.
