Mandrel cutter, solid carbide

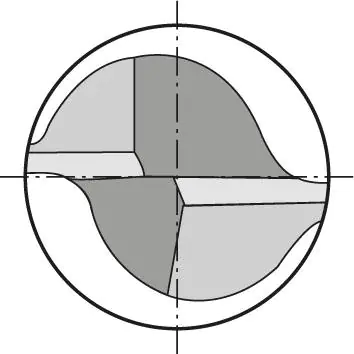

Execution: with center blade, suitable for drilling.
Application: for milling keyways and keyways P9 and for universal machining
Cutting speed approx. 50 % higher than uncoated tools. Dry processing possible.

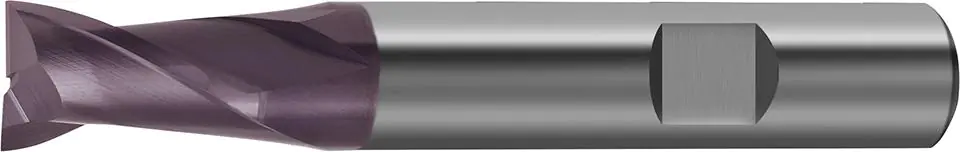

Mandler cutter, short, TiALN 2-blade, shankHB 8mm GÜHRING full edge. DIN6527
PLN 105.40
Shipping from warehouse: B6
Estimated shipping: Mon, Apr 7 - Tue, Apr 8
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- GÜHRING
- Product code:
- 9036340080000 / 4031093672306
Share this product:
Specification
| Aluminium > 8% silicon: | 120 |
|---|---|
| Cast iron gg/gts: | 120 |
| Copper alloys: | 80 |

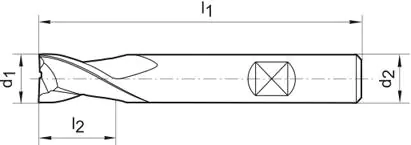

| Cutting part length l2: | 9 mm |
| Diameter d1 = h 10: | 8 mm |
| Ggg cast iron: | 96 |
| Hardened steel < 55 hrc: | 30 |
| Inox austenite.: | 40 |
| Inox duplex: | 32 |
| Inox ferrite./martenz.: | 50 |
| Shank diameter d2 = h6: | 8 mm |
| Steel < 1000 n/mm2: | 92 |
| Steel < 1000 n/mm2 fz: | 0.032 mm/rev. |
| Steel < 1400 n/mm2: | 74 |
| Steel < 700 n/mm2: | 115 |
| Titanium > 850 n/mm2: | 40 |
| Total length l1: | 58 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
