Manufacturer number: MSW 10060432
The MSW magnetic drill, thanks to its design, will allow you to work in difficult conditions and in various positions, e.g. vertically. This is possible thanks to a powerful 11500 N electromagnet that keeps the device in a stable position. The relatively low weight and the long power cord (2 m) affect the possibility of locating the drill anywhere. The case will make it easier to transport the whole set.
Efficient operation of the device is ensured by a 1380 W motor, which allows drilling at a speed of up to 600 revolutions per minute. The drilling depth (up to 50 mm) is set by a three-part rotating chuck. It moves the moving piece of equipment along the guide in the range from 0 mm to 175 mm.
A cooling system is installed in the drill to reduce the temperature of the drill during operation. It consists of a 300 ml tank and a 50 cm long tube. This affects the efficiency when machining metal parts and prolongs the life of the drill.

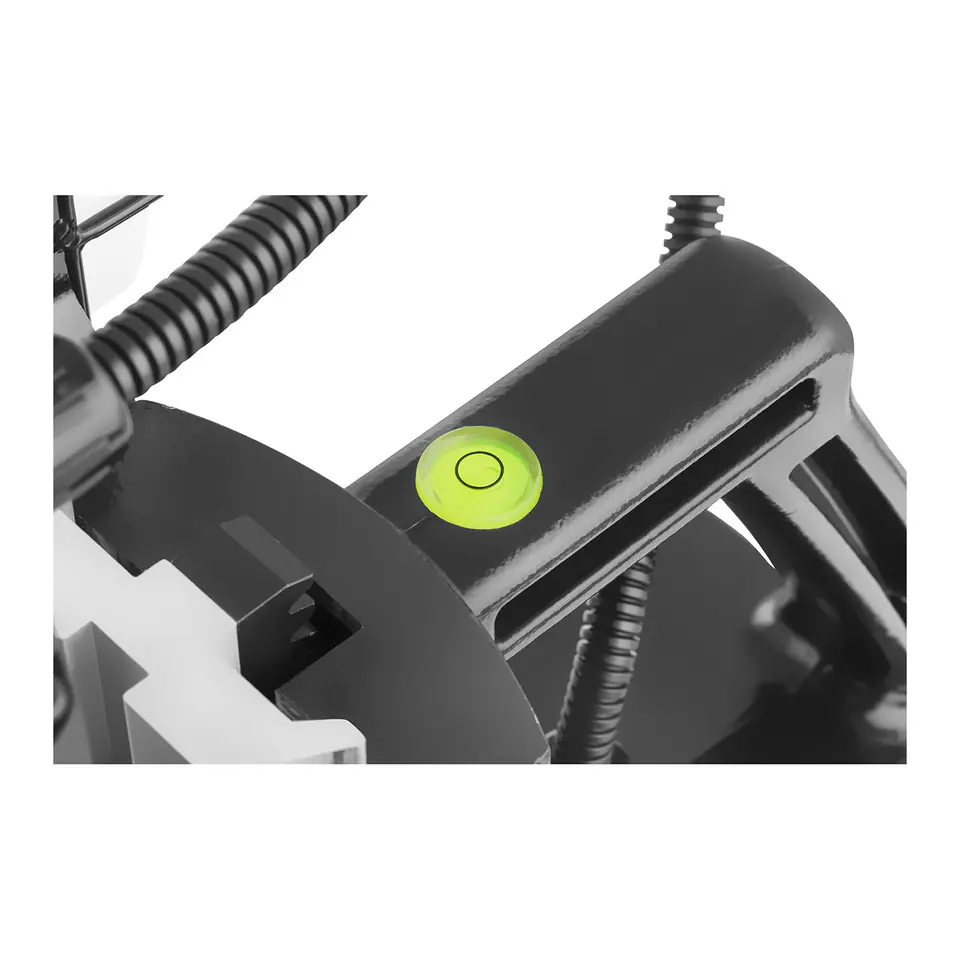

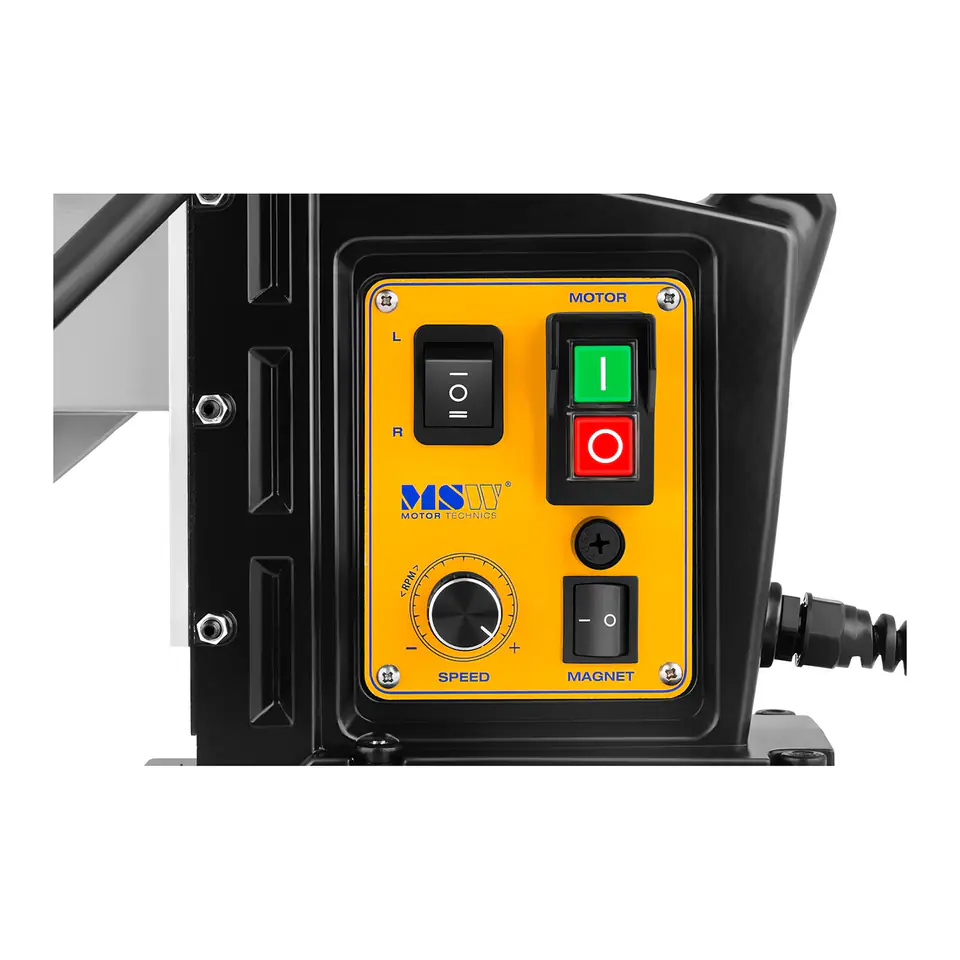

Easy operation of the equipment is due to the large buttons located on one side of the drill. Thanks to them, you can start the motor and the electromagnet and choose the direction of drilling. There is also a stepless knob for speed control. The built-in spirit level ensures proper maintenance of the machine's angle.
Safe use is ensured by an RCD magnetic switch that protects against shock and accidental switching. The included fuses protect the electrical circuit from overload. In addition, a lock has been used that will prevent the drill from starting when the electromagnet is turned off.
Product features:
- - Efficiency - 1380 W motor, drilling speed up to 600 rpm,
- - Easy operation - clear control panel, convenient drilling depth adjustment, stepless setting of drilling speed,
- - Strength - steel and aluminum construction,
- - Safety - strong electromagnet, RCD switch, fastening belt, lock against unwanted switching on,
- - Mobility - small size and weight compared to similar products, long power cord, suitcase.
- - Model - MSW-MD32-PRO
- - Catalogue number - 10060432
- - Housing material - Aluminum, steel, plastic
- - Frame material - Cast aluminum alloy
- - Power - 1380 W
- - Voltage/frequency - 230 V / 50 Hz
- - Cooling tank capacity – 300 ml
- - Cooling tank pipe length - 50 cm
- - Maximum electromagnetic attraction - 11500 N
- - Maximum drill thread size - M14
- - Maximum drill diameter - 35 mm
- - Maximum drilling depth - 50 mm
- - Twist drill diameter - 19 mm
- - Drill chuck included - B16 / 1.5-13 mm
- - Maximum speed (no load) - 600 rpm
- - Drill range - 0-175 mm
- - Built-in spirit level - Yes
- - Safety strap included - Yes
- - Threading function - Yes
- - Power cord length - 2.25 m
- - Dimensions (LxWxH) - 30 x 21.5 x 56.5 cm
- - Weight - 16.8 kg
- - Shipping dimensions (LxWxH) - 60 x 20.5 x 52 cm
- - Shipping weight - 23 kg

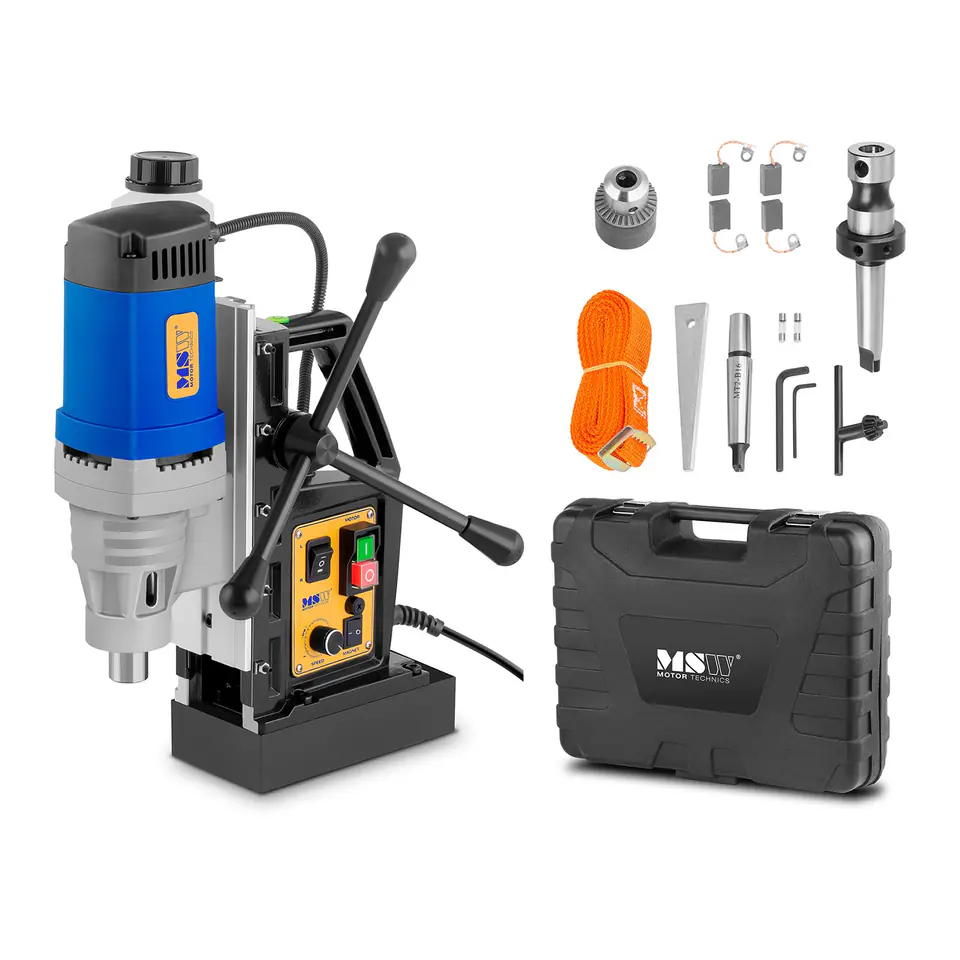

- - Magnetic drill

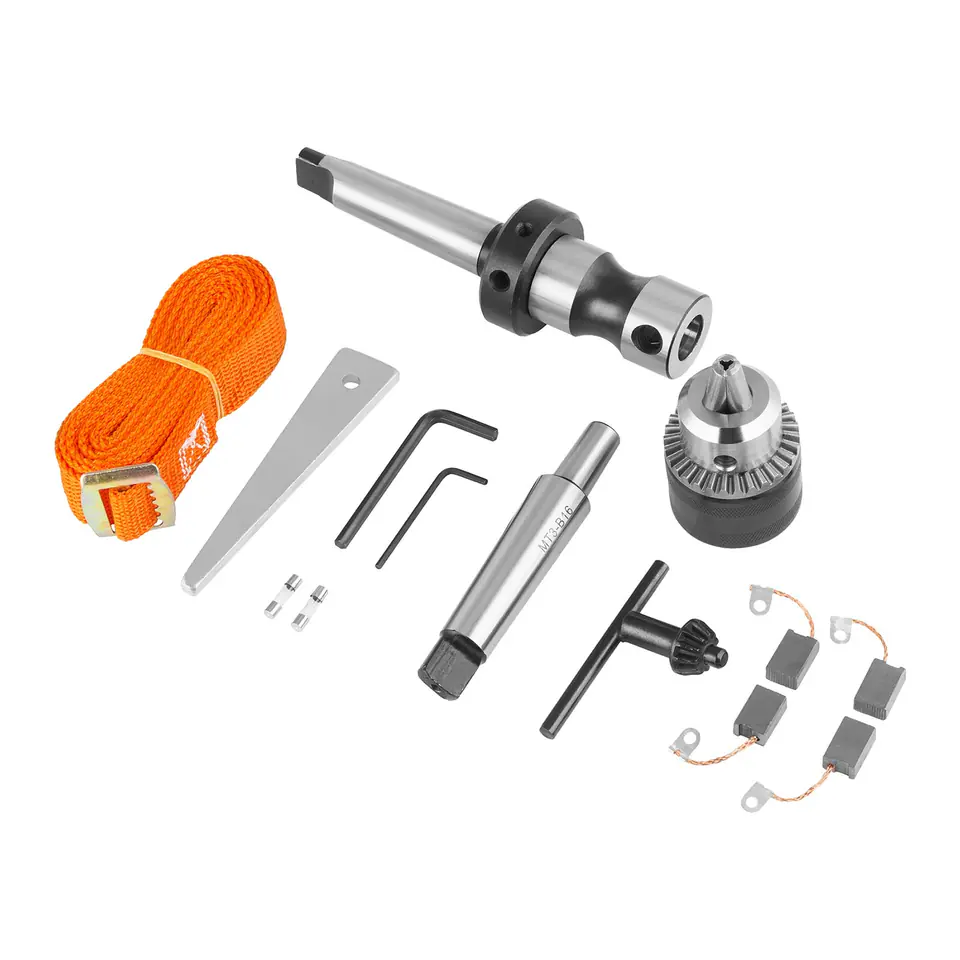

- - Safety bar
- - Swivel handle - 3 elements
- - Allen key - 1 pc
- - Fuse - 2 pcs.
- - Wedge puncher
- - Cooling tank
- - Drill chuck holder
- - Drill chuck (B16 / 1.5-13 mm)
- - Drill wrench
- - Carbon brush - 2 pcs.
- - MK2 / Weldon mounting bracket 19 mm
- -Suitcase
- - Manual EN
