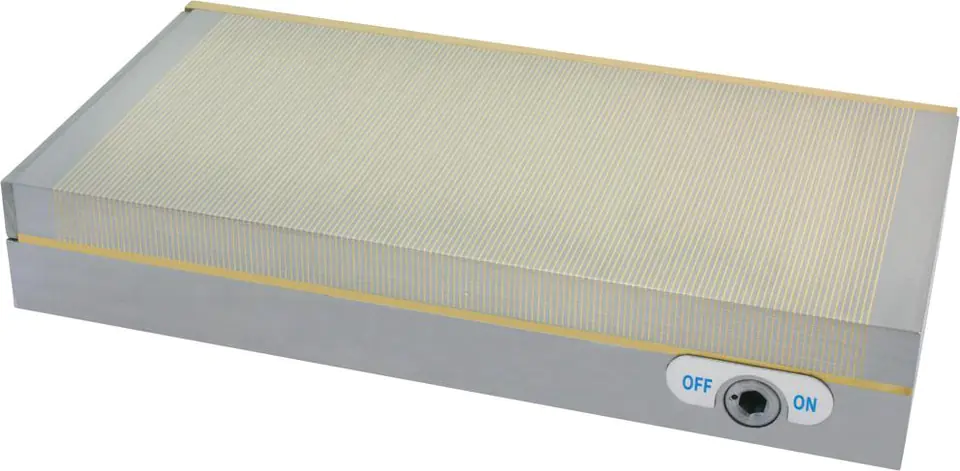

Magnetic mounting plate, permanent magnet
Design: magnetic mounting system using neodymium magnets, with steel body. The low magnetic field height of approx. 5 mm prevents magnetization of machining tools. Processing of the top plate without adversely affecting its operation is possible up to a depth of 6 mm. The mounting plate is activated by a removable hexagonal activation lever.
Adhesion force: approx. 100 N/cm2
Magnetic field height: approx. 5 mm
Transverse polar graduation: 1.4+0.5mm
Application: for precise clamping of small and thin components during grinding or for EDM machining.
Note: In all magnetic fastening plates, you can drill a flush hole in the pole plate.
