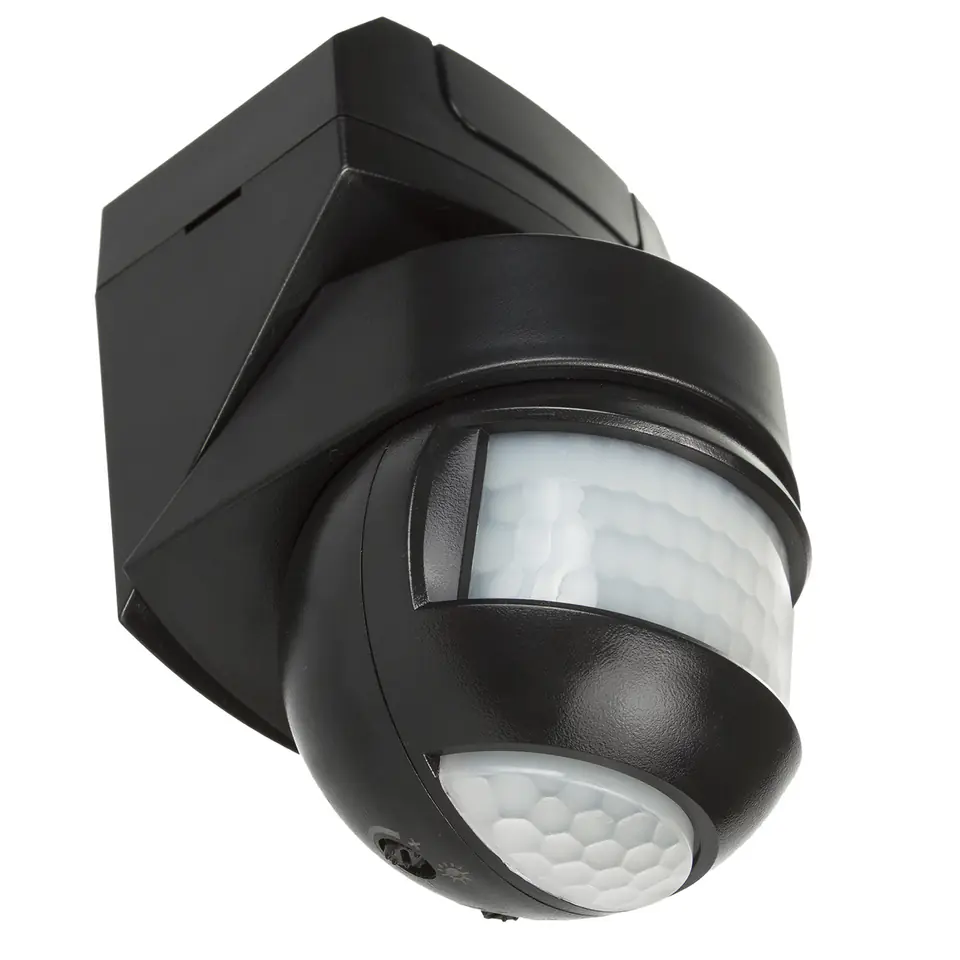

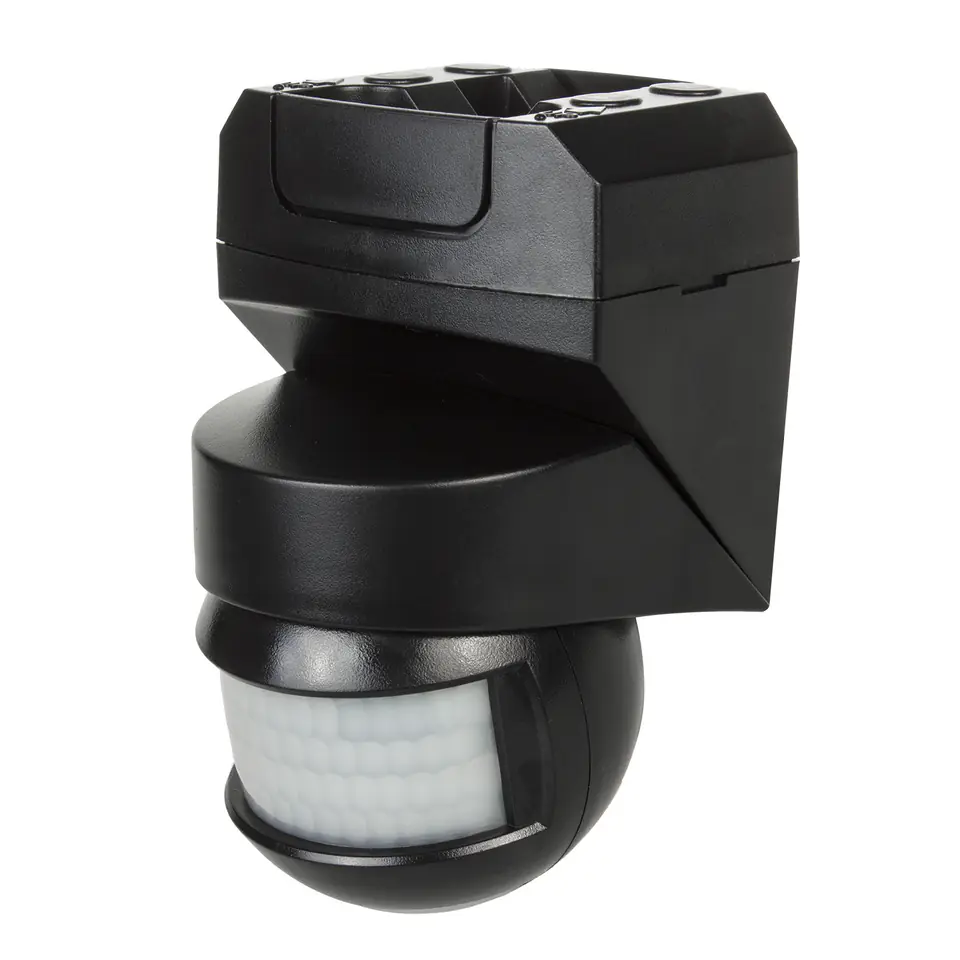

The product is distinguished by high sensitivity through the use of an SMT integrated circuit. It combines automatism, convenience of use, safety, energy saving and practical functions. This device uses infrared radiation emitted by a person as a signal to start work when someone is within the detection range. It automatically detects day and night and is easy to install and use.
Thanks to our sensor, you will save on electricity bills, because the lighting will turn on only when you need it! The device is equipped with 2 infrared sensors 180° + 360° and detects movement from a distance of up to 12 meters.
The sensor is used to automatically control lighting or other electrical devices. Potentiometers for adjusting: lighting time and sensitivity of light intensity.
Product features:
- Motion sensor, which works by turning on and after a certain period of time turns off the electrical circuit when an object emitting infrared radiation is detected

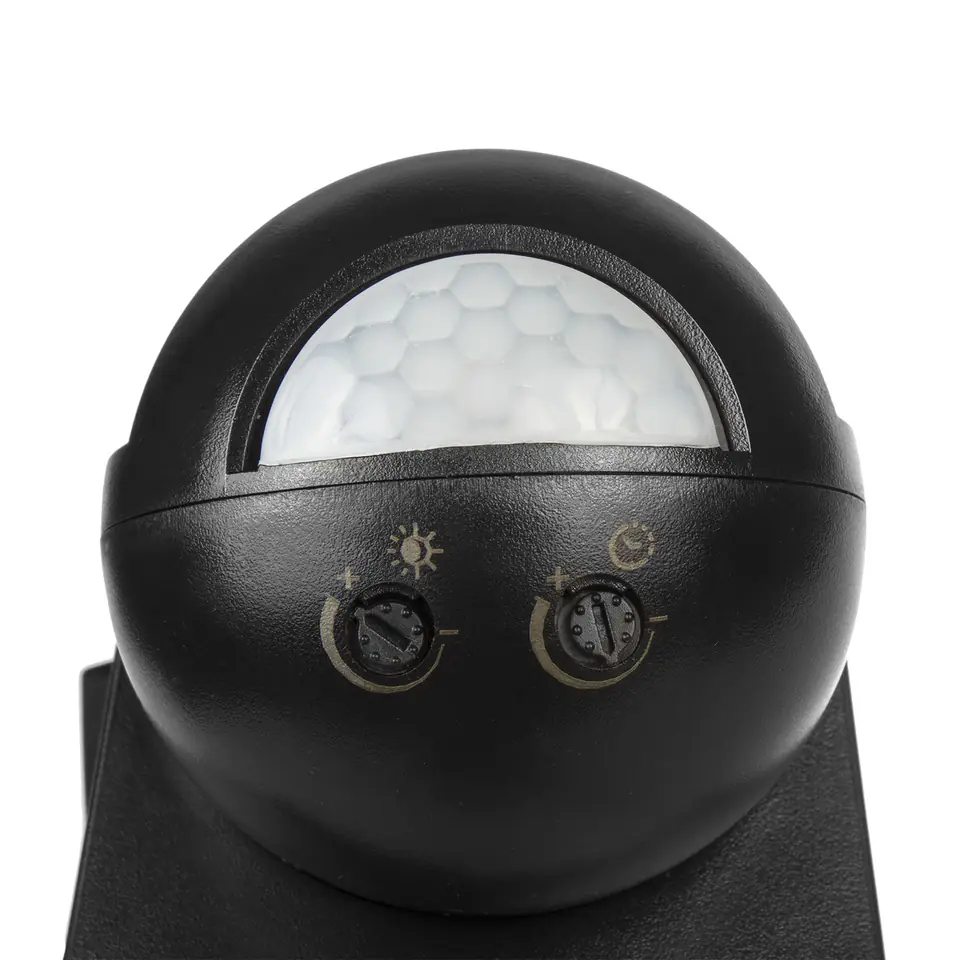

- Equipped with 2 knobs: the knob marked with the sun symbol allows you to adjust the threshold value of the illuminance (thanks to this property we can adapt it to work only in the period from dusk to dawn) and a knob marked with a clock symbol, thanks to which it is possible to adjust the time of maintaining switching on
- Application: automation of the process of switching on and off the current, e.g. turning on the lighting, turning on alarm systems
- Also works with LED lighting
New generation - infrared sensor has high stability, nice, modern and practical appearance, wide range of operating voltages, easy installation and wide detection range. Automatically detects day and light at night. SMT technology used, in accordance with European standards. It is designed for automatic control of lighting in homes, hotels, offices, staircases, corridors, cellars, etc.
Technical specification:
- Power supply: 220-240V/AC
- Detection area: 180°+ 360°
- Frequency: 50/60Hz
- Operating temperature: -20/+40°C
- Light Sensor:<10-2000LUX(regulation)
- Humidity: <93%RH
- Time delay: min. 10sec +/3sec.max. 10m +/3min
- Height. Installation: wall:1.8-2.5m/ ceiling 2.2-4m
- Motion detection speed: 0.6~1.5m/s
- Load max. 2000W (for incandescent bulbs) 1000W (for energy-saving bulbs)
- Detection distance: max. 12m (<24°C)
