Maclean MCE359
Multifunctional flush-mounted switch with motion sensor, equipped with a high-sensitivity infrared detector.
MCE359 is a device with wide functionality, allowing you to save electricity.
It is designed for automatic lighting control in homes, hotels, offices, staircases, corridors, basements, toilets, etc.
Thanks to the infrared sensor, the product enables automatic load activation when motion is detected in the detection field,

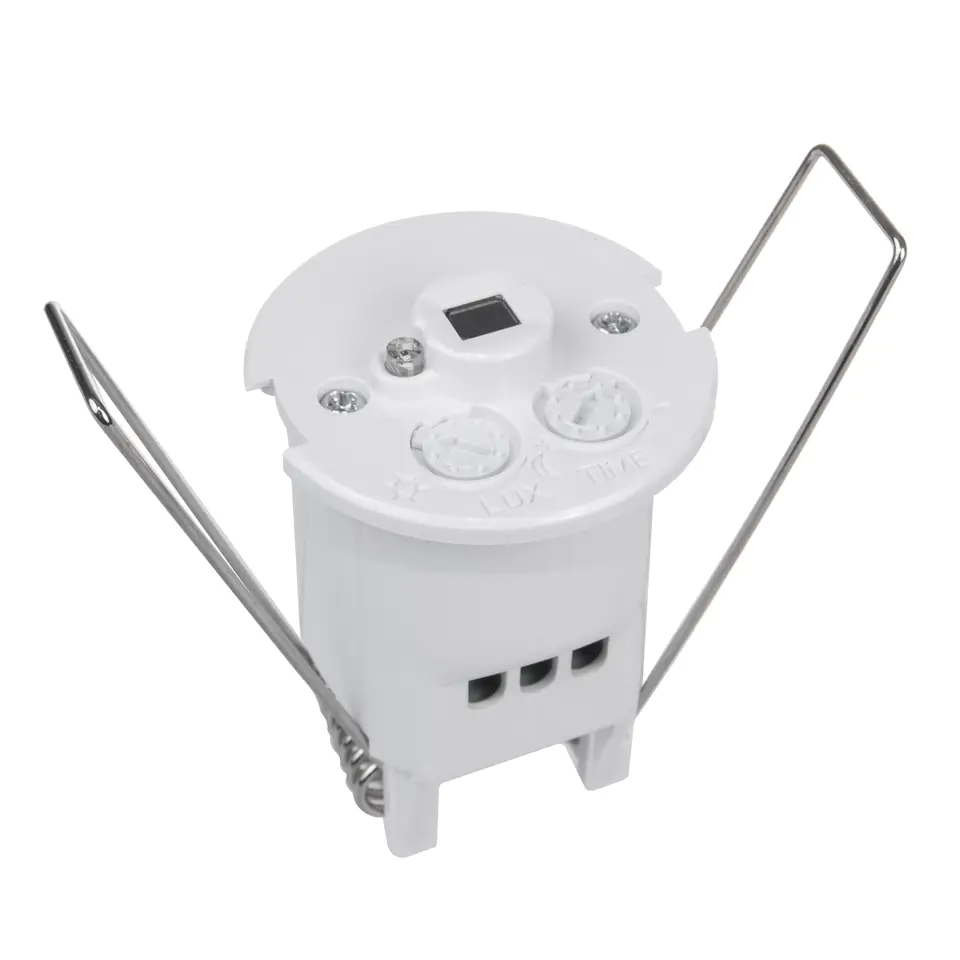

The device can work both at night and during the day. The TIME knob is used to adjust the lighting time (from about 10 sec to 7 minutes).
Use the LUX knob to set the sensitivity of ambient light (range from 3 to 2000 LUX ). When the ambient light is insufficient and we want the device to work both day and night, set the knob to the day position (sun icon). When the ambient light is less than 3 LUX, the knob should be set to night (moon icon).
Specification
- Voltage: 110-240 V/AC
- Power frequency: 50/60Hz
- Ambient light: <3-2000LUX (adjustable)
- Time delay: min.10 s ±3s; max. 7 min ±2min
- Rated load 220-240V/AC: max: 300W (incandescent lamps); 150W (energy-saving lamps)
- Rated load 110-130V/AC: max: 150W (incandescent lamps); 75W (energy-saving lamps)
- Detection range: 360°
- Sensing distance: max. 6m
- Operating temperature: -20 to +40°C
- Operating humidity: <93% RH
- Power consumption: about 0.5 W

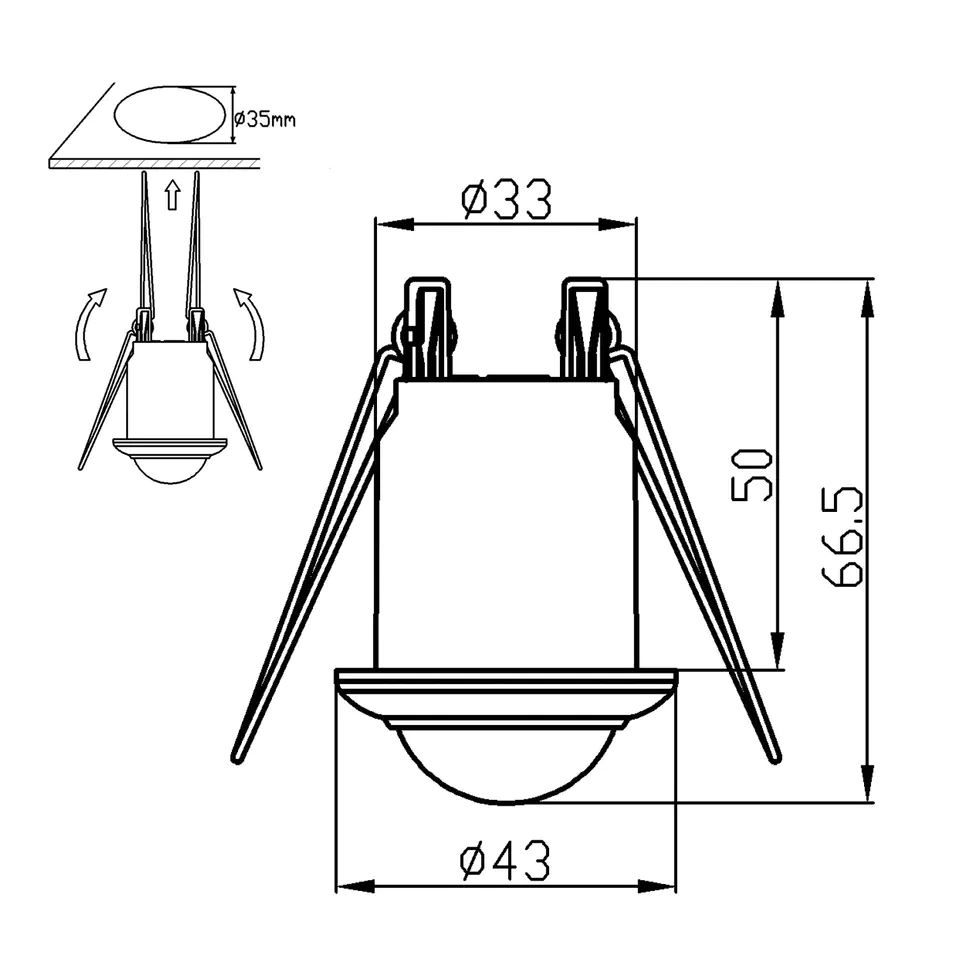

- Installation height: 2.2-4m
- IP rating: IP20
- Motion detection speed: 0.6-1.5 m/s
- Electric shock protection class: II
The set includes
- PIR motion sensor Maclean MCE359
- User manual EN
- Manufacturer's packaging
Features
- Reduces electricity consumption
- Motion detection range: radius max 6m
- Maximum load: 300 W
- Works with LED lighting
- Detection range: 360°
- Ability to adjust the lighting time and the level of light intensity at which the device starts to operate (dusk sensor)
