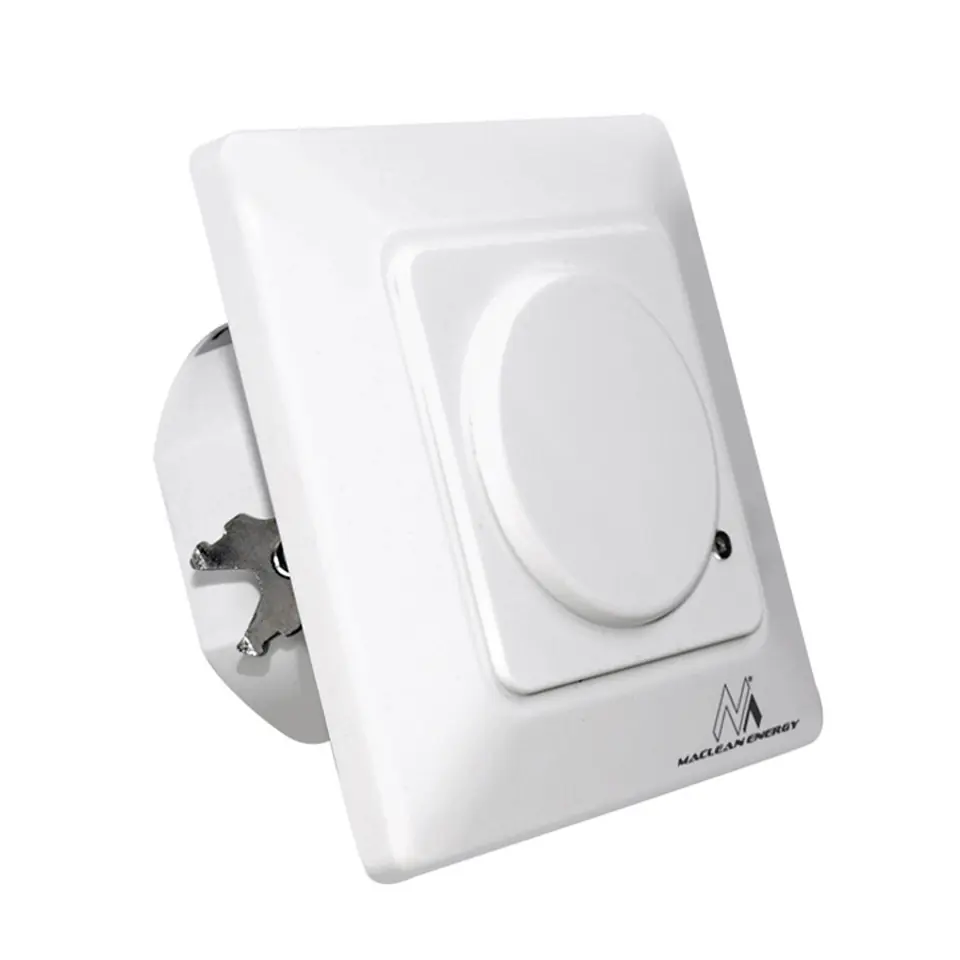

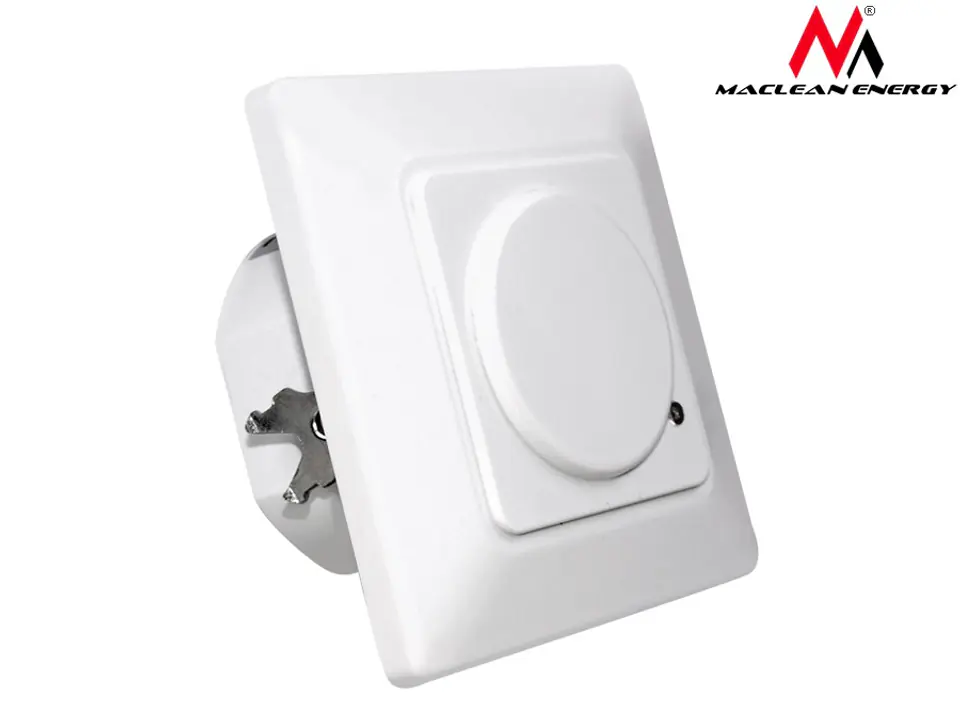

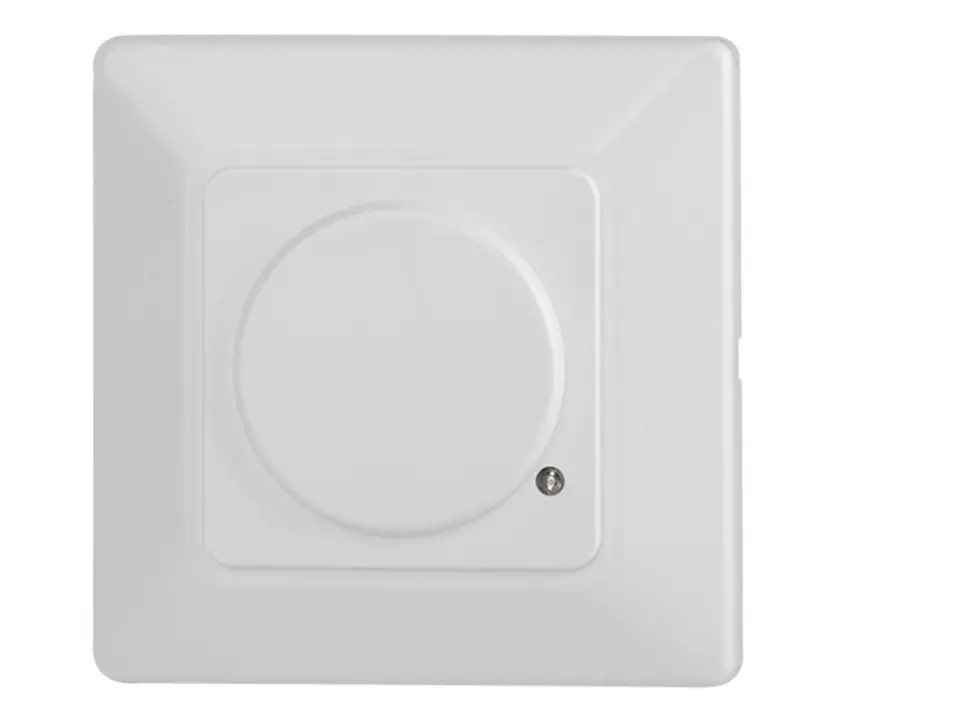

Product Description:

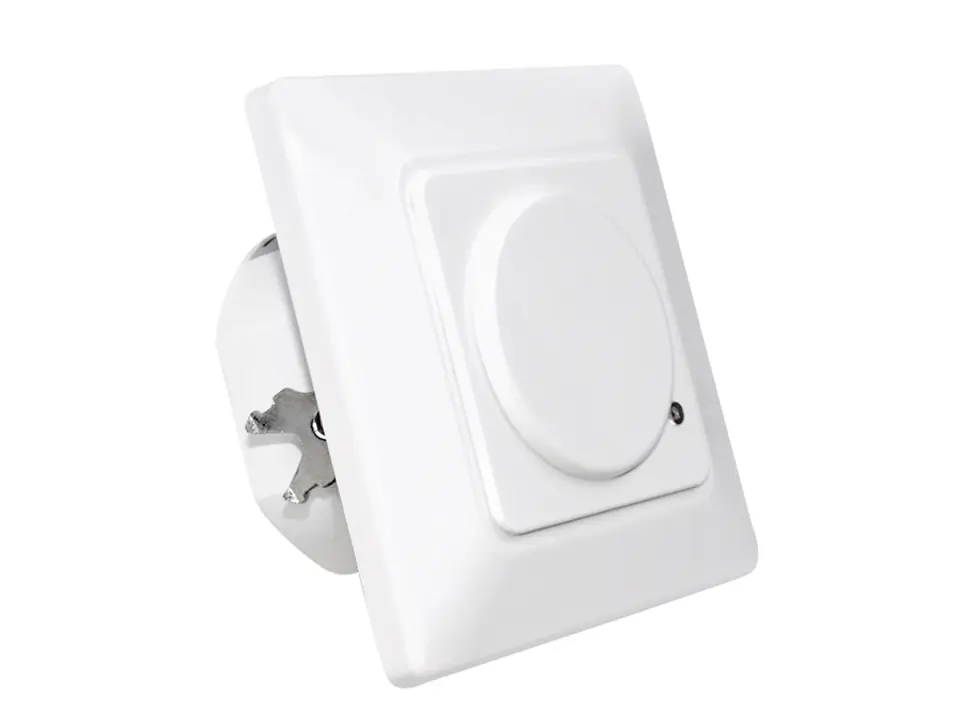

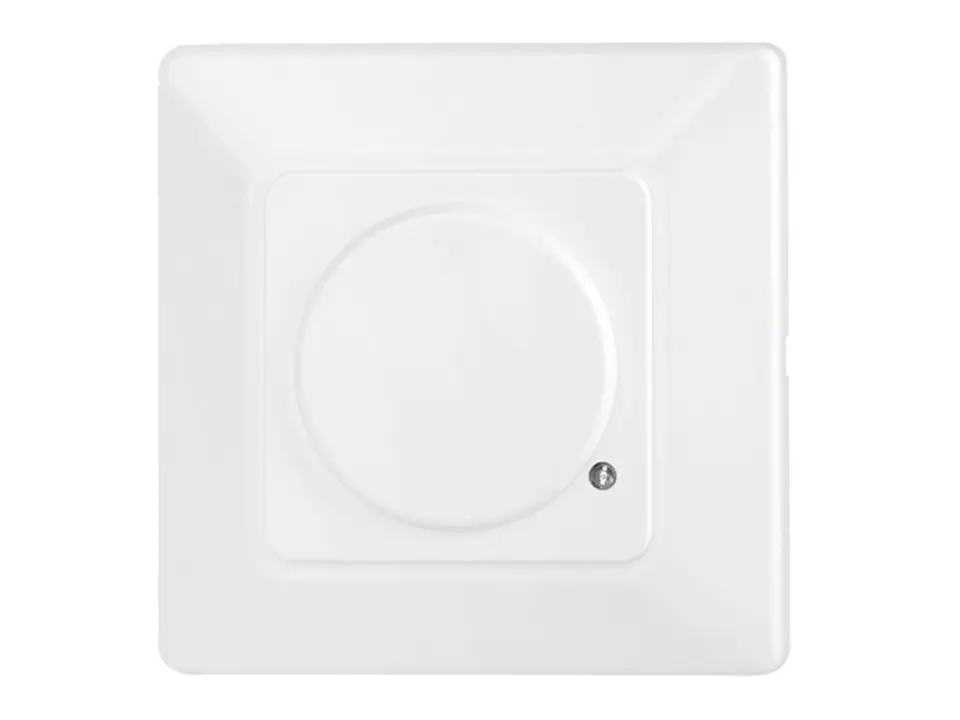

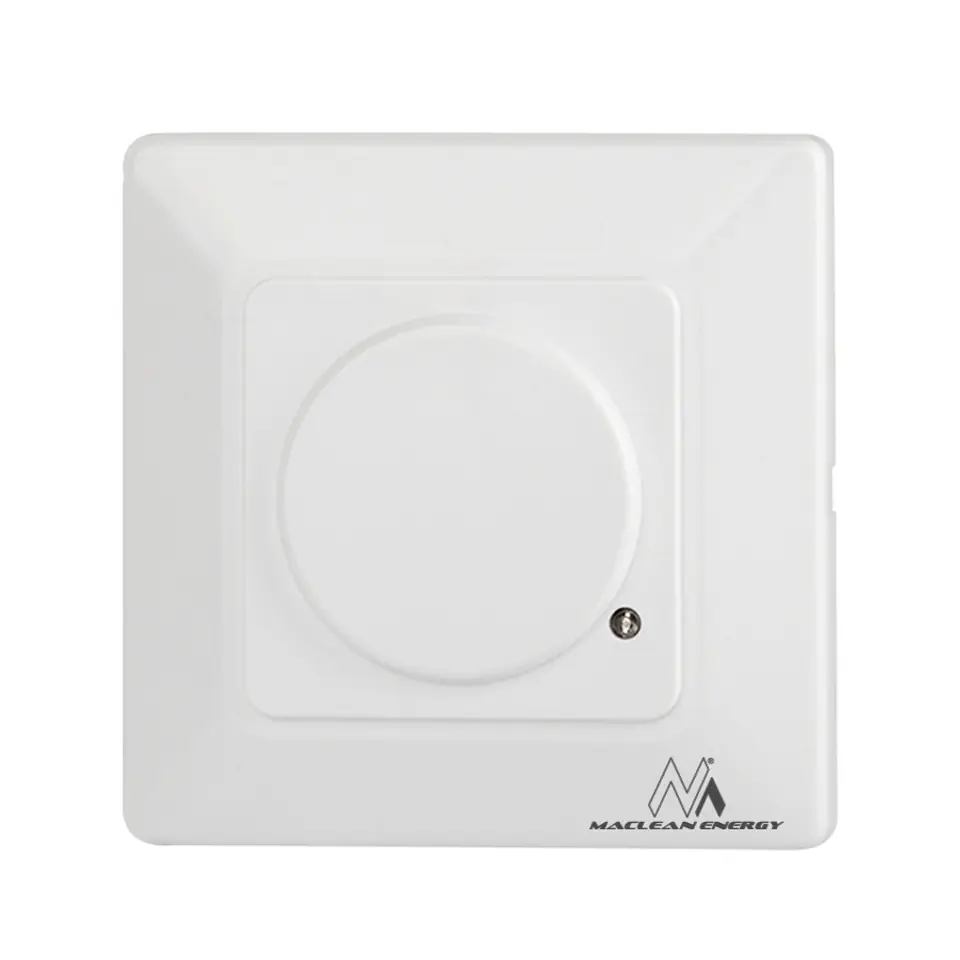

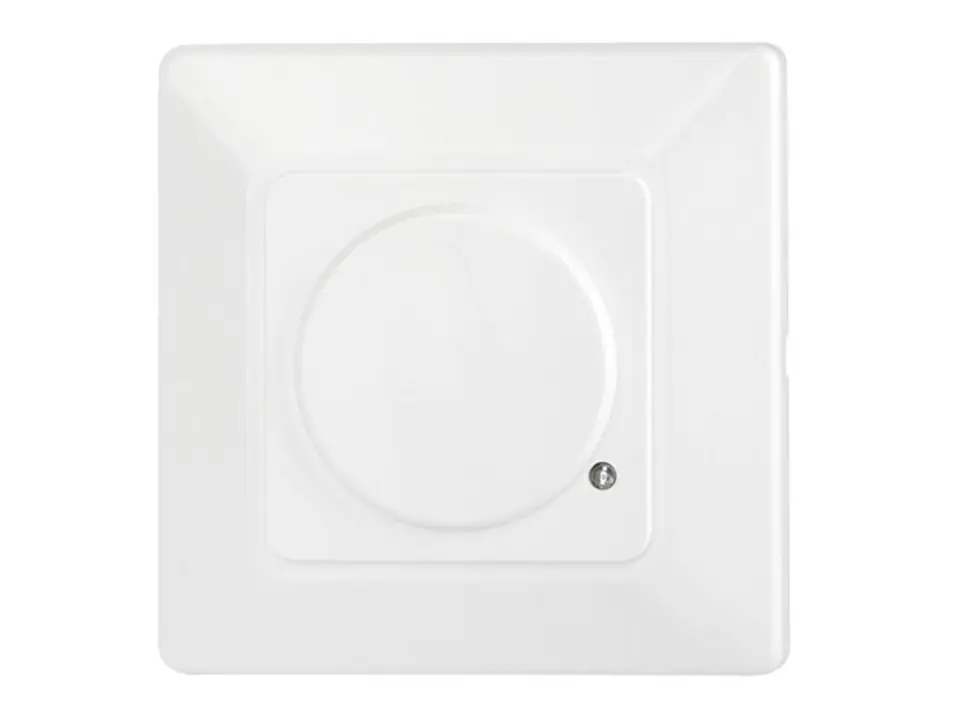

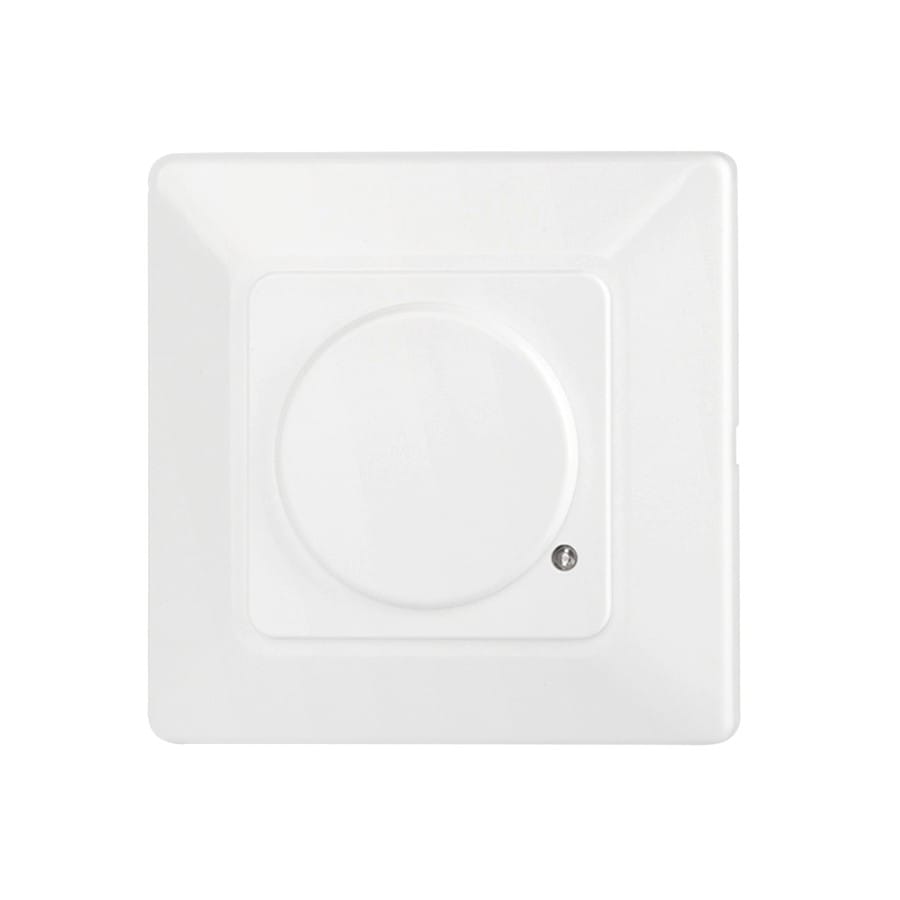

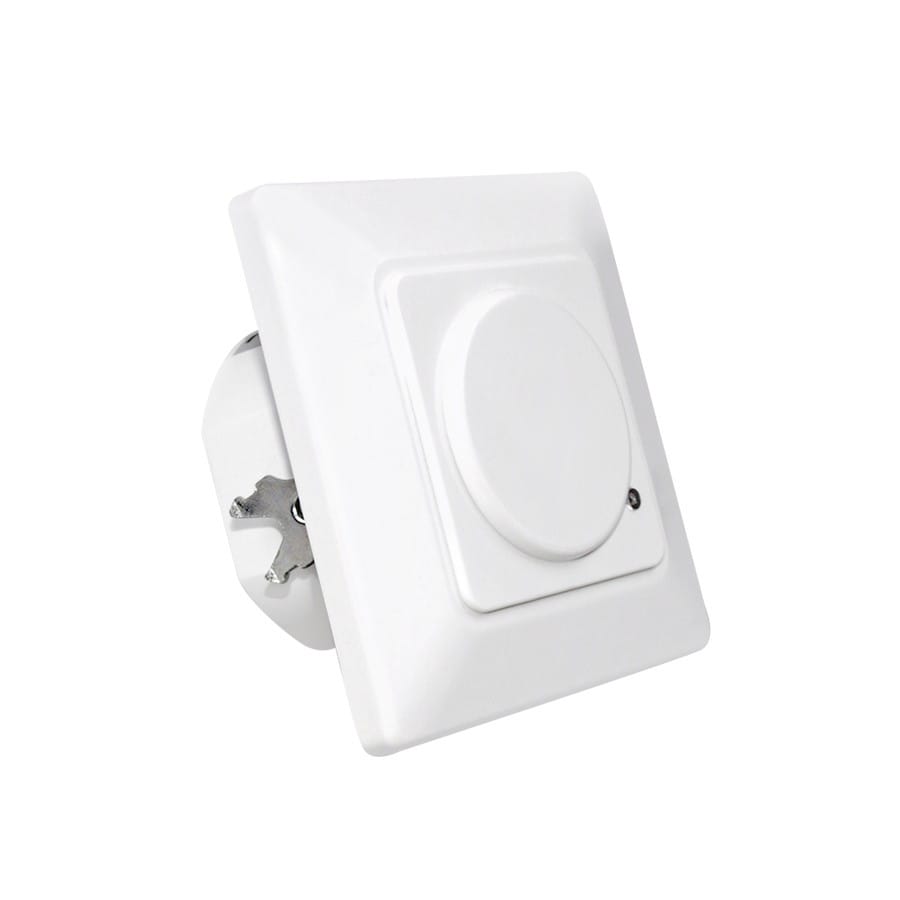

Microwave motion sensor MCE132 designed for automatic control of lighting of internal and external parts of rooms such as: staircases, corridors, basements, garages, changing rooms, toilets, etc.
Product features:

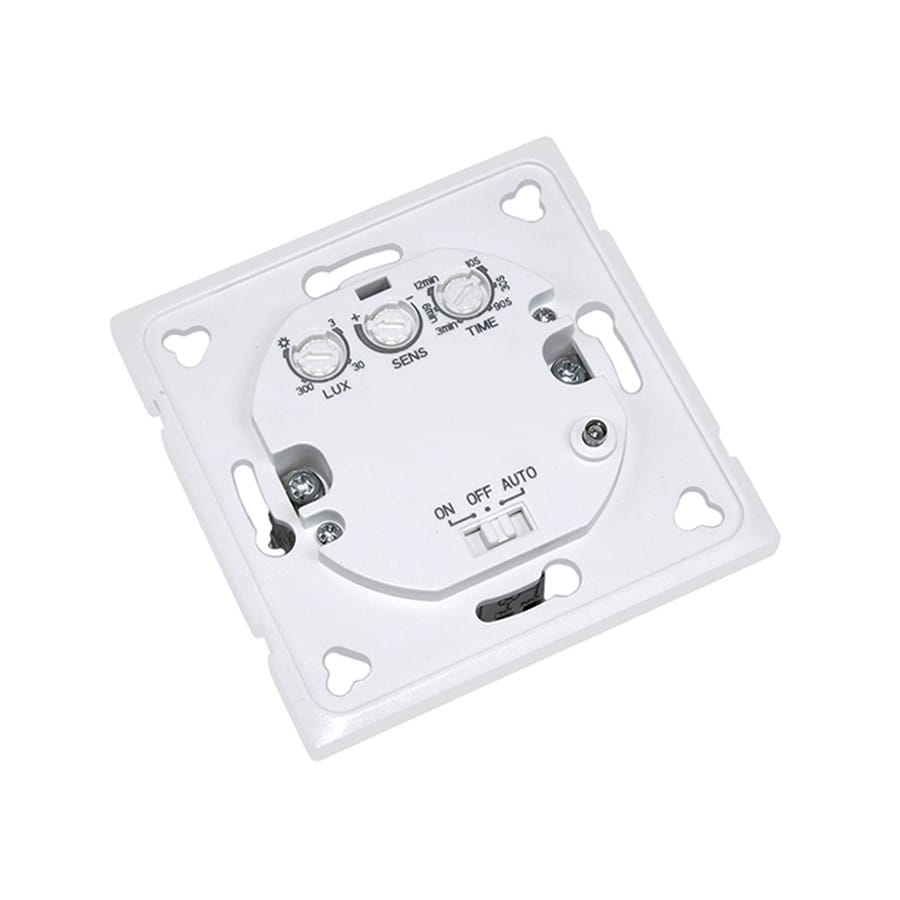

The light sensor can be adjusted depending on the need: SUN position (max) ? day and night work, MOON ? night operation at a horizontal intensity of approx. 3LUX.
Can it be calibrated to the needs of the location? detection range from a minimum of 2m to as much as 16m, so that the device works well in corridors

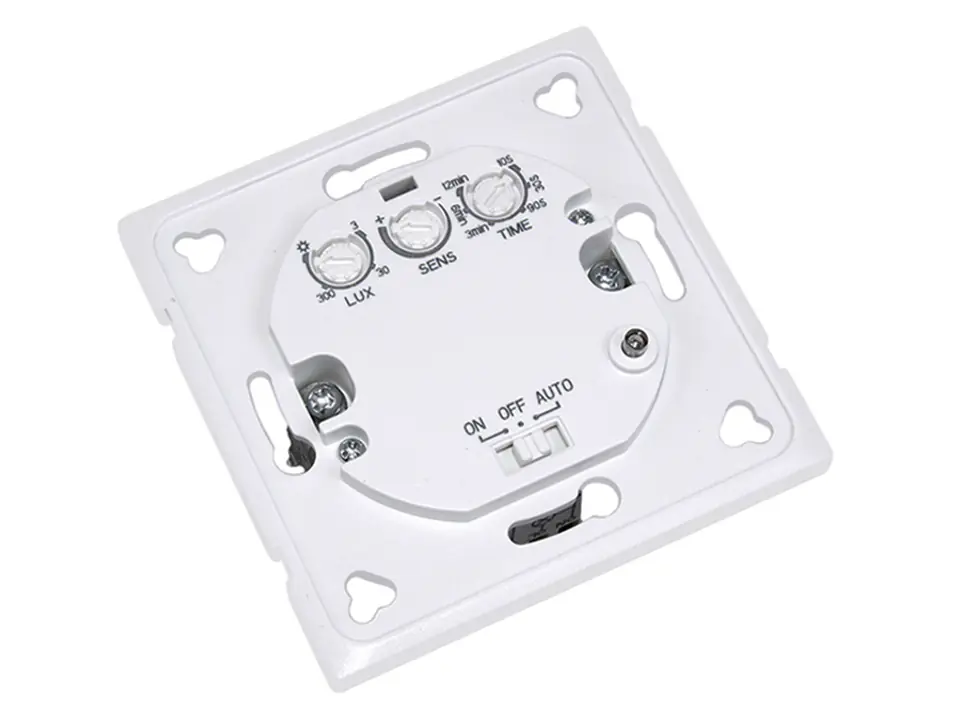

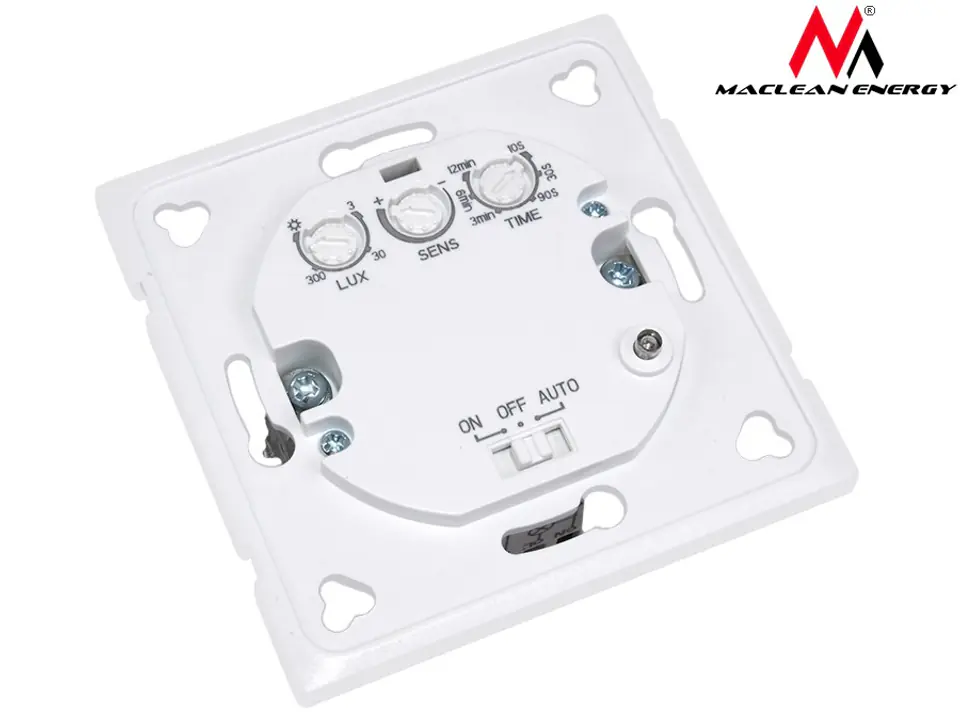

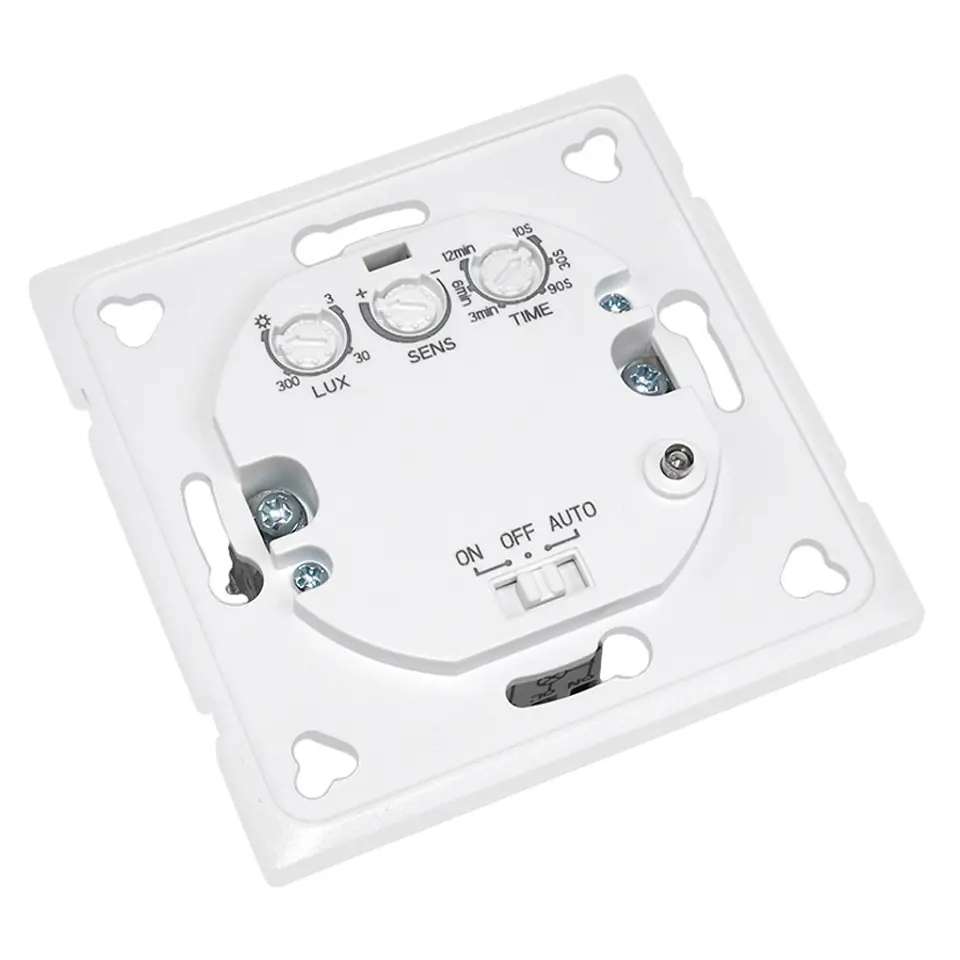

Adjustment of the switching time:
- Depending on the needs, it can be set in the range from 10s ?3s to 15min ?2min. The timer is reset every time the device detects movement
- Adjustable off time between 10 sec(+/-3 sec) and up to a maximum of 12 min (+/-1min)

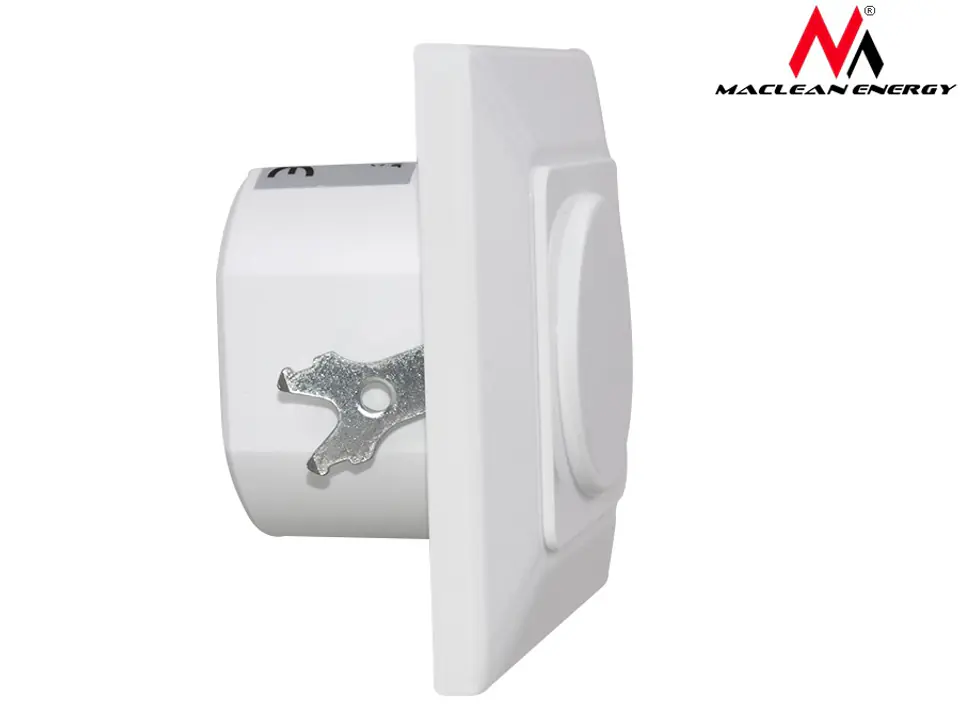

- Microwave motion sensors are active motion detectors operating at the frequency of 5.8 GHz Devices are characterized by high operating frequency, low power emission (< 0.2 mW) and very good motion detection towards or from the motion sensor. The ST756 sensor has a built-in twilight sensor. The specificity of the device allows installation behind doors, panels, glass elements or thin walls.
- The presented properties allow for the versatile use of a microwave motion sensor.
Technical specification:
- Supply voltage: 220-240V/AC
- Power Supply Frequency: 50Hz
- Works with LED lighting
- Light Sensor: 3-2000LUX (adjustable)
- Switching time: min 10s ?3s,
- max 12min ?60sec
- Detection field: 180o
- Working Frequency: 5.8GHz
- Detection range 5-15m
