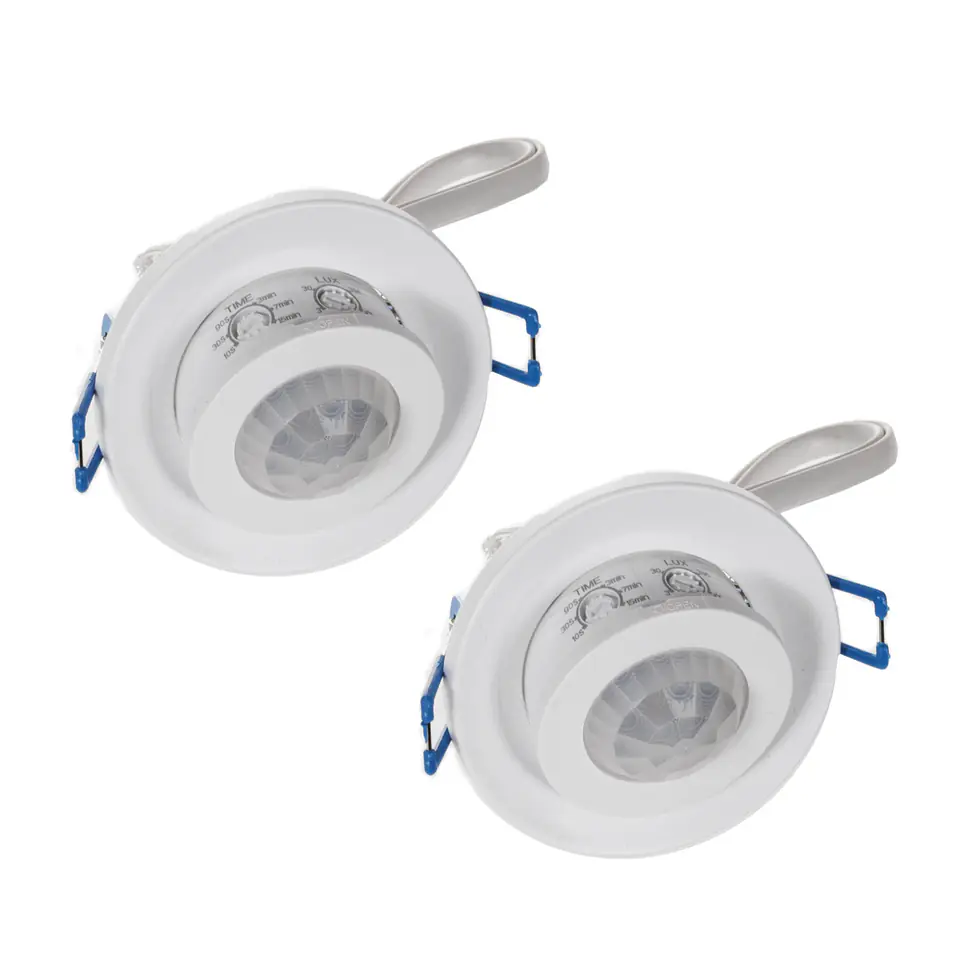

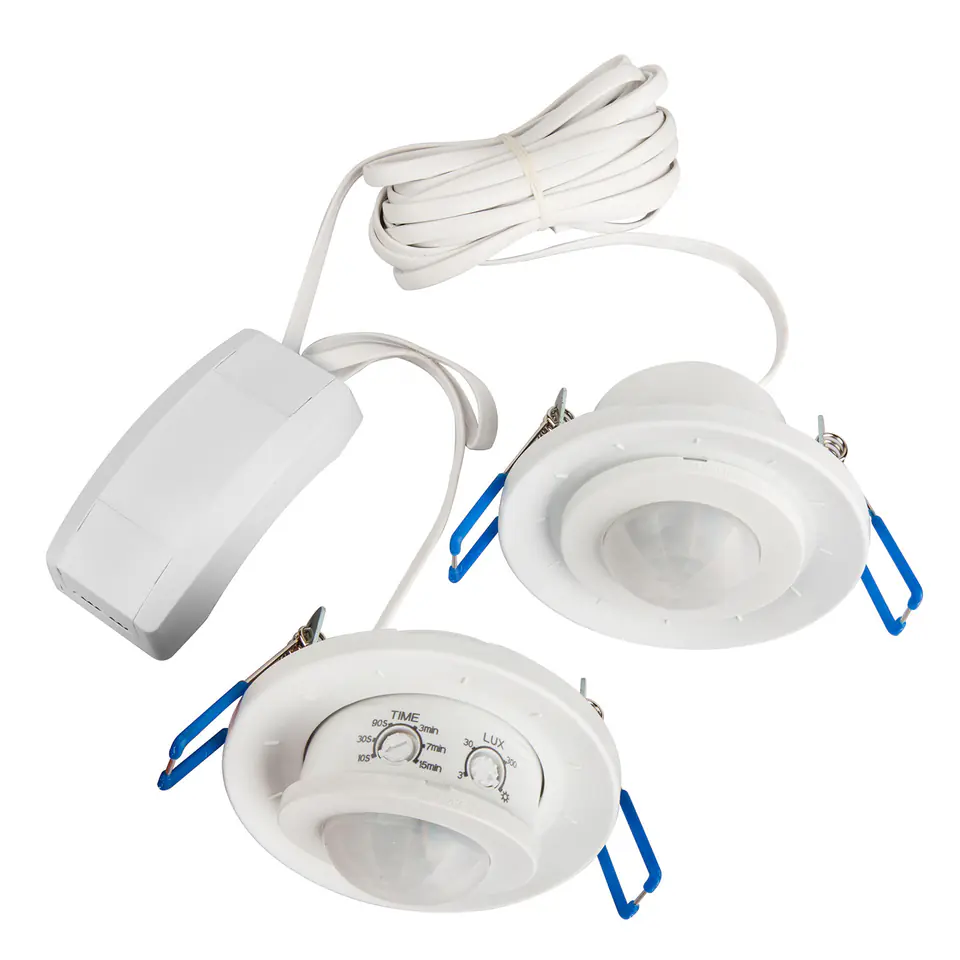

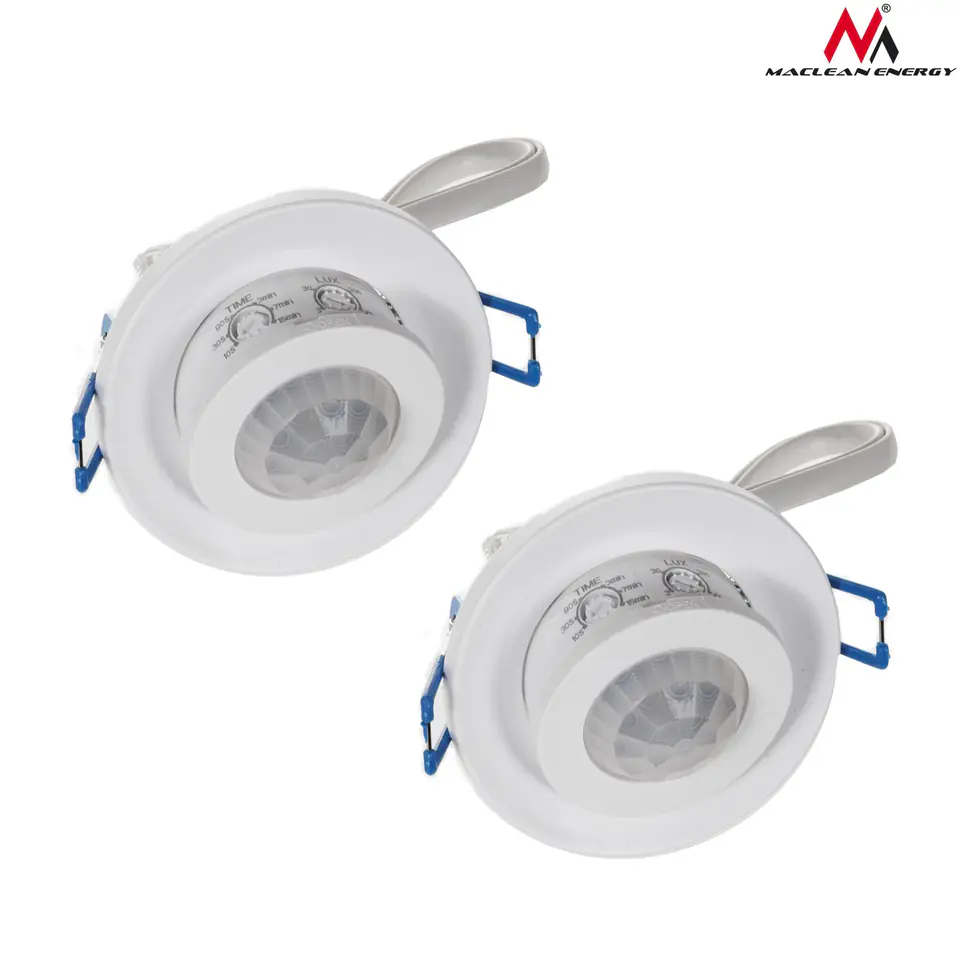

Multifunctional flush-mounted switch with motion sensor equipped with high sensitivity infrared detector. MCE143 is a device that allows with wide functionality to save electricity. The product enables automatic activation of the load, when motion is detected in the detection field, thanks to the infrared sensor. Thanks to the photosensitive sensor, the device can be set to work only at a certain time of day.
Technical Specifications
- Pir motion sensor, double, built-in, range 8m, 1200W/300W
- Supply voltage: 220-240V/50Hz
- Detection range: 8m max (<24°C)
- Light Sensor: 3-2000LUX (adjustable)
- Switching time:
- min: 10s?3s
- max.:15min?2min
- Max. load:
- 120W (incandescent lamps)
- 300W (energy-saving lamps)
- Detection field: 360o
- Operating temperature: -20~+40°C
- Operating Humidity: <93%RH
- Recommended installation height: max: 2.2m~4m
- Power consumption: 0.5W
- Motion detection speed: 0.6~1.5m/s
