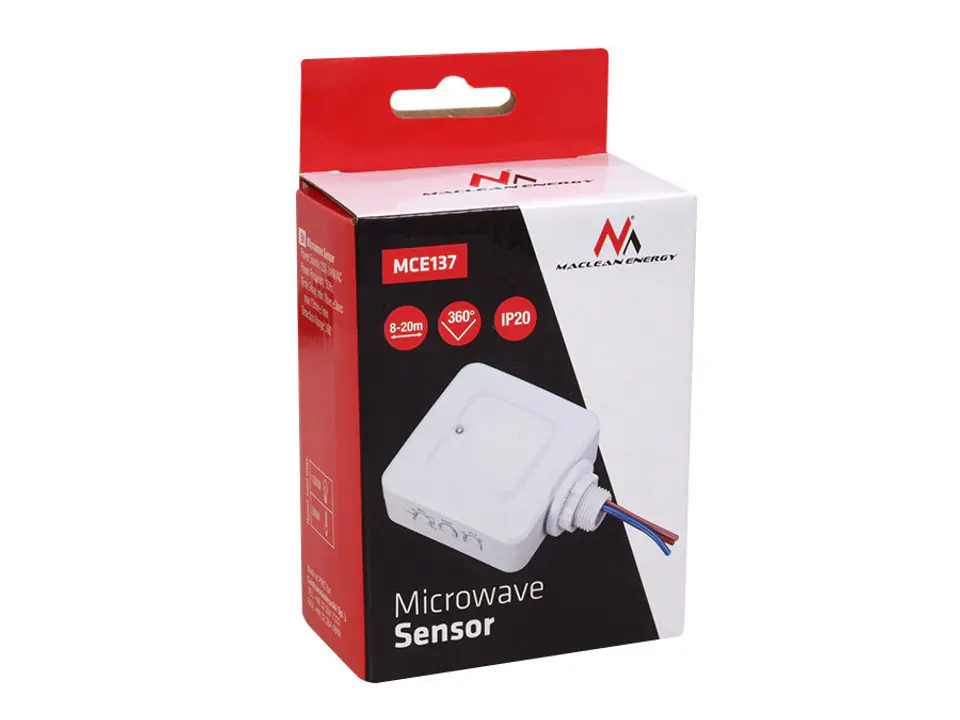

Product Description:

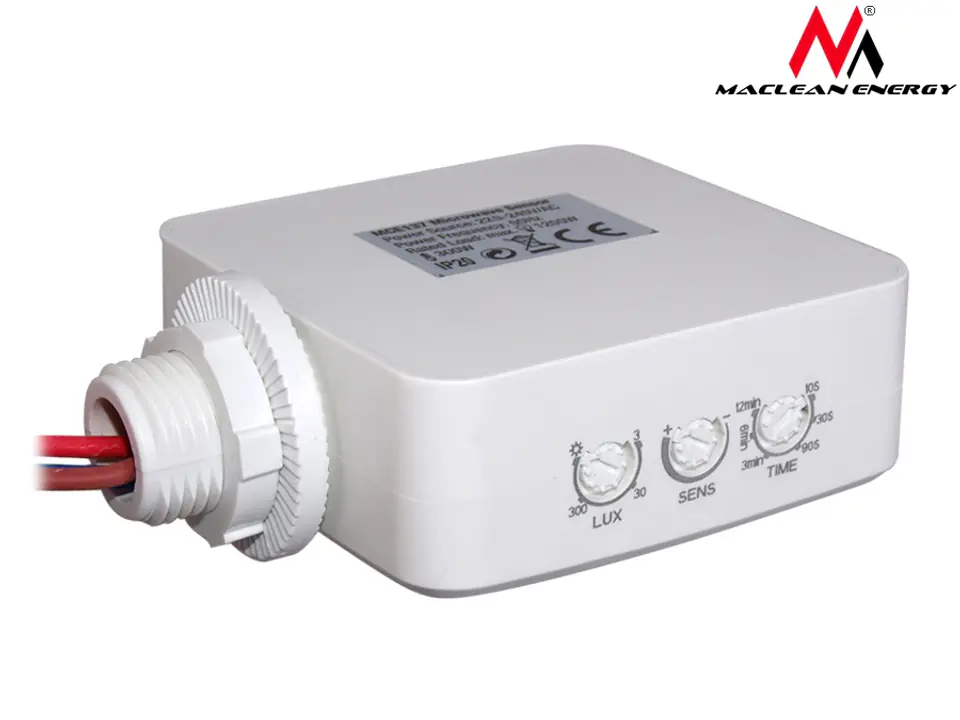

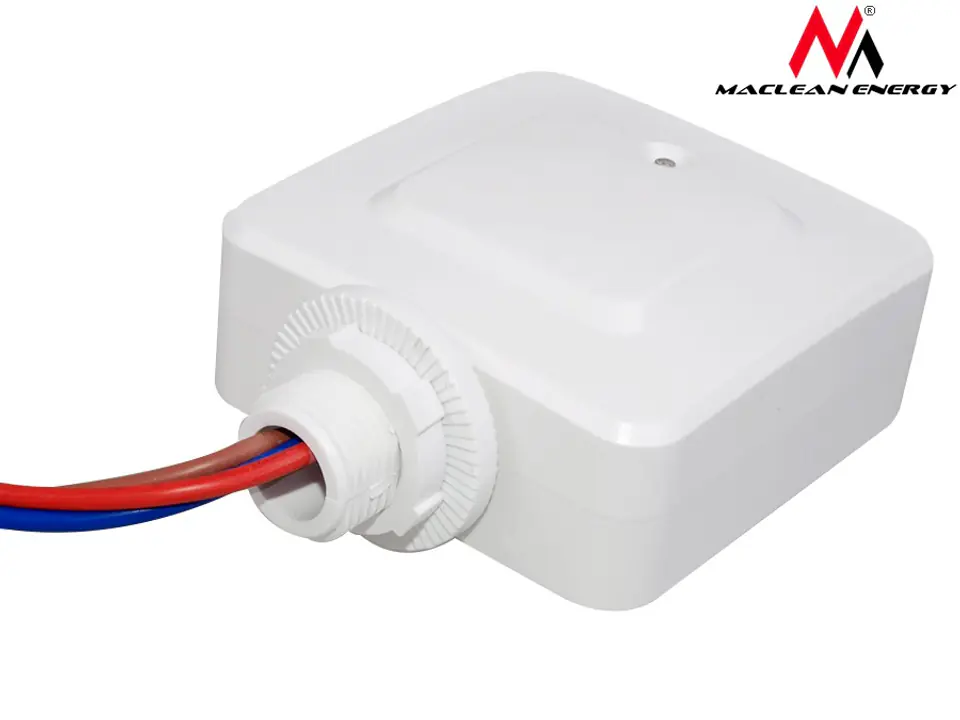

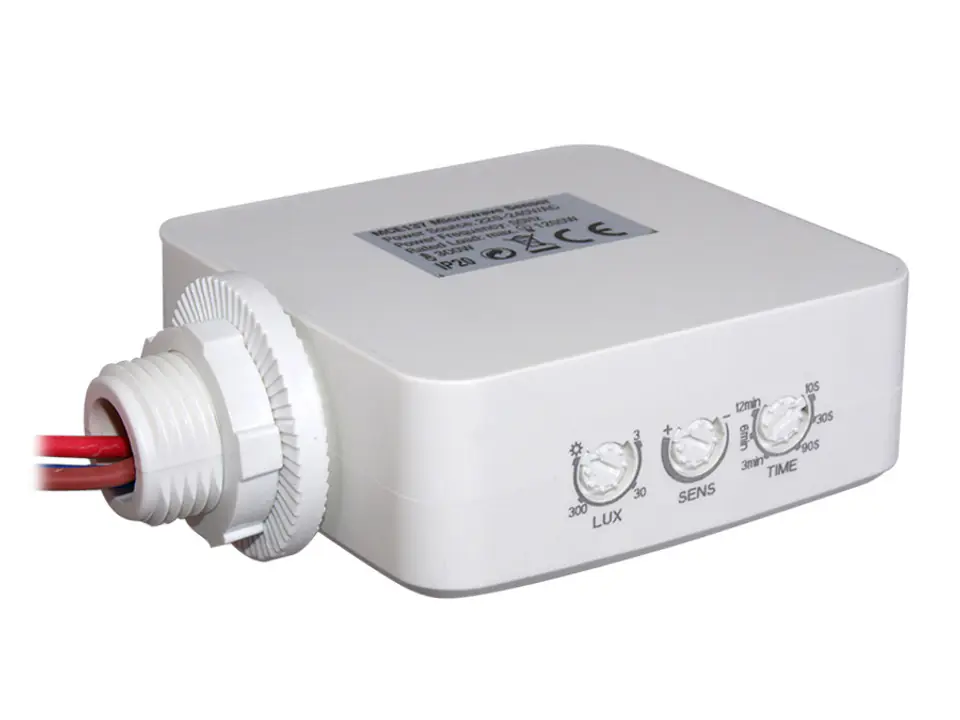

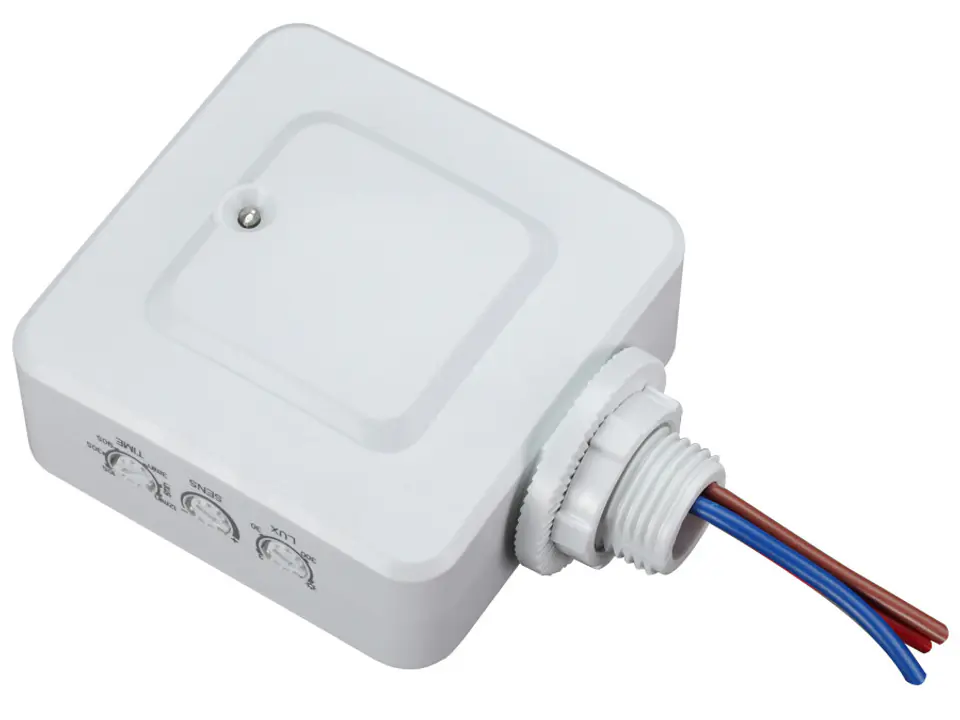

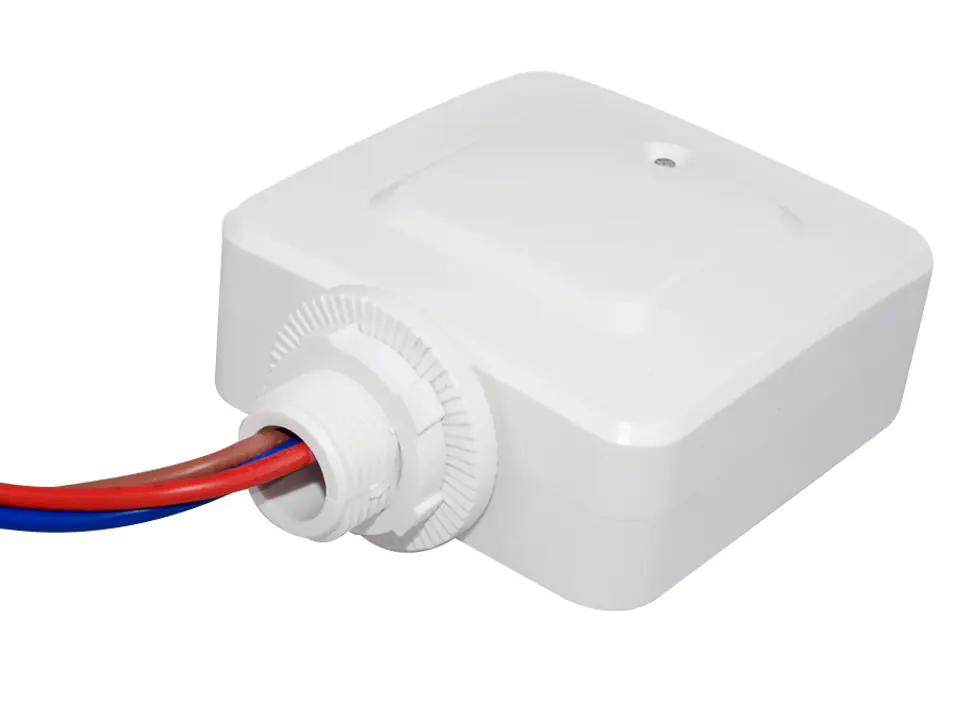

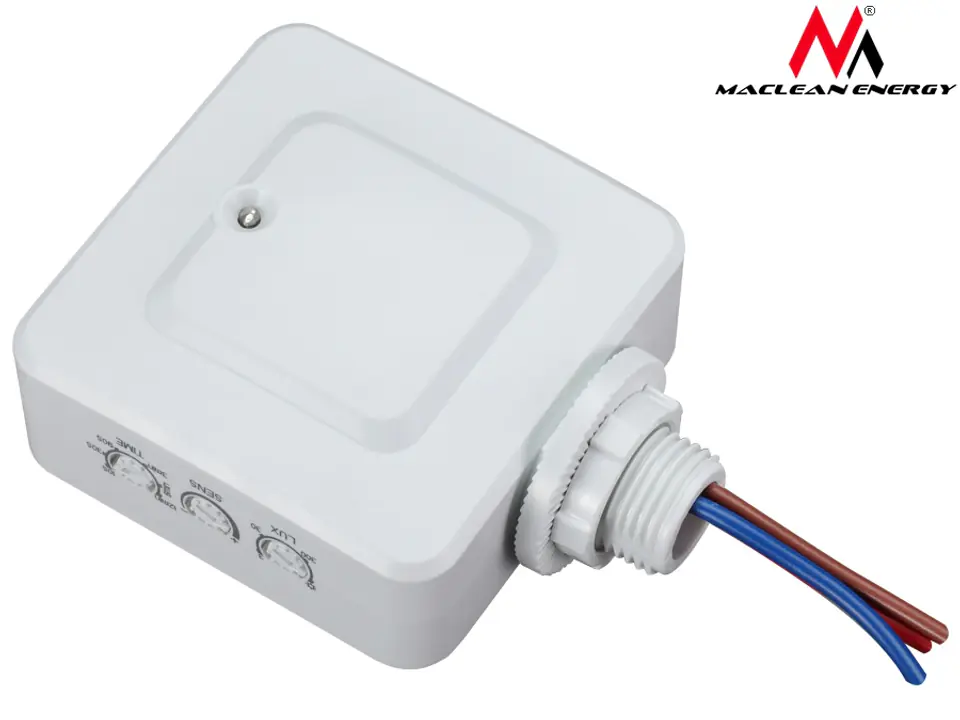

Microwave motion sensor MCE137 designed for automatic control of lighting of internal and external parts of rooms such as: staircases, corridors, basements, garages, changing rooms, toilets, etc. Microwave motion sensors are active motion detectors operating at the frequency of 5.8 GHz. The devices are characterized by a high frequency of operation, low power emission (< 0.2 mW) and very good motion detection towards or from the motion sensor. The MCE137 sensor has a built-in twilight sensor. The specificity of the device allows installation behind doors, panels, glass elements or thin walls. The presented properties allow for the versatile use of a microwave motion sensor.
Product features:
The light sensor can be adjusted depending on the need: SUN position (max) ? day and night work, MOON ? night operation at a horizontal intensity of approx. 3LUX
Can it be calibrated to the needs of the location? detection range from a minimum of 2m up to 16m, so that the device works well in corridors
Adjustment of the switching time: depending on the need, it can be set in the range from 10s?3s to 15 min?2min. The timer is reset every time the device detects movement
Adjustable off time between 10 sec(+/-3 sec) and up to a maximum of 12 min (+/-1min)
Technical specification:
- Supply voltage: 110-240V/AC
- Power Supply Frequency: 50Hz
- Works with LED lighting
- Detection Range (Radius): 4-10m (<24°C)
- Light Sensor: 3-2000LUX (adjustable)
- Switching time: min 10s ?3s, max 12min ?60sec
- Detection field: 360?
- Working Frequency: 5.8GHz
- Recommended installation height: max: 4-15m
- Motion detection speed: 0.6~1.5 m/s
- Power Consumption: 0.9W
- Power Transmission: <0.2mW
- Protection class: IP20
Load:
-Incandescent bulb:
- 1200W (220-240V/AC)
- 800W (110-130V/AC)
-Energy-saving bulb:
- 300W (220-240V/AC)
- 200W (110-130V/AC)
