Thanks to the use of a microwave sensor, motion detection can occur through glass, plastic and wooden obstacles such as doors or windows.

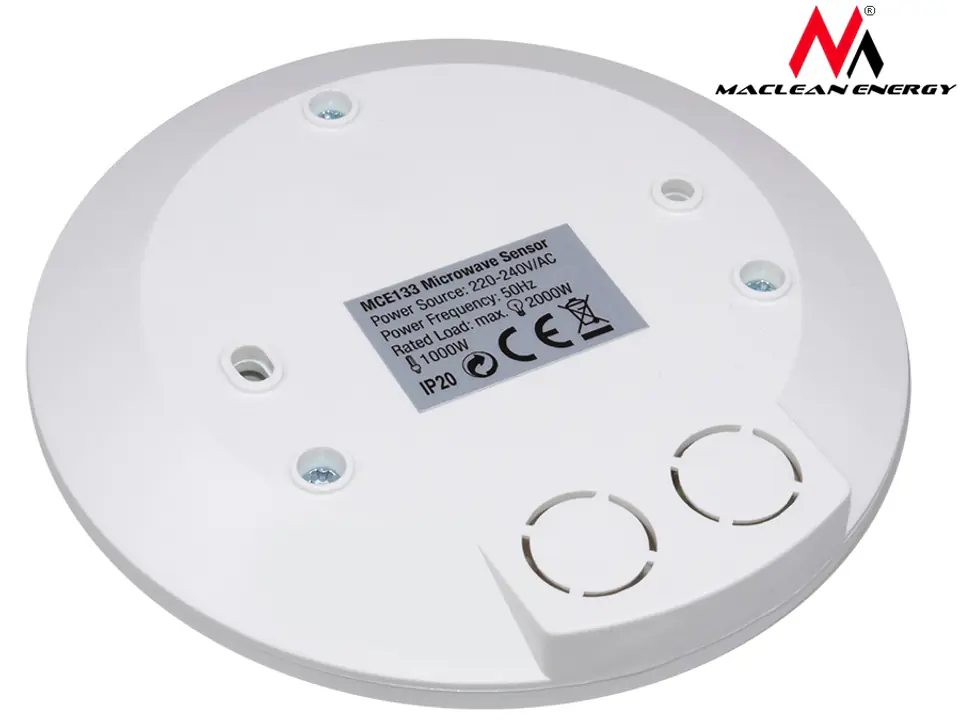

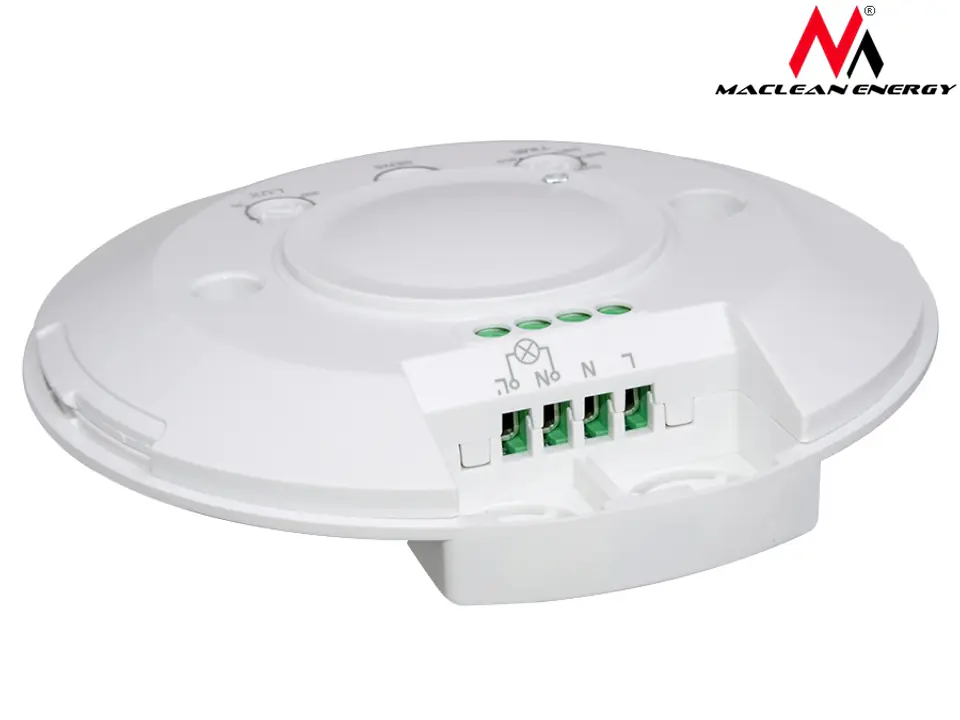

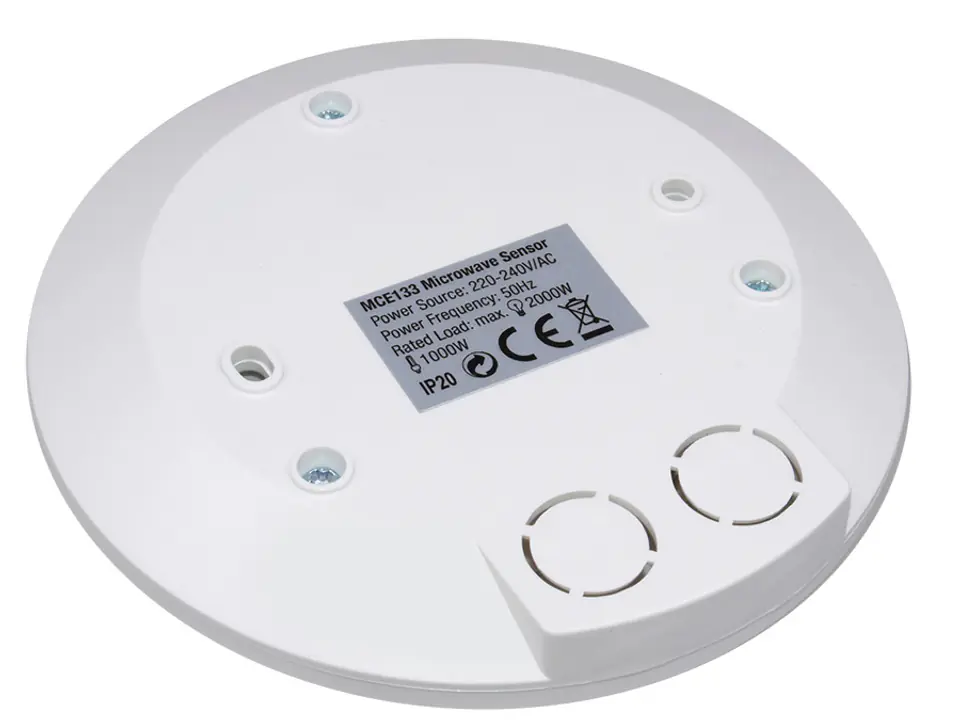

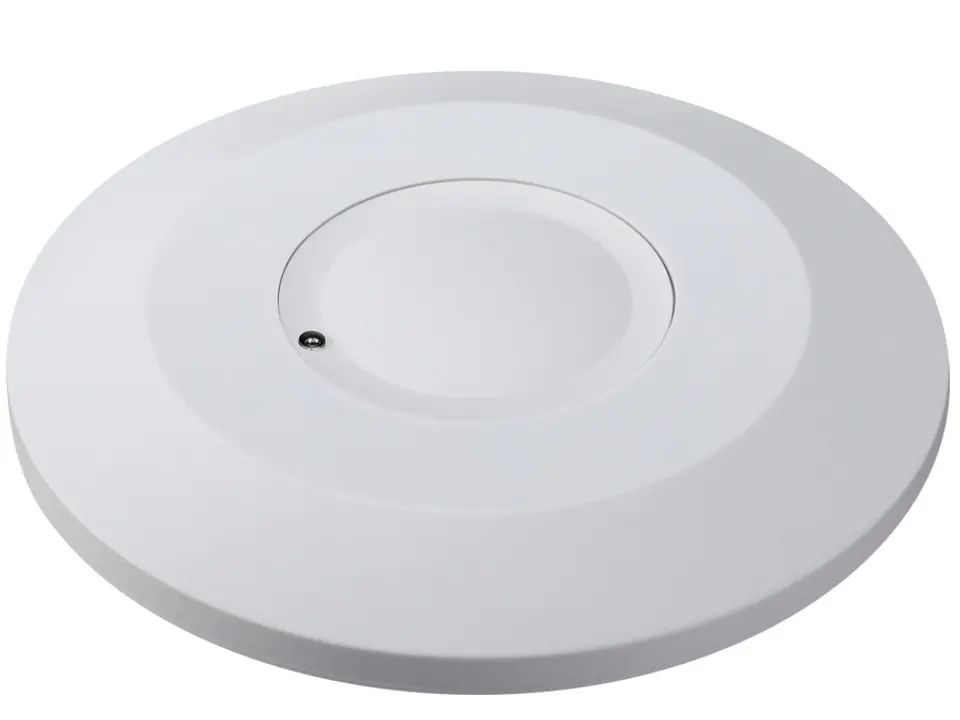

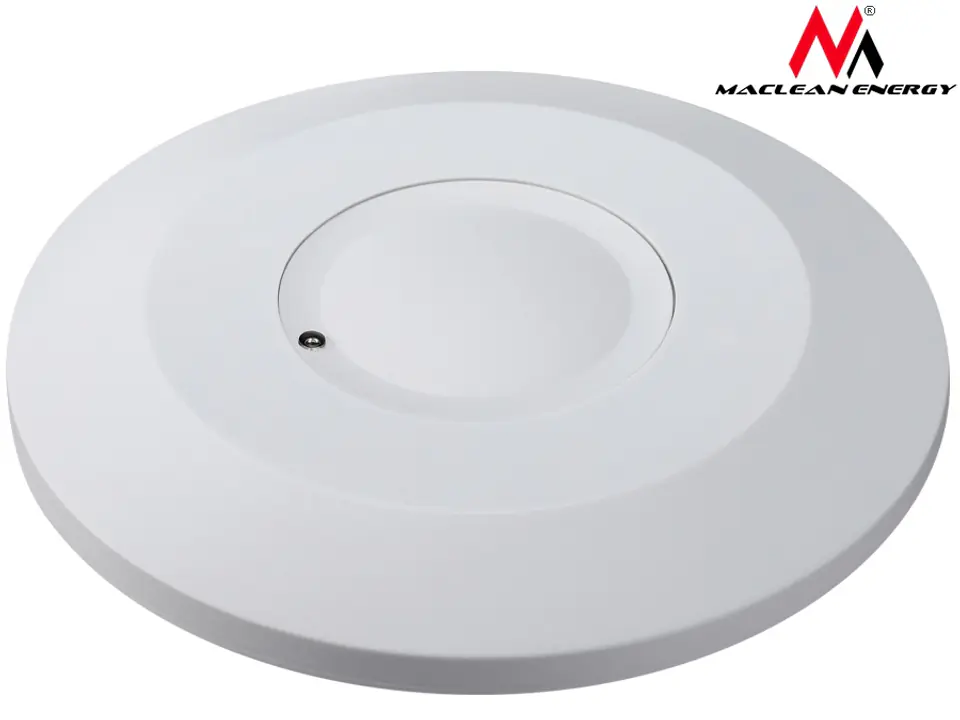

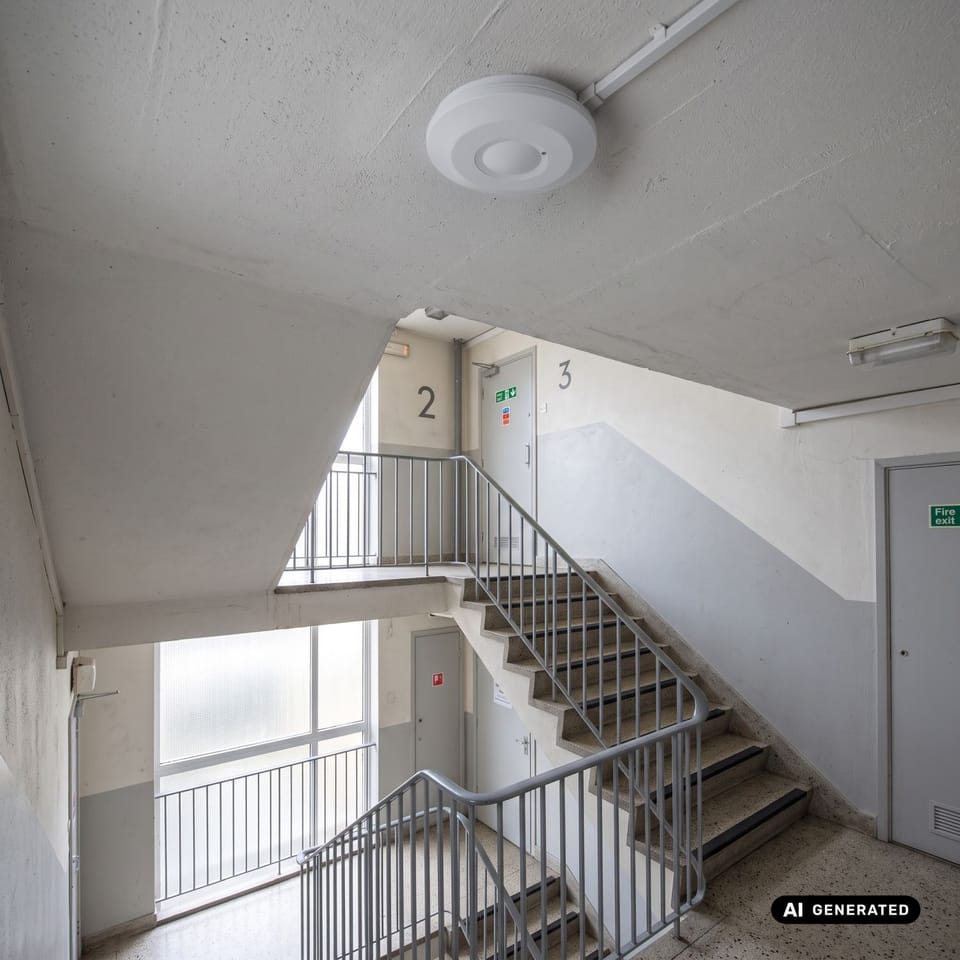

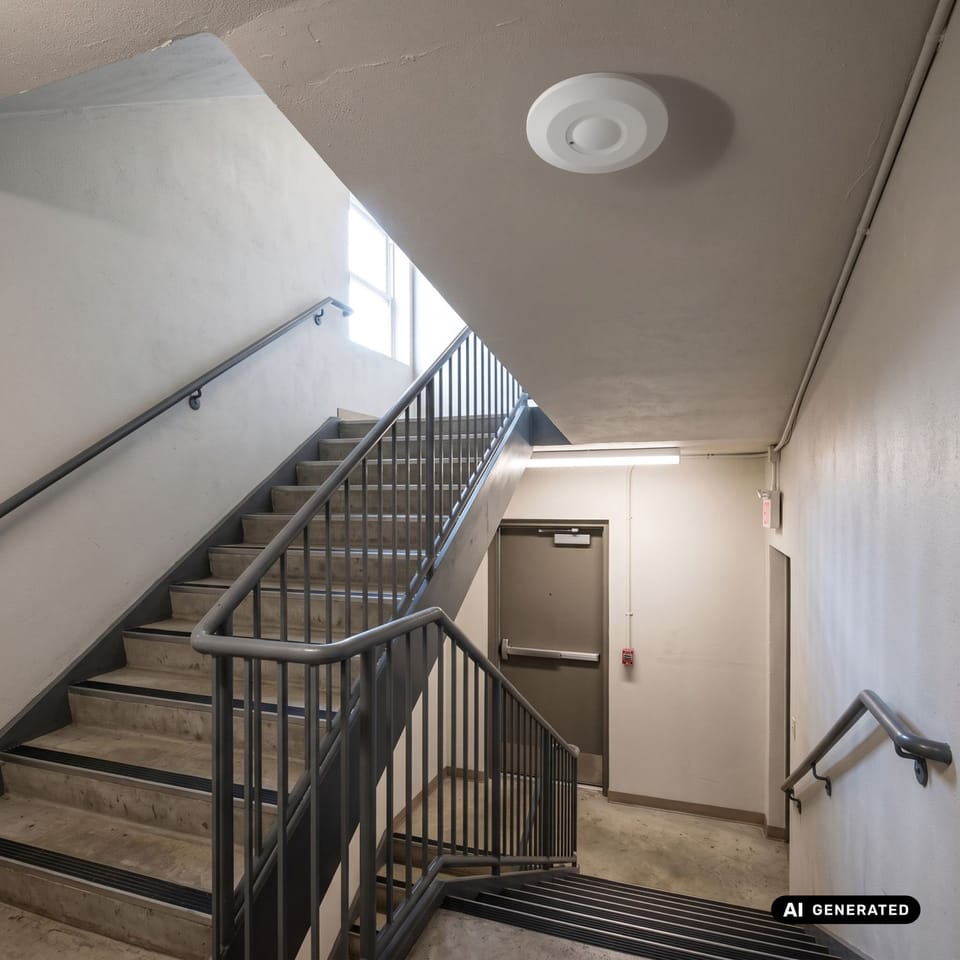

Microwave motion sensor MCE133 designed for automatic control of lighting of internal and external parts of rooms such as: staircases, corridors, cellars, garages, changing rooms, toilets, etc.
Microwave motion sensors are active motion detectors operating at the frequency of 5.8 GHz. The devices are characterized by high operating frequency, low power emission (< 0.2 mW) and very good motion detection towards or from the motion sensor. The MCE133 sensor has a built-in twilight sensor. The specificity of the device allows installation behind doors, panels, glass elements or thin walls. The presented properties allow for the versatile use of a microwave motion sensor.
Specification
- Supply voltage: 220-240V/AC
- Power frequency: 50Hz
- Works with LED lighting
- Detection range (radius): 1-8m (<24°C)
- Light sensor: 3-2000LUX (adjustable)
- Switching time: min 10s ?3s,
- max 12min ?60sec
- Detection field: 360?
- Operating frequency: 5.8 GHz
- Recommended mounting height: max: 2~6m
- Motion detection speed: 0.6~1.5m/s
- Power consumption: 0.9W
- Energy transfer: <0.2mW
- Maximum load:
- Incandescent bulb: 2000W
- Energy-saving bulb: 1000W
- Protection class: IP20
- Warranty: 2 years
Includes
- Microwave motion sensor
- Proof of purchase
- Instruction manual
Features

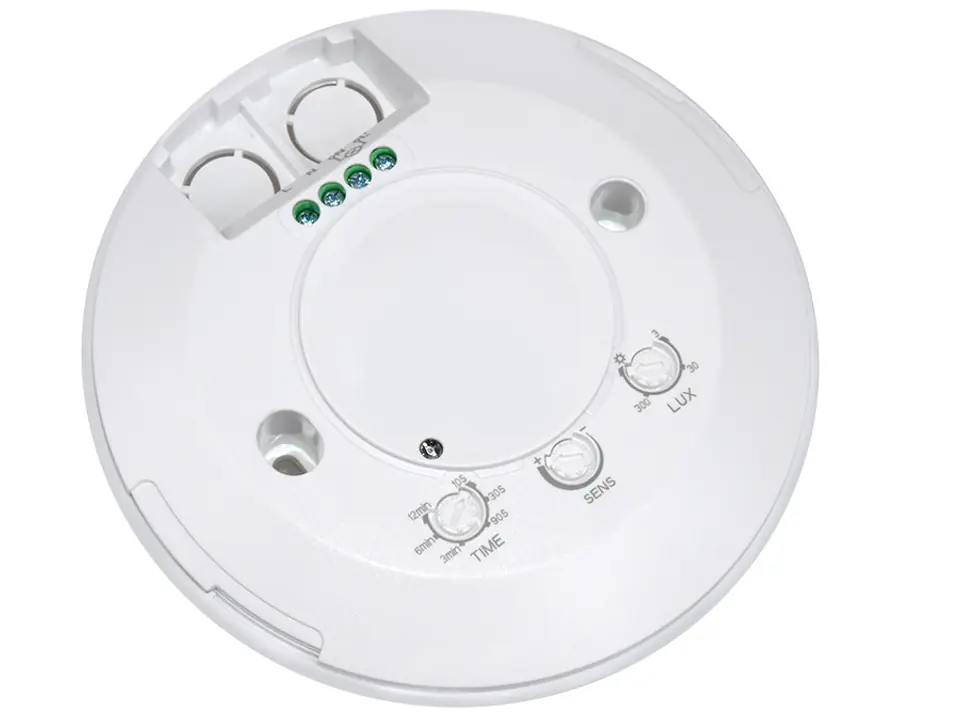

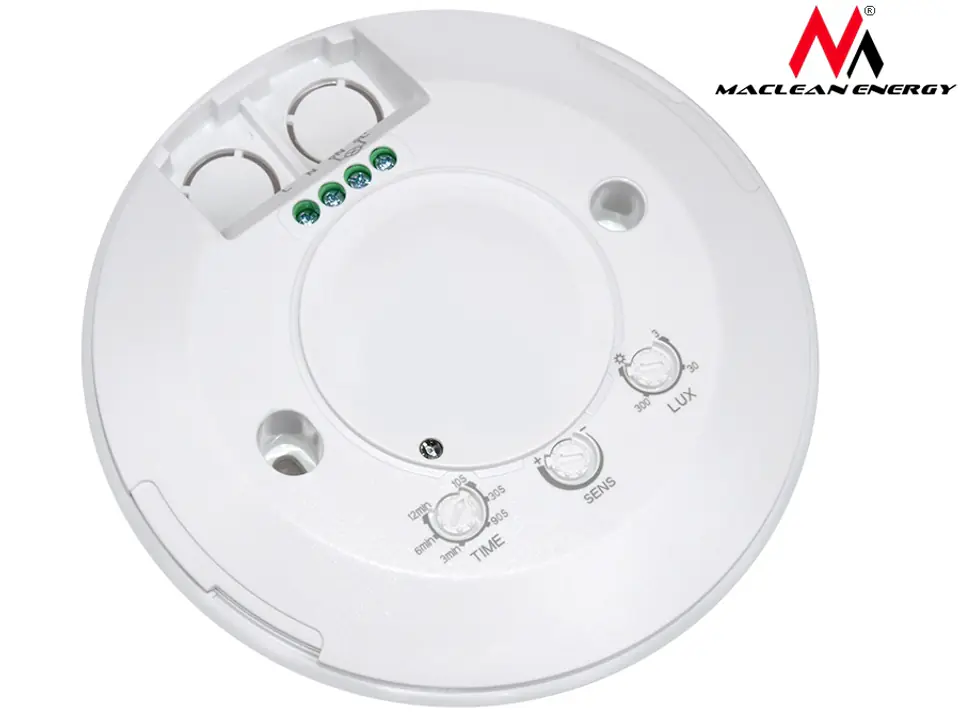

- The light sensor can be adjusted according to your need: SUN position (max) ? day and night work, MOON ? night operation at a horizontal intensity of approx. 3LUX.
- Can it be calibrated to the needs of the location? detection range from a minimum of 1m to 8m, so that the device works well in corridors
- Adjustment of the switching time: depending on the need, it can be set in the range from 10s ?3s to 15min ?2min. The timer is reset every time the device detects movement
- Adjustable shutdown time in the range of 10 sec(+/-3 sec)up to a maximum of 12 min (+/-1min)
