MC-743 46739 TV or monitor holder 13-50 inch 30kg
The universal wall mount is used for mounting LCD, LED and plasma TVs and monitors of various brands weighing up to 30kg and with screen dimensions from 13" to 50". Compatible with LED, LCD, PLASMA TV: Sony, LG, Samsung, Philips, Sharp, Panasonic, Toshiba, Grundig, Pioneer, JVC, Benq, Sanyo, NEC, Hyundai, Hitachi.
VESA Compatibility
The given screen size is only a suggestion. The mount can be mounted on a larger TV when it does not exceed the maximum weight and is within the given VESA standard. We can easily attach the VESA screen to the mount: 75x75, 100x100, 200x100, 200x200, 300x300, 300x400, 400x400

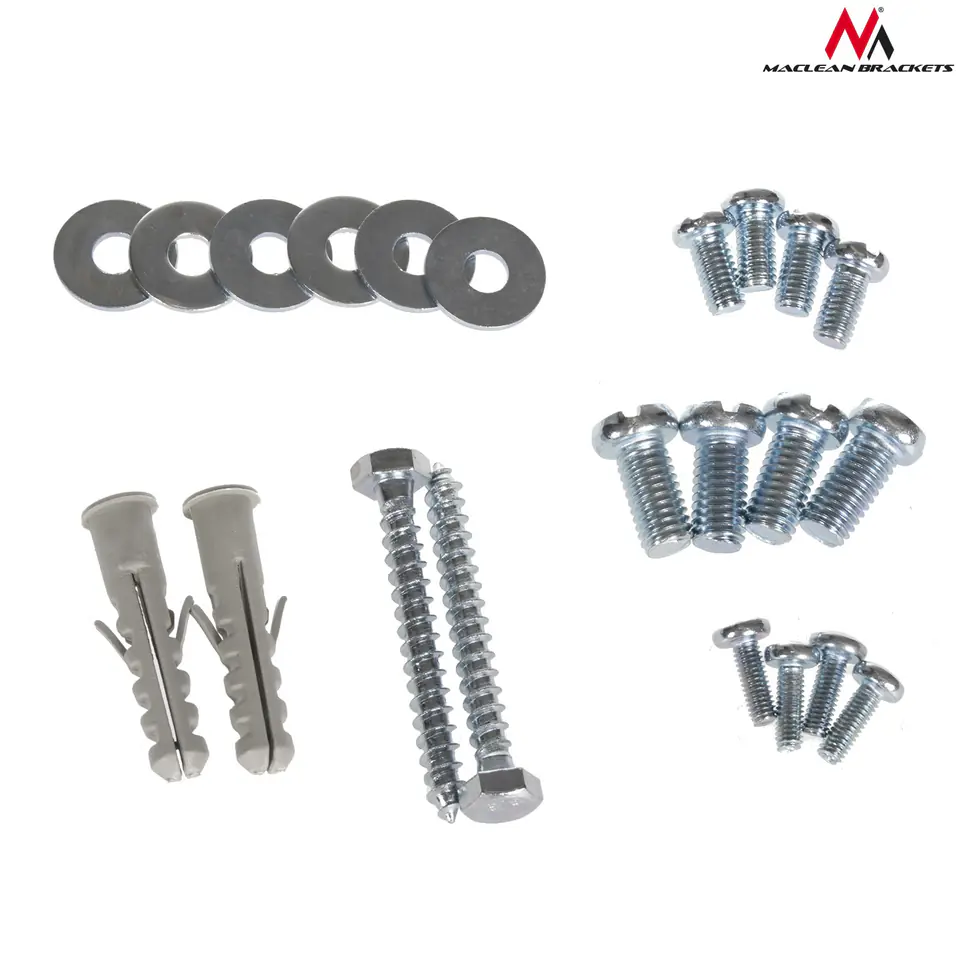

Complete set
The set includes a set of screws for mounting the mount to the wall and TV to the mount. Polish assembly instructions!

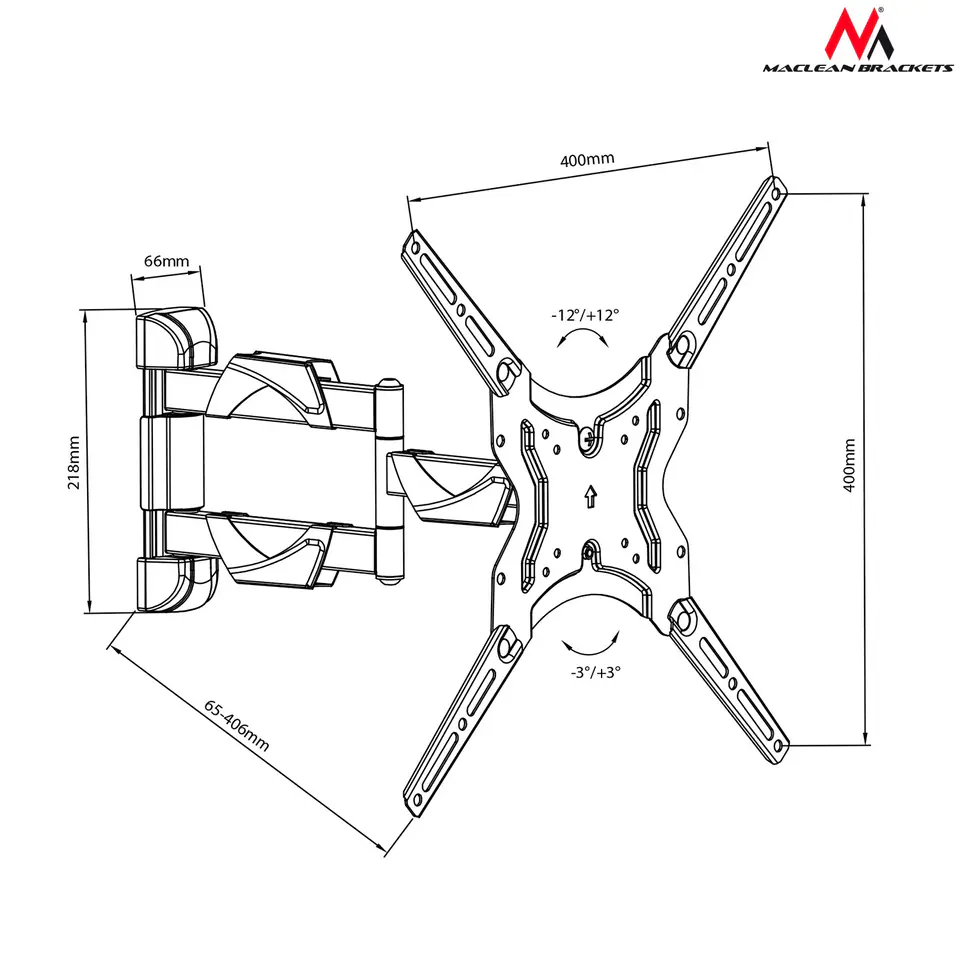

Technical Specifications:
- Maximum load: up to 30 kg
- Tilt adjustable from +12° to -12°
- Minimum/Maximum horizontal spacing: 75/400 mm
- Minimum/Maximum vertical spacing: 75/400 mm
- Adjustable wall distance: 65 - 406 mm
- Solid metal construction, very easy to assemble
- High quality workmanship
- Powder coating black
- Designed for TV 13" - 50" (or more if their weight does not exceed 25kg, and the VESA standard is compatible with the mount)
- The set includes a set of mounting screws for the wall and for screwing the TV and Polish assembly instructions
- VESA: 75x75, 100x100, 200x100, 200x200, 300x300, 300x400, 400x400
Parameters:
- Purpose TVs
- Wall type
- Display size (min.) 13 ''
- Display size (max) 50 ''
- Load (max.) 30 kg
- 12° vertical adjustment
- Reach adjustment Yes
- Outreach (min.) 65 mm
- Outreach (max.) 406 mm
- Corner handle No
- Material No data available
- Accessories included - A set of screws for mounting the bracket to the wall and TV to the bracket
- Polish assembly instructions
- Black
