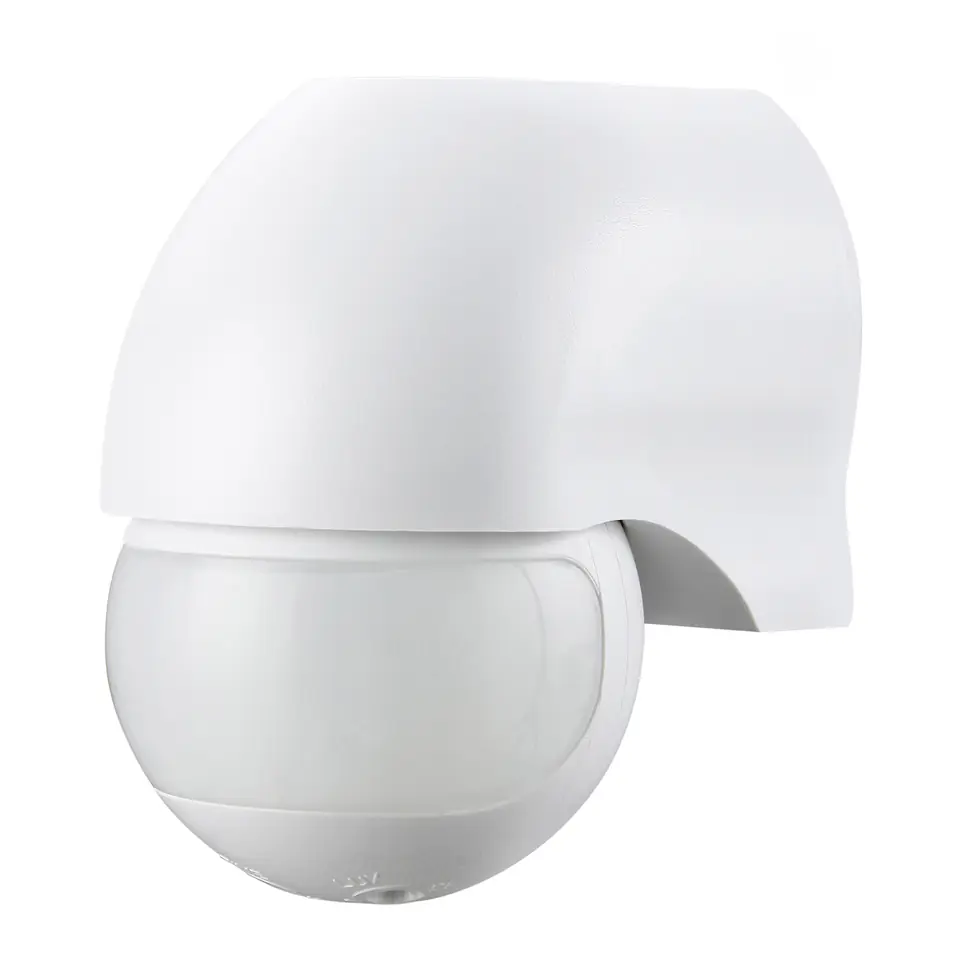

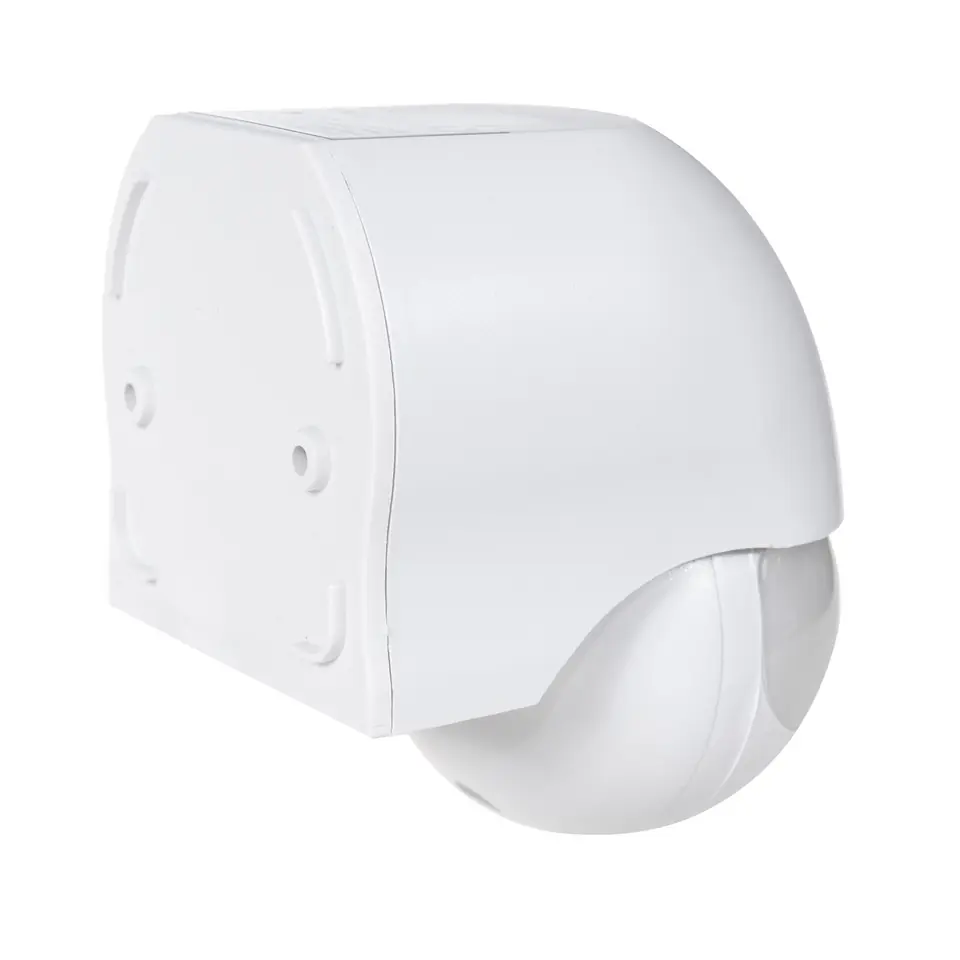

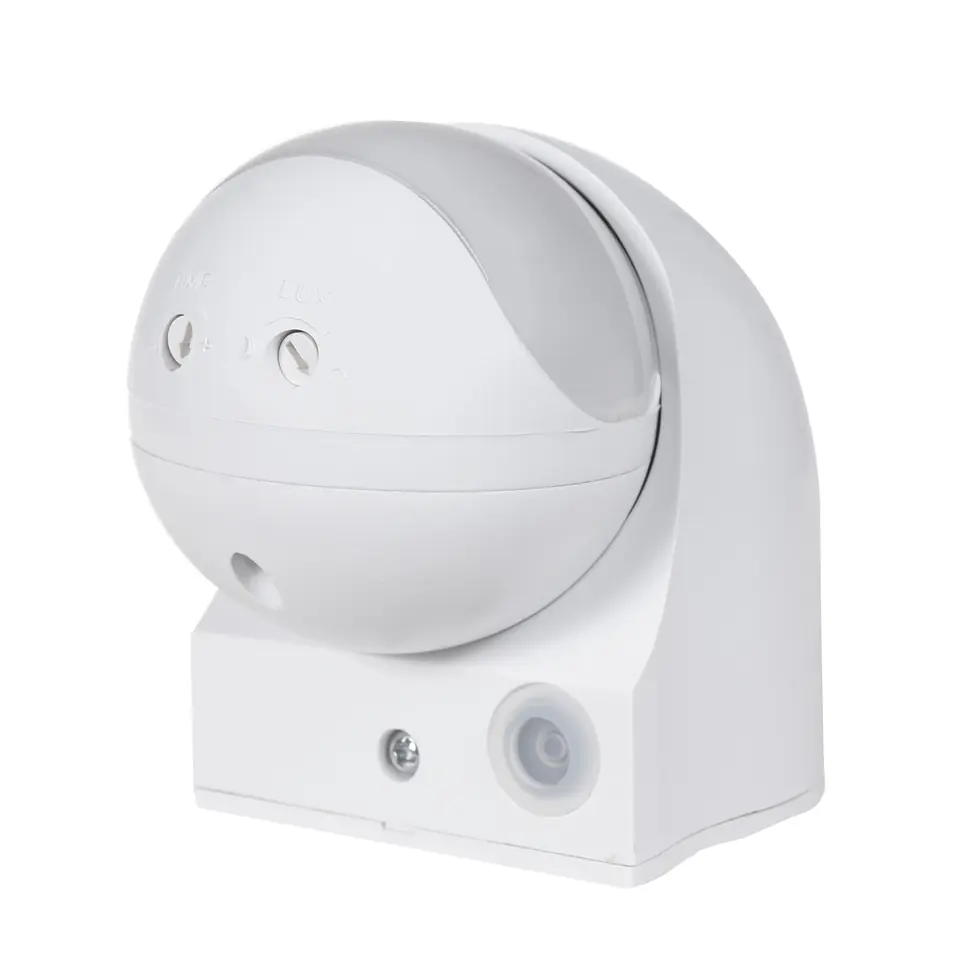

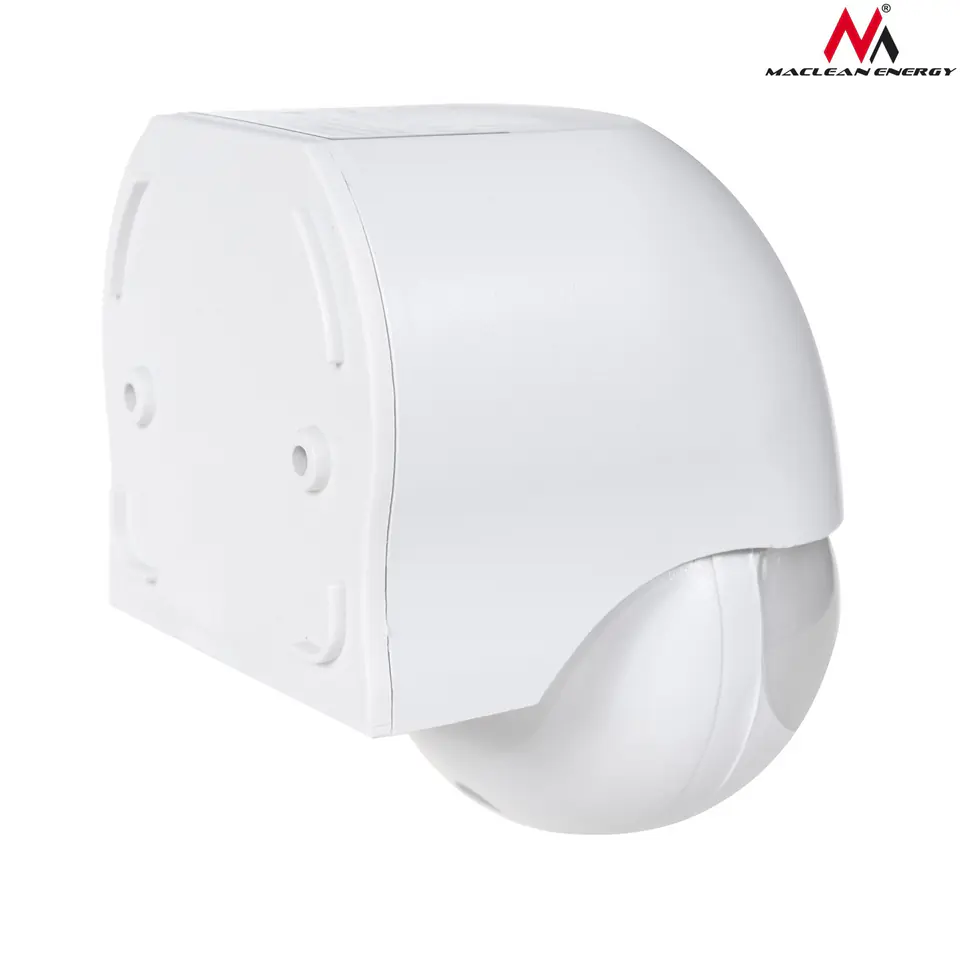

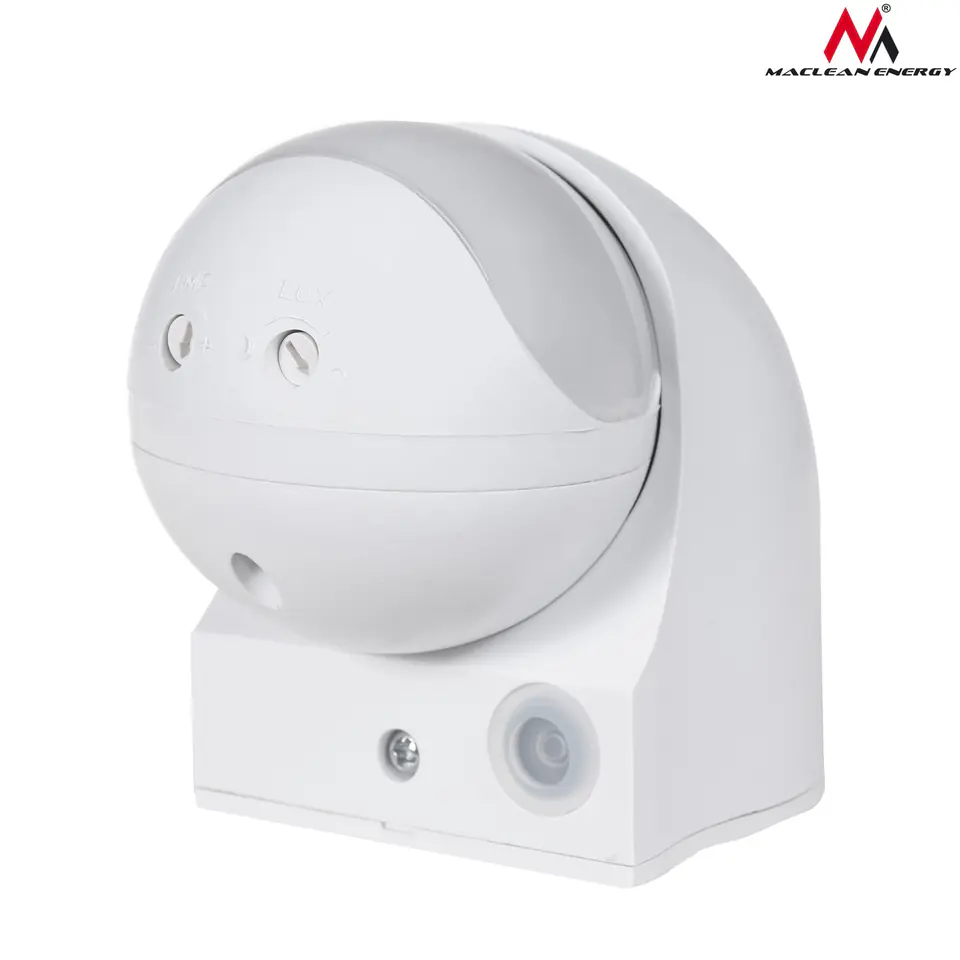

Maclean MCE203
With the MCE203 you will save on electricity bills, because the lighting will only turn on when you need it! The sensor is used to automatically control lighting or other electrical devices. It also works with LED lighting.
New Generation
The product is distinguished by high sensitivity through the use of an integrated circuit. The infrared sensor has high stability, nice, modern and practical appearance, wide range of operating voltages, easy installation and wide detection range. Automatically detects day and light at night. SMT technology used, in accordance with European standards.
180°

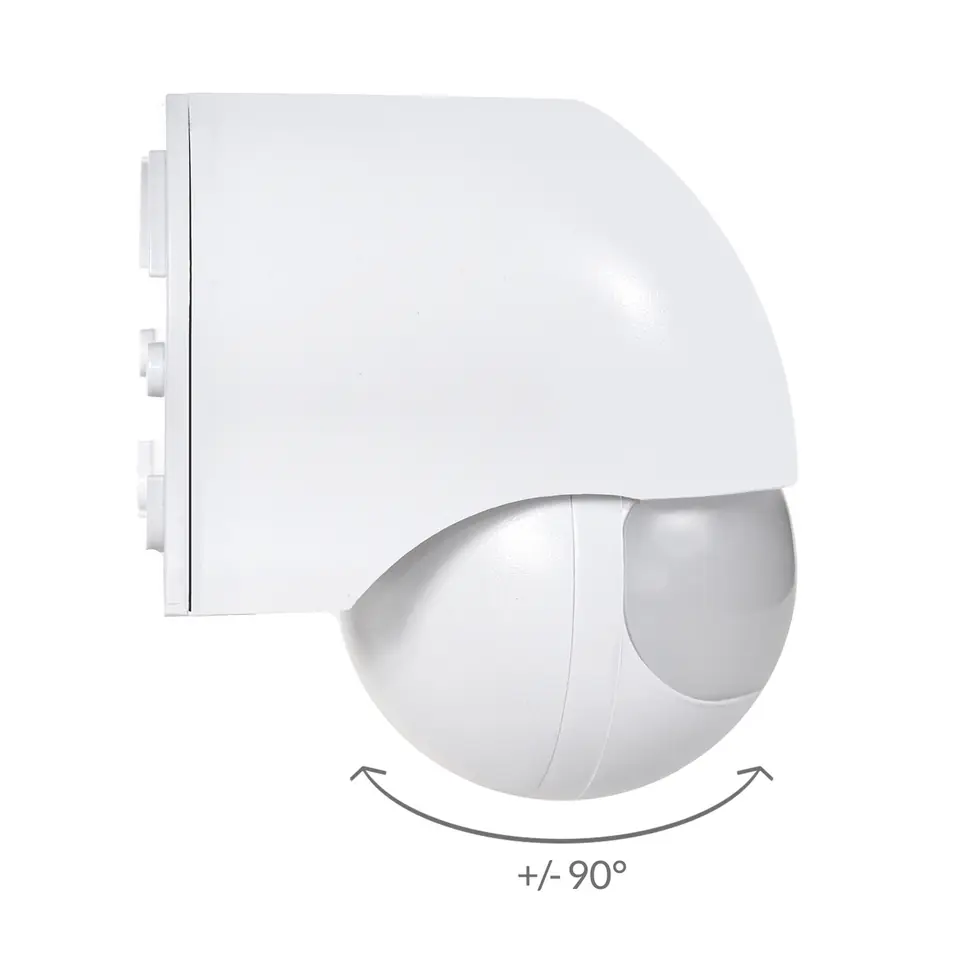

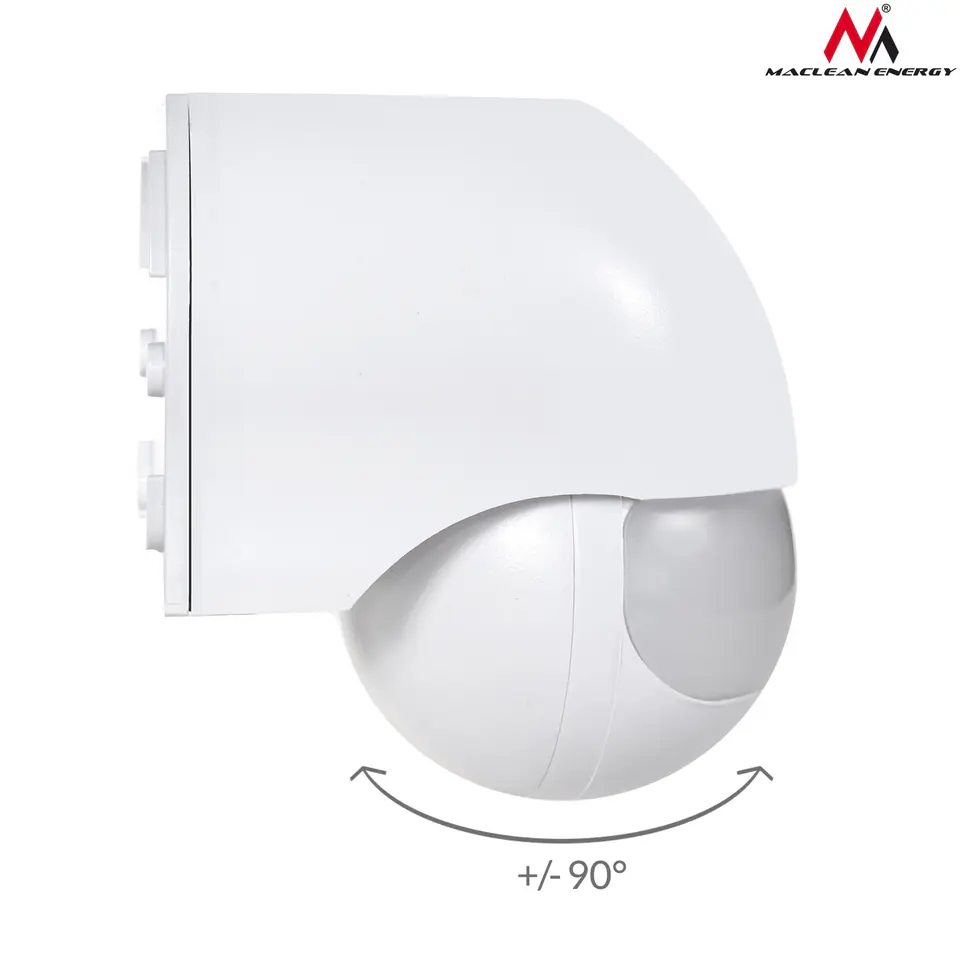

The sensor has a detection angle of 180° and a large possibility of manual adjustment. It is designed for automatic control of lighting in homes, gardens, hotels, offices, staircases, corridors, cellars, toilets, etc.
Technical specification:
- Power supply: 220-240V/AC
- Detection angle: 180°
- Power frequency: 50/60Hz
- Detection Range: 12m max (<24°C)
- Light intensity: <3-2000LUX (regulation)
- Time Delay: Min.10sec?3sec / Max.15min?3min
- Operating temperature: -20/+40°C
- Operating Humidity: <93%RH
- Power Consumption: ~0.5W
- Max. Load: 1200W (Resistive Load) / 300W (Inductive Load)
- Mounting height: 1.8-2.5m
- Motion detection speed: 0.6-1.5m/s
- Sensor dimensions (mm):85 / 92 / 64
- Protection class: IP44
Included:
- Infrared motion sensor modern pir Maclean Energy MCE203
- Mounting accessories (screws + dowels)
- Manual
- Original packaging
- Proof of purchase
