High quality infrared motion sensor sensor
Thanks to our sensor, you will save on electricity bills, because the lighting will turn on only when you need it!
Detection angle: 360° !!!
New generation - infrared sensor has high stability, nice and practical appearance, wide range of working voltages, easy installation and wide detection range. It automatically detects day and light at night. It is designed to automatically control lighting in homes, hotels, offices, staircases, corridors, basements, toilets, etc., and thanks to the IP65 rating, it can also be mounted outdoors.
Specification
- Rated voltage: 220-240 V/AC
- Rated frequency: 50/60 Hz
- Ambient lighting: <3-20000 LUX (adjustable)
- Time delay: min. 10 sec / 5 min
- Rated load: max. 2000W (ordinary light bulb) / 1000W (energy saving bulb)
- Installation height: 2.2-4m
- Detection distance: max. 8m (<24°C)
- Detection range: 360°
- Operating temperature: -20 - +40°C
- Operating humidity: <93%RH
- Motion detection speed: 0.6-1.5 m/s
- IP class: IP65
- Protection class against electric shock: II
Includes

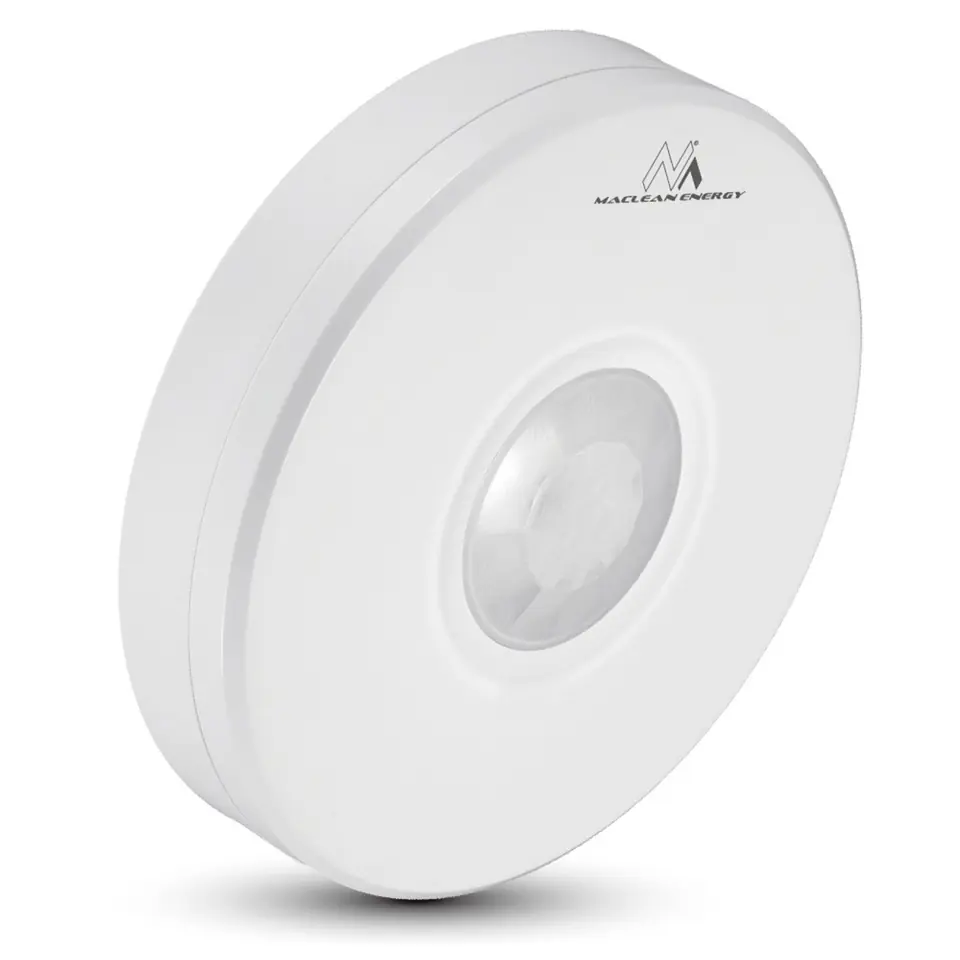

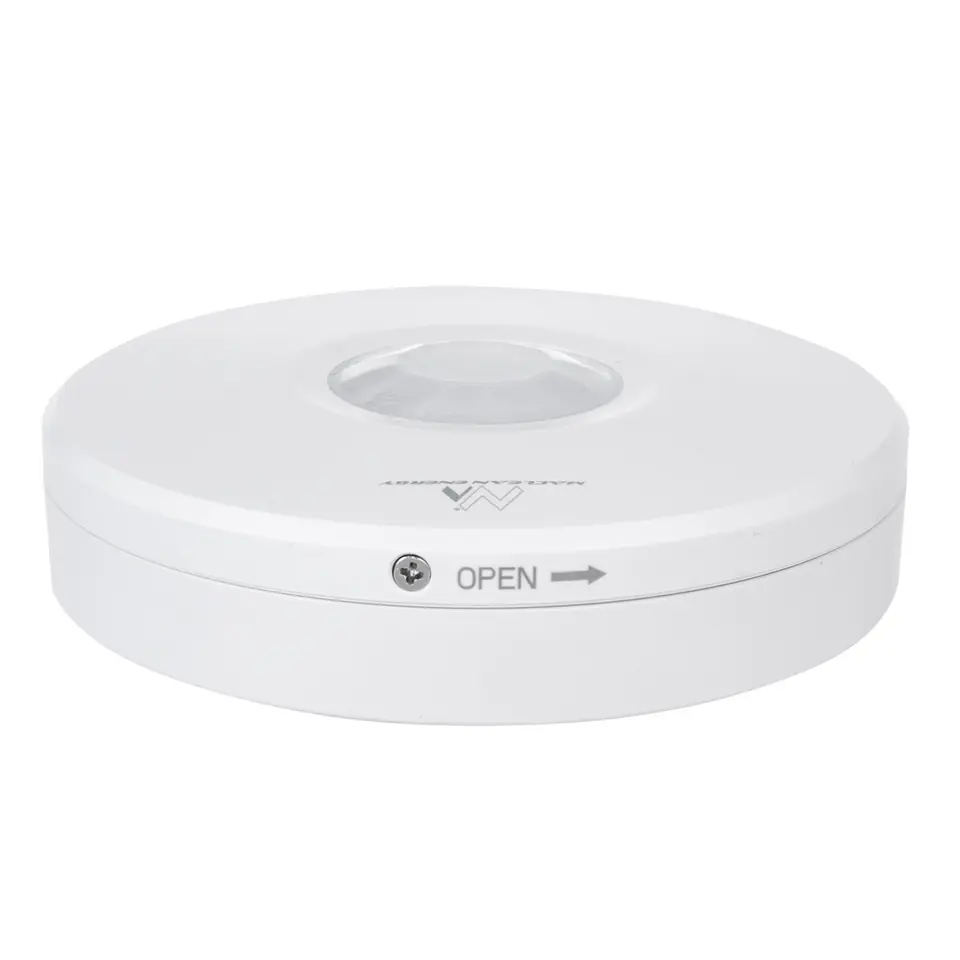

- Maclean Energy MCE293 W flat infrared motion sensor
- Mounting pins
- User Manual
- Manufacturer's packaging
Features
- Motion sensor, which works by turning on and after a certain period of time turns off the electrical circuit when an object emitting infrared radiation is detected

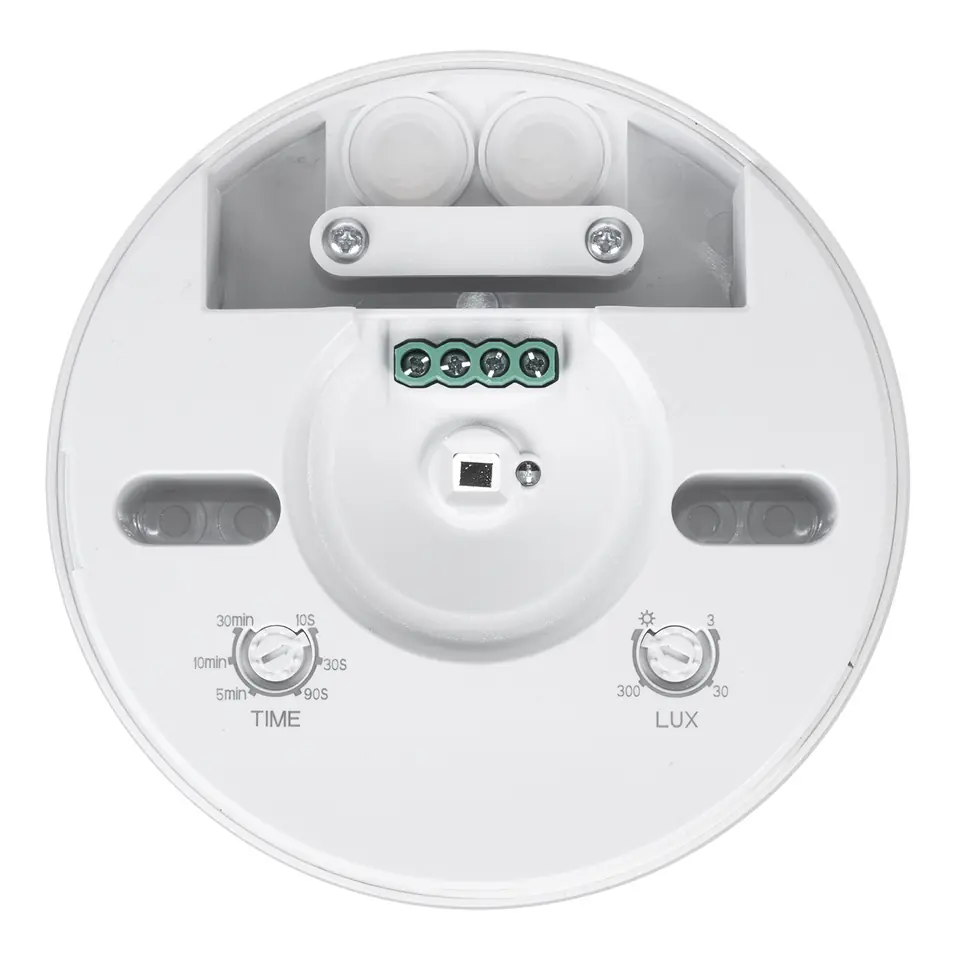

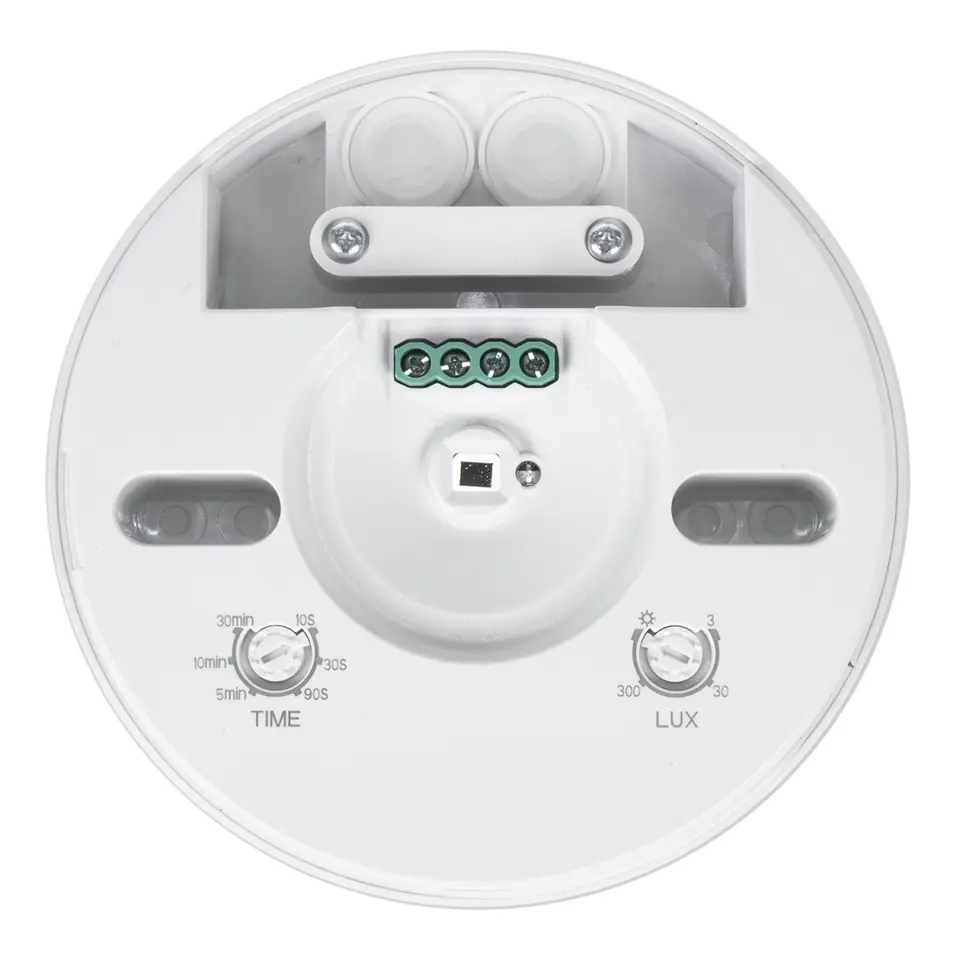

- The sensor has 2 knobs: the LUX knob allows you to adjust the threshold value of the illuminance (thanks to this property we can adapt it to work only in the period from dusk to dawn) and the TIME knob, thanks to which it is possible to adjust the time of maintaining switching on

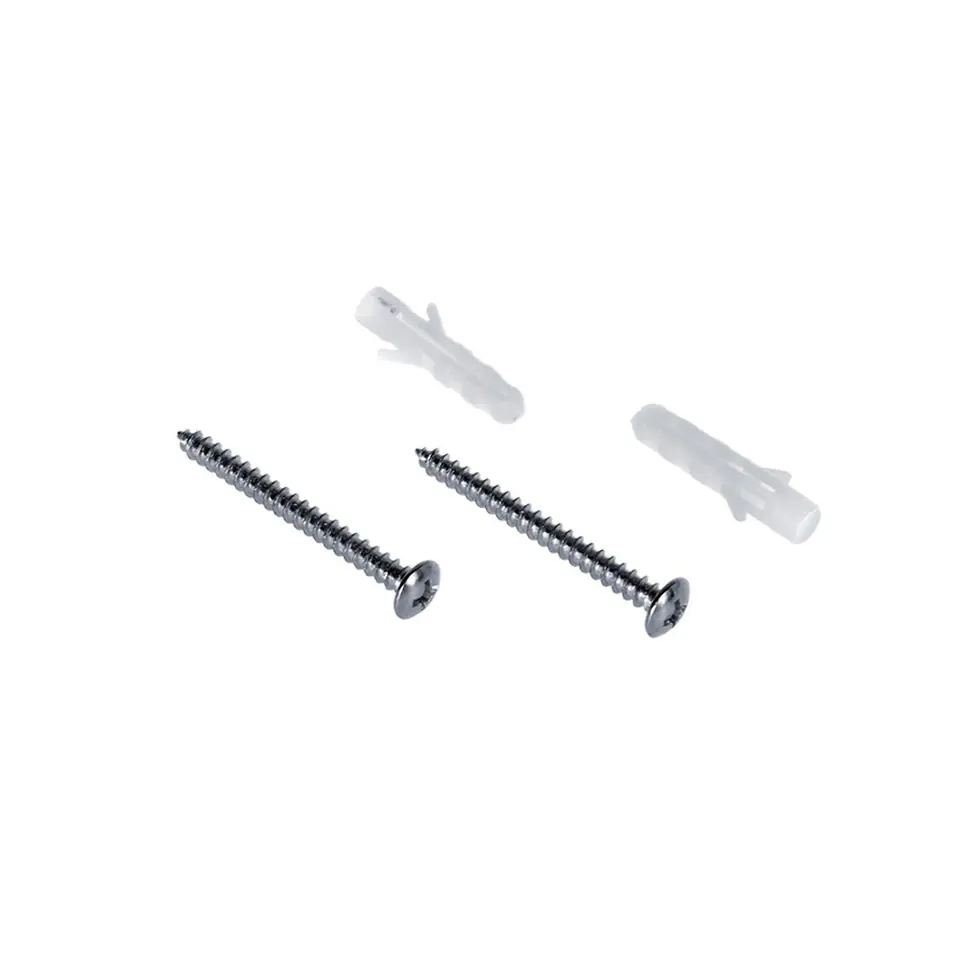

- Easy to fix with 2 dowels (included)
- Application: automation of the process of switching on and off the current, e.g. turning on the lighting, turning on alarm systems
- Thanks to ip65 protection class, the sensor can be mounted outdoors
- Motion detection angle: 360°
- Detection distance: maximum 8 meters
