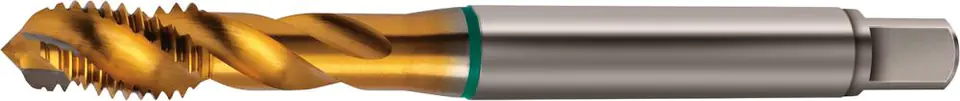

Machine tap DIN371 HSSE TiN, pcs. C, M5 GÜHRING

€25.33
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Mon, Nov 25 - Thu, Nov 28
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
GÜHRING
Product code:
9012880050000 / 4031093703055

Specification

Aluminium > 8% silicon:25
Execution:with reinforced grip
Ggg cast iron:25
Jump:0.80 mm
Overall length:70 mm
Shank diameter:6.0 mm
Square grip:4.9 mm
Standard:DIN 371
Steel < 1000 n/mm2:10
Steel < 1400 n/mm2:8
Steel < 700 n/mm2:15
Thread:M5
Thread hole diameter:4.20 mm

Machine tap for blind holes

Design: ISO 2/6H tolerance field, type N, C-cut shape (2-3 turns).
Application: for metric threads according to ISO DIN 13. Designed especially for universal materials such as structural steels, automatic steels, carburizing steels and heat treatment.

Remark: HSS-E PM is characterized by high ductility (greater edge stability and resistance to abrasive wear) and longer durability. Advantages: significantly higher process safety, 1/3 longer service life and better thread surface.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
