Machine tap for through holes

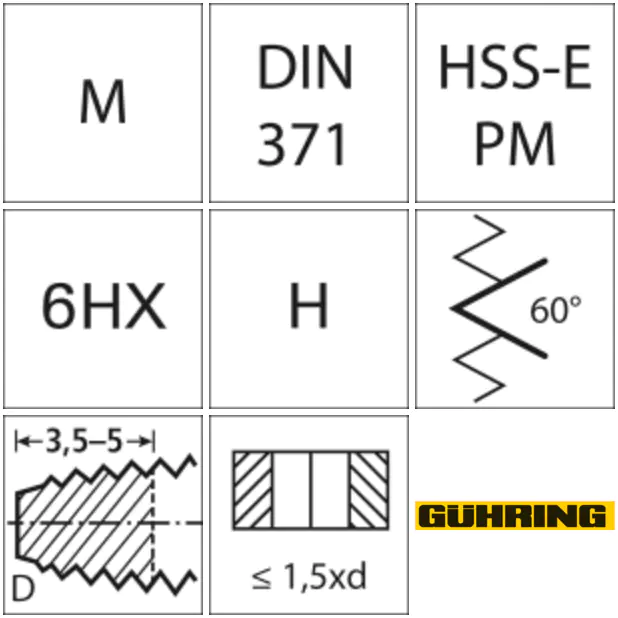

Design: tolerance field 6HX, type H, cut shape D D (6-7 turns).
Use: For metric ordinary threads according to ISO DIN 13. Designed especially for steel with max. hardness 55 HRC.
Remark: HSS-E PM is characterized by high ductility (greater edge stability and resistance to abrasive wear) and longer durability.

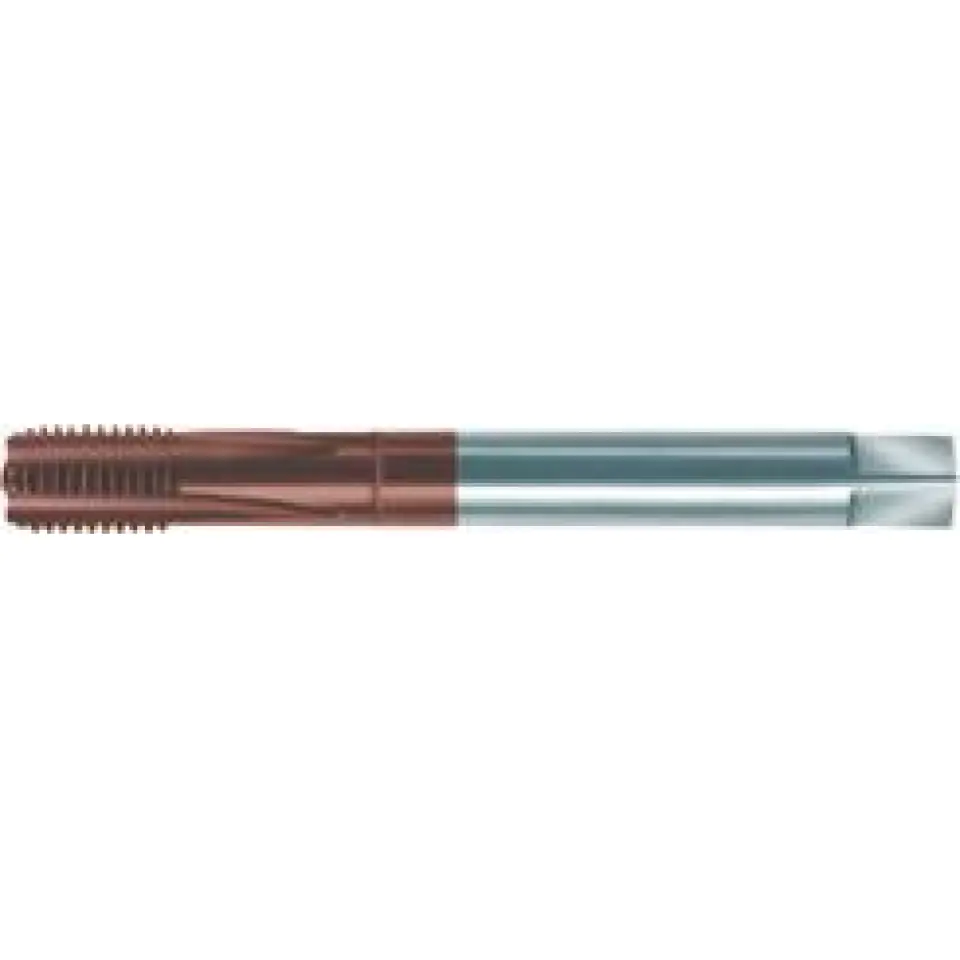

Machine tap DIN371 HSSE-PM TiCN HRC55kszt.D M16 GÜHRING
€82.26
Shipping from warehouse: B6
Estimated shipping: Mon, Nov 18 - Tue, Nov 19
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- GÜHRING
- Product code:
- 9012010160000 / 4049844072114
Share this product:
Specification
| Grip ø: | 16 mm |
|---|---|
| Grip square: | 12 mm |
| Hardened steels < 55 hrc: | 6 |
| Jump: | 2 mm |
| No: | 9012010160000 |
| Ø thread hole: | 14.1 mm |
| Overall length: | 110 mm |
| Shell: | TiCN |
| Thread: | M16 |
