| Always < 1000 n/mm²: | 25 |
|---|---|
| Always < 1400 n/mm²: | 6 |
| Execution: | with reinforced grip |
| Grip ø: | 6 mm |
| Grip square: | 4.9 mm |
| Jump: | 0.8 mm |
| No: | 9015770050000 |
| Ø thread hole: | 4.2 mm |
| Overall length: | 70 mm |
| Shell: | TiAlN |
| Standard: | DIN 371 |
| Thread: | M5 |

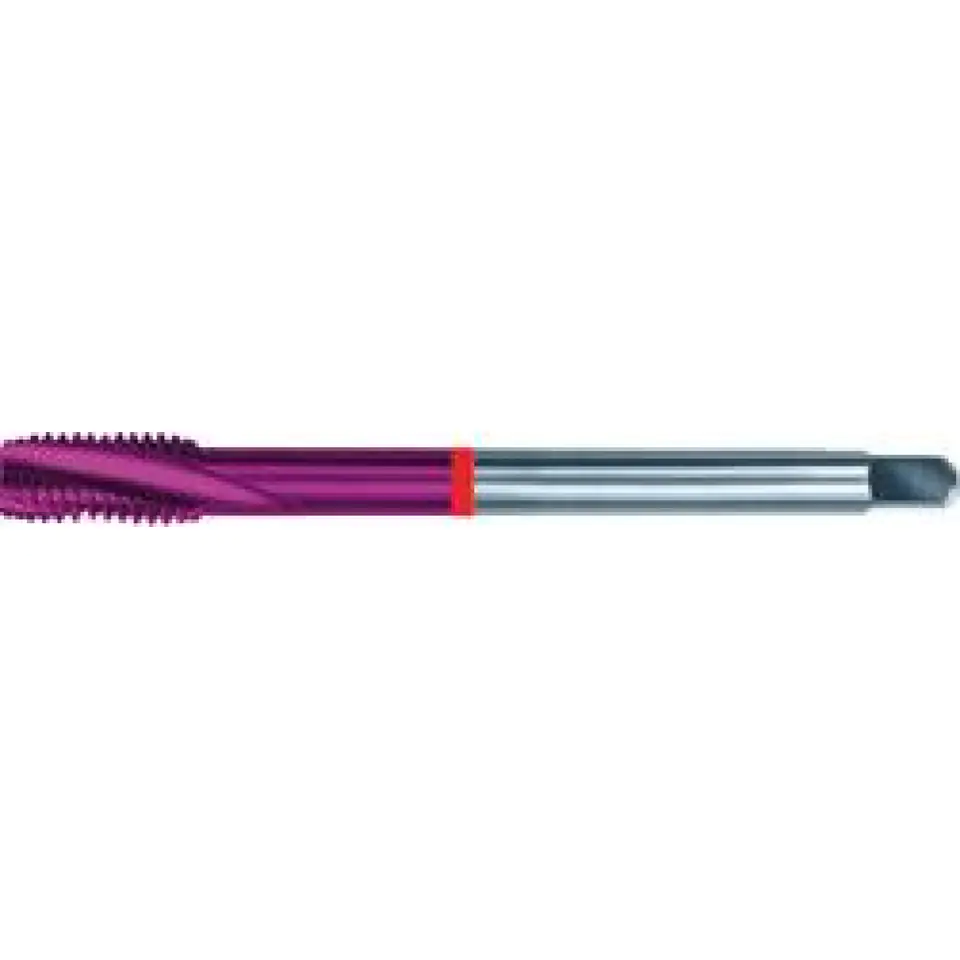

Machine tap for blind holes

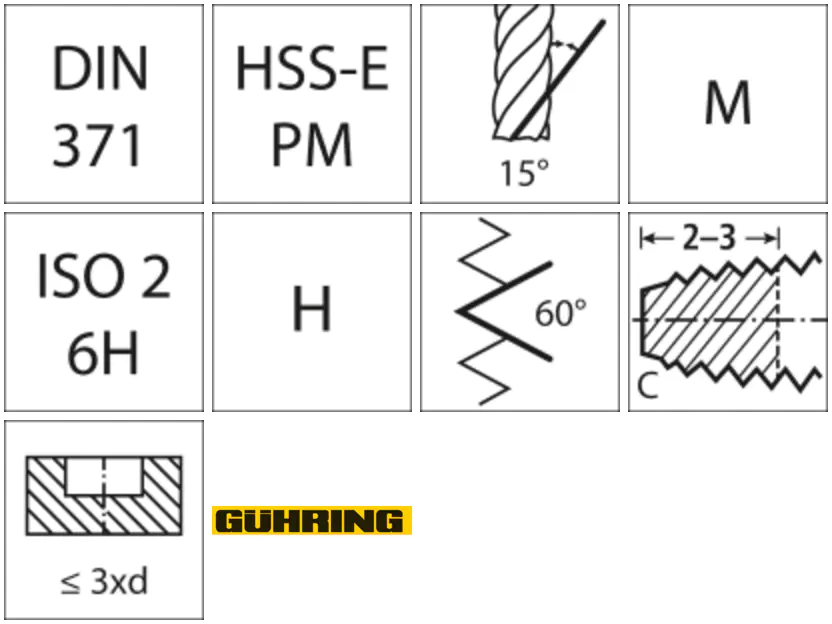

Design: tolerance field ISO 2/6H, H, shape of the C section (2-3 turns).
Use: For metric ordinary threads according to ISO DIN 13. Designed especially for high-strength steels such as heat conditioning steels, cold alloy steels and high-speed steels.
