| Always < 1400 n/mm²: | 2 |
|---|---|
| Execution: | with reinforced grip |
| Grip ø: | 3.5 mm |
| Grip square: | 2.7 mm |
| Jump: | 0.5 mm |
| No: | 9015750030000 |
| Ø thread hole: | 2.5 mm |
| Overall length: | 56 mm |
| Shell: | TiAlN |
| Standard: | DIN 371 |
| Thread: | M3 |

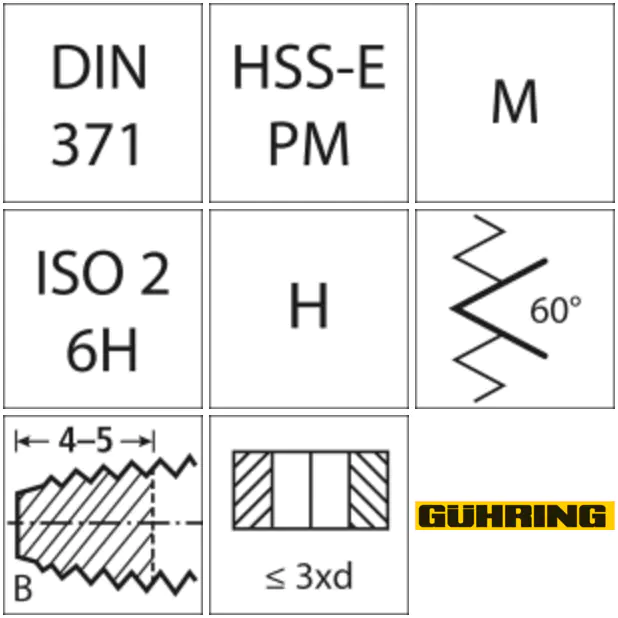

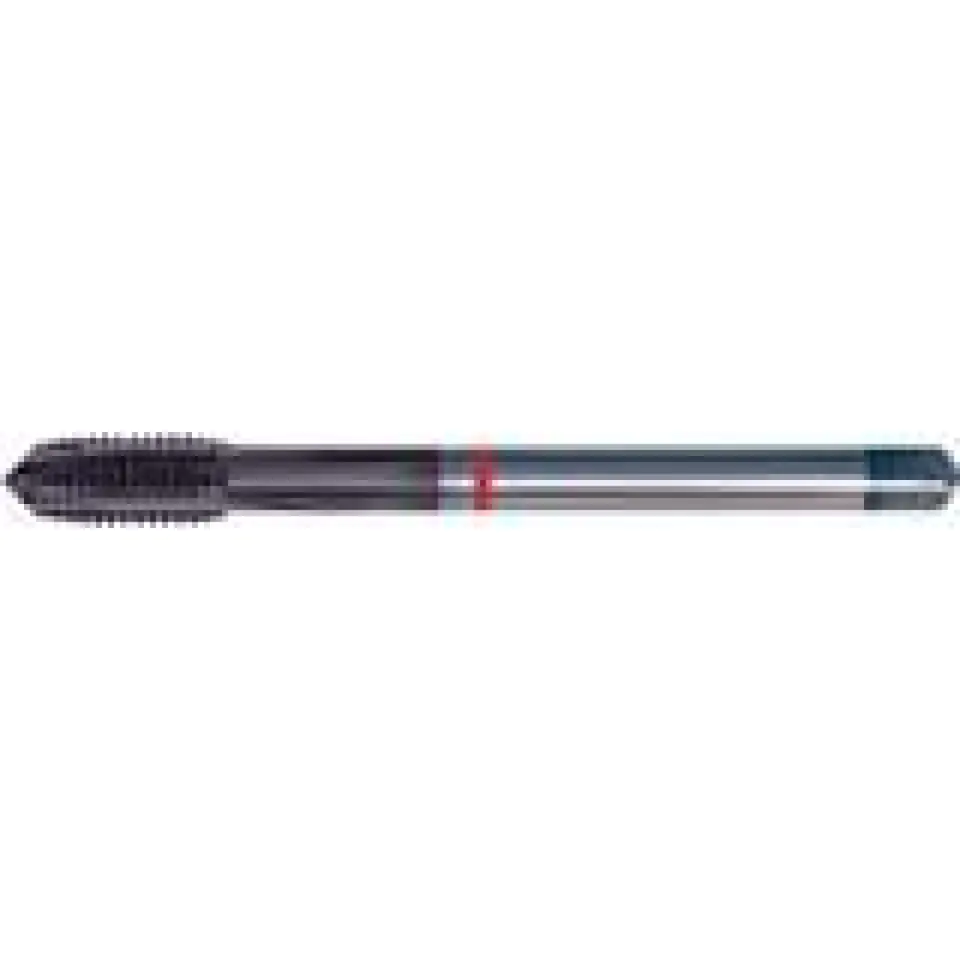

Machine tap for through holes
Execution: HSS-E, tolerance area ISO 2/6H, H, section shape B (4-5 turns).
Use: For metric ordinary threads according to ISO DIN 13. Designed especially for high-strength steels such as heat conditioning steels, cold alloy steels and high-speed steels.
