| Aluminium > 8% silicon: | Appropriate |
|---|---|
| Angle: | 0° |
| Cast iron gg/gts: | Appropriate |
| Copper alloys: | Appropriate |
| Ggg cast iron: | Appropriate |
| Inox austenite.: | Appropriate |
| Inox duplex: | Appropriate |
| Inox ferrite./martenz.: | Appropriate |
| Mounting hole diameter mm, coaxial: | 8,5 |
| Mounting hole diameter mm, non-aligned/kasto: | – |
| Number of teeth per inch: | 14 |
| Steel < 1000 n/mm2: | Appropriate |
| Steel < 700 n/mm2: | Recommended |
| Thickness: | 1.25 mm |
| Titanium > 850 n/mm2: | Appropriate |

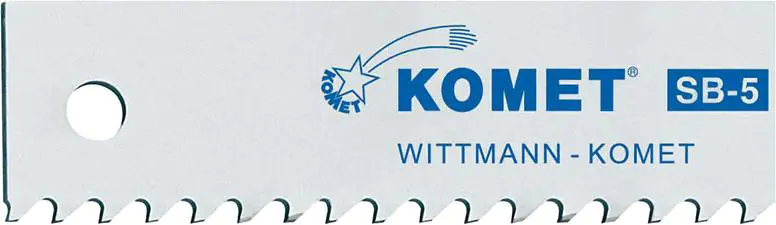

Machine saw blade, HSS-DMo5, 0° and 7° positive
Long service life and universal application, 0° and 7° with positive rake angle.
For high-quality cuts with the highest performance of long-chip and ductile materials such as stainless and acid-resistant steels. The geometry of the teeth contributes to the reduction of vibrations when cutting.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
