| Aluminium > 8% silicon: | Appropriate |
|---|---|
| Angle: | 0° |
| Cast iron gg/gts: | Appropriate |
| Copper alloys: | Appropriate |
| Ggg cast iron: | Appropriate |
| Inox austenite.: | Appropriate |
| Inox duplex: | Appropriate |
| Inox ferrite./martenz.: | Appropriate |
| Mounting hole diameter mm, coaxial: | 10,5 |
| Mounting hole diameter mm, non-aligned/kasto: | – |
| Number of teeth per inch: | 4 |
| Steel < 1000 n/mm2: | Appropriate |
| Steel < 700 n/mm2: | Recommended |
| Thickness: | 2.00 mm |
| Titanium > 850 n/mm2: | Appropriate |

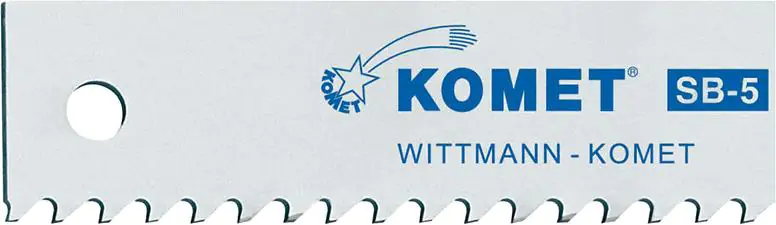

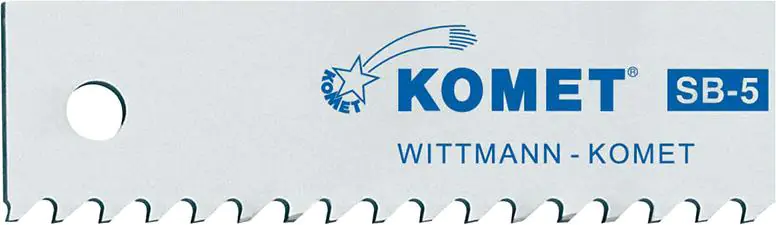

Machine saw blade, HSS-DMo5, 0° and 7° positive
Long service life and universal application, 0° and 7° with positive rake angle.
For high-quality cuts with the highest performance of long-chip and ductile materials such as stainless and acid-resistant steels. The geometry of the teeth contributes to the reduction of vibrations when cutting.
