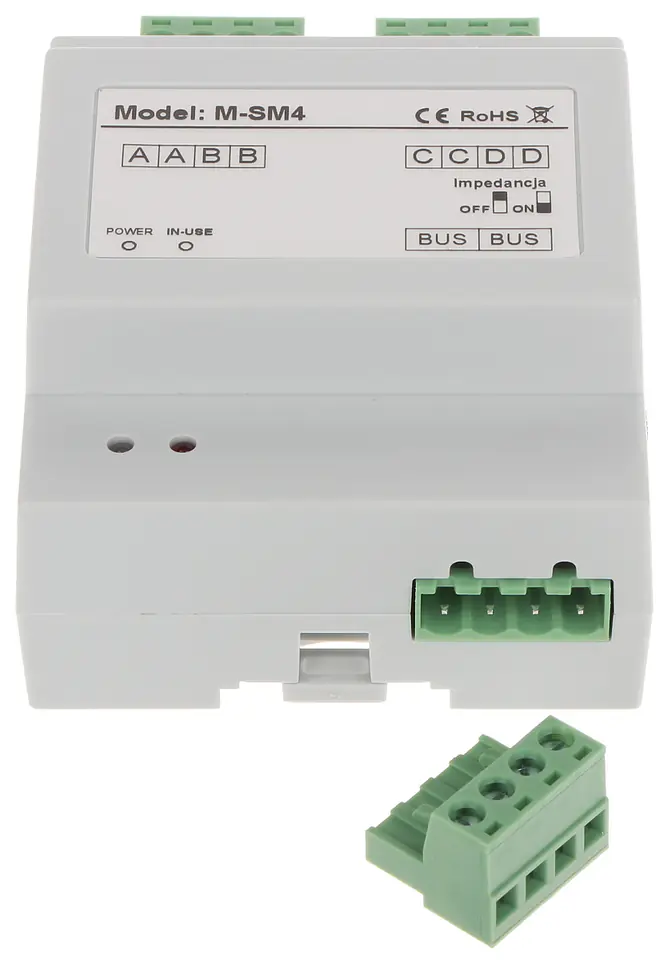

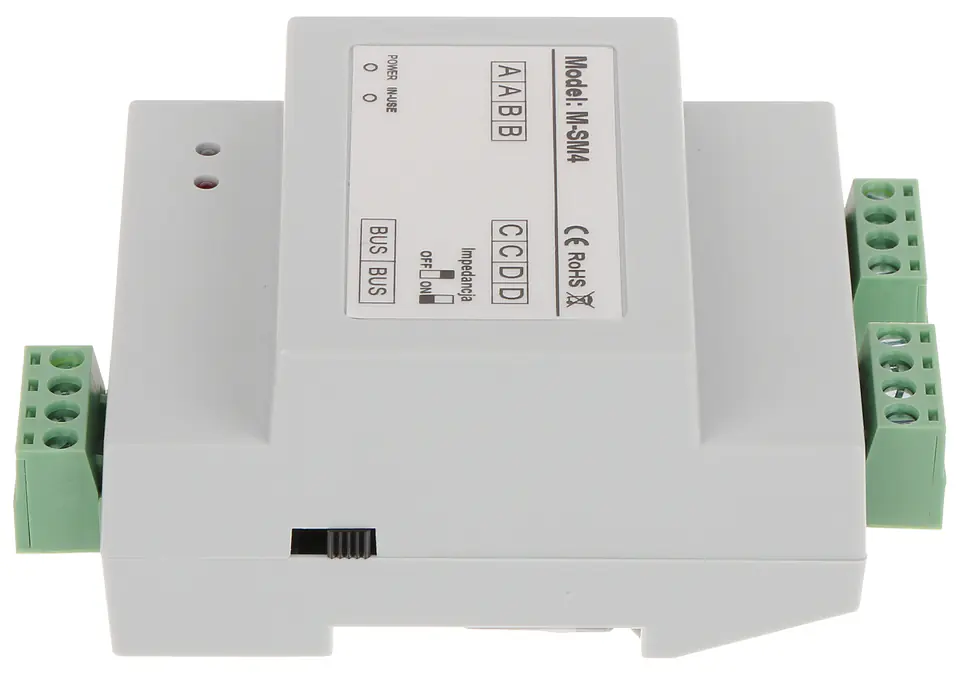

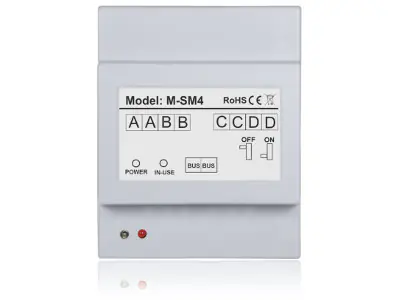

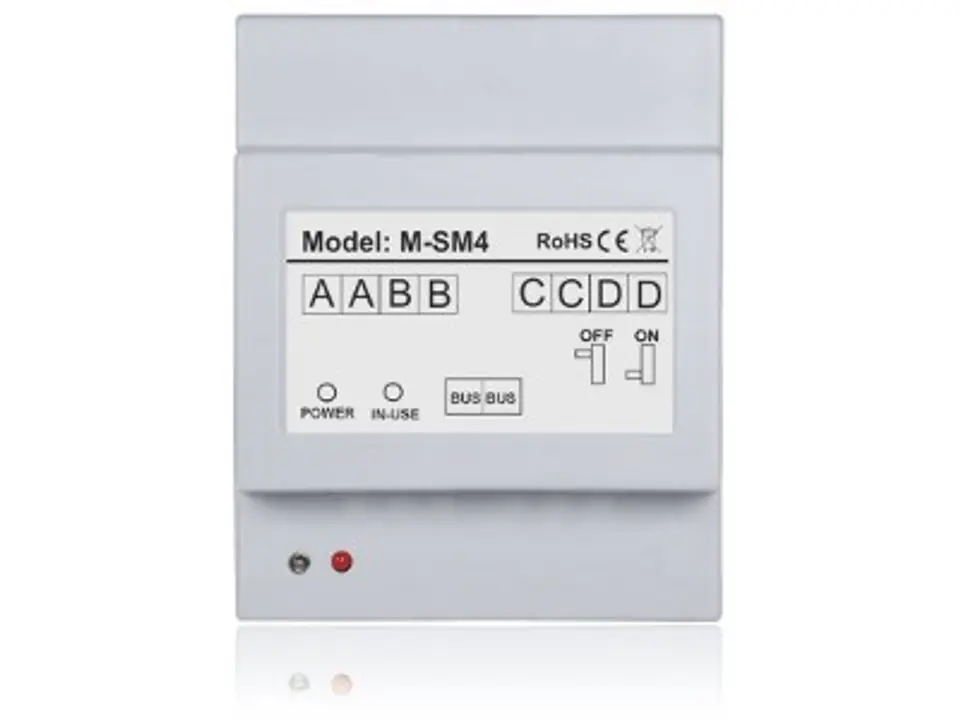

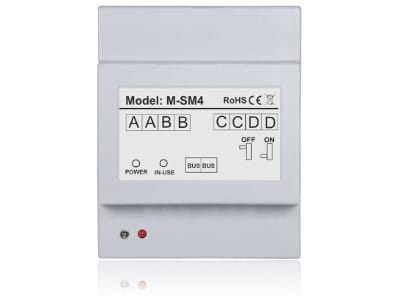

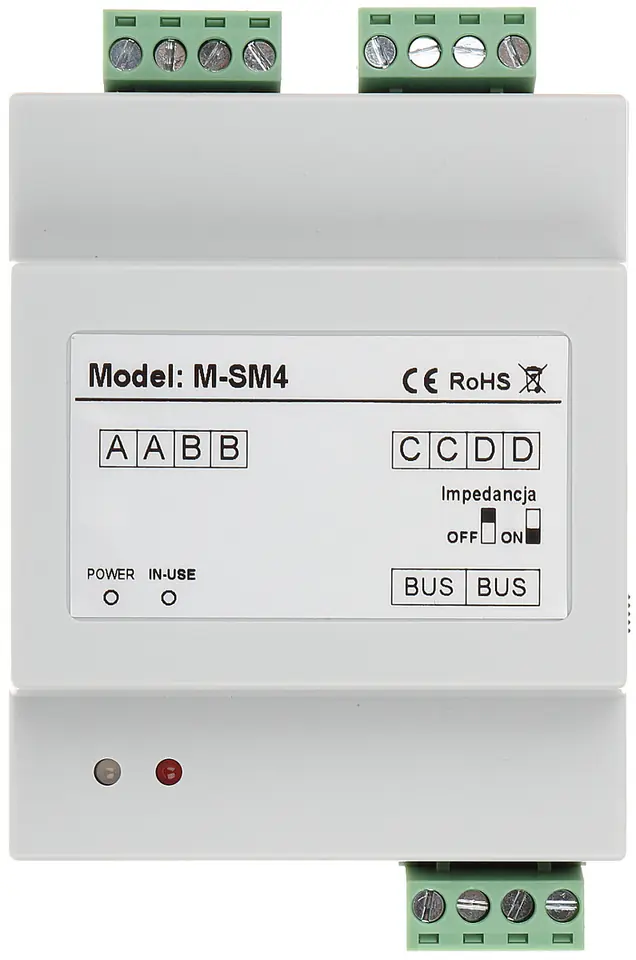

M-SM4 VIDOS DUO MODULE

€31.91
Shipping from warehouse: ⁨H7⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
VIDOS DUO
Product code:
M-SM4 / 5907281206525

Specification

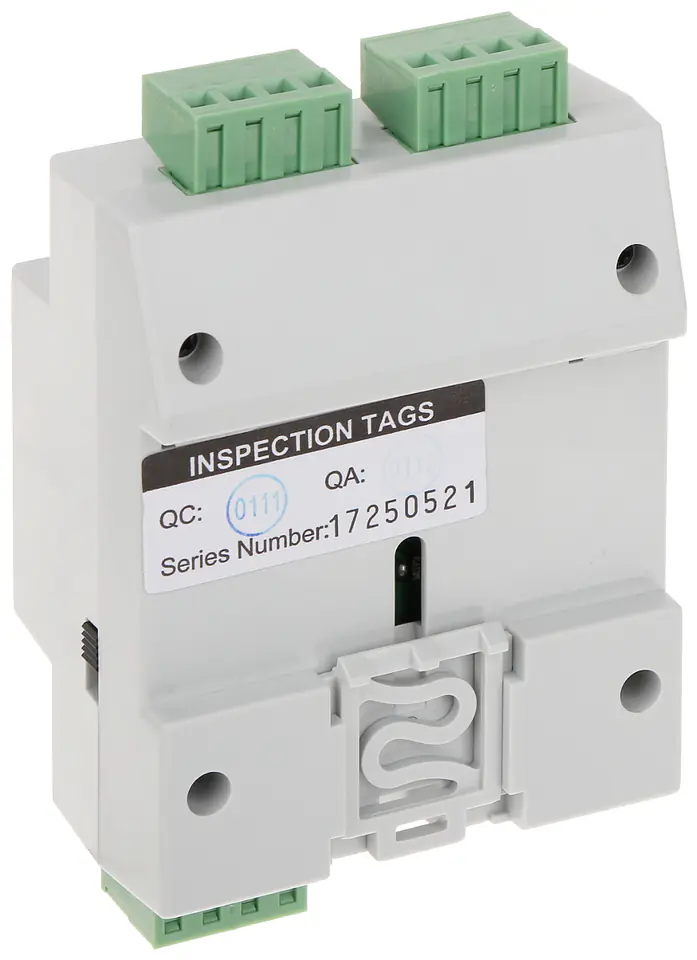

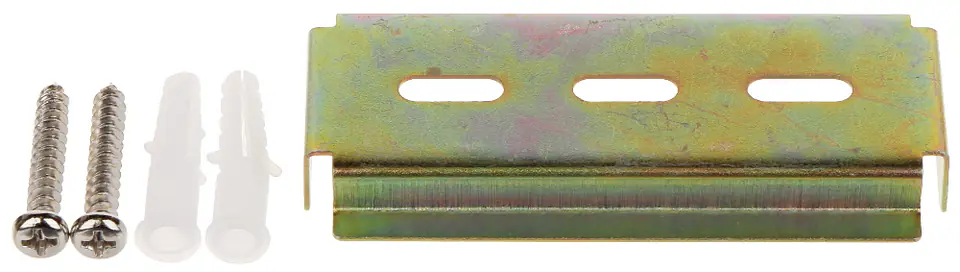

Assembly::DIN rail mounting, TS-35
Cooperation::2-wire video intercoms VIDOS DUO
Dimensions::89 x 72 x 45 mm
Indication of the operating status::LED signaling
Interface::2-wire
Manufacturer / brand::VIDOS DUO
Operating temperature::-10  ... 55 °C
Power::24 VDC
Scales::0.13 kg
Warranty::3 years

The M-SM4 module allows you to extend the functionality of the VIDOS DUO video intercom systemThe device allows you to connect up to the system up to 4 internal panels or door stations in the event that there is no possibility of serial connection of devices

The device is particularly useful when designing extensive installations (e.g. in a block of flats), when there are 3-4 apartments on each floorIn such a situation, the optimal solution is to place one M-SM4 module on each floor and from this module to distribute the wires to individual internal panels in the apartments

In addition, the product can be used to increase the number of door stations in the system

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
