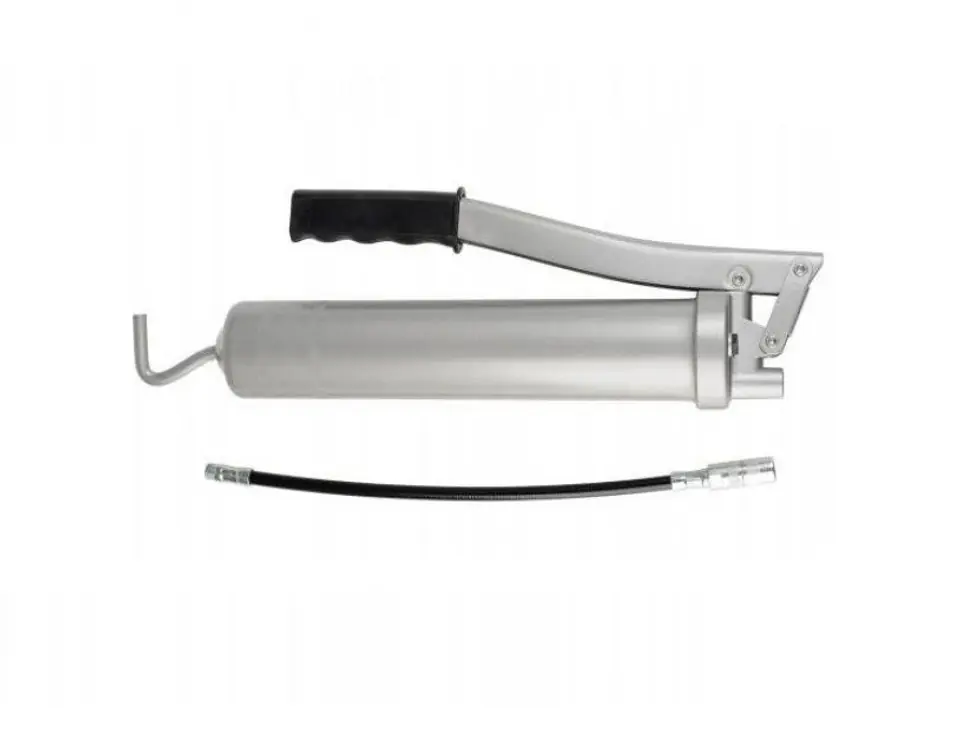

Technical data:
Connection to the lubricator on the pressure side:M 10 x 1
Filling volume (cm3):500
Filling possibilities:400-g grease cartridge, DIN 1284, or bulk grease
Lubrication pump piston diameter (mm):8
Activating the piston of the HHFP lubrication pump:using the hand lever
Discharge volume/stroke (cm3):1,2 at 400 bar back pressure
Discharge pressure up to (bar):400
System bursting pressure (bar):850
Lubricator head bursting pressure (bar):1200
Connecting rod activation:via L handle
Closing cover:loose
Lubricator tube wall thickness (mm):1
Painting:silver
Weight (Kg): 1.25
WxH dimensions (mm):400 x 140 x 75
Package weight (kg):1.35
Packaging Unit:1.0
Equipment processes lubricants up to NLGI 2 at 20 °C
Shaped cuff with tight seating with bulk grease or cartouches
According to DIN 1283
Certified by TÜV
Pump piston with high cylinder fit accuracy (No apparent lubrication)
Power and efficiency after 40,000 duty cycles unchanged
Zinc cast lubricator head Z 410
Thanks to strong fluting, a firmer grip
Safe handle on connecting rod
Anti-slip handle on lubricator lever
Bulk cover with clamp allows manual support of spring force in any position to compress loose grease or to press the cuff into damaged cartouches
Use of only a small force when lubricating thanks to the optimal lever system
Fast venting through the half-turn of the lubricator tube
Armoured hose, M 10 x 1 gz, 8 x 300 mm (12,656)
Mouthpiece, 4 BA, M 10 x 1 (12,631)
Sales packaging with EAN code
**
