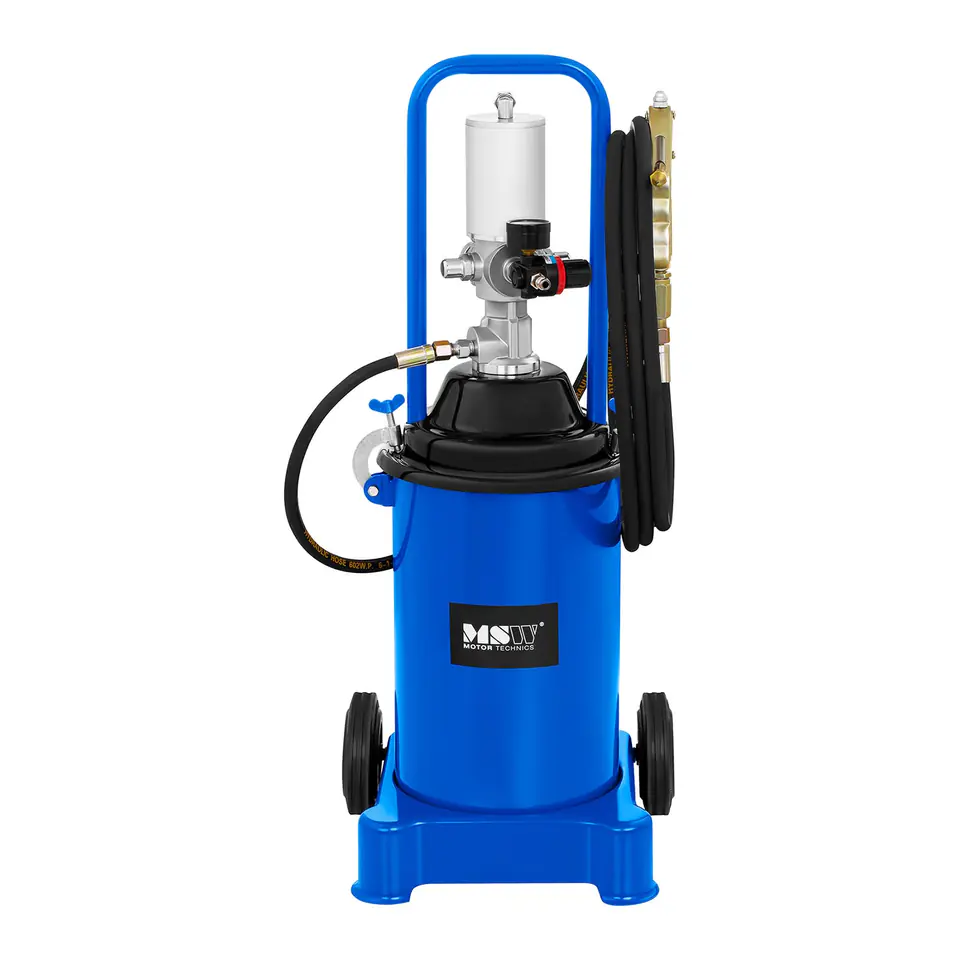

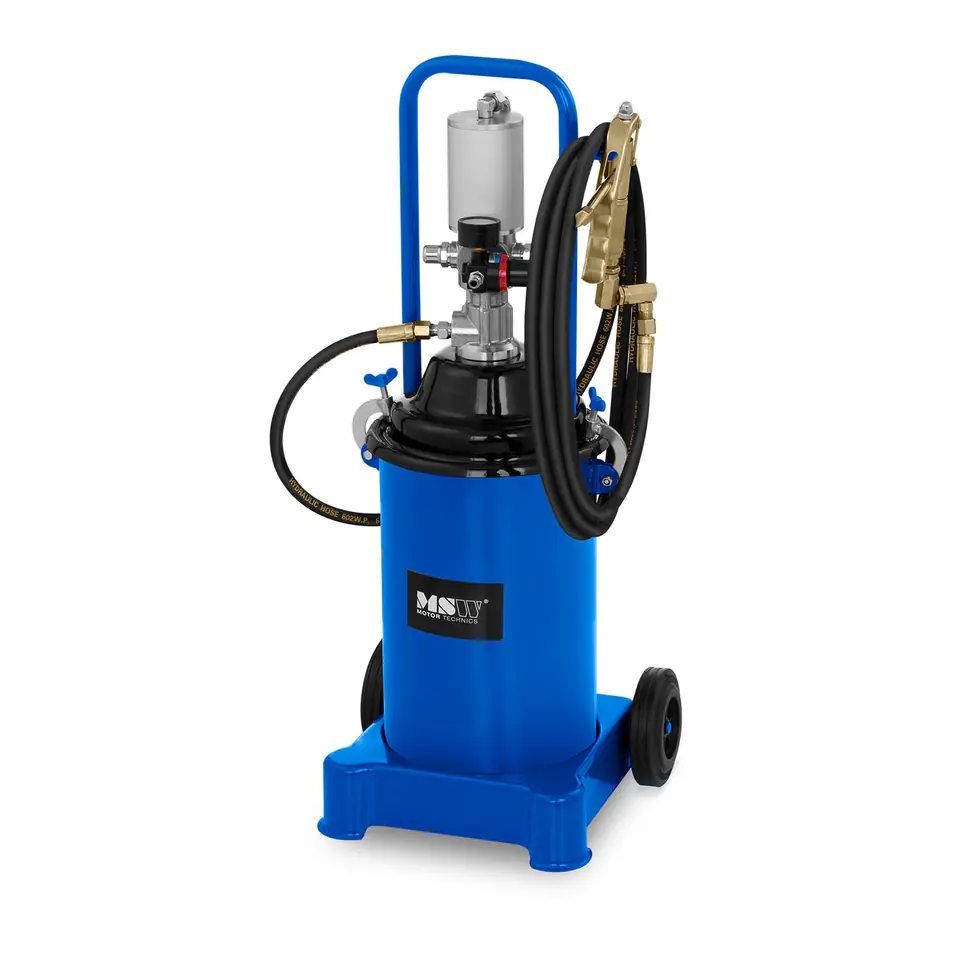

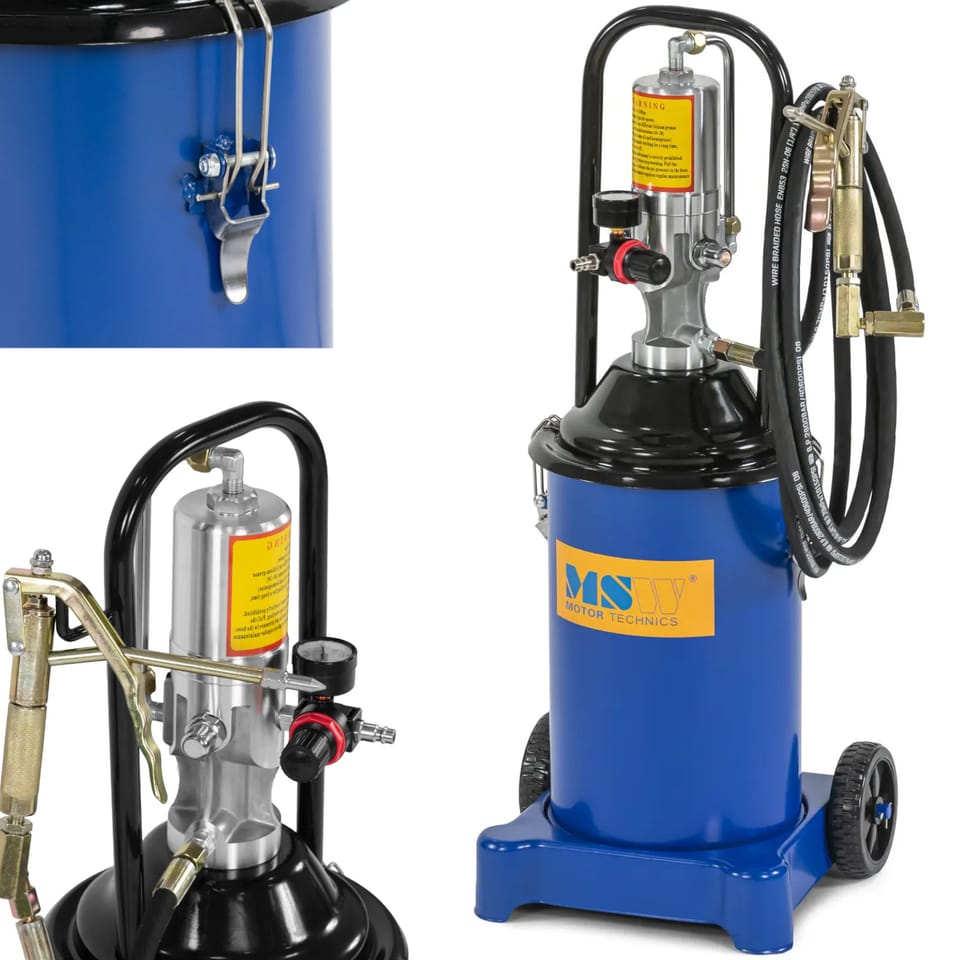

Manufacturer number: MSW PRO-G 12M
The pneumatic lubricator for MSW machines is a device designed for car workshops, agriculture and industry. It enables self-oiling of machines and equipment equipped with lubrication systems in the form of calamite. Simple and stable construction ensures comfortable work, and the construction of high-quality materials reliability.
The PRO-G 12M model is equipped with a twelve-liter grease container, which eliminates the need for frequent filling of the tank. In addition, thanks to the use of an injector using small amounts of compressed air as a drive and a pneumatic pump pressing grease, the device is able to offer a very high oil output pressure (300-400 bar).
The comfort of working with the device is due to a stable stand with wheels, an ergonomic handle and a long transmission hose (4 m). This set, together with the low weight of the lubricator, allows you to maneuver the device even on an uneven surface and work comfortably in almost any conditions and without the need for another person.
Product features:
- - Efficiency - oil pressure within 300-400 bar,
- - Convenience - 12-liter grease container and long transmission hose (4 m)
- - Mobility - light weight, base with two wheels and ergonomic handle,
- - Strength - made of high-strength materials.
- - Model - PRO-G 12M
- - Catalog No. - 10060839
- - Article status - New
- - Tank volume - 12 l
- - Output pressure - 300-400 bar
- - Working pressure - 6-8 bar
- - Lubrication pump throughput - 0.85 l/min
- - Compression ratio - 50:1
- - Pressure gauge - Yes
- - Double scale indicator - Yes, bar/psi
- - Values on the indicator - From 0 to 150 psi / from 0 to 1 mPa
- - Transmission hose length - 4 m
- - Dimensions (LxWxH) - 31 x 33.5 x 79 cm
- - Weight - 10.95 kg
- - Shipping dimensions (LxWxH) - 36 x 33 x 85 cm
- - Shipping weight - 12.8 kg
- - Trigger for dosing gun
- - Pistol nozzle

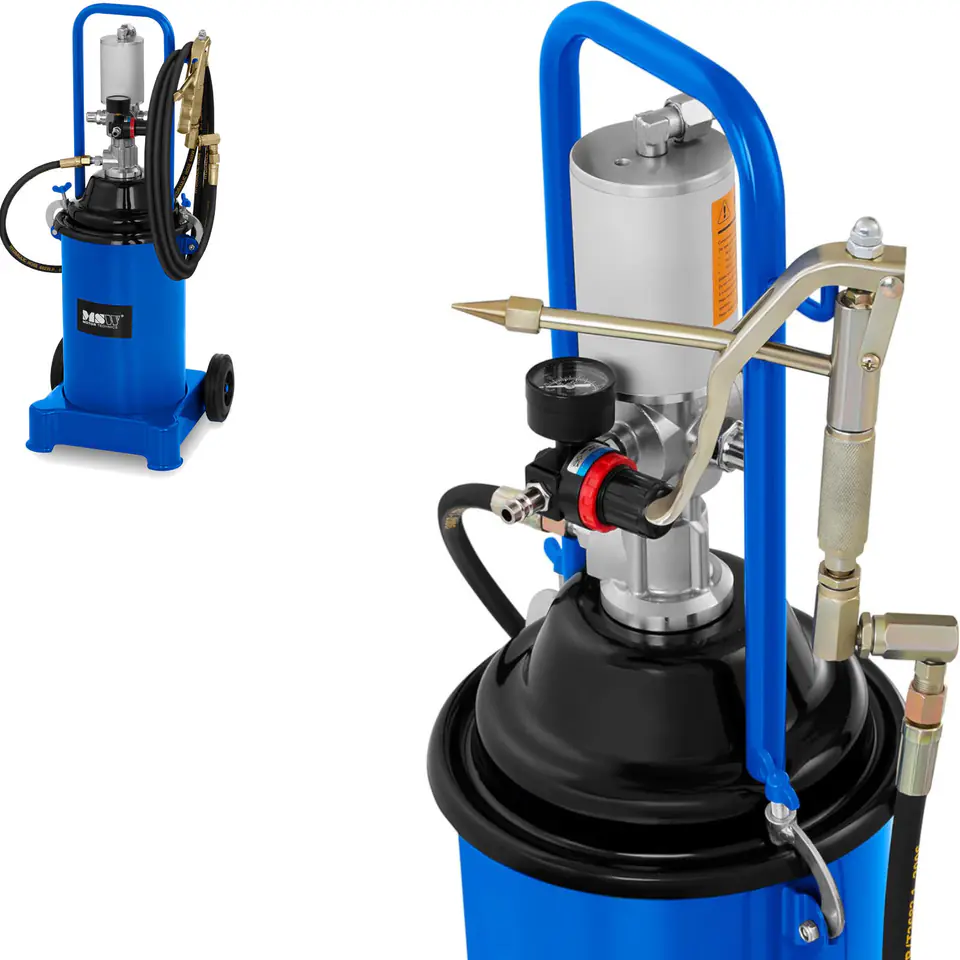

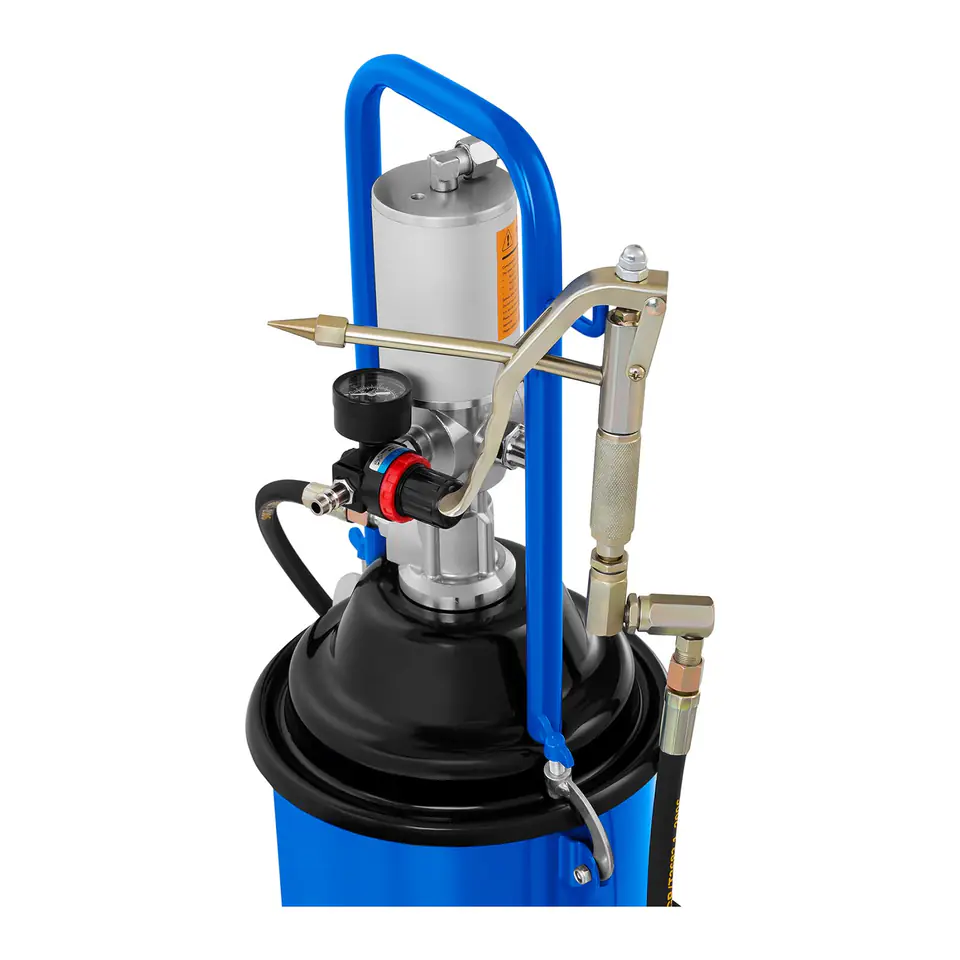

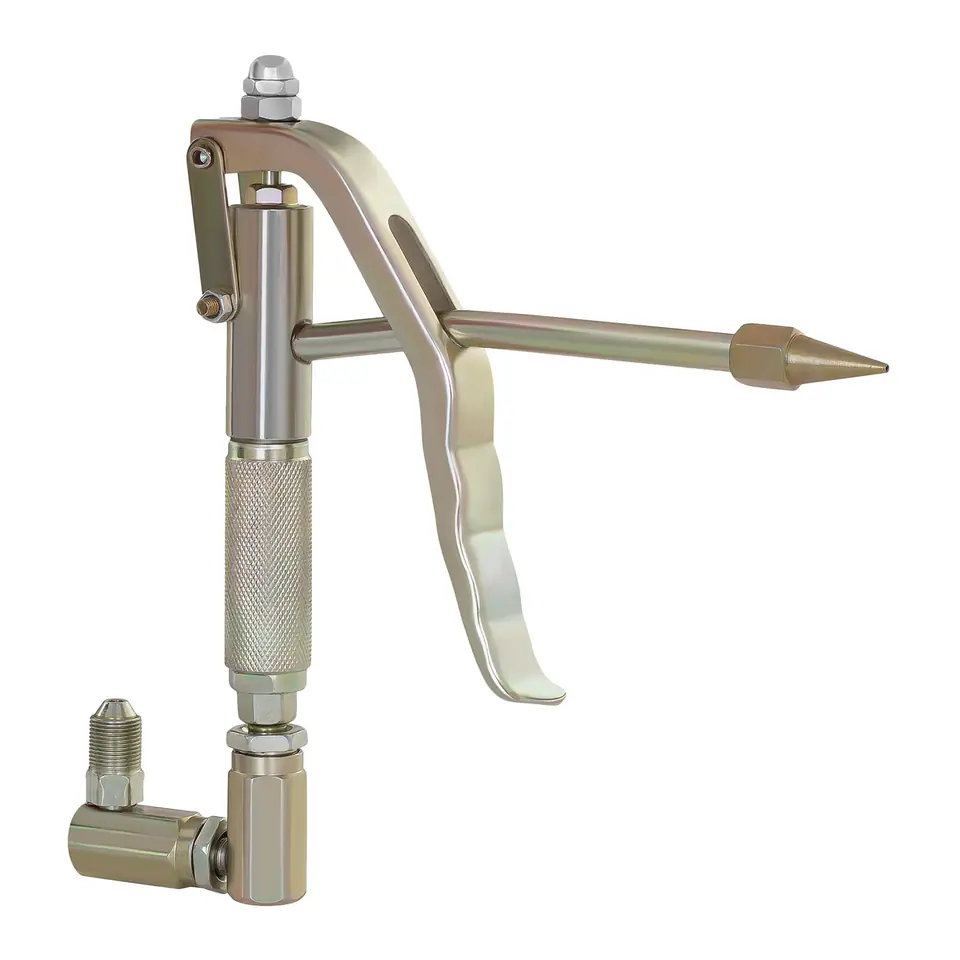

- - Dosing gun
- - Transmission hose 4 m long
- - Pump

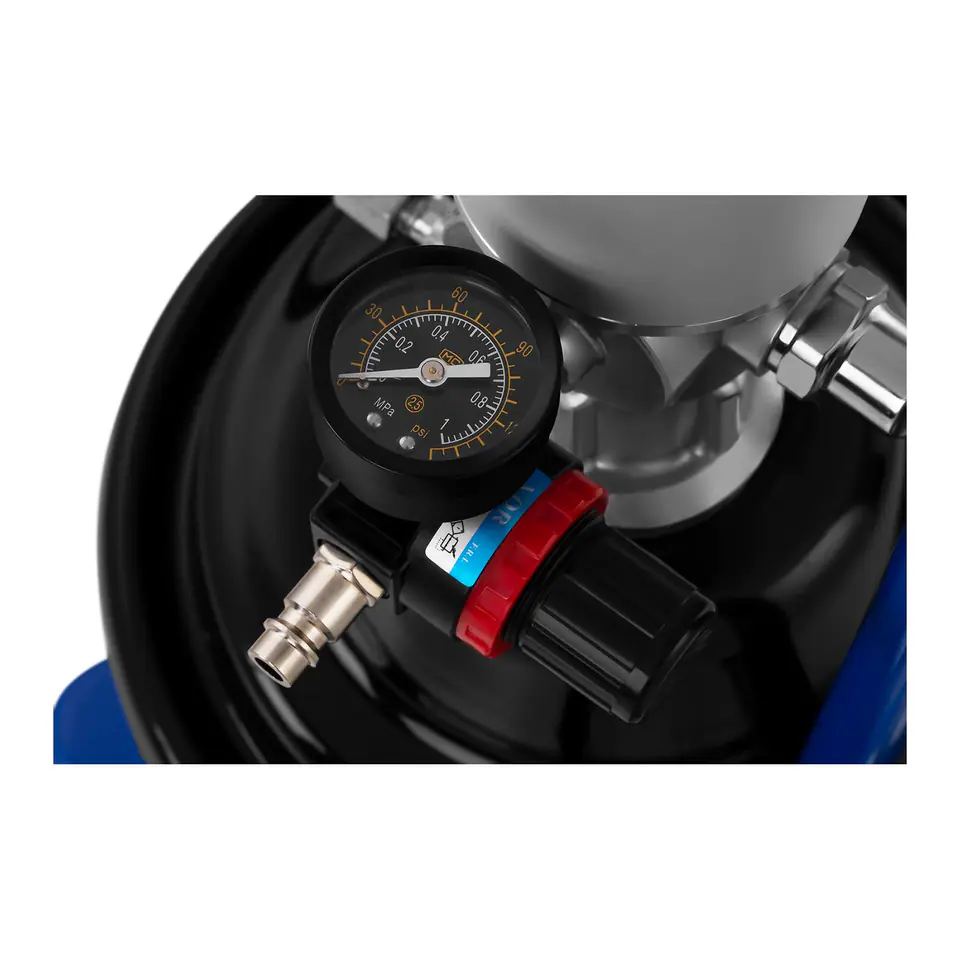

- - Pressure gauge and connection for air supply
- - Handle
- - Connector

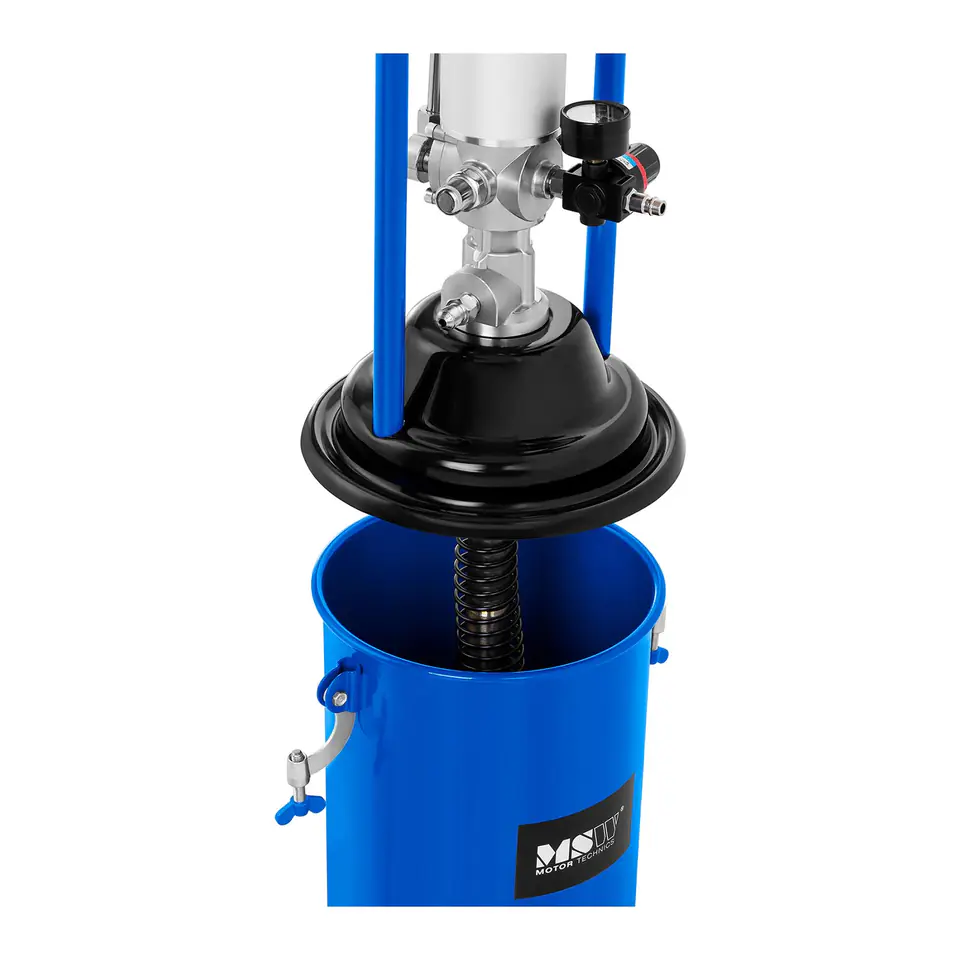

- - Grease container
- - Device base
- - Wheels – 2 pcs.
- - Air filter
- - Hose connection
- - Cover
- - Manual EN
