The TF-007A filter is used to suppress LTE signals that may cause interference in the terrestrial TV system

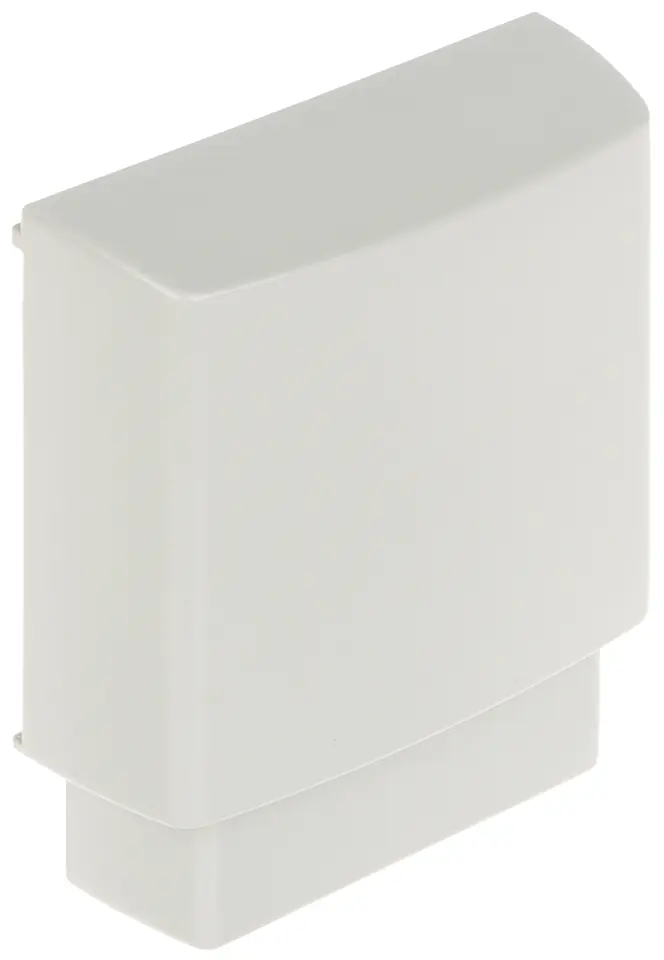

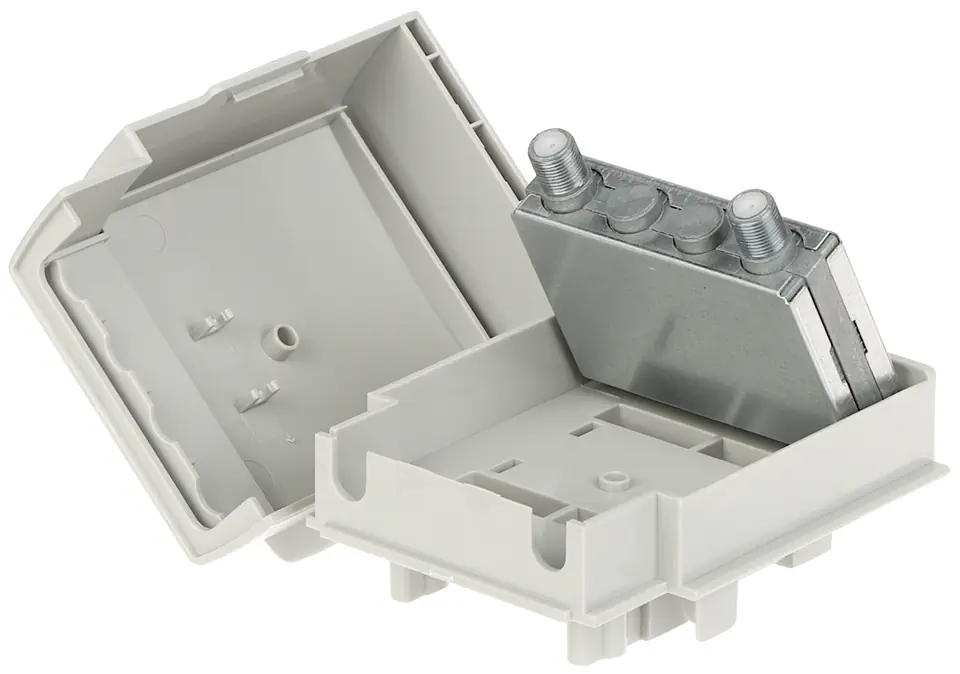

LTE FILTER TF-007A
€46.76
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- TF-007A / 5902887066733
Share this product:
Specification
| Barrier band:: | 240 ... 470 MHz694 ... 1000 MHz |
|---|---|
| Dimensions:: | 89 x 107 x 43 mm |
| Operating frequency range:: | 5 ... 1000 MHz |

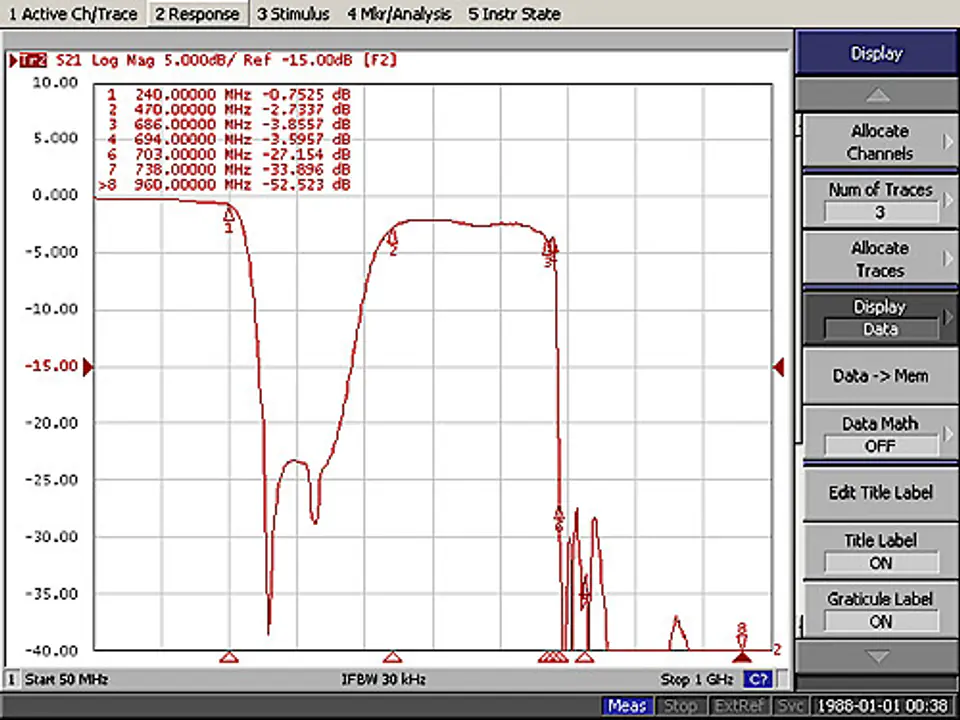

| Prohibitive attenuation:: | > 23 dB @ 350 MHz> 25 dB @ 703 MHz> 25 dB @ 733 MHz> 35 dB @ 1000 MHz |
| Scales:: | 0.17 kg |

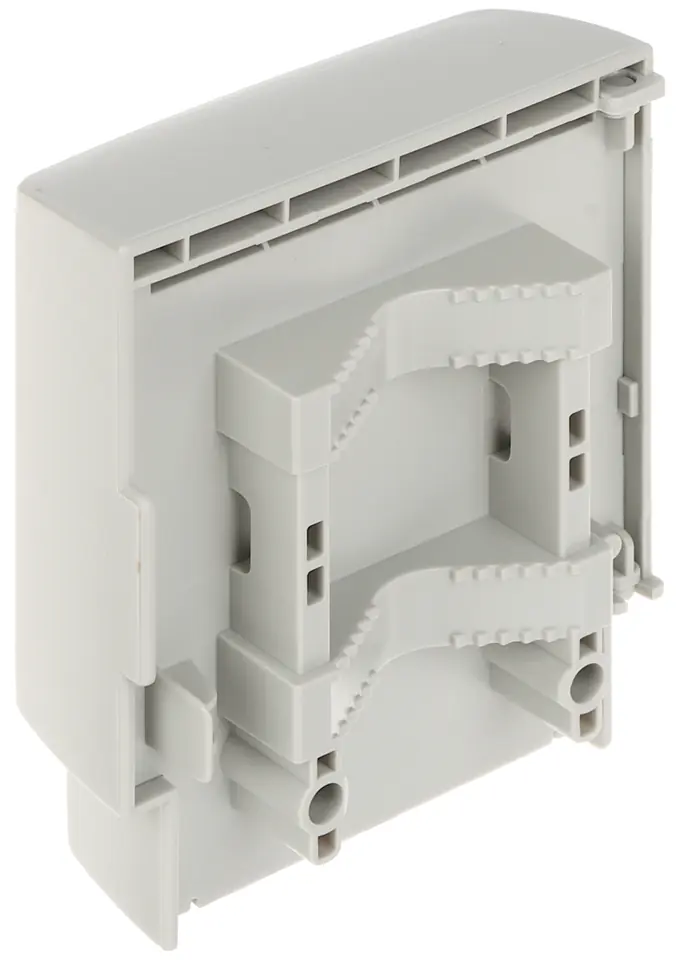

| Selected features:: | Has DC 24V/100mA shielded F connectors Mounting to mast |
| Through attenuation:: | < 0.3 dB @ 5 MHz< 2 dB @ 240 MHz< 3 dB @ 470 MHz< 4 dB @ 694 MHz |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
