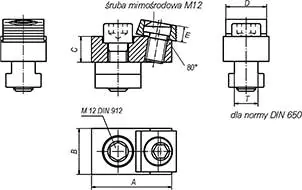

Lower pressure leg with eccentric screw
Universal pressure system for pressing workpieces of various shapes and forms, square, inclined, concave or convex.

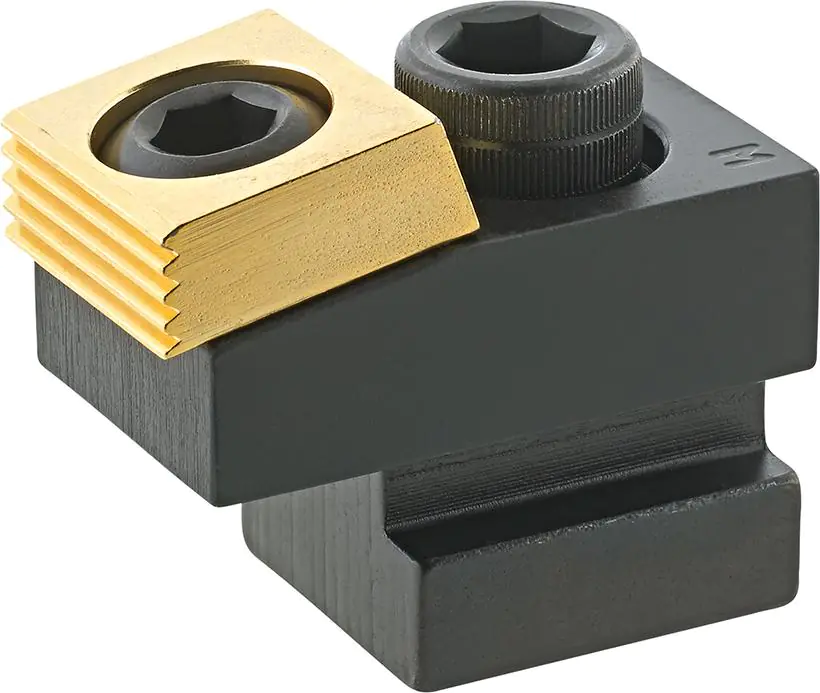

Design: the special feature of these clamps is a steel screw (with a strength of 10.9) with an eccentric head. Eccentricity causes a pressure movement with a very high clamping force. The clamping element is a brass hexagonal plate.
Application: with the help of thrust pins and 1 or 2 mounting screws, each element can be fixed in the most diverse forms. The low construction height enables trouble-free machining of the workpiece surface. In this way, it is not necessary to take into account the position of the clamping feet when programming the CNC. In addition, the small design dimensions allow ergonomic multiple mounting. The mounting clamps can also be used as stops.
Design: with heat treated T-nut and hardened pressure disc.
Application: the pressure plate can be rotated in such a way that its smooth side clamps the already machined parts without causing damage. In addition, cut off, forged or cast elements can be mounted on the toothed edge. The downward snapping effect presses the element against the ground. The pressure disc adapts to the angular position of the workpiece. In this way, you can also press down components without right angles.
