Wideband Panel Omnidirectional Antenna Poynting PUCK-12 2X2 Wi-Fi (MIMO) 7.5 dBi

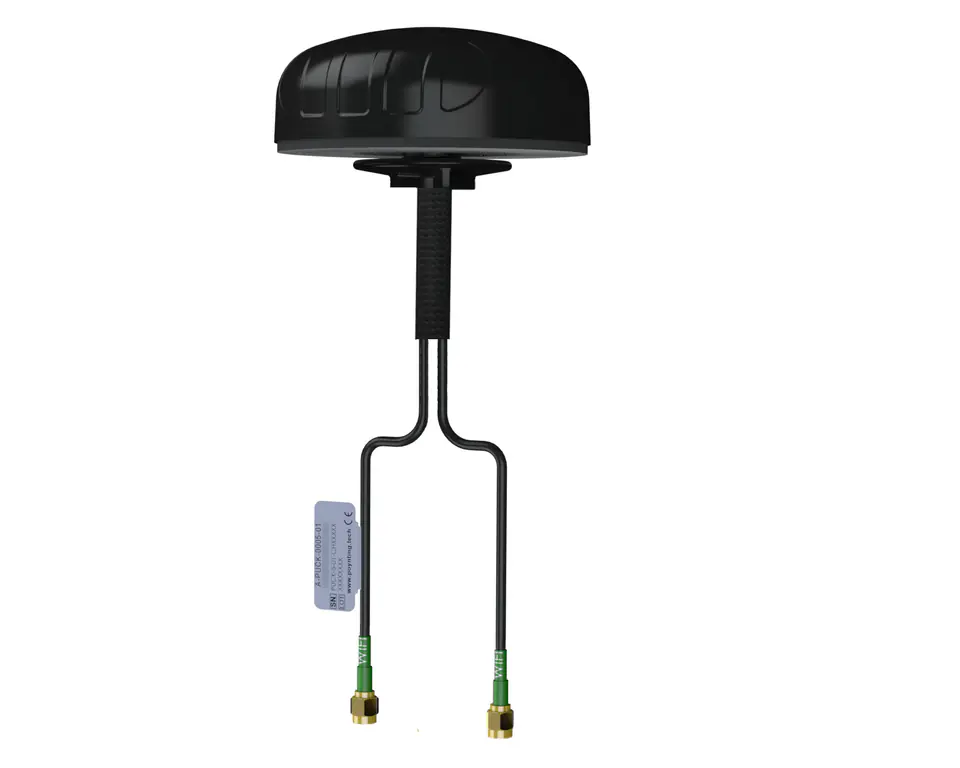

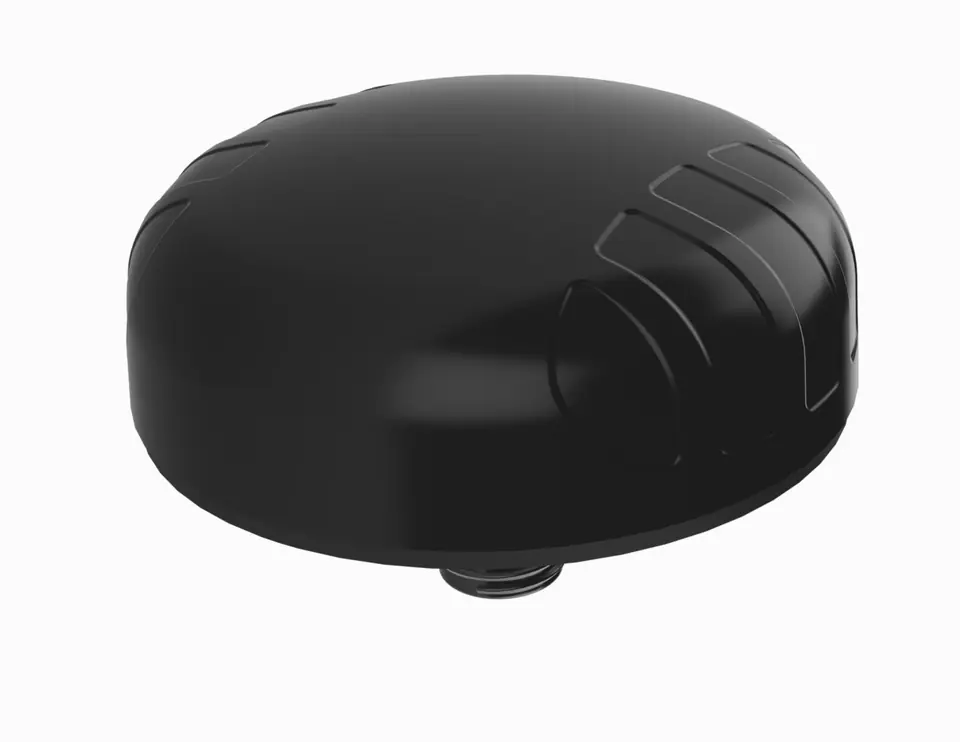

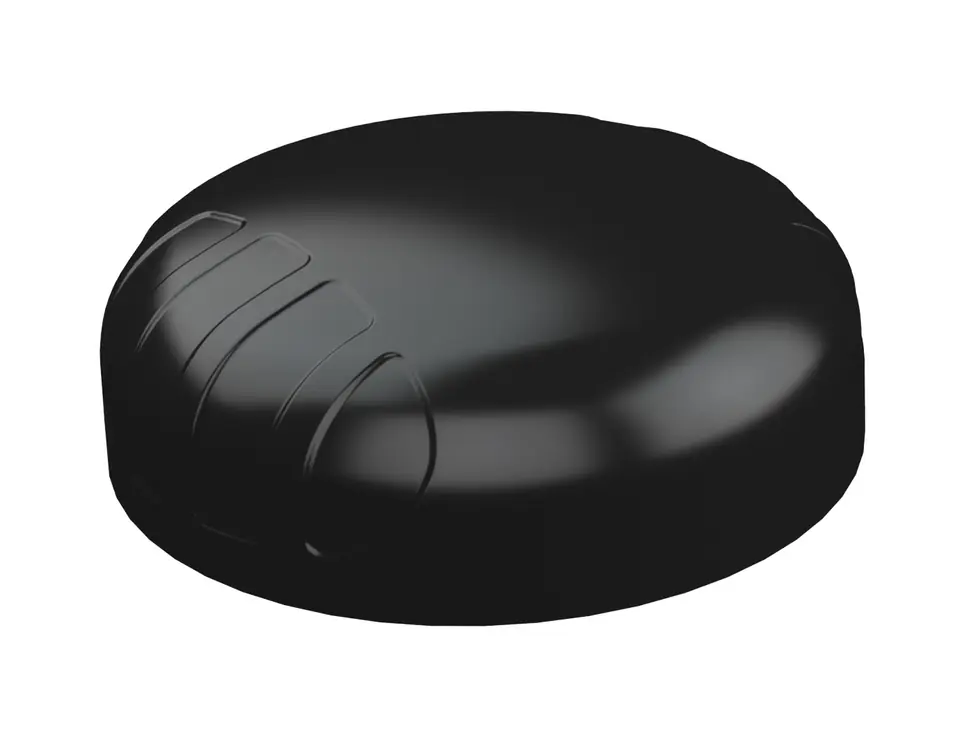

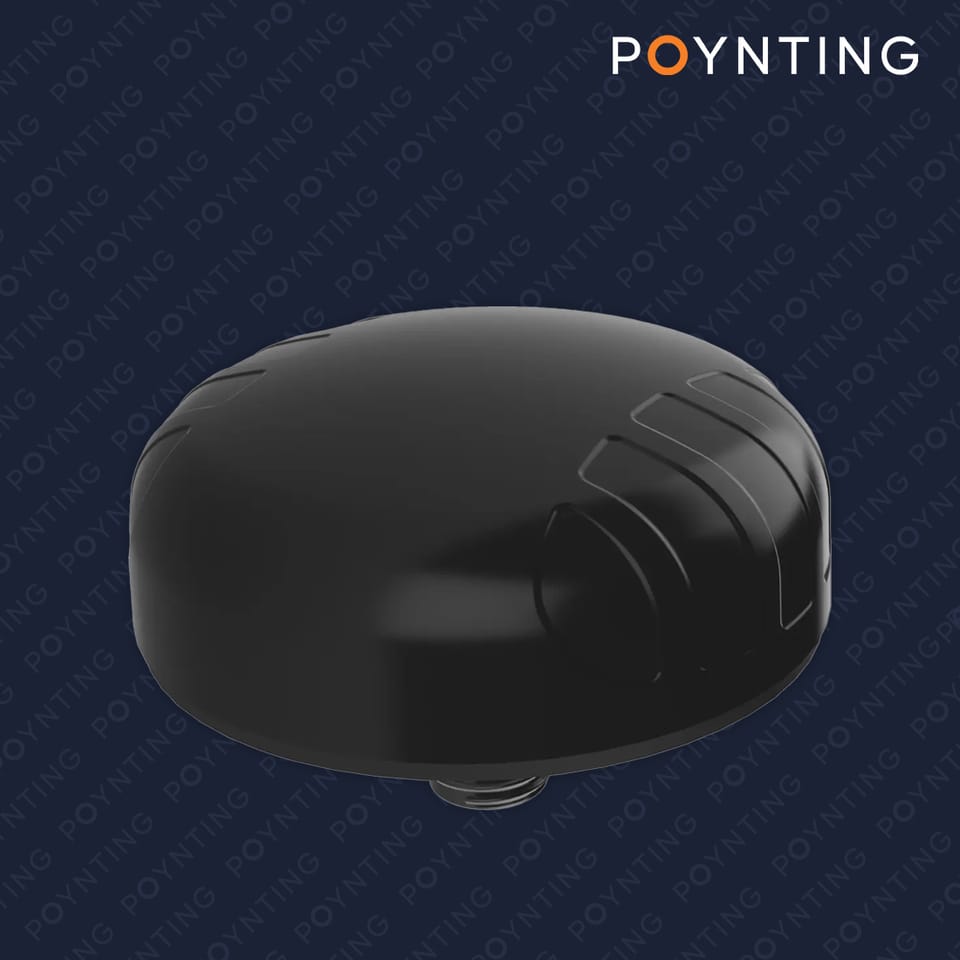

Poynting's new PUCK antenna offers a small profile antenna for use in IoT/M2M, smart meter, smart utility services, transportation, shipping, and agriculture. Puck-12 consists of a 2-in-1 antenna system in one housing, equipped with Wi-Fi 2×2 MIMO (dual-band 2.4 GHz and 5 GHz). The antenna provides two separate dual-band Wi-Fi antennas offering simultaneous 2.4GHz and 5GHz bands, supporting 802.11ni 802.11ac/ax with 2 × 2 MIMO. PUCK outperforms the performance of many competitors thanks to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, variety of patterns and good radiation abilities at the desired altitude, which is often overlooked in antennas of such small sizes. Despite its small size, this antenna provides excellent performance, especially in higher frequency bands, where performance is critical for Wi-Fi bandwidth and connection stability
- High performance 2 in 1 omnidirectional antenna
- Dual-band Wi-Fi, 2.4 GHz and 5 GHz frequency bands
- 2x2 MIMO for better performance
- Independent of the ground plane
- Robust, vandal-proof and waterproof housing (IP68)
- Ultra-veZAtile mounting options for easy installation
- Smart tools: smart metering of energy, gas and water
- Smart buildings: air conditioning control, access control, security, irrigation
- Digital Signage
- Warehouses and logistics systems
- Industrial automation, robotic machines and other M2M systems
- Transport (buses, utilities and public safety)
- Communication, telemetry and automation of mining vehicles and machines (M2M and IoT)
-Agricultural machinery
- Marine: small boats, yachts near coasts or internal waters

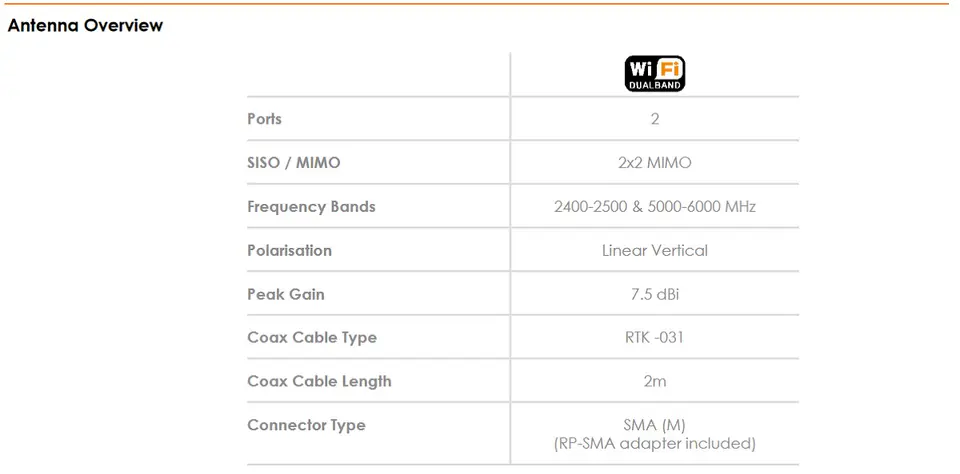

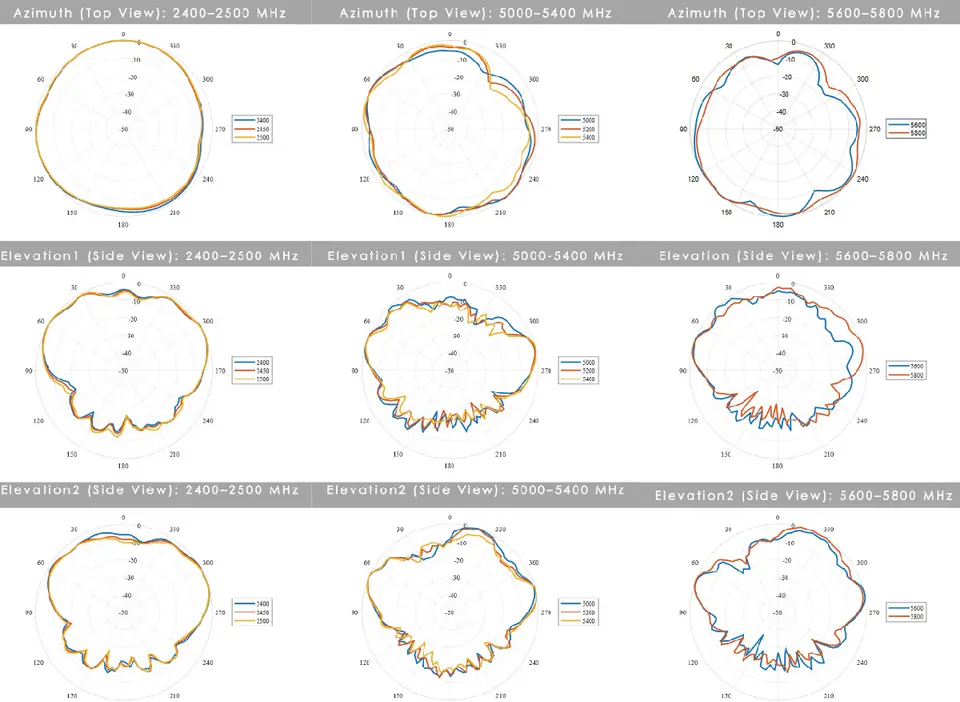

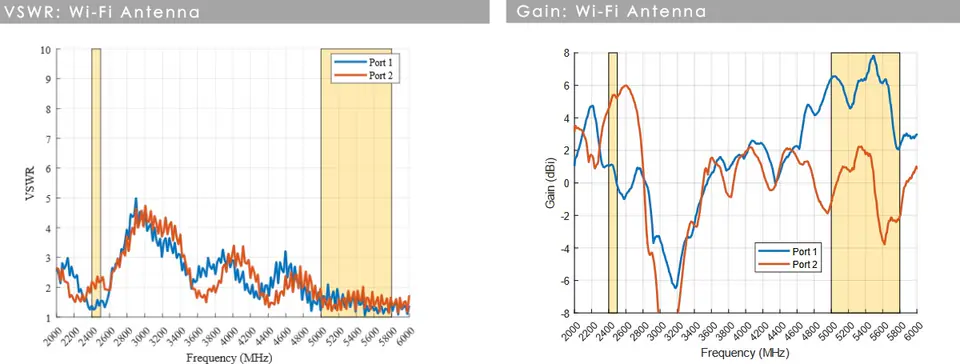

Voltage Wave Factor (VSWR)*
VSWR is a measure of the efficiency of transmitting radio frequency power from a power source through a transmission line to a load.
In an ideal system, 100% of the power is transmitted, which corresponds to VSWR 1:1. PUCK-12 provides excellent performance in all bands with VSWR ≤2.5:1 more than 95% of the bandwidth
Gain in dBi
7.5dBi is peak gain in all 2400-2500 and 5000-5800 MHz bands
- Gain at 2400-2500 MHz: 5 dBi
- Gain at 5000-5800 MHz: 7.5 dBi
link: https://youtu.be/wQ7WTtjMNPM
Links to other videos about PUCK-12: Unboxing - https://youtu.be/AfL5b7pRWbk
PUCK High Voltage Test - https://youtu.be/A-3FVcQjK-I
PUCK wind tunnel test - https://youtu.be/Yga3oqAGly0
Endurance Test - https://youtu.be/MS_gkMZ26tE
Building 4x4 MIMO solutions - https://youtu.be/YsRRjBAfX4k

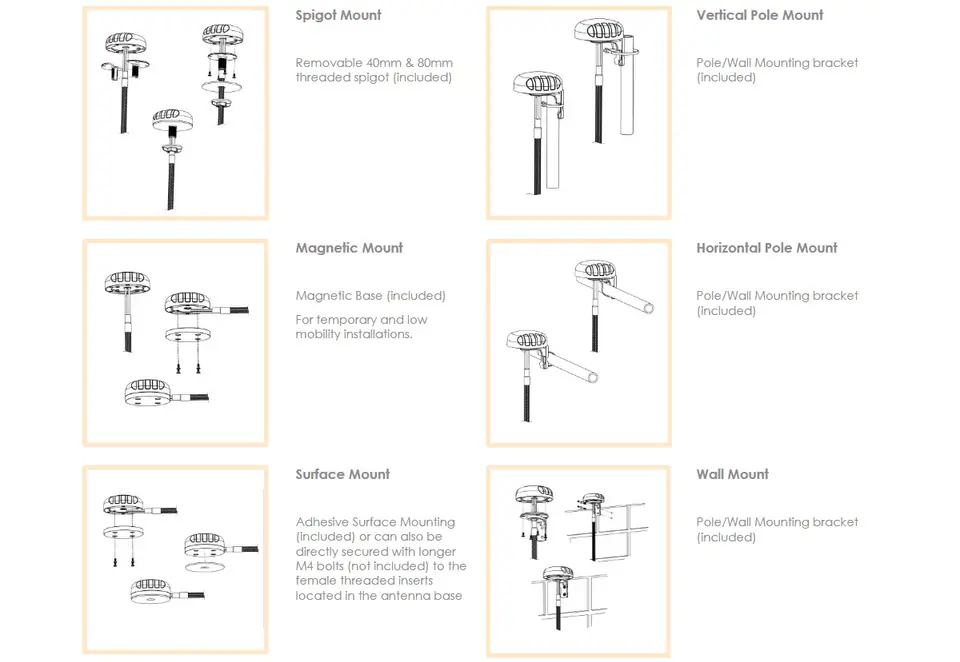

Poynting's new PUCK antenna series provides easy installation with multiple mounting options. This includes as standard:
- Attachment to the spigot - two different lengths (40 mm and 80 mm) included
- Vertical post mounting (internal and external mounting for smaller and larger poles)
- Horizontal pole mounting (e.g. sea rails)
- Magnetic mount
- Surface mounting (double-sided tape)
- Wall mount

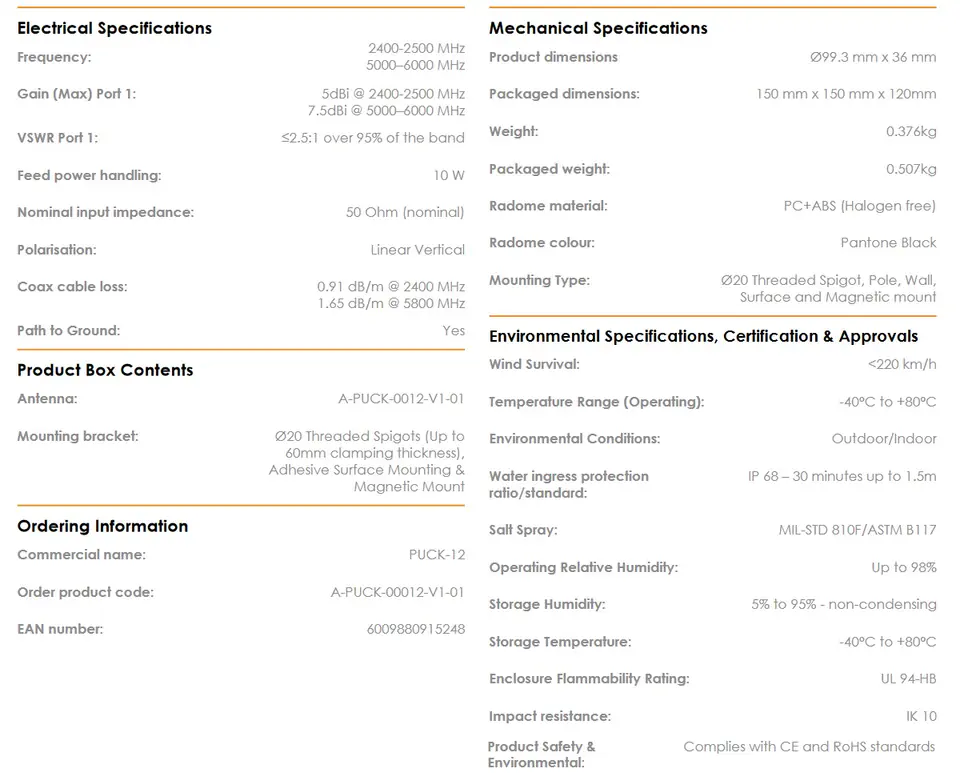

Click here for full technical documentation of the antenna.
