| H: | 14 mm |
|---|---|
| H1: | 5.5 mm |
| L: | 32 mm |
| Nominal size of grooves in the instrument: | 20 mm |
| Nominal size of inlets in machine tool b: | 12 mm |

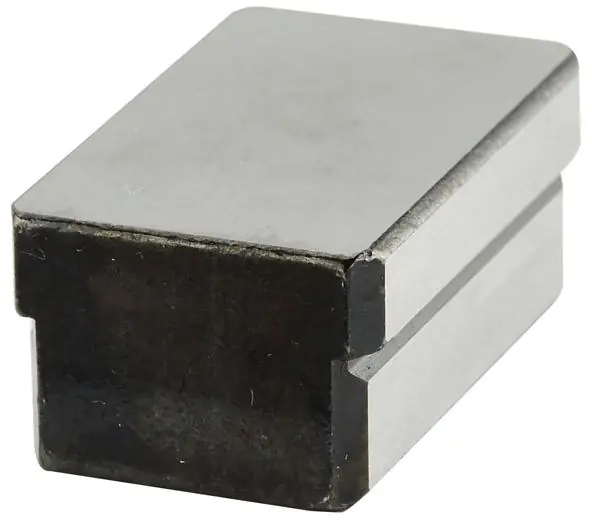

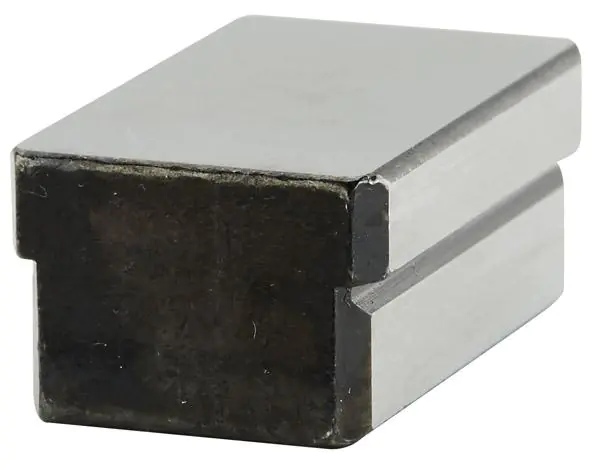

Retaining block, loose
Material: diffusion-hardened and grinded.
Material: C 15 steel.
Application: after pre-setting, the blocks are inserted from the side. The downward protruding grooves do not interfere with the transport of the device, so you can not damage the machine table.
