Longitudinal hole end milling cutter (keyway), HSS Co8, Fire coating
Design: with central blade.
Application: for milling keyways and keyways, for diameter in tolerance e8 for fitting P9.
Longitudinal hole cutter DIN327 M42 FIRE, shape D 12mm GÜHRING
€38.94
Shipping from warehouse: B6
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- GÜHRING
- Product code:
- 9036630120000 / 4031093385640
Share this product:
Specification
| Aluminium > 8% silicon: | 110 |
|---|---|
| Cast iron gg/gts: | 45 |
| Copper alloys: | 90 |

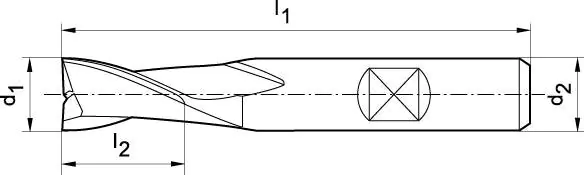

| Cutting part length l2: | 16.0 mm |
| Diameter d1 = e8: | 12.00 mm |
| Ggg cast iron: | 36 |
| Inox duplex: | 35 |
| Shank diameter d2 = h6: | 12 mm |
| Steel < 1000 n/mm2: | 44 |
| Steel < 1400 n/mm2: | 35 |
| Steel < 1400 n/mm2 fz: | 0.063 mm/rev |
| Steel < 700 n/mm2: | 55 |
| Titanium > 850 n/mm2: | 22 |
| Total length l1: | 73 mm |
